• Model NO.：LM5050-WN30-WW-12V
• LED Supplier：Honglitronic,Osram,Samsung
• LEDs material：packaged by 99.99% pure gold wire
• LED BINs：3-Step,5-Step, same BIN for each order
• LED Chip Brand：Sanan(Epistar optional)
• PCB Width：10mm
• PCB material：Double-sided coated pure copper
• PCB thickness：2Oz(front 35um,back 35um)
• Adhesive Tape：9495 3000LSE 3M tape
• IP Grade：IP20,IP60,IP65,IP68
• Transport Package：5m,Roll
• Specification：5000*10mm
• Trademark：Leomay
• Origin：Zhongshan Guangdong China
• HS Code：940540900
• Production Capacity：100000meters,Month

Basic Info.

Model NO. LM5050-WN30-WW-12V LED Supplier Honglitronic/Osram/Samsung LEDs material packaged by 99.99% pure gold wire LED BINs 3-Step/5-Step, same BIN for each order LED Chip Brand Sanan(Epistar optional) PCB Width 10mm PCB material Double-sided coated pure copper PCB thickness 2Oz(front 35um,back 35um) Adhesive Tape 9495 3000LSE 3M tape IP Grade IP20/IP60/IP65/IP68 Transport Package 5m/Roll Specification 5000*10mm Trademark Leomay Origin Zhongshan Guangdong China HS Code 940540900 Production Capacity 100000meters/Month

Product Description

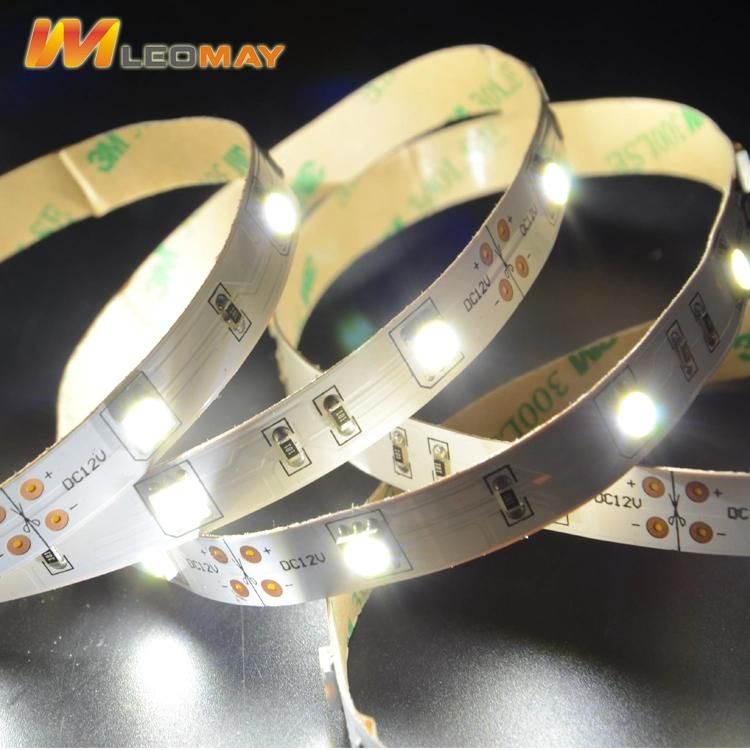

    High Brightness 5050 30LEDs/m Warm White Flexible LED Strip Light


Product Specification:


Model NO	LM5050-WN30-12V-10MM
Product Name	SMD5050  30LEDS/M  LED strips
PCB Width	10MM
LED Qty/m	30leds/m 5050
PCB Materials	2Oz Double-sided coated pure copper(can print your logo on PCB)
Voltage(V)	12V DC
Rated Power(W)	7.2W/M, 36W/5M
Luminous(lm/m)	840lm/m
LED Chip Brand	Sanan(Epistar optional)
LEDs material	packaged by 99.99% pure gold wire
LED BINs	3-Step/5-Step, same BIN for each order
LEDs Supplier	Honglitronic (Osram/Samsung optional)
CRI(RA>)	CRI80(CRI 90 optional)
Color	W/WW/CW/R/G/B/Y/O/UV/Pink
Color Tempertature	2200K,2700K,3000K,3500K,4000K,6000K,7000K
IP Rate	IP20 (IP54/IP67/IP68 optional)
View Angle	120
Product Size(mm)	10*5000mm
Package(m/rol)	5M/roll(1m/roll,10m/roll,20m/roll.50m/roll,100m/roll. Customized length available)
Working Temperature(ºC)	-20-60
Cutting Unit	3 LEDs
Adhesive Tape	9495 3000LSE 3M tape
Dimmable	Yes
Certificate	UL,CE,Rohs,FCC.
Warranty	3 Years

Features



1. We have CE, RoHs, UL, DVE, GS and FCC certifications.
2.  White. Warm white, red, blue, green, RGB for optional.
3.Low power consumption and long lifespan for 50000 hours.
4. High CRI. 80-90Ra.
5. High Lumen. 25-30 lumen per led.
6. We use 9495 3M Tape.
7.We offer OEM services.



 Our Service:

1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We own well-trained and professional sales and after-sales who can speak English frequently.
3. We offer OEM services. Can print you logo on product, can customize the retail box packing and the other things.
4. We have very experienced R&D engineers and we have strong ability to do ODM.

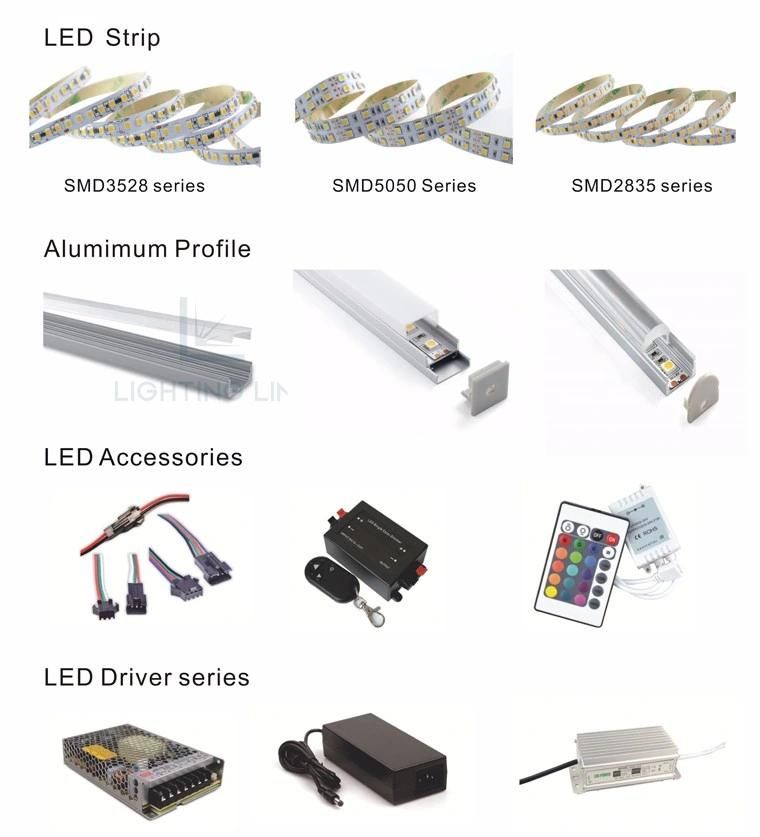

Catalog&Accessories






Certifications

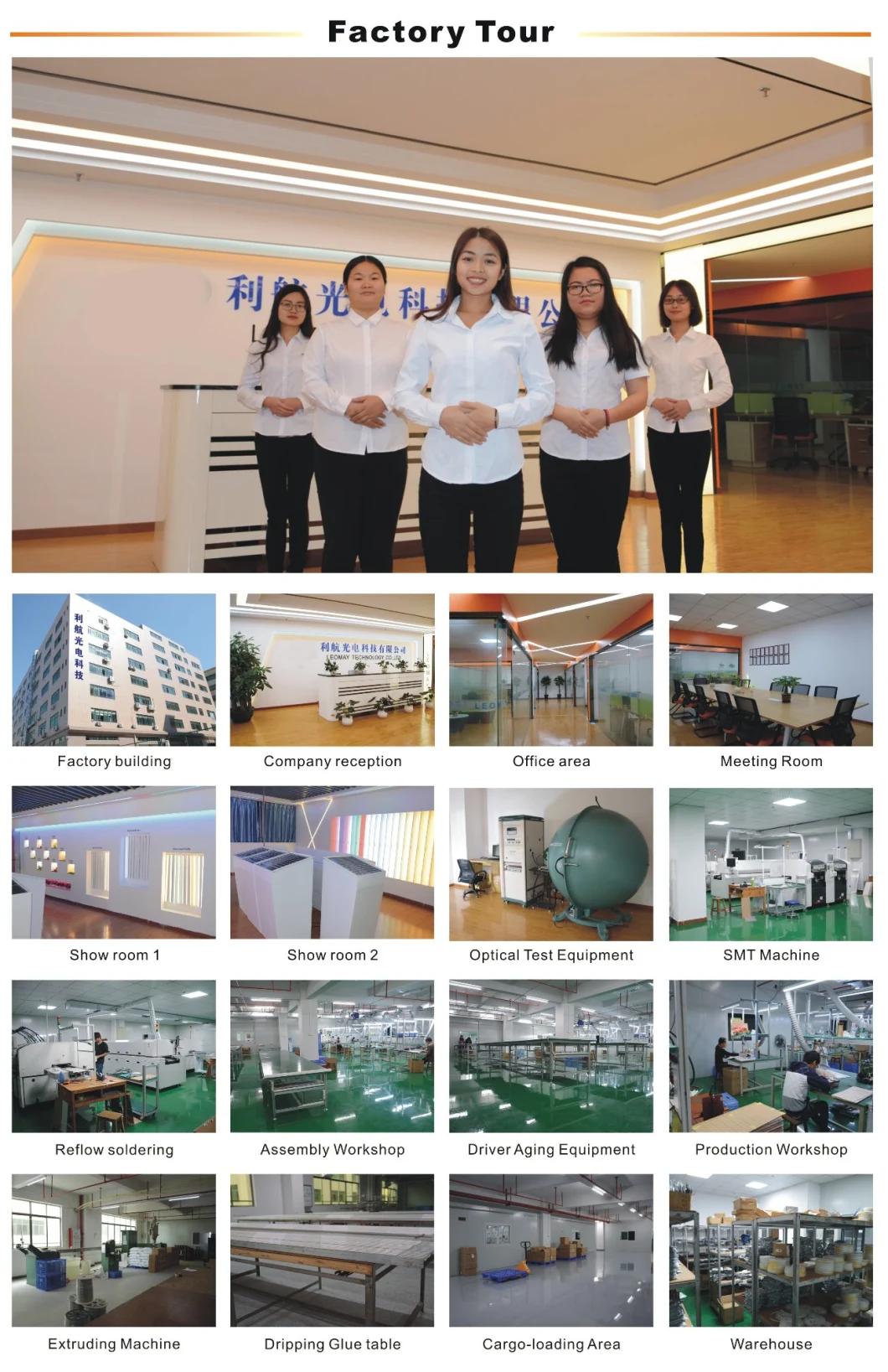

 Company Information

About Leomay

Established in 2011, Leomay Technology Company is a high-tech enterprise and certified by UL,CE,FCC,RoHS and SGS, which is engaged in researching, manufacturing and selling new LED lighting products. Now Leomay products mainly cover LED Strip Light, LED Rope Light, Aluminum profile, LED Linear Light, LED Panel Light, LED Tube, etc.

Leomay will and always insists on the principle of ' Provide High Quality LED Light and Professional Service for All Customers', especially 3 years OEM service, we not only have lots of self-designed and private items, but also offer customized products, such as customers logo, packing, CRI 90 or CRI95, LM80 etc., which all completely follow CE, RoHS, EMC and UL standards.

As a well-known LED lighting manufacturer, we will keep improving our products quality and service for all of our valued customers.



After-sales Service:

All led strips come with 2 years warranty. If the strip lights are operated properly and got quality issue during warranty period, we repair and replace the light at our our cost(including shipping cost.
