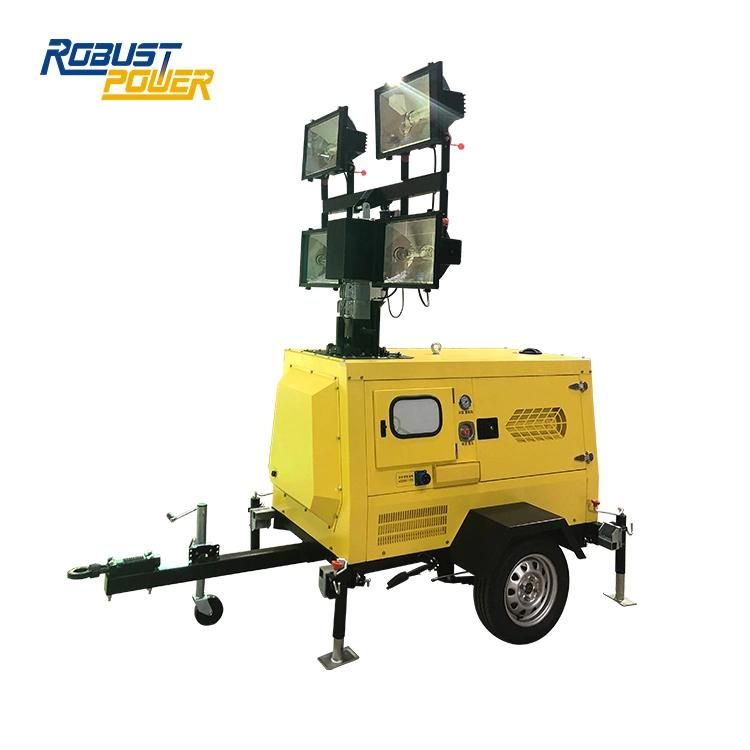

Metal Halide Lamp Construction Mobile Lighting Tower Supplier

Hebei Rongyuan Plastic Products Co., Ltd.
  • Engine：Kubota D1703-Bg
  • Alternator：Sinocox
  • Engine Speed：1500rpm,1800rpm
  • Power Generation：10kw or 12kw Continuous (DC)
  • Voltage：110V, 120V, 220V, 230V, 240V, 250V
  • Light Power：6*1000W Mhi

Base Info

  • Model NO.：RPLT-6700
  • Lumen Output：6*110,000lm
  • Guarantee：2000h
  • IP Grade：IP54
  • Delivery Time：Within 35 Days After Receiving Deposit
  • Transport Package：Plywood Pallet,Plwood Case,Cartons
  • Specification：ISO9001: 2000, CE
  • Trademark：Robust Power
  • Origin：China
  • HS Code：94054090
  • Production Capacity：250set,Month

Description

 LightKubota Powered LED Mobile Light Tower Price and Mobile Light Tower manufacturesHousing MaterialAluminium die castType of lightsLED Lamp/Metal Halide LampPower of lights

4*480W LED lamps
4/6*1000W Metal Halide Lamp
4*1500W Metal Halide Lamp

Lumen Output4*43,500lm/ 4*110,000lm ( total )VoltageAC 110-240V Frequency50/60Hz Longevity3 years/2000 HrsWaterproof gradeIP65/IP54Color temperature2100K-5700KMast Material of mastGalvanized ironMast lifting type Manual mastMast section6-section telescopicMast rotation system358° manual operationMax. height of mast8.6meters  Engine Engine modelKubota D1105 3 cylinder, in-line, water cooledStart systemElectric (Battery start)AlternatorSinocoxEngine speed50hz/1500rpm, 60hz/1800rpmRated power50hz/7.2kw,  60hz/8.0kwInsulationHFuel tank capacity100LFuel consumption2.0L/hr Maximum Working Hours50HController systemDigital control panel GU3303Waterproof gradeIP54 Engine shutdown protectionLow oil pressure, over speed, over current, high-temperature detection,
 low fuel level Trailer Stabiliser SupportsOptional 4*Manual or 4*HydraulicTow HitchRing/ball hitchTire Size13 inchBrakesManualPacking Net weight930/890 kgDimention4500X1350X1700 MM


Metal Halide Lamp Construction Mobile Lighting Tower Supplier

Technical Data:

Light
Housing MaterialAluminium die cast
Type of lightsLED Lamp
Power of lights4*720W/6*480W SAA certified Robust Power LED lamps
Lumen Output4*100,800lm/6*67,200lm ( total )
VoltageAC 110V-240V, DC 48V
Frequency50/60Hz
Longevity3 years
Waterproof gradeIP65
Color temperature2100K-5700K
Mast
Material of mastGalvanized iron
Mast lifting type Hydraulic mast
Mast section3-section telescopic
Mast rotation system270° manual operation
Max. height of mast10meters
Engine
Engine modelKubota Z482 2 cylinder, vertical, liquid cooled
Start systemElectric (Battery start)
AlternatorSinocox
Engine speed2200rmp
Rated power4kW continuous
InsulationH
Fuel tank capacity270L
Fuel consumption1.0L/hr
Maximum Working Hours270H
Controller systemDigital control panel
Waterproof gradeIP54
Engine shutdown protectionLow oil pressure, over speed, over current, high-temperature detection, low fuel level
Trailer
Stabiliser SupportsOptional 4*Hydraulic
Tow HitchRing/ball hitch
Tire Size16 inch
BrakesManual
Packing
Net weight1850/1902 kg
Dimention4500X1350X1700 MM

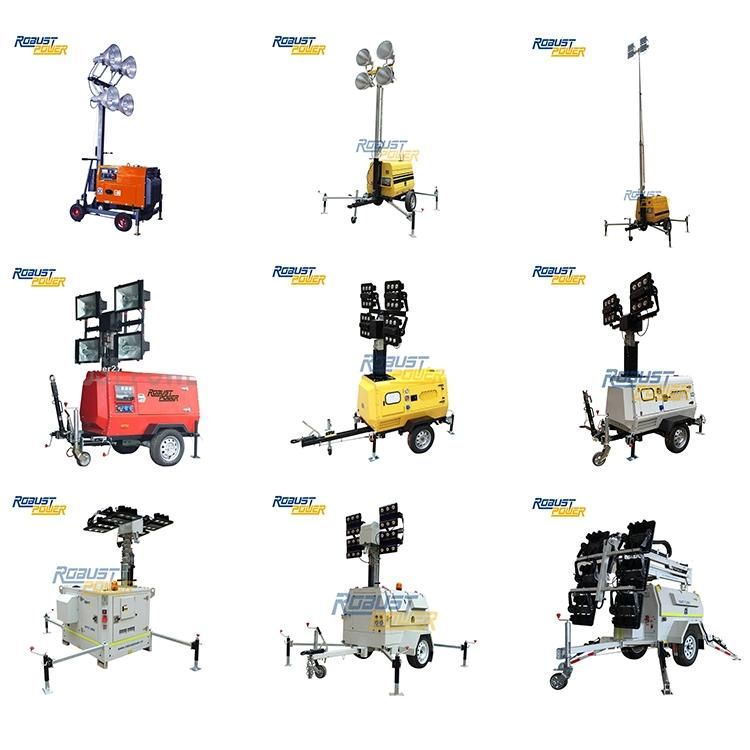

Robust Power Models:
Metal Halide Lamp Construction Mobile Lighting Tower Supplier

No.ModelMastPower of LampsEngine Model
1RPLT16004.8M Manual4*400W Metal Halide LampRP186FA
2RPLT16004.8M Manual4*160W LEDRP186FA
3RPLT16004.8M Manual2*1000W Metal Halide LampRP186FA
4RPLT60009M Manual 4*1000W Metal Halide LampKubota D1105 (Japan)
5RPLT60009M Manual 4*240W LED Kubota D905 (Japan)
6RPLT68008.6M Hydraulic4*1000W Metal Halide LampKubota D1105 (Japan)
7RPLT68008.6M Hydraulic4*1500W Metal Halide LampKubota D1105 (Japan)
8RPLT68008.6M Hydraulic4*480W LED Kubota D905 (Japan)
9RPLT38007M Hydraulic4*480W LED Kubota Z482 (Japan)
10RPLT69008.5M Hydraulic4*480W LED Kubota D1105 (Japan)
11RPLT720010M Hydraulic6*480W LED Kubota D1105 (Japan)
12RPLT720010M Hydraulic4*720W LED Kubota D1105 (Japan)
13RPLT76009M Hydraulic6*480W LED Kubota D1105 (Japan)
14RPLT76009M Hydraulic4*720W LED Kubota D1105 (Japan)



Metal Halide Lamp Construction Mobile Lighting Tower Supplier

Metal Halide Lamp Construction Mobile Lighting Tower Supplier

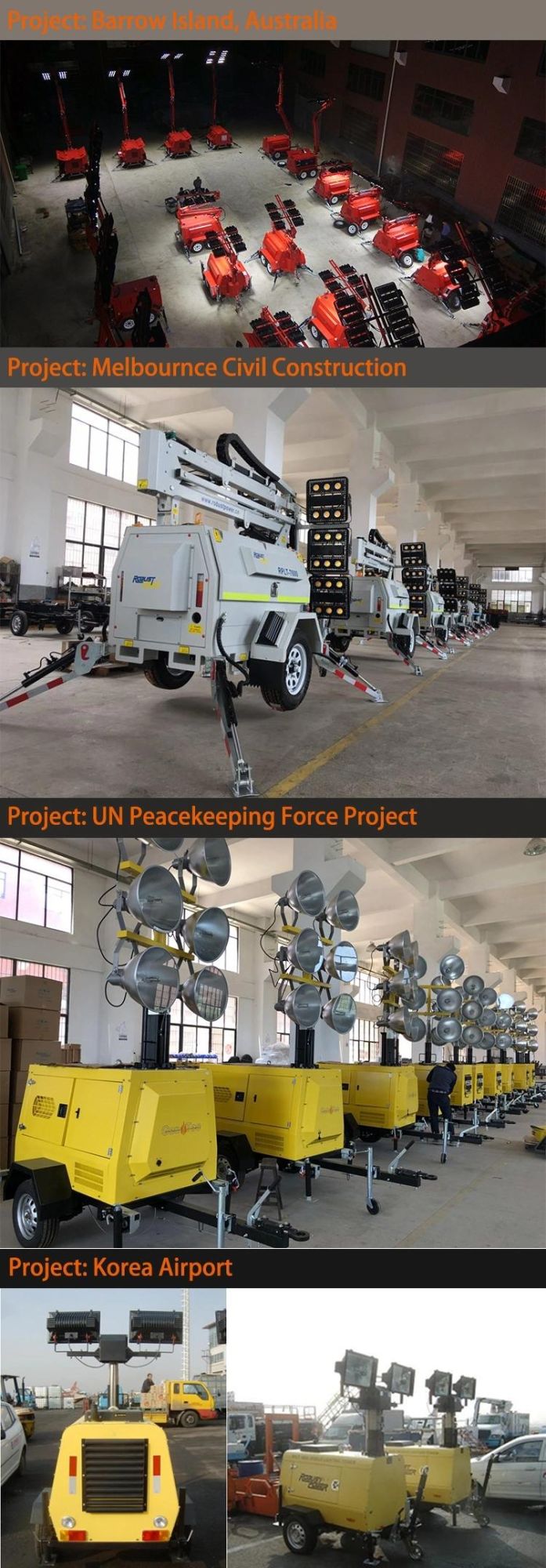

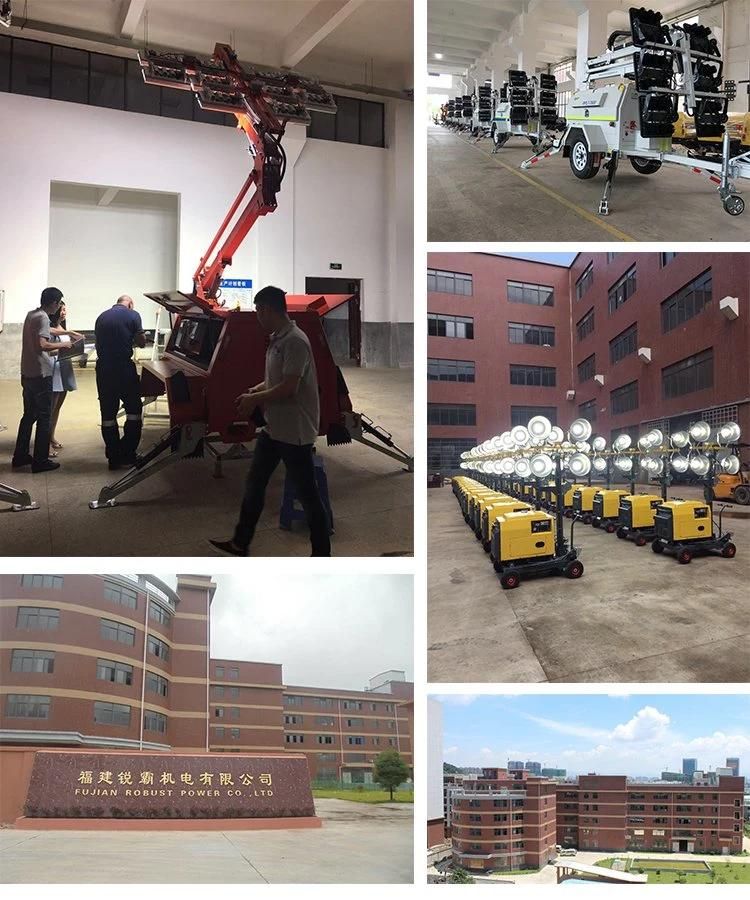

Project:

Metal Halide Lamp Construction Mobile Lighting Tower Supplier

Certifications:
Metal Halide Lamp Construction Mobile Lighting Tower Supplier

FAQ:
Metal Halide Lamp Construction Mobile Lighting Tower Supplier
