• Model NO.：1.95mm
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP33
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：250*250mm
• Cabinet Size：500*500mm
• Cabinet Material：Die-Casting Aluminum
• Brightness：1000 Nits
• Refresh Rate：3840Hz
• Maintenance：Rear and Front Service
• Scan Method：1,32
• Controller：Nova
• Ave.Power Consumption：200W,Sqm
• Max.Power Consumption：600W,Sqm
• Screen Resolution：262144dots,Sqm
• Gray Scale：16 Bit
• Transport Package：Flight Case,Wooden Case
• Specification：4,6,8 pcs cabinet in one case
• Trademark：CKGLED
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：6000sqm,Per Month

Basic Info.

Model NO. 1.95mm System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP33 Certification CE, RoHS, UL, CCC, ETL Module Size 250*250mm Cabinet Size 500*500mm Cabinet Material Die-Casting Aluminum Brightness 1000 Nits Refresh Rate 3840Hz Maintenance Rear and Front Service Scan Method 1/32 Controller Nova Ave.Power Consumption 200W/Sqm Max.Power Consumption 600W/Sqm Screen Resolution 262144dots/Sqm Gray Scale 16 Bit Transport Package Flight Case/Wooden Case Specification 4/6/8 pcs cabinet in one case Trademark CKGLED Origin Shenzhen, China HS Code 8528591090 Production Capacity 6000sqm/Per Month

Product Description

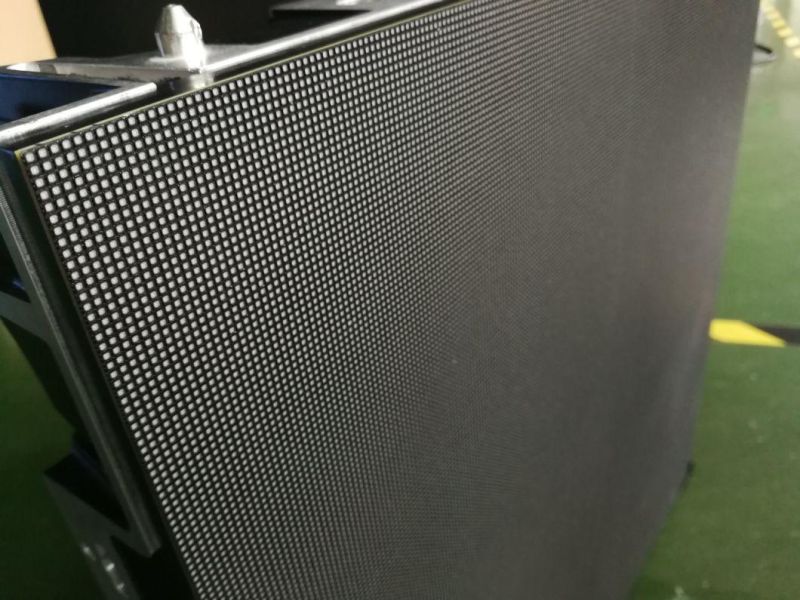

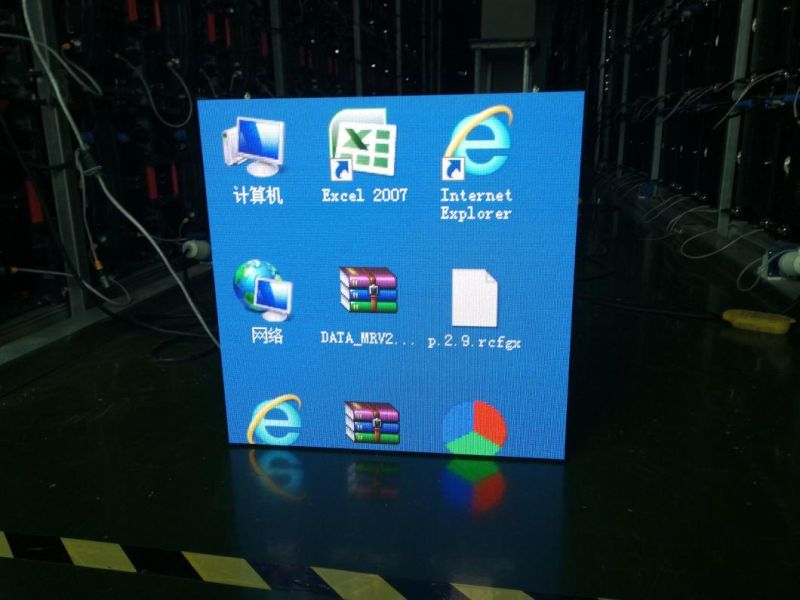

INDOOR HIGH DEFINITION FULL COLOR T1.9 SERIES

Products Feartures:

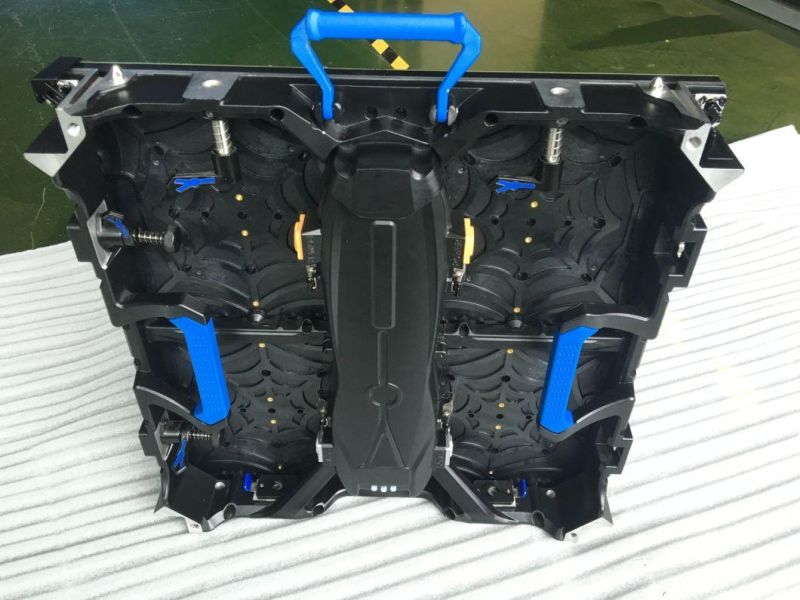

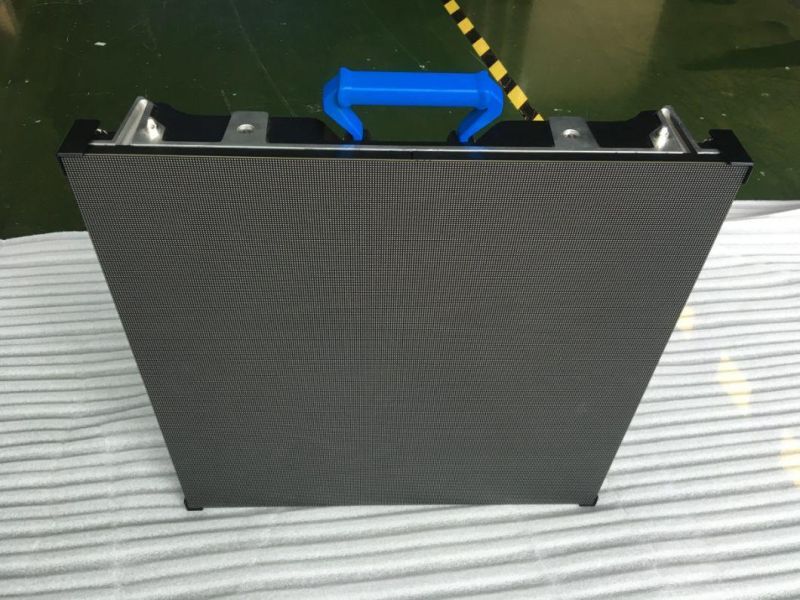

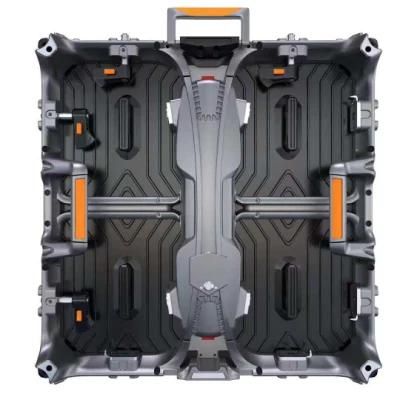

1. New creative cabinet design, easy to operate

2. Flexible Corner protector design to prevent the led lamps from damage during installation

3. Double side locks, it is easy to install and removal so that save labor force and time

4. Front service and rear service for easy maintenance

5. Strong cabinet handle design


P1.95MM INDOOR LED RENTAL SCREEN SPECIFICATIONS:


NO.	Parameter	Specifications
1	Model	T1.9
2	Pixel Pitch(mm)	1.95
3	LED encapsulation	SMD1515
4	Screen Resolution(dots/M2)	262,144
5	Scan Method	1/32
6	Module size(mm)	250X250
7	Cabinet size(L*W*H)	500X500X88
8	Maintenance	Front and Rear Service
8	Cabinet(Kg)	7.2KG
9	Viewing angle	H:140° V:140°
10	Grey Scale	16bit
11	Refresh rate(HZ)	≥3840
12	Brightness(nits)	≥1000
13	Working Voltage(V)	AC 100~240V
14	AVE. power consumption (W/M2)	200
15	MAX. power consumption(W/M2)	600
16	IP grade	IP33
17	controller	Nova
18	Working humidity	10~90%RH
20	Working temperature	-30ºC~60ºC
21	Storage temperature	-40ºC~70ºC

CKGLED FACTORY WORKSHOP:

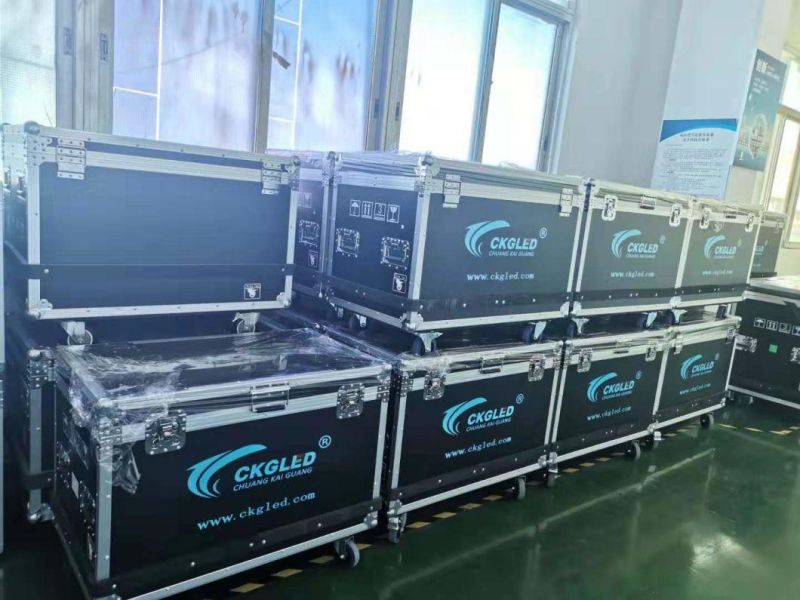

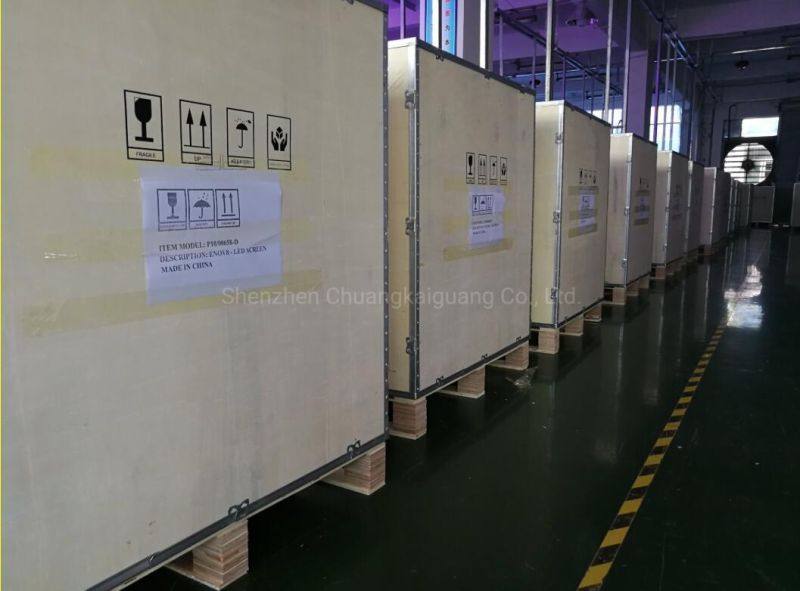

Packing ready to shipping:

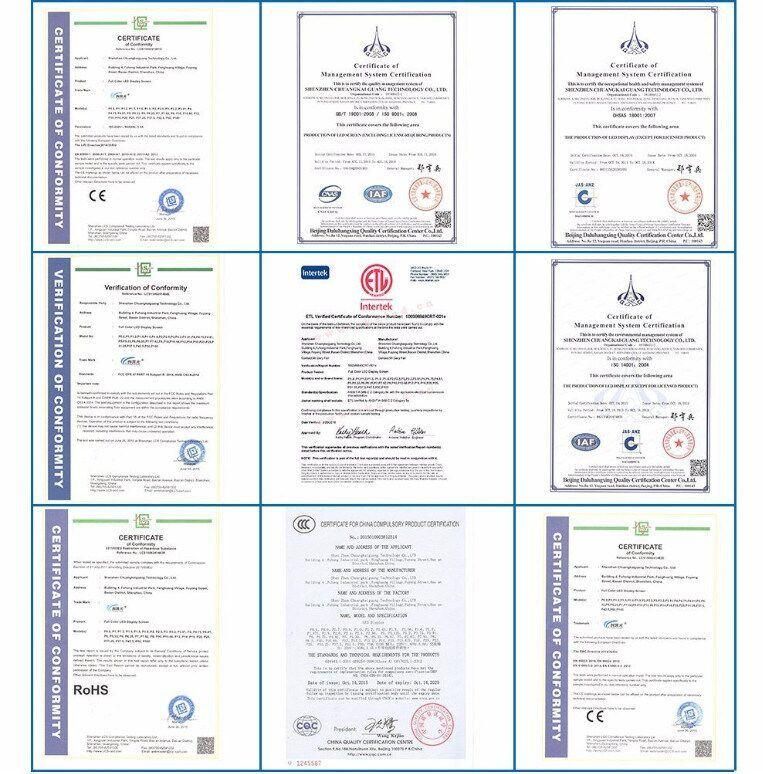

CKGLED PRODUCTS CERTIFICATIONS:

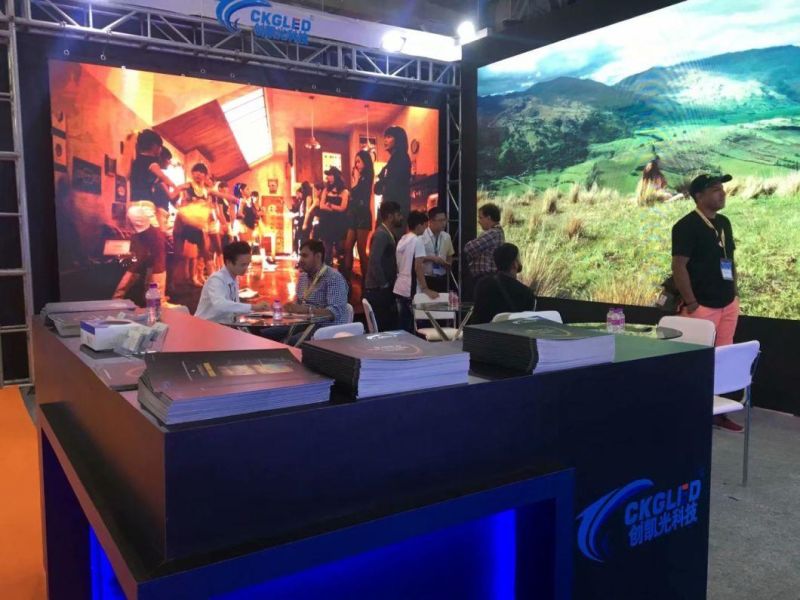

CKGLED FOREIGN LED EXHIBITION:





After-sales service:


Pre-producing  1. Get complete requirements of clients

                         2. To do a thorough analysis

                         3. Offer a most resonable and scientfic solution

                         4. Customized design

In producing     1. Producing progress updating for clients

                          2. Particular Installation CAD and design diagram for clients

After service:   1. 2 years free maintenance

                         2. 7 days a week, 24 hours a day on-line service for any technical support for any customers

                         3. Free trainning for customers in factory

                         4. Local partner Installation Service
