Factory High Quality waterproof Rental Full Color Outdoor LED Display
Danyang Yun Kai Metal Products- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：3.91mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：250W,Sqm
Base Info
- Model NO.：3.9mm
- Pixel Density：65536dots,Sqm
- Scanning Mode：1,16 Scan
- Display Type：LED Video Display

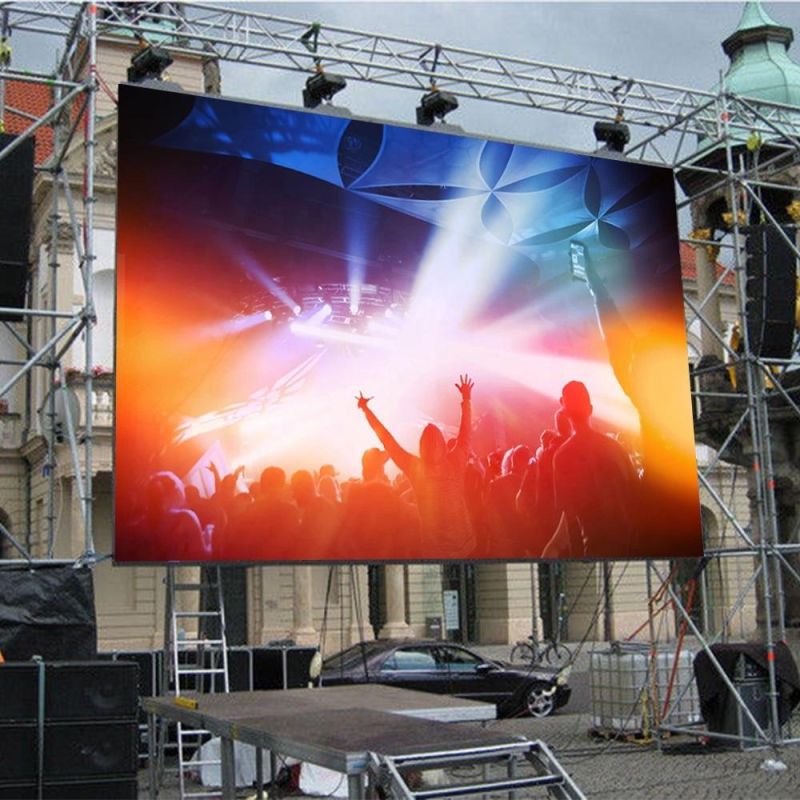

- Application：Stage Performance
- Certification：CE, RoHS, UL, CCC, ETL

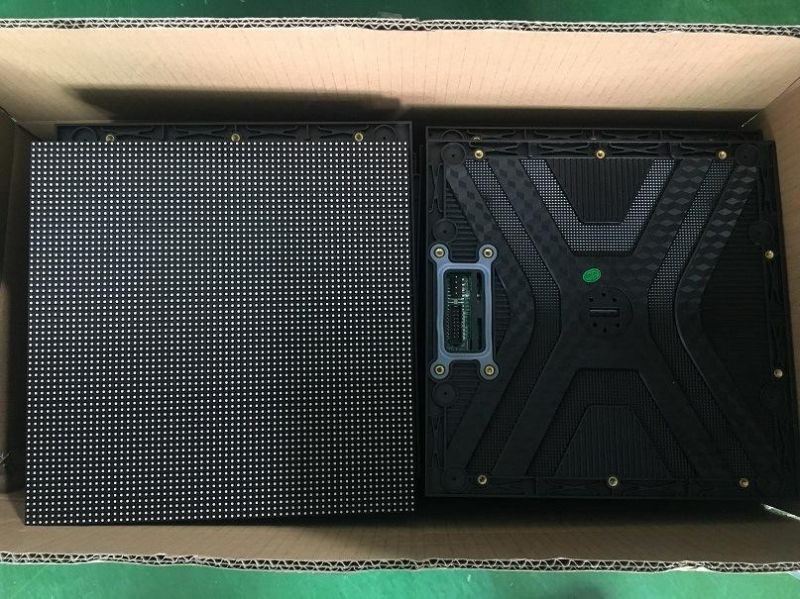

- Module Size：250X250mm
- Module Resolution：64X64dots

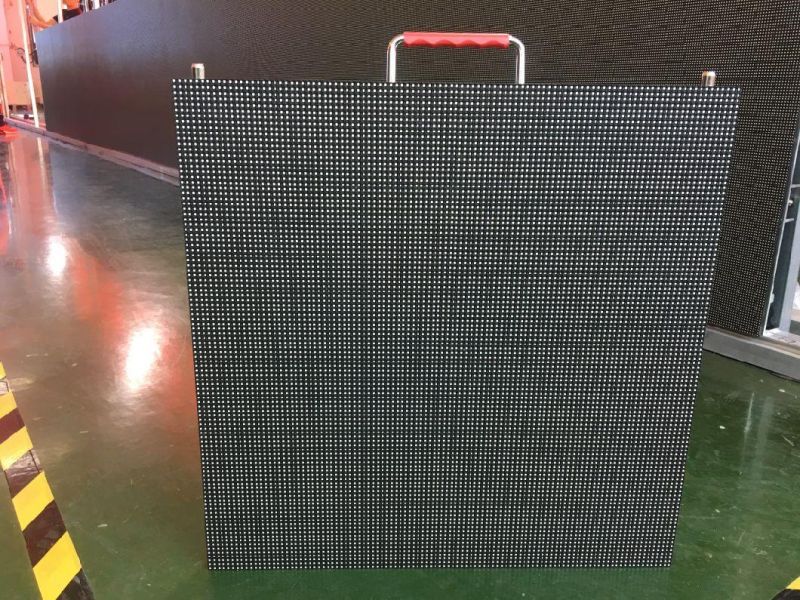

- Cabinet Size：500X1000mm,500X500mm
- Cabinet Resolution：128X256dots
- Screen Brightness：5500nits
- Refresh Rate：1920-3840Hz
- Controller：Nova
- Compliance：Ce , RoHS ,CCC,FCC,UL
- Maintenance：Rear Service
- Frame Frequency：60Hz
- LED Type：SMD1921

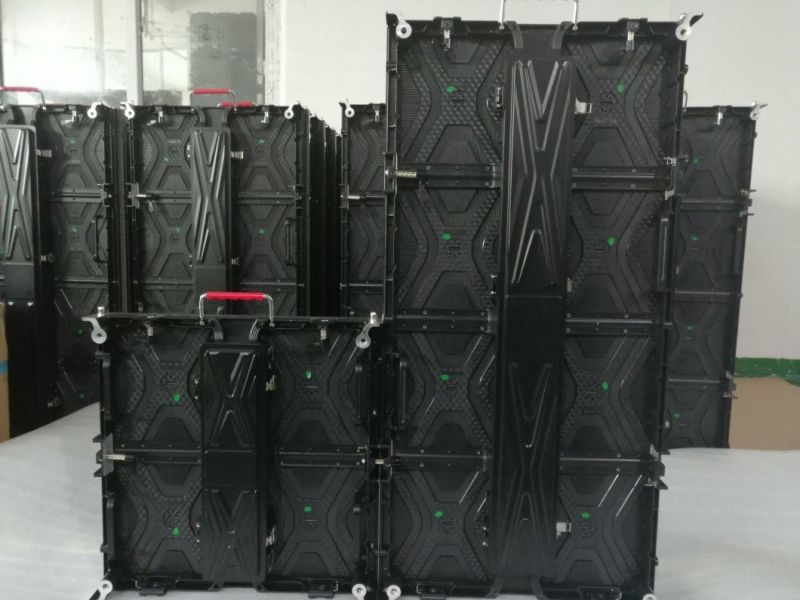

- Cabinet Material：Die-Casting Aluminum
- Protection Grade：IP65 Waterproof
- Drive Method：1,16 Scan
- Avg.Power Consumption：250W,Sqm

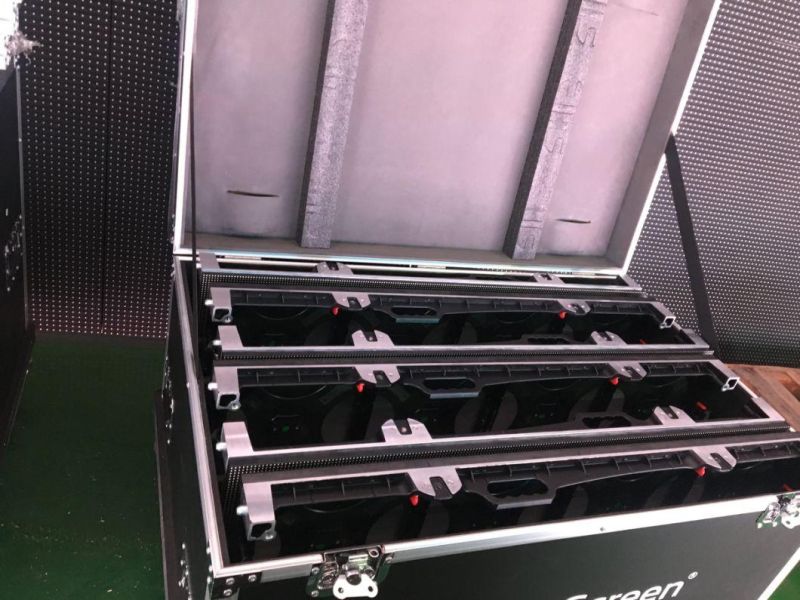

- Transport Package：Flight Case
- Specification：4,6,8 pcs cabinet in one case
- Trademark：CKGLED
- Origin：China
- HS Code：8528591090
- Production Capacity：6000sqm,Month
Description

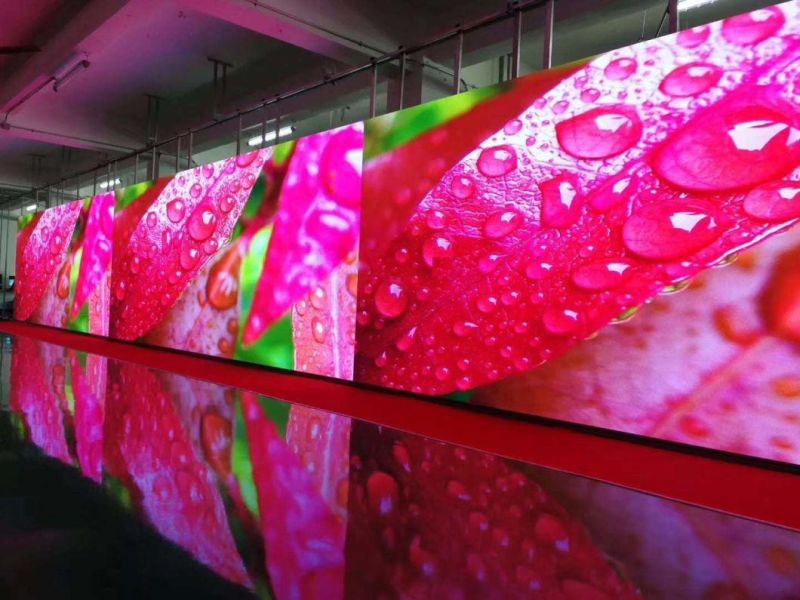

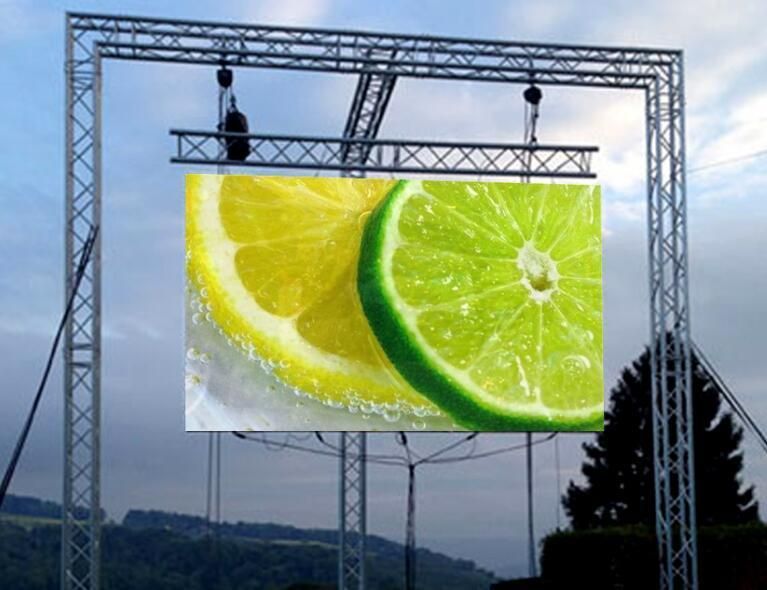

PRODUCT PICTURE:

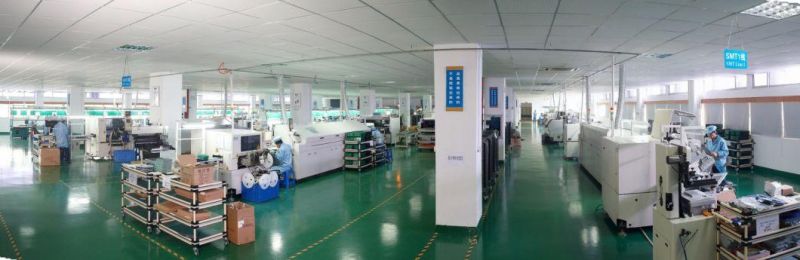

In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.
(1) Every batch of LED will get a strict testing to exam its performance and quality.
Testing includes:
1. Photometric performance
2. Colorimetric performance
3. Electric performance
(2) For the Printed circuit board (PCB), it will get a high temperature baking after unpacking to drive out moisture.
Baking environment:
130ºC
2 hours
(3)For soldering checking Each PCB in module should go through this scanning, make sure displays get the assured quality

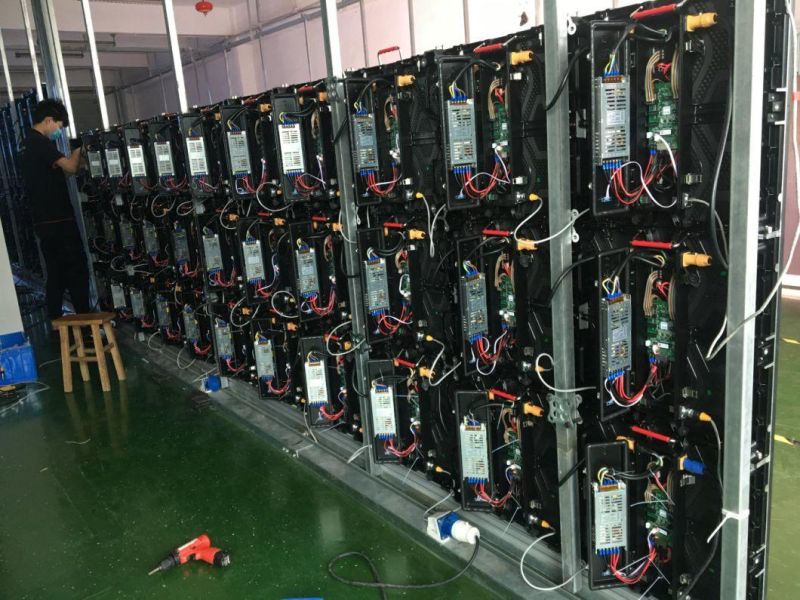

48 hours high brightness aging for the LED module and 72 hours aging for finished displays,
in order to guarantee the final products steady performance and long MTBF.
Our Service:
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms:
1. Package: Anti-shaking wooden package, Air flight case or Carton package;
2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China;
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
