Diesel Heating Spraying and Drying Cabin for Heavy Machinery
1.FEATURES
The truck spray booth IT-15-5C is designed for customers who look for economical solution.
This model comes standard with rear semi downdraft airflow. The air is extracted through rear exhaust plenum chambers, requiring no floor excavation.
It has robust cabin structure, rock wool walls, ceiling and sidewall lights, efficient air handling unit and easy-to-operate control. All these provide you with practical but cost-performance option and extraordinary experience.

Infitech can also provide you with customized solution according to your specific requirements.

2.SPECIFICATIONS

ITEMS	SPECIFICATIONS
Model	IT-15-5C Rear Semi Downdraft Truck Spray Booth
Design standard	BS EN 13355: 2004+A1:2009 BS EN 60204: 2006+A1:2009
Internal dimensions	15000 X 5000 X 5000mm (L X W X H)
External dimensions	17350 X 5170 X 5800mm (L X W X H)
Airflow	Rear Semi Downdraft
Plenum (height)	800mm
Extraction	Exhaust plenum chambers at the rear
Extraction area	20m2
Entrance door	4270x4800mm (WxH), 1 set
Service door	800x2000mm(WxH), 4 sets
Walls	60mm rock wool walls
Ceiling lights (LED)	20 sets, each 4 X 18W, 1,440W total
Sidewall lights (LED)	18 sets, each 4 X 18W, 1,296W total
Brightness	>1,000LUX
Filters	Bag filter, high efficiency ceiling filter, filter at exhaust plenum chambers, exhaust filter
Intake/Exhaust unit	Direct-type turbine fan, 1x11KW, SIEMENS motor
Air volume	35,000m3/h
Empty loaded air speed	0.39m/s
Heats	315kw heat exchanger, RIELLO diesel burner RG5D
Maximum working temperature	80ºC
Controls	CE standard control box
Inverter	SCHNEIDER inverter
Option	Man lift; Touch screen control; Electric entrance door
Rated power	30KW

3.DETAILS
AIRFLOW

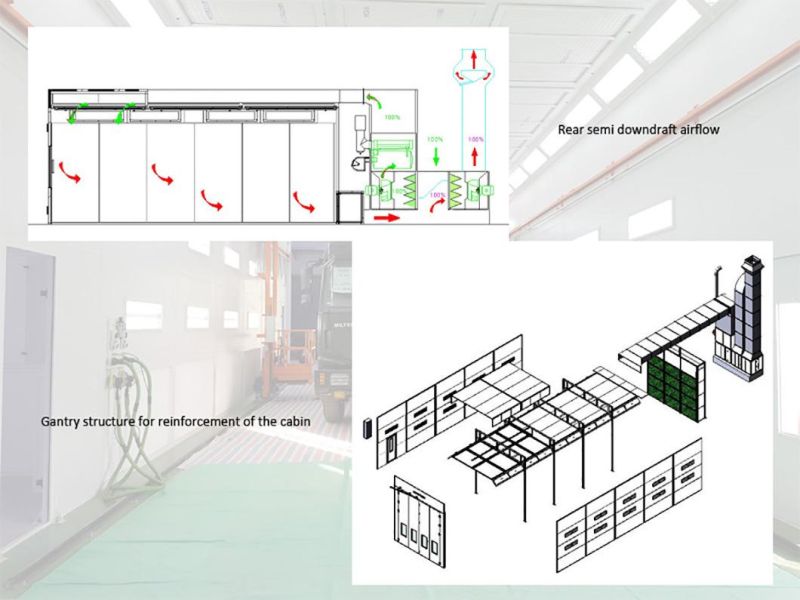

Spray booth IT-15-5C comes standard with rear semi downdraft airflow.
It has front roof intake air plenum. Fresh air enters the booth from outside the building, ducted through the roof intake filters, and is drawn across the working chamber, over the vehicle and into the filtered exhaust chamber at the booth rear.
OPTION

• Downdraft with pit and grids in the ground for extraction
• Side downdraft airflow

REINFORCEMENT STRUCURE
INFITECH large size spray booth comes with gantry structure (made of square tubes) to reinforce the overall strength of the cabin.

MAIN ENTRY DOOR

• Manual entrance door with anti-falling device

LIGHTS

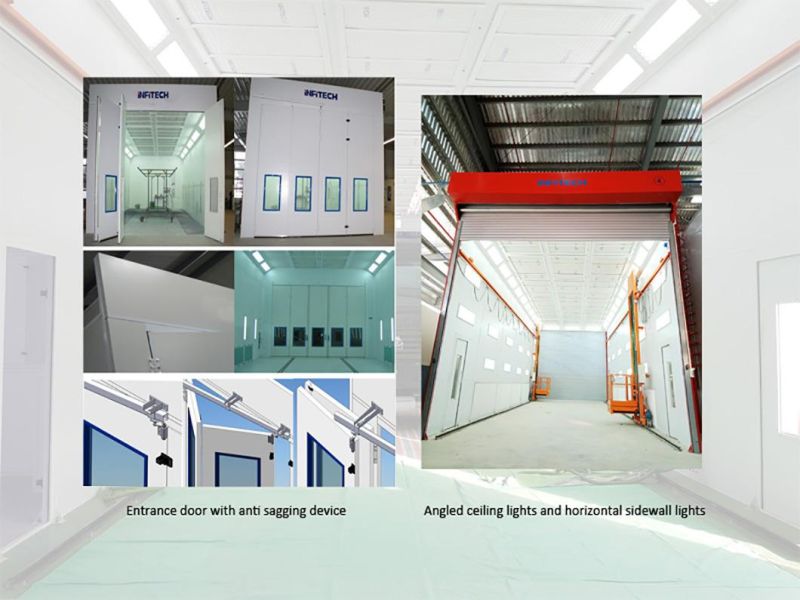

• Ceiling lightings (4*18W/set) and sidewall lights (4*18W/set) create shadow-free workspace.

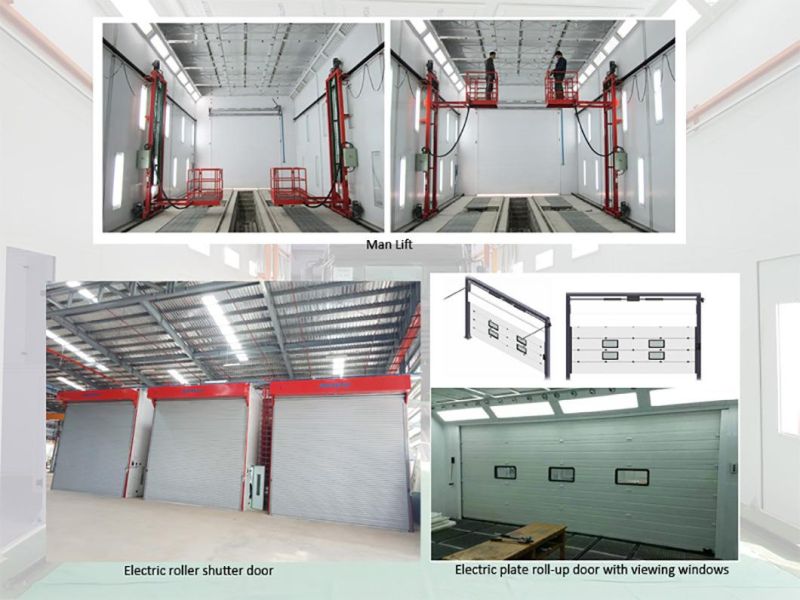

OPTION

• Electric roller shutter door for the entry
• Electric plate roll-up door for the entry

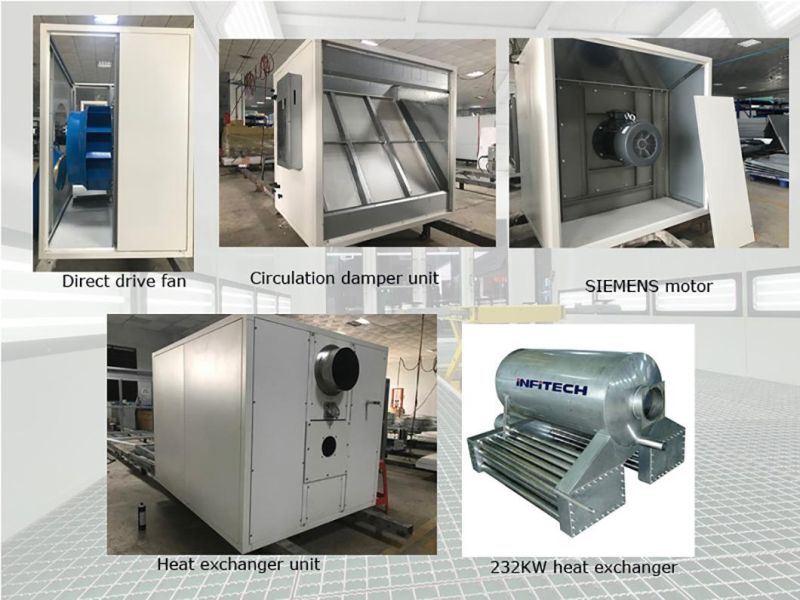

AIR MAKEUP UNIT

Intake and Exhaust Motor	Intake and Exhaust Fan	Air Volume	Drying System
2*11KW, SIEMENS	IT750 backward centrifugal fan, direct linkage	28,000m3/h	315KW RG5D diesel burner

OPTION

• Gas heating

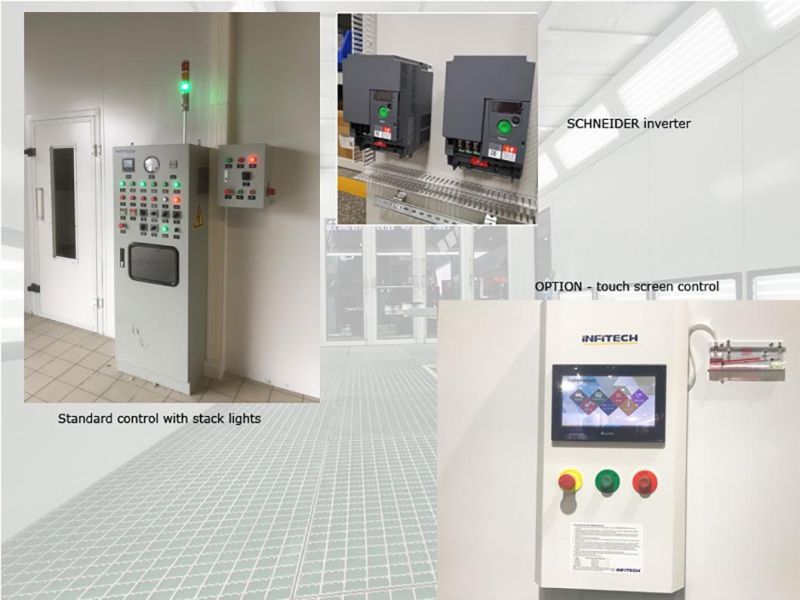

CONTROL

• European standard control system
• Control box with manual buttons

UPGRADE

• Innovative digital screen control

FILTERS

Item	Specification
Pre-filter	Bag filter
Ceiling filter	High efficiency F5 grade filter
Filters at rear exhaust plenum chambers	Pleated andreae filters + Fiberglass paint arrestor filter
Extract filter	Activated carbon filter

OPTIONS

• Pneumatic man lift
• Electric roller shutter door
• Electric plate roll-up door

PACKAGING AND LOADING PHOTOS
The spray booth is generally delivered in various sub components palletized and in different packaging to be handled by forklifts. In some cases the components are systematized loose.
The following photos show how we pack and load the cargo.

FAQQ: What are the dimensions of the rear wall exhaust plenum chambers?A: 5000 X 660 X 4000mm(L X B X H)
 Q: Can I put the machinery at the top of the truck spray booth?A: Yes.
 Q: Can I have bigger width for the truck spray booth?A: Certainly. In terms of the dimensions and configurations, we can follow your request. Please send your requirements through, we will work out the solution for you to check.
 Q: Can you send your engineer to help with the installation?A: Upon your special request, we can send one or two technicians over to offer technical guidance during the installation, and commissioning process. There is additional cost for the technical guidance service.
 Q: Can you design the spray booth according to my requirements?A: Yes. We have in-house design team who has abundant experience in providing you with customized service. And we have many non-standard spray booth projects before.
 Q: How long is the schedule?A: Usually, the standard production lead time for a standard truck spray booth is approx. 30 days.
 Q: What about the warranty?A: 2-year warranty for main components.
