Indoor P3 High Definition Full Color Flexible LED Display Module
Danyang Yun Kai Metal Products- Tube Chip Color：Full Color
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Pixel Pitch：3mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：111111dots,Sqm
- Scanning Mode：1,32 Scan
Base Info
- Model NO.：3mm
- System Operating Platform：WIN2000
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide

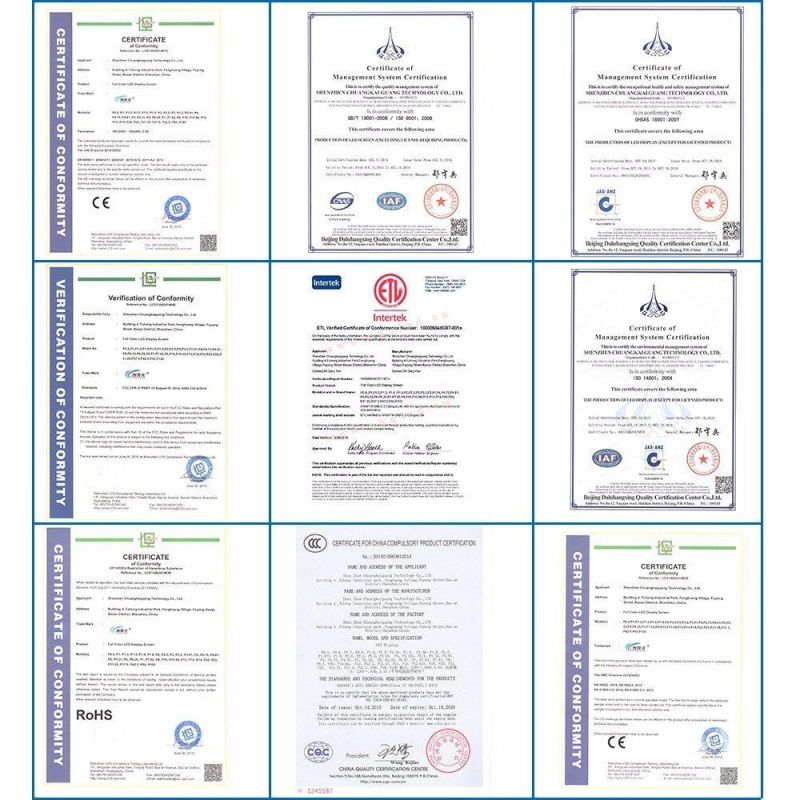

- Certification：CE, RoHS, UL, CCC, ETL
- Module Size：192X192mm
- Module Resolution：64*64dots
- Cabinet Size：Customizable
- Screen Brightness：1200nits
- Screen Refresh Rate：1920Hz
- Service Access：Front,Rear
- Maintenance：Magnet Front Service
- Controller：Nova
- LED Type：SMD2020
- Drive Method：1,32
- Cabinet Material：Steel Iron
- Contrast Ratio：3500:1
- Voltage(V)：AC 110~240V
- Avg. Power Consumption：250W,Sqm
- Max. Power Consumption：650W,Sqm
- Transport Package：Plywood Case
- Specification：768x768mm
- Trademark：CKGLED
- Origin：China
- HS Code：8528591090
- Production Capacity：6000sqm,Month
Description
NO.
Parameters
Specifications
1
Model
CA3
2
Pixel Pitch(mm)
3
3
LED
SMD2020
4
Pixel density
160000dots/sqm
5
Scan Method
1/32
6
Module size(mm)
192*192
7
Cabinet size(L*H*W mm)
480x480
8
Cabinet material
Die-casting Aluminum
9
Cabinet(Kg)
6.8kg
10
Viewing angle
H:160°/ V:160°
11
Grey Scale
16bits
12
Refresh rate(Hz)
≥3840
13
Brightness(nits)
≥800
14
Working Voltage(V)
AC 110~220V±10%
15
AVE. power consumption (W/m2)
240
16
MAX. power consumption(W/m2)
560
17
IP grade
IP31
18
Controller
Novastar
19
Maintenance
Front service
20
Working humidity
10~90%RH
21
Operating temperature
-30ºC~70ºC

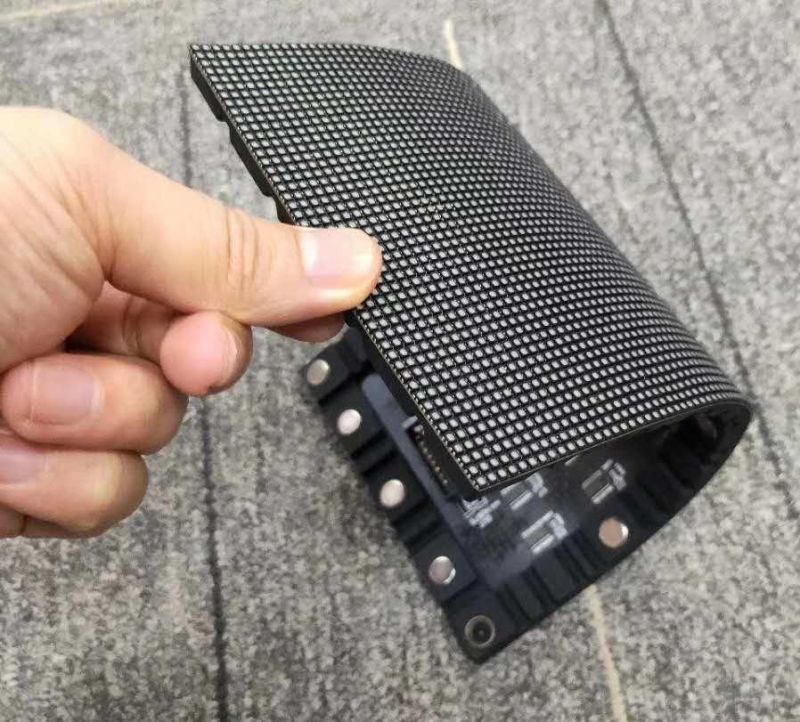

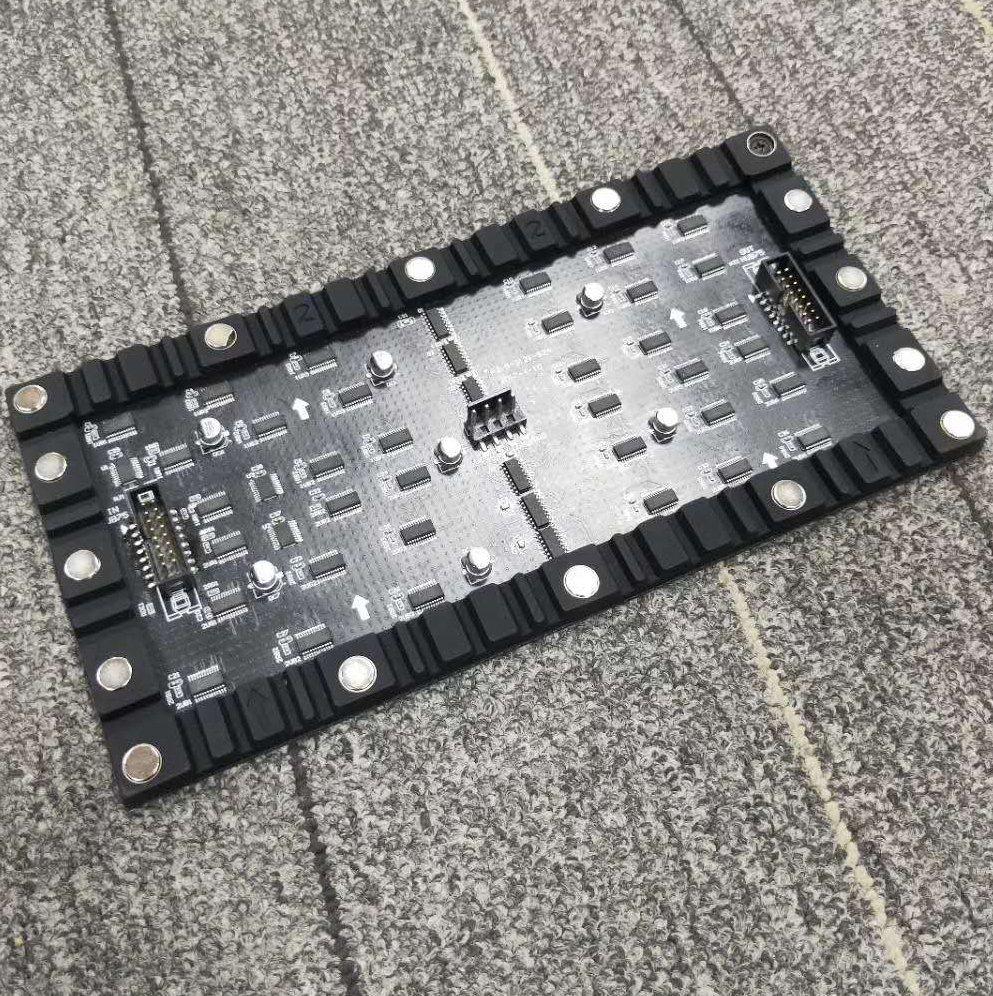

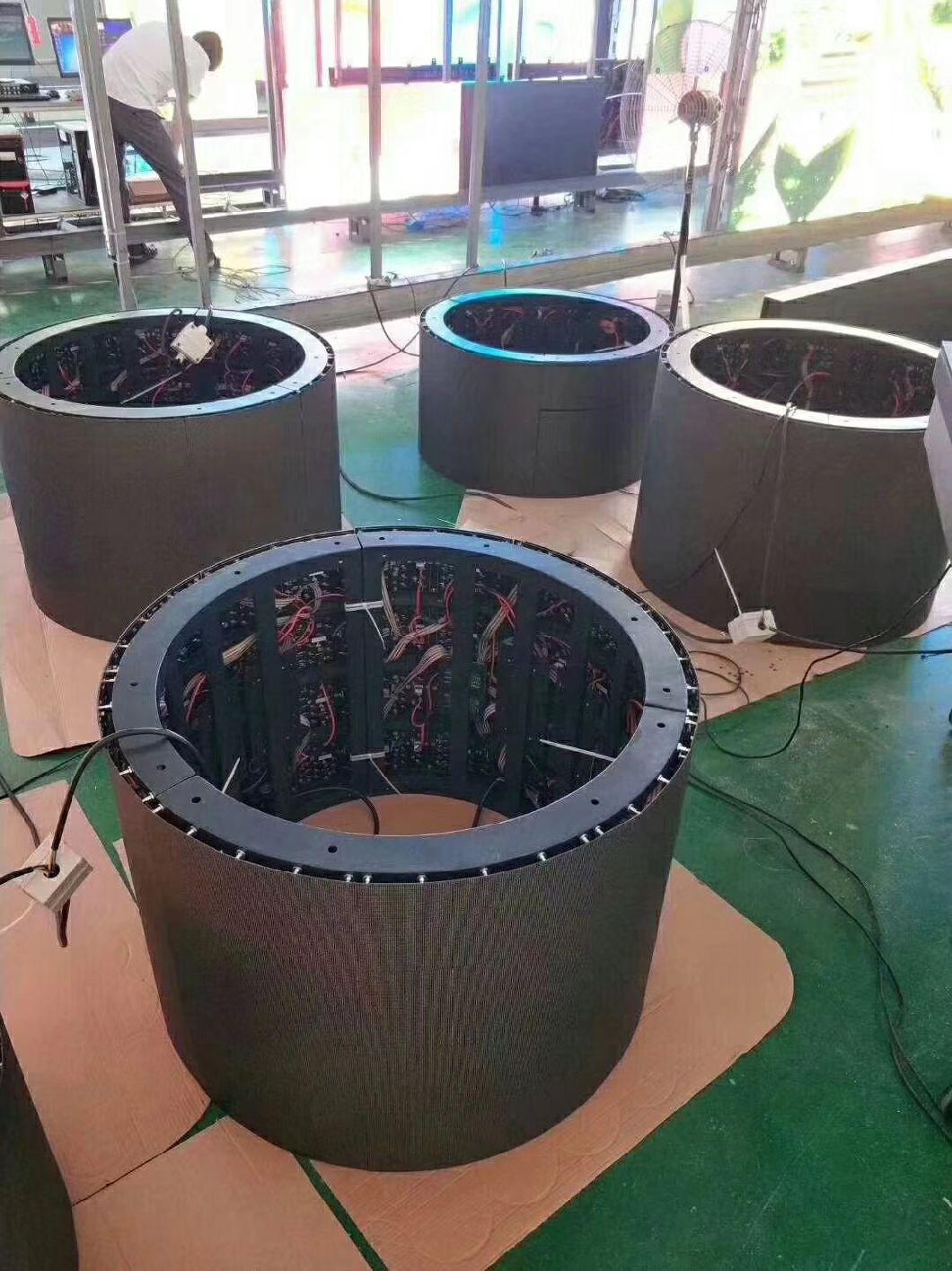

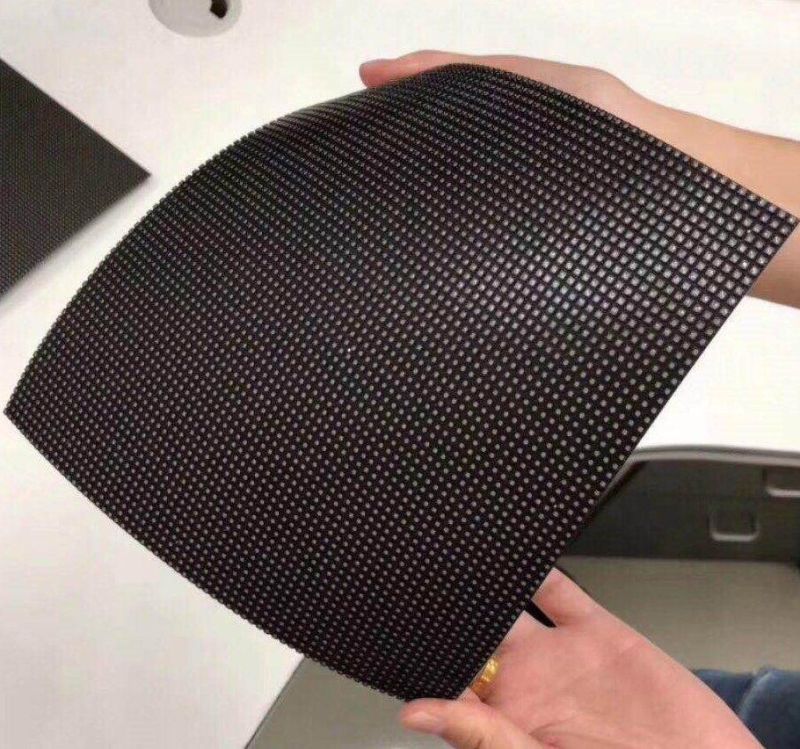

PRODUCT PHOTOS:

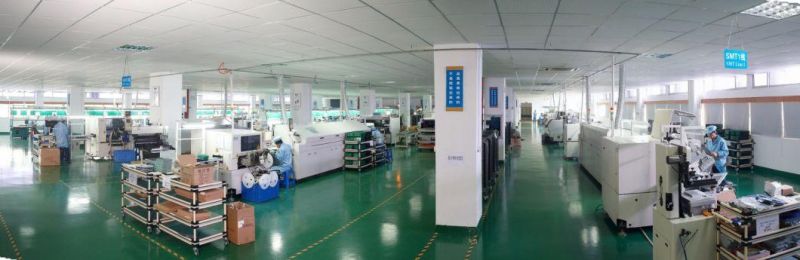

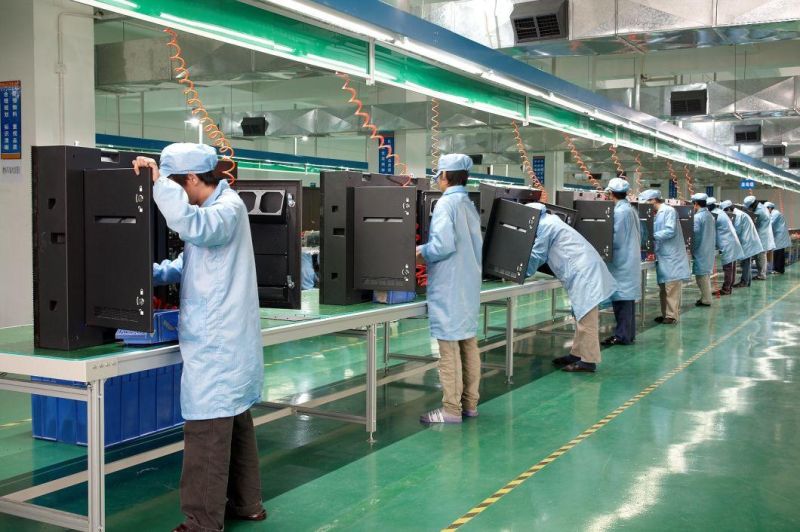

CKGLED FACTORY WORKSHOP:
In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.
(1) Every batch of LED will get a strict testing to exam its performance and quality.
Testing includes:
1. Photometric performance
2. Colorimetric performance
3. Electric performance
(2) For the Printed circuit board (PCB), it will get a high temperature baking after unpacking to drive out moisture.
Baking environment:
130ºC
2 hours
(3)For soldering checking Each PCB in module should go through this scanning, make sure displays get the assured quality

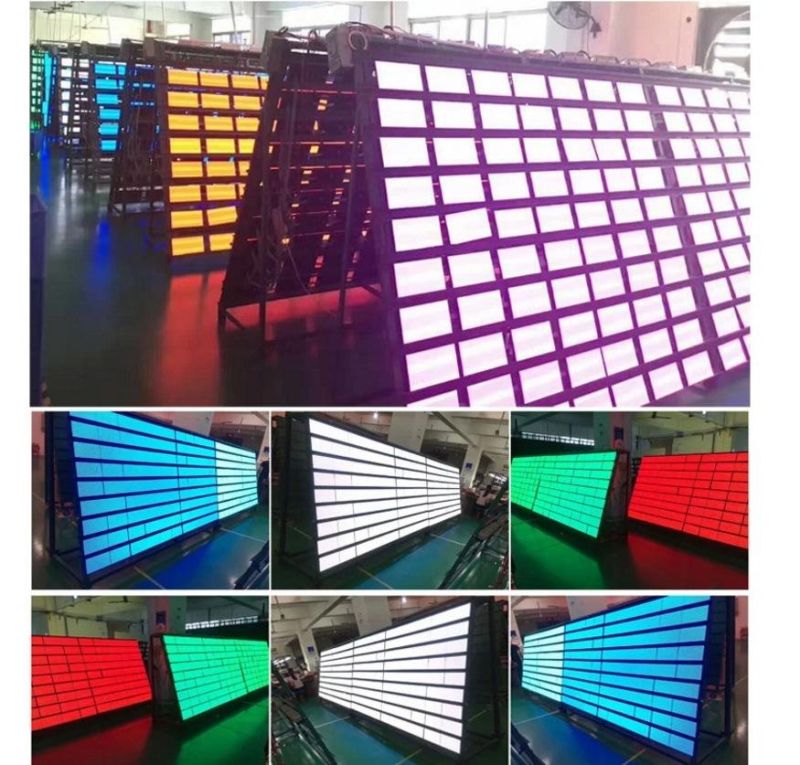

48 hours high brightness aging for the LED module and 72 hours aging for finished displays,
in order to guarantee the final products steady performance and long MTBF.
Our Service:
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms:

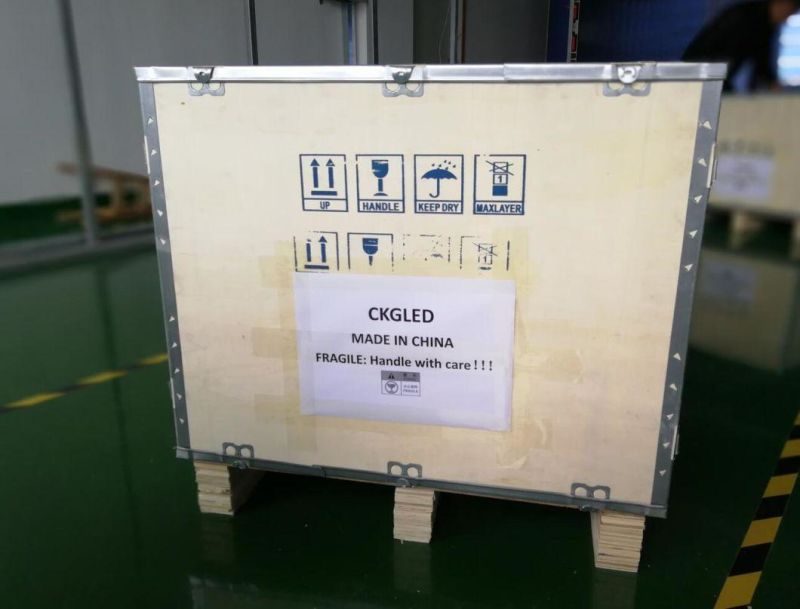

1. Package: Anti-shaking wooden package, Air flight case or Carton package;
2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China;
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
