• Model NO.：P2mm
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP31
• Certification：CE, RoHS, UL, CCC, ETL
• Module Size：256*128mm
• Module Resolution：128dots*64dots
• Cabinet Material：Steel Iron,Aluminum
• Brightness(CD/Sqm)：1000nits
• Viewing Angle：H:140 Degree V140 Degree
• Ave.Power Consumption：200 W,Sqm
• Controller：Novastar
• Maintenance：Rear, Front Service
• Cabinet Size：Customizable
• LED Type：SMD1515
• Screen Resolution：250000dots,Sqm
• Waterproof Grade：IP31
• Drive Method：1,32 Scan
• Working Temperature (ºC)：-20°- +40°
• Certificates：CCC,Ce,RoHS,ETL
• Transport Package：Wooden Case
• Specification：4,6,8 pcs cabinet in one case
• Trademark：CKGLED
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. P2mm System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP31 Certification CE, RoHS, UL, CCC, ETL Module Size 256*128mm Module Resolution 128dots*64dots Cabinet Material Steel Iron/Aluminum Brightness(CD/Sqm) 1000nits Viewing Angle H:140 Degree V140 Degree Ave.Power Consumption 200 W/Sqm Controller Novastar Maintenance Rear/ Front Service Cabinet Size Customizable LED Type SMD1515 Screen Resolution 250000dots/Sqm Waterproof Grade IP31 Drive Method 1/32 Scan Working Temperature (ºC) -20°- +40° Certificates CCC,Ce,RoHS,ETL Transport Package Wooden Case Specification 4/6/8 pcs cabinet in one case Trademark CKGLED Origin Shenzhen, China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

Indoor Fixed Installation P2mm LED Display

Product Features:
 Front access, easy to maintenance

Sidelocks design for better consistency and seamless assembly.

High-performance metal plate cabinet,concise cable

4K high definition image, high refresh 3840HZ

V SERIES-P2MM TECHNICAL DATAS


NO.	Parameters	Specifications
1	Model	K2
2	Pixel Pitch (mm)	P2
3	Physical Density (dot/m2)	250000
4	LED Configuration	1R1G1B
5	LED Type	SMD1515
6	Module Size (mm x mm)	256x128
7	Module Resolution (PX x PX)	128*64
8	Drive Mode	1/32 Constant Current Drive
9	Viewing Angle (Deg)	H:140 / V:140
10	Brightness (cd/m2)	1000
11	Grey Scale	14
12	Refresh Rate (Hz)	≥1920
13	Power Consumption (W/m2)	MAX.:600 / AVE.:200
14	Cabinet Size (mm x mm)	512X512
15	Cabinet Material	Iron / Aluminum
16	Color (M)	>16.7
17	Input Voltage (V)	AC 110V~220V+/-10%
18	Refresh Frame Frequency (Hz)	60
19	Protection Level	IP31
20	Working Environment	Indoor
21	Working Temperature (ºC)	-20°- +40°
22	Operation humidity (RH)	10%-90%
23	Certificates	CCC,CE,RoH

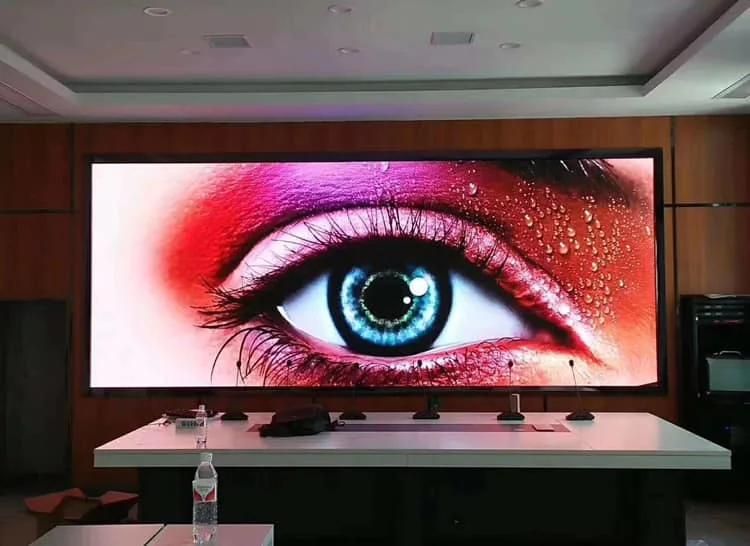

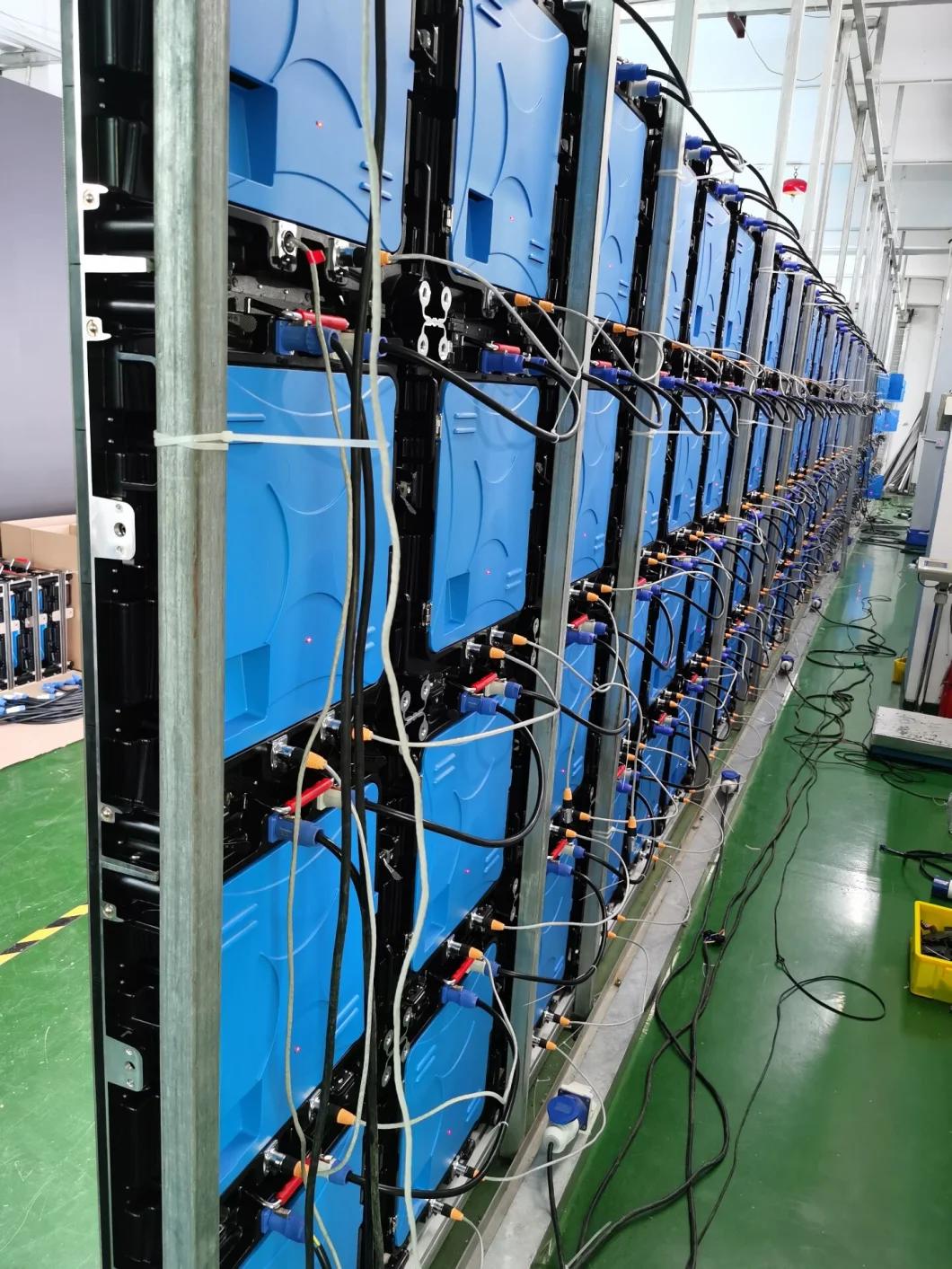

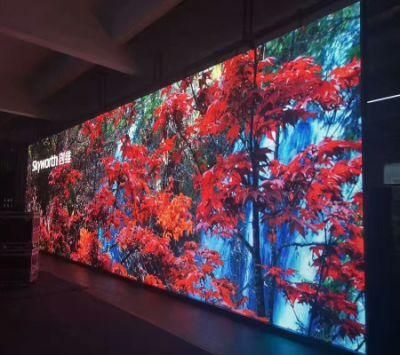

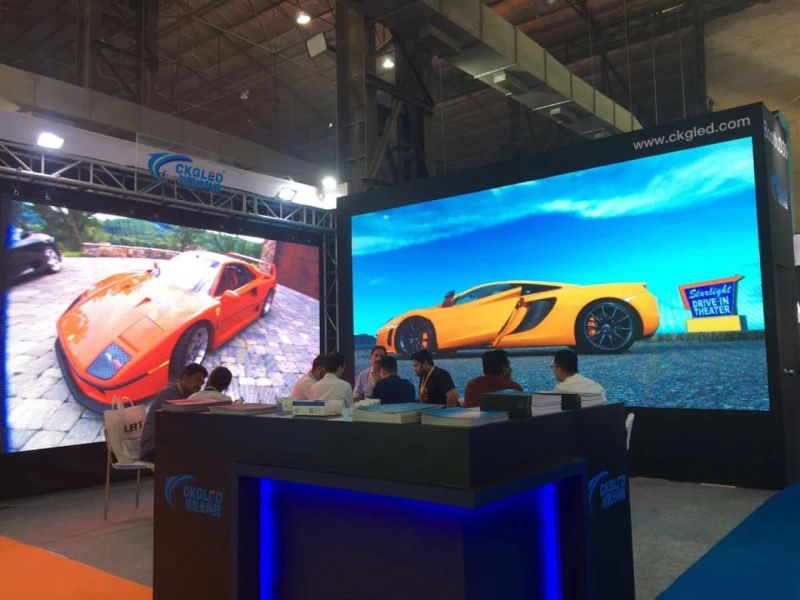

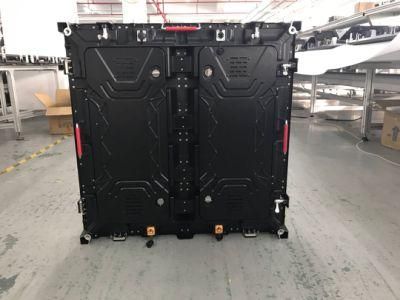

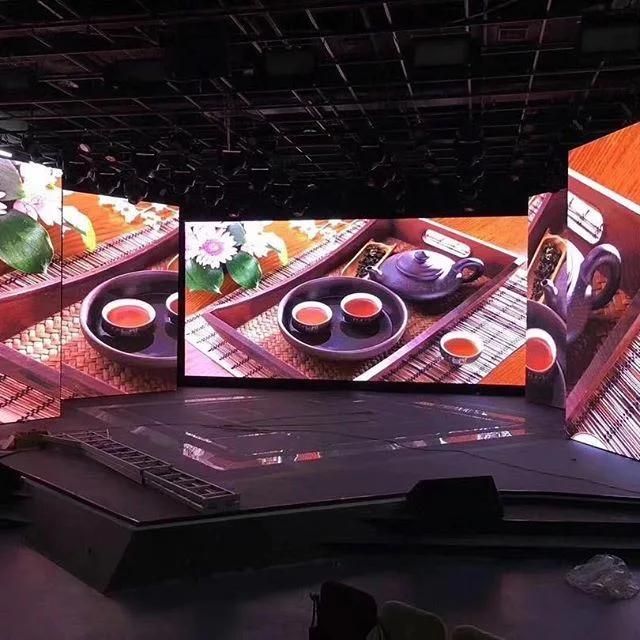

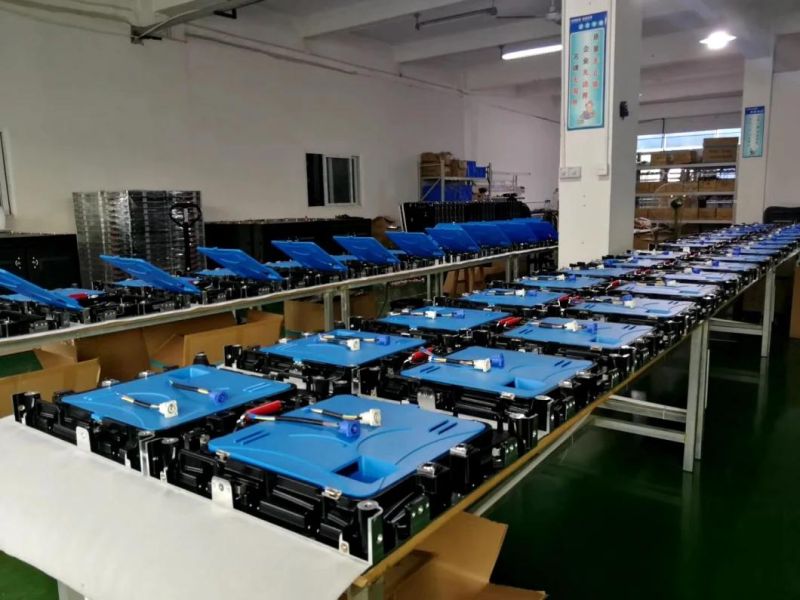

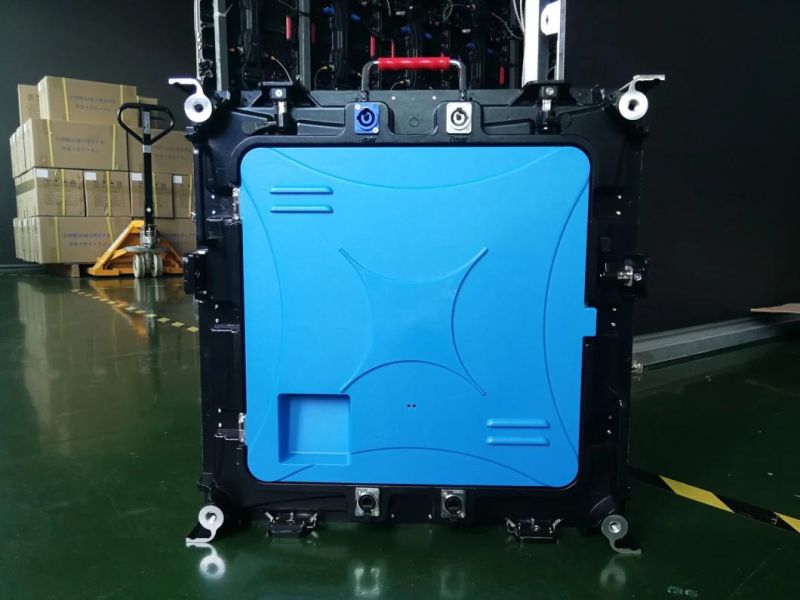

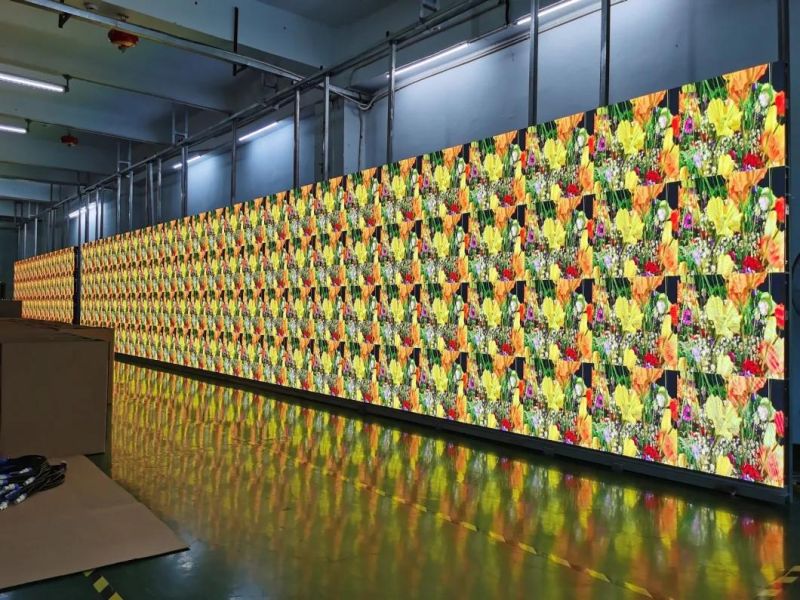

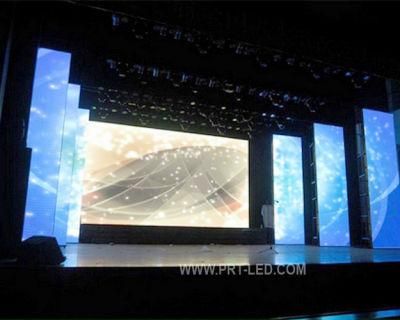

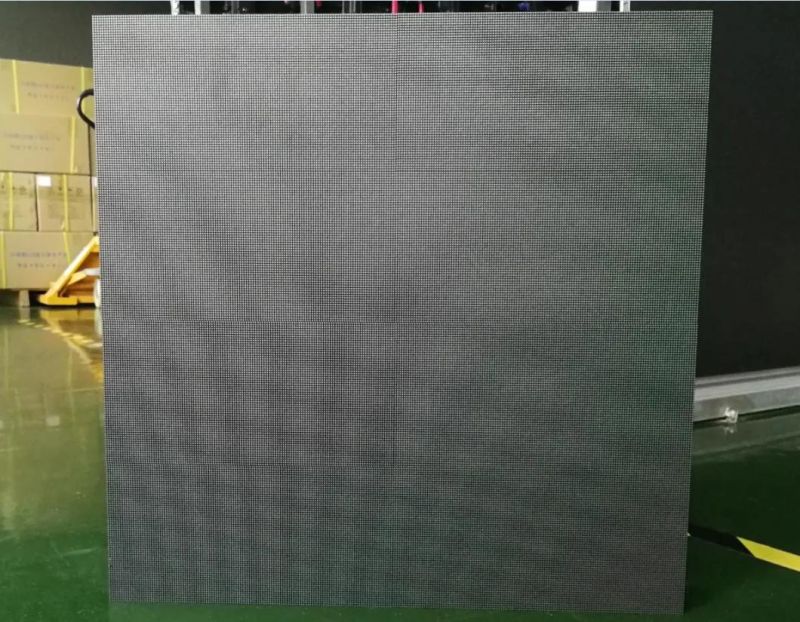

Cabinet Photos And Project Case:














Our service

1. Your inquiry related to our products or price will be replied in 24hrs;

2. OEM&ODM, any your customized ideas we can help you to design and put into product;

3. Distributor-ship are offered for your unique design and some our current models;

4. Protection of your sales area, ideas of design and all your private information;

5. Top quality+Reasonable price+Responsible After Service;

6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.

Trade Terms

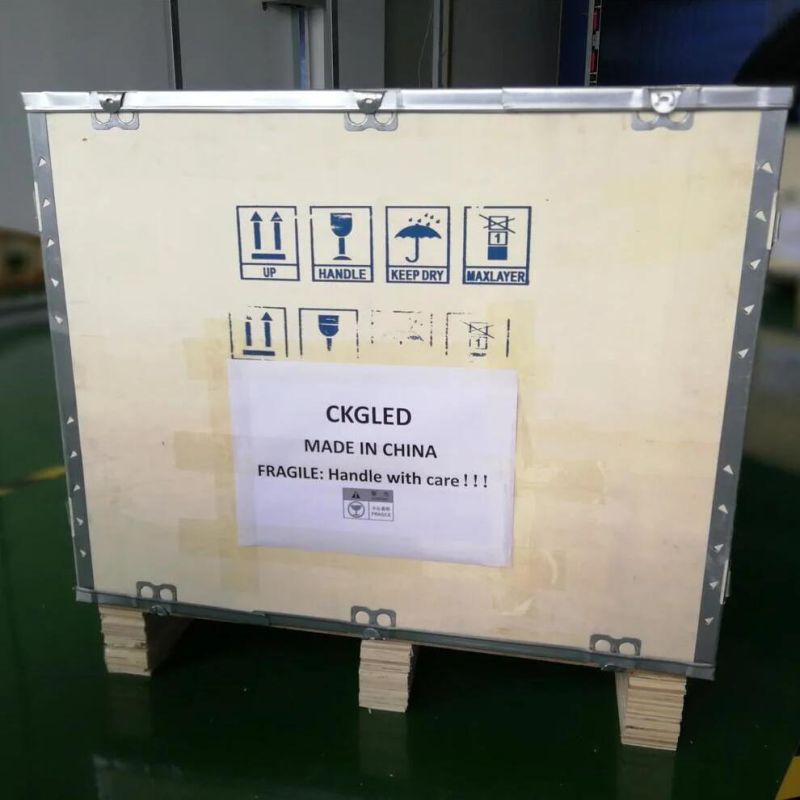

1. Package: Anti-shaking wooden package, Air flight case or Carton package;

2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;

3. Shipping freight are quoted under your requests

4. Shipping port: Shenzhen, China;

5. Warranty time: 2 years

6. Delivery time: 3-15 working days
