Short Delivery Time Outdoor Waterproof Full Color P3.9 LED Panel / LED Screen
Danyang Yun Kai Metal Products- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：3.91mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：300W , m²
Base Info
- Model NO.：3.91mm
- Pixel Density：65536dots,Per Square Meter
- Scanning Mode：1,16 Scan
- Display Type：LED Video Display
- Application：Stage Performance
- Certification：CE, RoHS, UL, CCC, ETL
- LED Module Size：250mm*250mm
- Cabinet Size：500mm*1000mm
- Cabinet Material：Die-Casting Aluminum
- Protective Grade：IP65
- Brightness：5500nits
- Maintenance：Rear Service

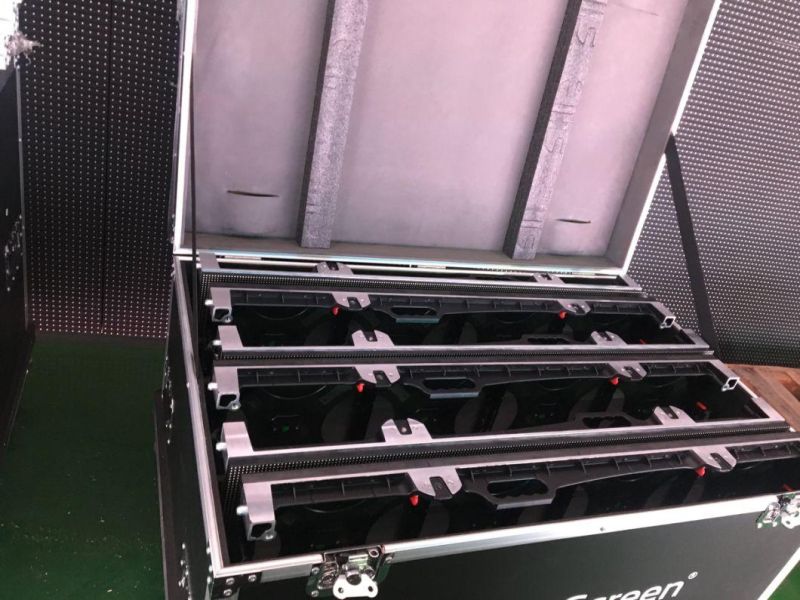

- Transport Package：Flight Case
- Specification：6pcs,8pcs cabinet in one case
- Trademark：CKGLED
- Origin：China
- HS Code：8528591090
- Production Capacity：6000sqm,Month
Description
Basic Info.
Model NO. 3.91mm Pixel Density 65536dots/Per Square Meter Scanning Mode 1/16 Scan Display Type LED Video Display Application Stage Performance Certification CE, RoHS, UL, CCC, ETL LED Module Size 250mm*250mm Cabinet Size 500mm*1000mm Cabinet Material Die-Casting Aluminum Protective Grade IP65 Brightness 5500nits Maintenance Rear Service Transport Package Flight Case Specification 6pcs/8pcs cabinet in one case Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/MonthProduct Description
PRODUCT FEATURES:
Cabinet corner protective design: protect cabinets during installation / dismantling and transportation.
High refresh rate: 3840Hz.
Flat cabinet design and flexible cabinet design to make curved screens for different events,
The 4th locking system design: one man installation and dismantling ,a good design to save labor force and time.
High polymer flexible mask, no mosaic phenomenon ,better contract ratio.
SPECIFICATIONS:
| NO. | Parameter | Specifications |
| 1 | Model | TO3 |
| 2 | Pixel Pitch(mm) | 3.91 |
| 3 | LED encapsulation | SMD1921 |
| 4 | Screen Resolution(dots/m2) | 65536 |
| 5 | Scan Method | 1/16 |
| 6 | Module size(mm) | 250X250 |
| 7 | Cabinet size(L*W*H) | 500X1000X88 |
| 8 | Maintenance | Rear Service |
| 8 | Cabinet(Kg) | 15KG |
| 9 | Viewing angle | H:140° V:140° |
| 10 | Grey Scale | 16bit |
| 11 | Refresh rate(HZ) | ≥2880 |
| 12 | Brightness(nits) | ≥5000 |
| 13 | Working Voltage(V) | AC 100~240V |
| 14 | AVE. power consumption (W/m2) | 300 |
| 15 | MAX. power consumption(W/m2) | 750 |
| 16 | IP grade | IP65 |
| 17 | controller | Nova |
| 18 | Working humidity | 10~90%RH |
| 20 | Working temperature | -30ºC~60ºC |
| 21 | Storage temperature | -40ºC~70ºC |

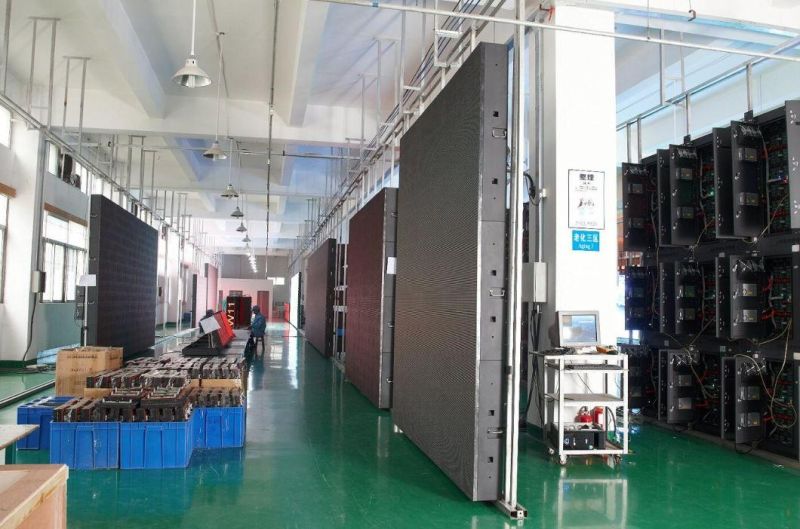

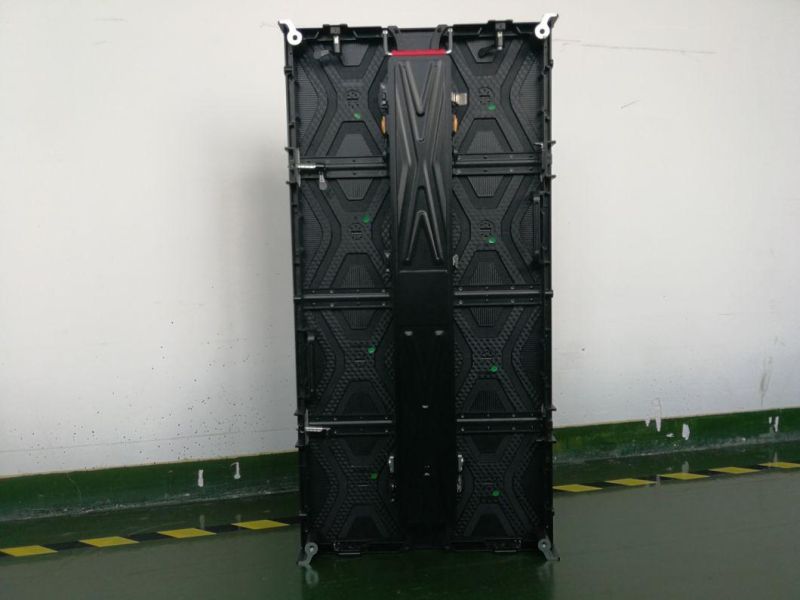

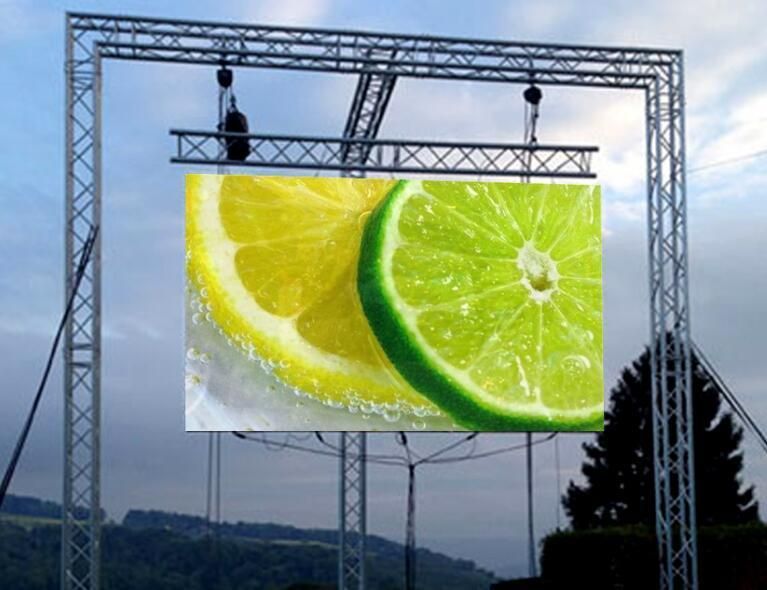

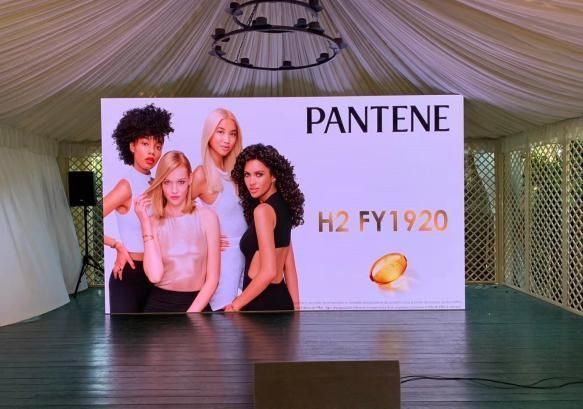

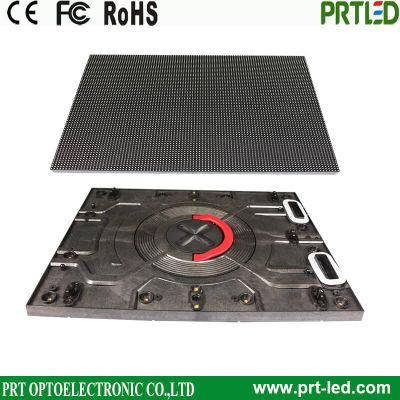

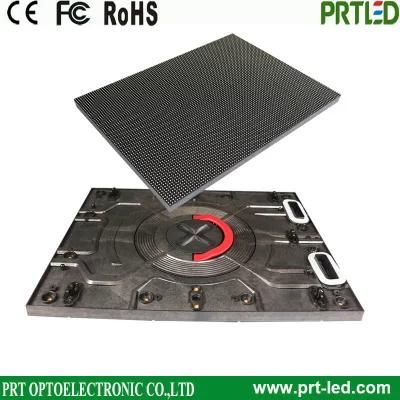

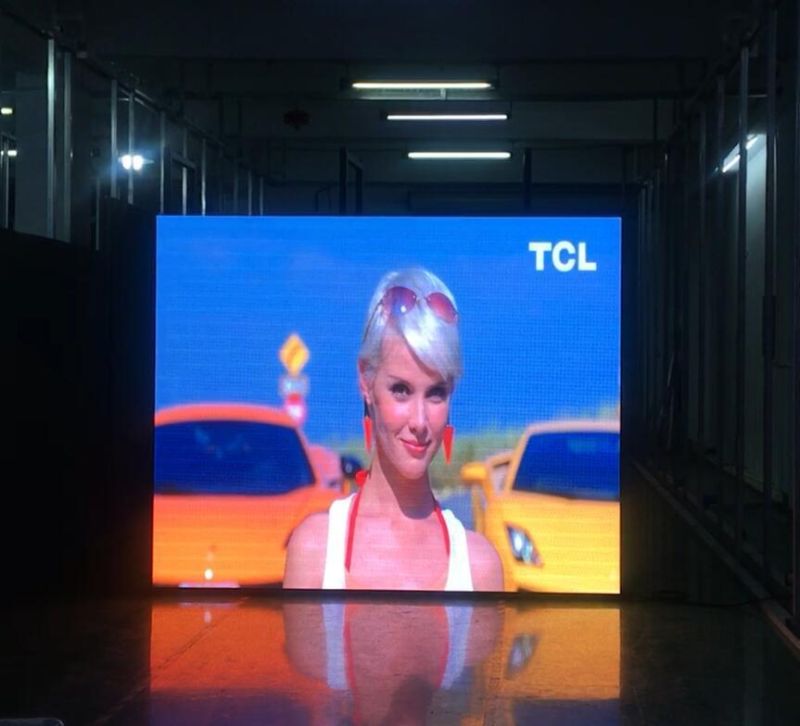

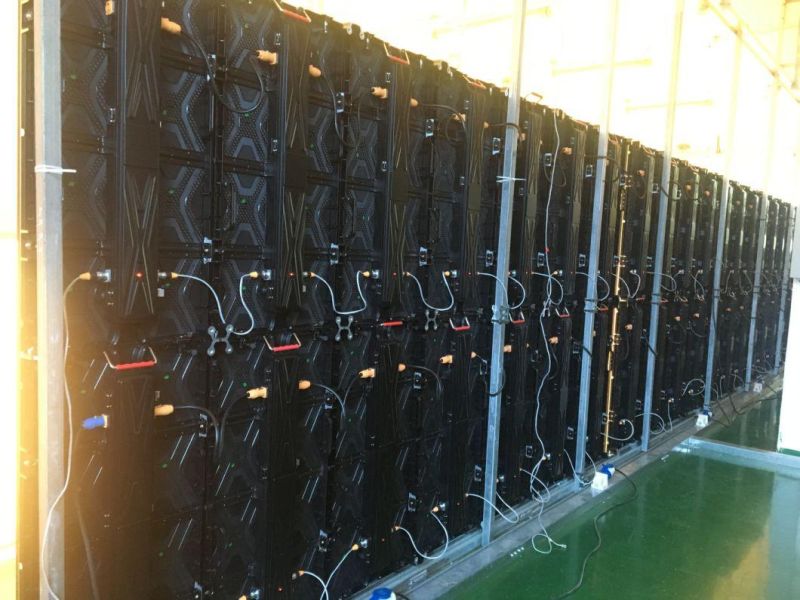

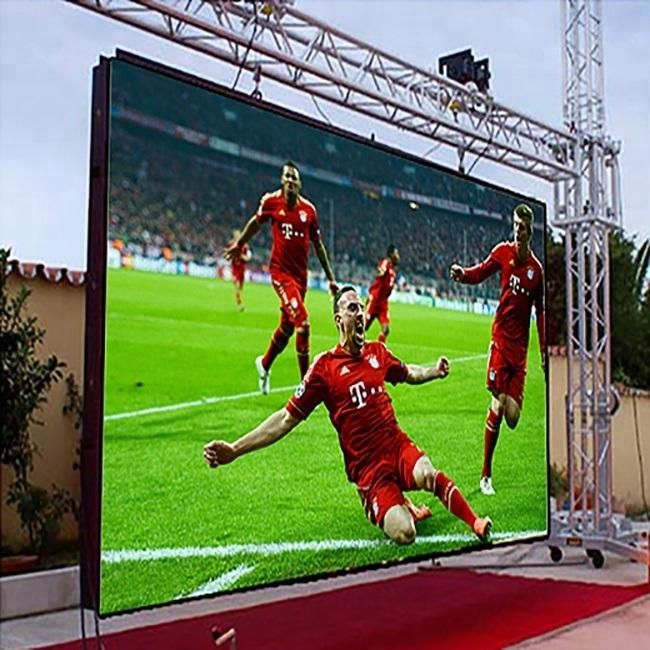

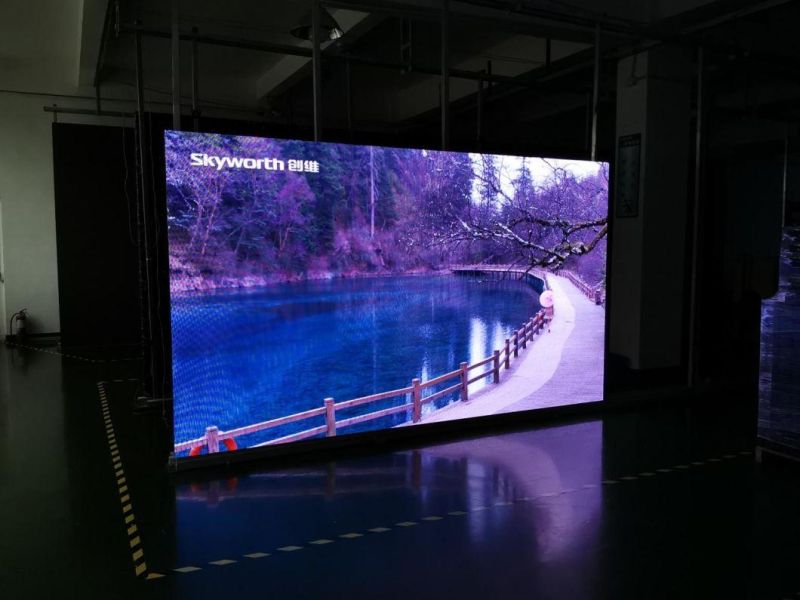

PRODUCT PHOTOS:
