Outdoor Full Color LED Advertising Digital Display Screen Sign
Danyang Yun Kai Metal Products- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：6mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：300W , m²
Base Info
- Model NO.：6mm
- Pixel Density：27777dots,Sqm
- Scanning Mode：1,8 Scan
- Display Type：LED Video Display
- Application：Advertising

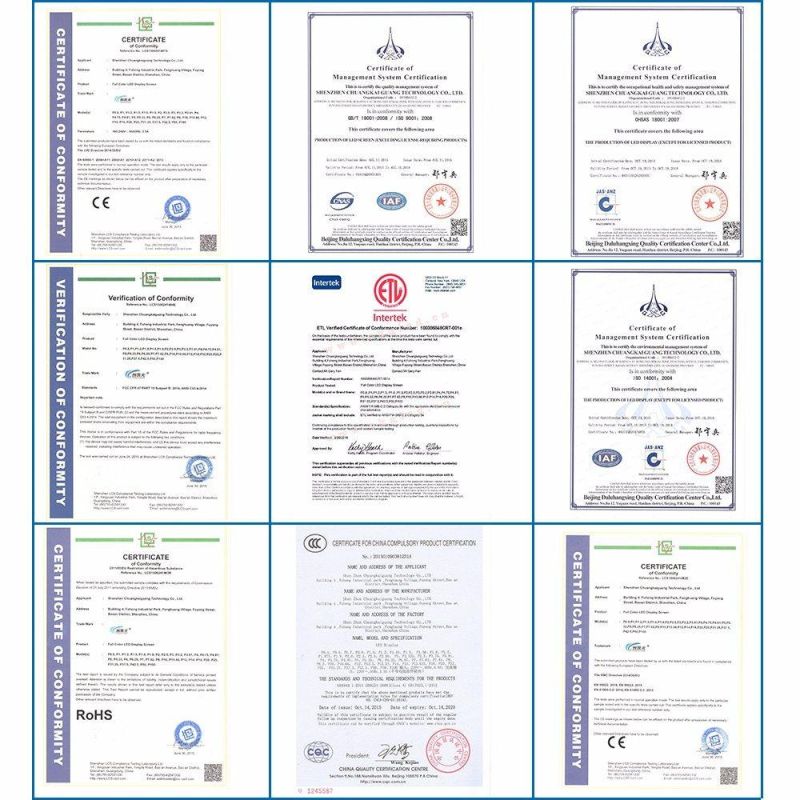

- Certification：CE, RoHS, UL, CCC, ETL
- Module Size：192X192mm
- Module Resolution：32X32dots
- Cabinet Size：960X960mm
- Cabinet Resolution：160X160dots
- Screen Brightness：7500nits
- Protection Grade：IP65
- Compliance：CE , RoHS,CCC,FCC
- Screen Resolution：27777dots,Sqm
- Cabinet Material：Steel Iron,Aluminum
- Refresh Rate：1920-3840Hz
- Drive Method：1,8 Scan
- LED Type：SMD3535
- Avg.Power Consumption：300W,Sqm
- Max.Power Consumption：900W,Sqm
- Maintenance：Rear , Front Service

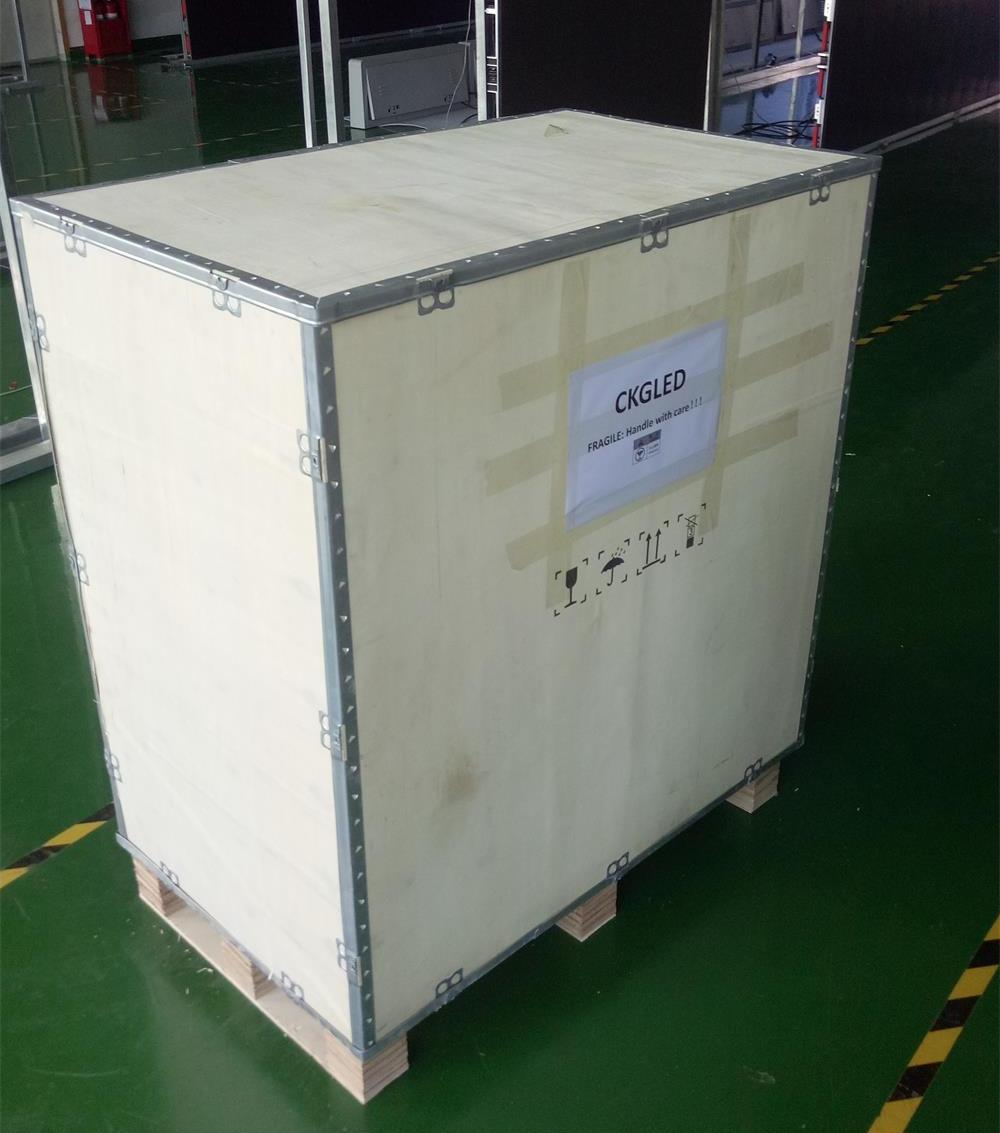

- Transport Package：Plywooden Case
- Specification：960x960mm
- Trademark：CKGLED
- Origin：China
- HS Code：8528591090
- Production Capacity：6000sqm,Month
Description
ScreenDrive Mode: 1/8 Constant Current Drive / Horizontal Viewing Angle 140 Deg Vertical Viewing Angle 140 Deg Brightness 6000 cd/m2 Grey Scale: 14 bits Refresh Rate ≥1920 Hz Cabinet Resolution 128x128 dots Max. Power Consumption 900 W/m2 Ave. Power Consumption 300 W/m2 Cabinet Size 768x768 mm Cabinet Thickness 150 mm Cabinet Material: Steel/Aluminum Color >16.7 M Input Voltage AC 110V~220V+/-10% V Refresh Frame Frequency 60 Hz Protection Level: IP65 / Working Environment: Outdoor / Working Temperature -30- +60 ºC Operation humidity 10%-95% RH Certificates: CCC, CE,RoHS /

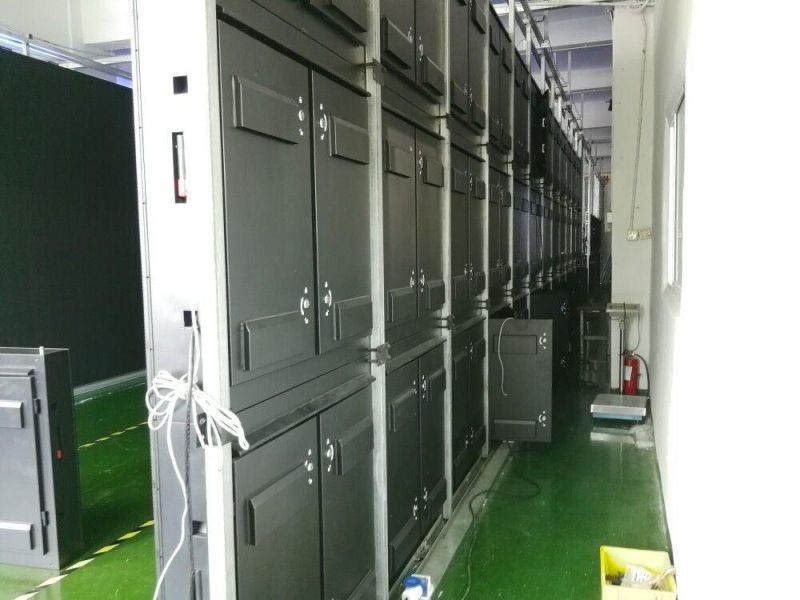

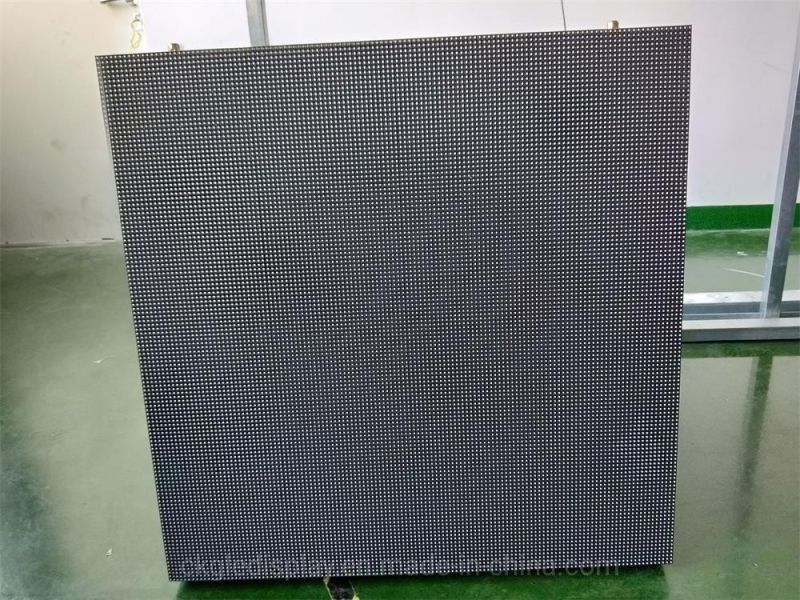

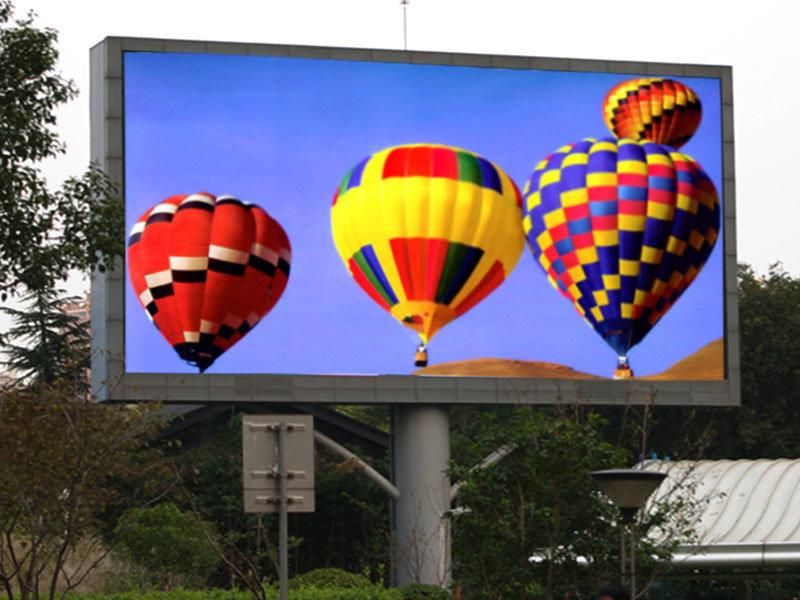

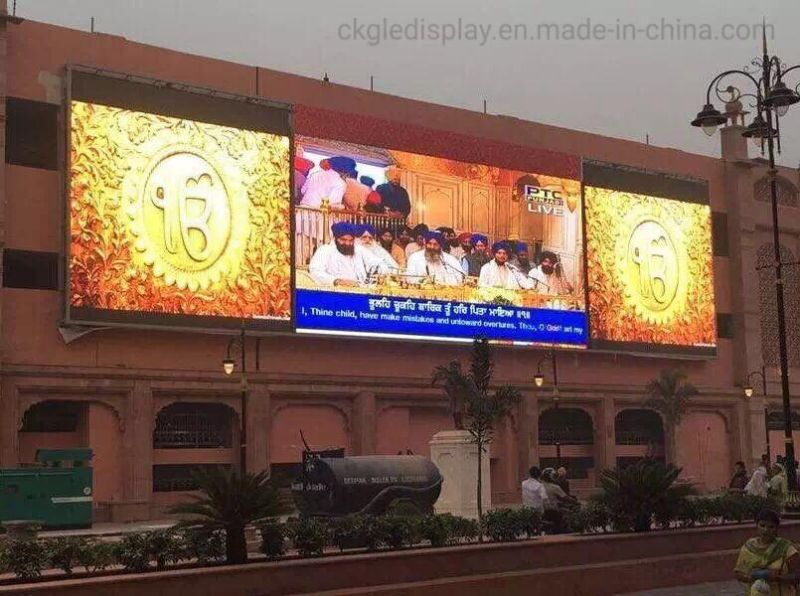

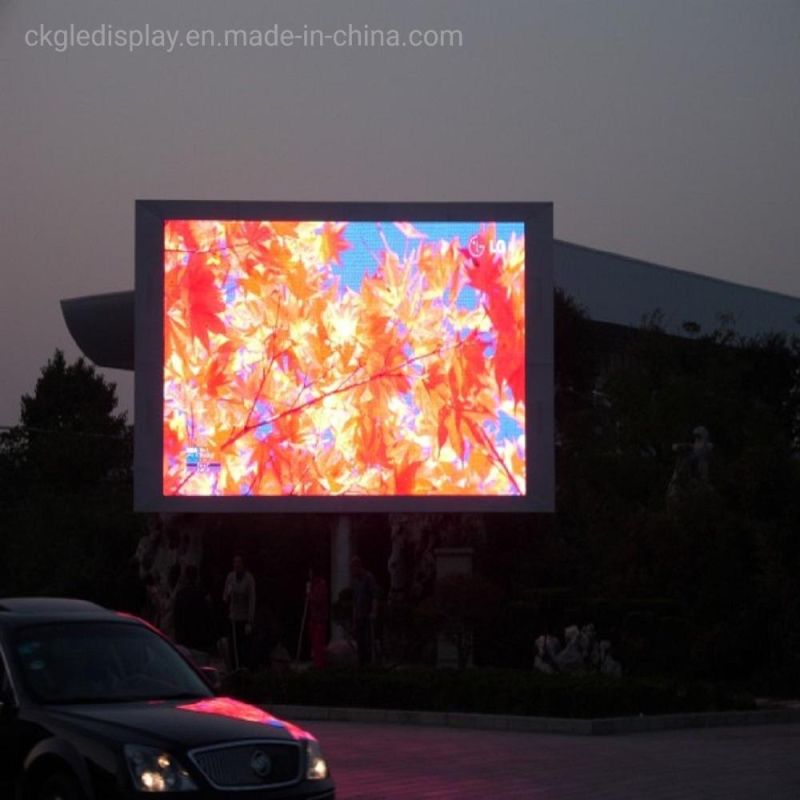

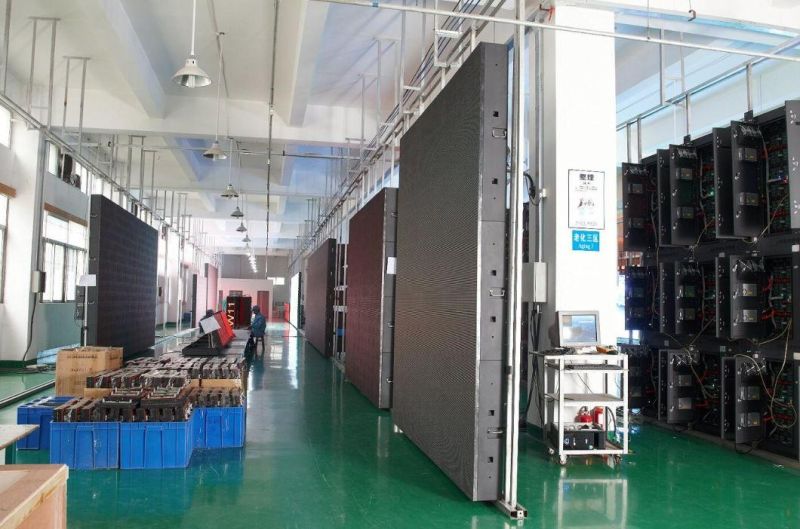

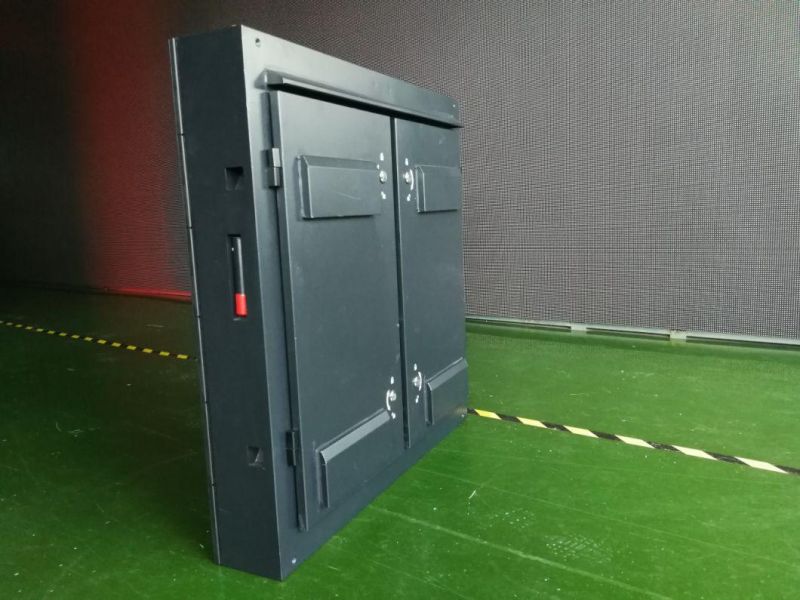

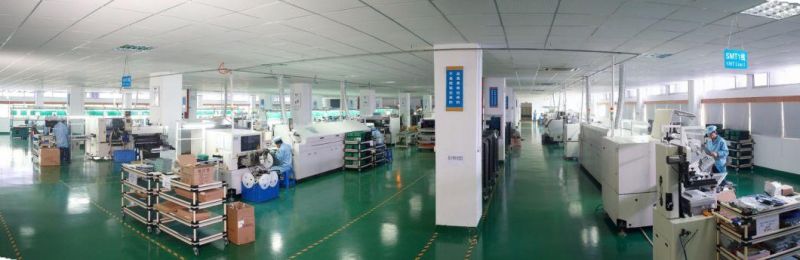

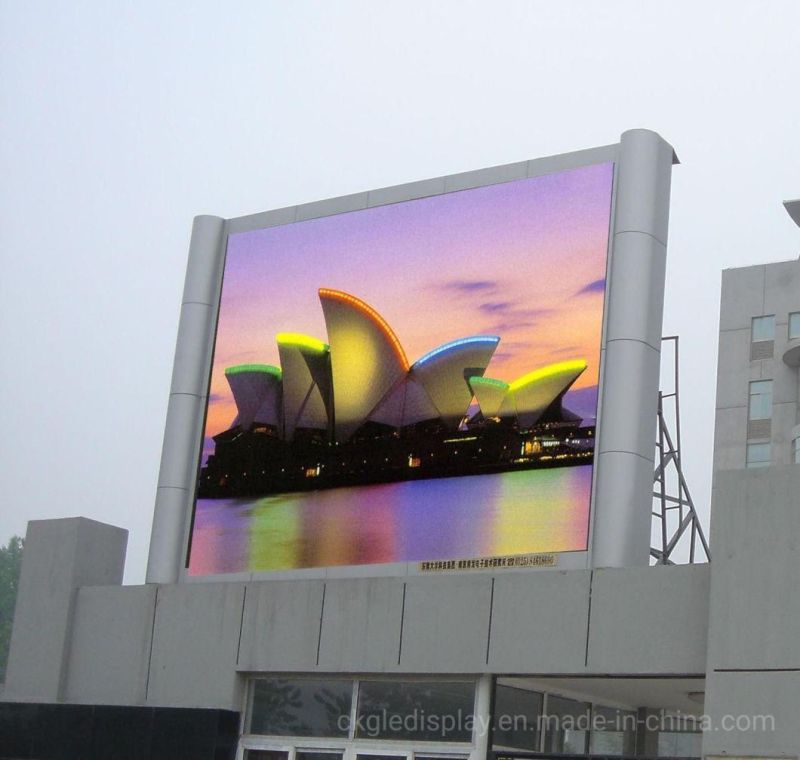

PRODUCT PHOTOS:
PRODUCT PHOTOS:
