IP54 Silicon Waterproof DC12V 60LEDs/M 50mm Cut Unit LED Flexible Strip

Qingdao Haochen Packing Co., Ltd.
  • Certification：FDA, GS, SAA, FCC, CCC, LVD, UL, EMC, CE
  • Power：9.6W,M
  • Emitting Color：White
  • Voltage：12V
  • IP Rating：IP54
  • LED Quantity：60 LEDs,M

Base Info

  • Model NO.：R560GW08A
  • Package：5m,Roll

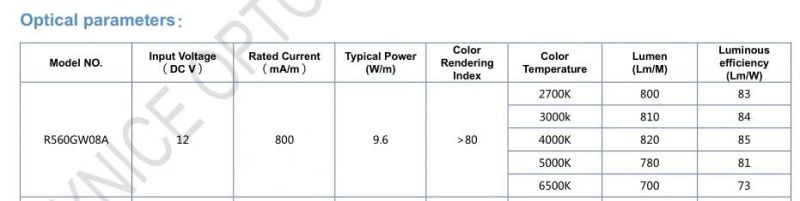

  • Aluminous Flux：820 Lm,M
  • Length：5m
  • Warranty：3 Years
  • Delivery Time：4days
  • Shipping：DHL,UPS,FedEx, by Sea, by Air
  • Rated Current：800mA,M
  • Cut-Able Unit：50mm
  • LED Pitch：16.67mm
  • Width：10mm
  • IP：IP54,IP65,IP20,IP66,IP67,IP68
  • Luminous Efficiency：85 Lm,W
  • Color：2700K,3000K,4000K,5000K,6500K

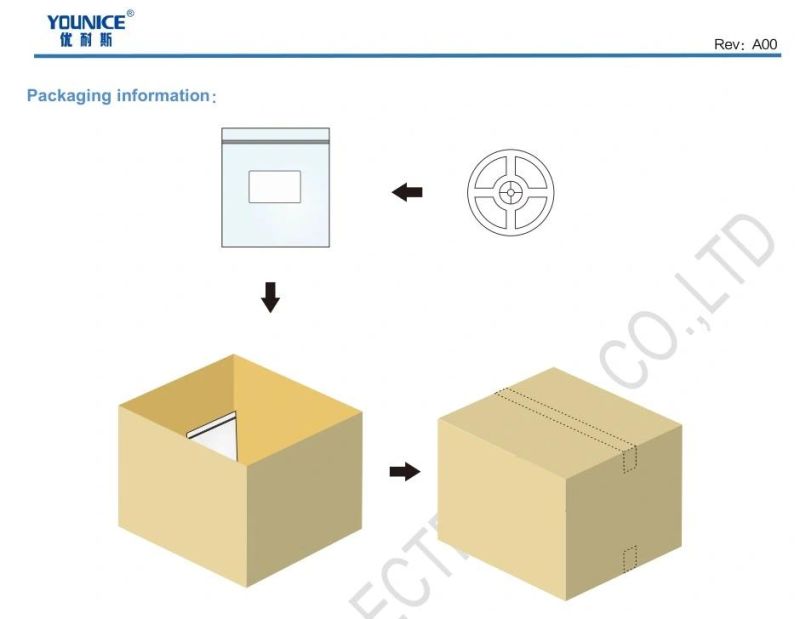

  • Transport Package：5m,Roll(Anti-Static Bag), 250m,CTN, Gw20kg
  • Specification：5M,roll(Anti-static bag), 250m,ctn, GW20kg
  • Trademark：OEM , Younice
  • Origin：Shenzhen, China
  • HS Code：9405409000
  • Production Capacity：100000m,Day

Description

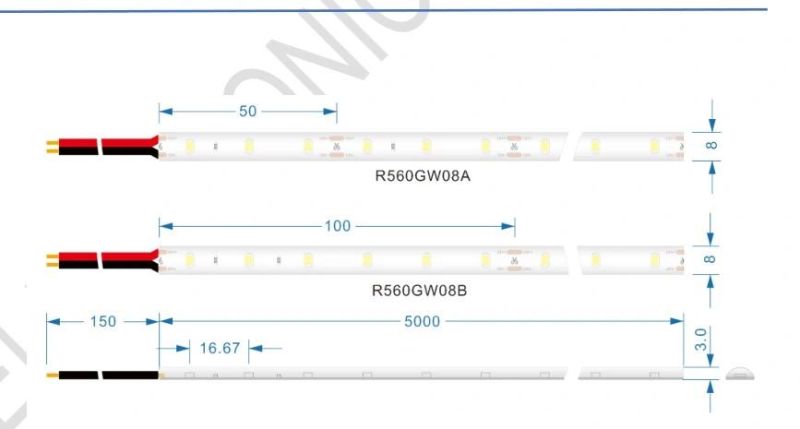

Product size5000*8*3mmCut-able unit100mmChips Pitch16.67mmLED quantity60LEDs/mMin. bend diameterØ20 mmMounting solution3M tapeOperating ambient-25ºC~45ºCStorage Environment-25ºC~60ºC / 60% RH
IP54 Silicon Waterproof DC12V 60LEDs/M 50mm Cut Unit LED Flexible StripIP54 Silicon Waterproof DC12V 60LEDs/M 50mm Cut Unit LED Flexible Strip


IP54 Silicon Waterproof DC12V 60LEDs/M 50mm Cut Unit LED Flexible Strip

IP54 Silicon Waterproof DC12V 60LEDs/M 50mm Cut Unit LED Flexible Strip
