2*504 LEDs/M CCT 2700K-6500K DC24V 12mm Width LED Flexible COB Strip

Qingdao Haochen Packing Co., Ltd.
  • Certification：FDA, GS, SAA, FCC, CCC, LVD, UL, EMC, CE

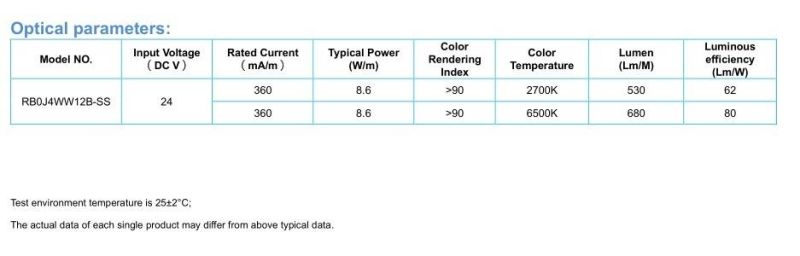

  • Power：8.6W,M
  • Emitting Color：White
  • Voltage：DC24V
  • IP Rating：IP65
  • LED Quantity：2*504 LEDs,M

Base Info

  • Model NO.：RB0J4WW12B-SS
  • Package：5m,Roll
  • Color：Red,Green,Blue,White
  • Aluminous Flux：530,680 Lm,M
  • Length：5m
  • Warranty：3 Years
  • Delivery Time：5days
  • Shipping：DHL,UPS,FedEx, by Sea, by Air
  • Rated Current：360mA,M
  • Cut-Able Unit：55.55mm
  • LED Pitch：1.98mm
  • Width：12mm
  • IP：IP54,IP65,IP66,IP67,IP68
  • Luminous Efficiency：62,80 Lm,W
  • Transport Package：5m,Roll(Anti-Static Bag), 250m,CTN, Gw20kg
  • Specification：5M,roll(Anti-static bag), 250m,ctn, GW20kg
  • Trademark：OEM , Younice
  • Origin：Shenzhen, China
  • HS Code：9405409000
  • Production Capacity：100000m,Day

Description

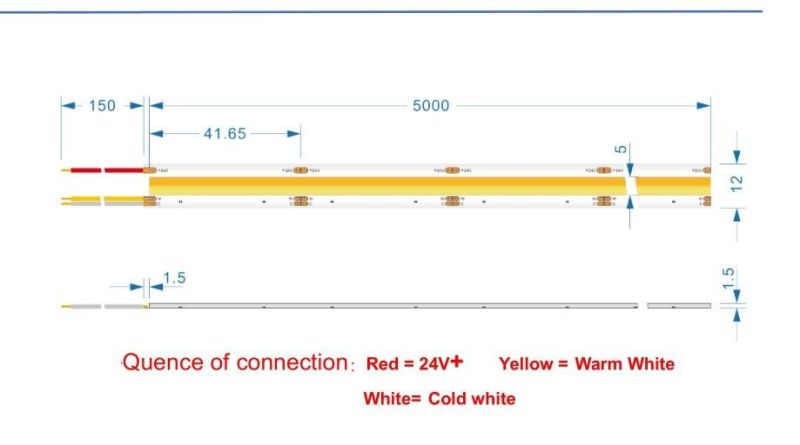

Product size5000*12*1.5 mmCut-able unit55.55mmChips Pitch1.98mmLED quantity2*504LEDs/mMin. bend diameterØ30 mmMounting solution3M tapeOperating ambient-25ºC~45ºCStorage Environment-25ºC~60ºC / 60% RH
