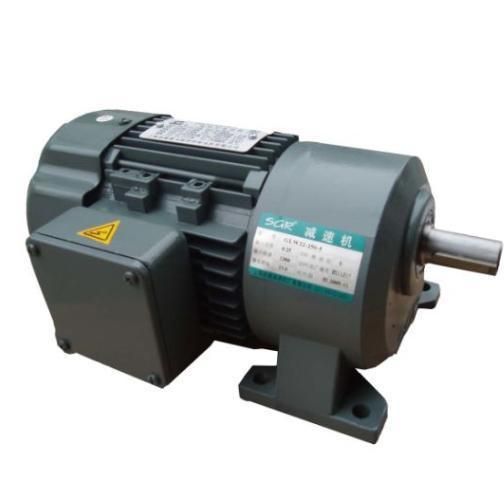

Helical Geared Box Reducer Application for The End Beam of Suspended Cranes

Hebei Zhouwo Trading Co., Ltd.
  • Application：Motor, Electric Cars, Machinery, Marine, Agricultural Machinery
  • Function：Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
  • Layout：Coaxial
  • Hardness：Hardened Tooth Surface
  • Installation：Horizontal Type
  • Step：Four-Step

Base Info

  • Type：Planetary Gear Box
  • Transport Package：Wooden Case
  • HS Code：8483409000
  • Production Capacity：400PCS,Month

Description

ModelShaft Dia.Center HeightOutput Flange Dia.PowerRatioPermitted TorqueWeightSolid (mm)(mm)(mm)(kw)(Nm)(KGS)R3725k690h13120/1600.12~0.755~13615010R4730k6115h13160/2000.25~2.25~17330015R5735k6115h13200/2501.18~5.55~17340021R6735k6130h13200/2500.37~7.55~17050027R7740k6140h13250/3000.55~115~19275035R8750k6180h13300/3500.75~18.55~192125065R9760m6225h13350/4501.5~305~1972400120R10770m6250h13350/4502.2~455~1973600165R13790m6315h13450/5504~555~1976600255R147110m6355h13450/5507.5~905~19510700370R167120m6425h13550/66011~1328~18614800700R187160m6510h13660/77015~1608~186280001500Remark: the weight without oil and motor, shaft and flange input add 10%.
Characteristic:

Key Features: (5 points)*1*
  • Graded cast iron housings
  • High strength alloy steel gears
  • Single & three phase motor
  • DC or AC supply
  • Flame proof and brake motor options
  • Single or dual speed motor
  • More than 10000 + inline helical gearboxes in operation in the industry.

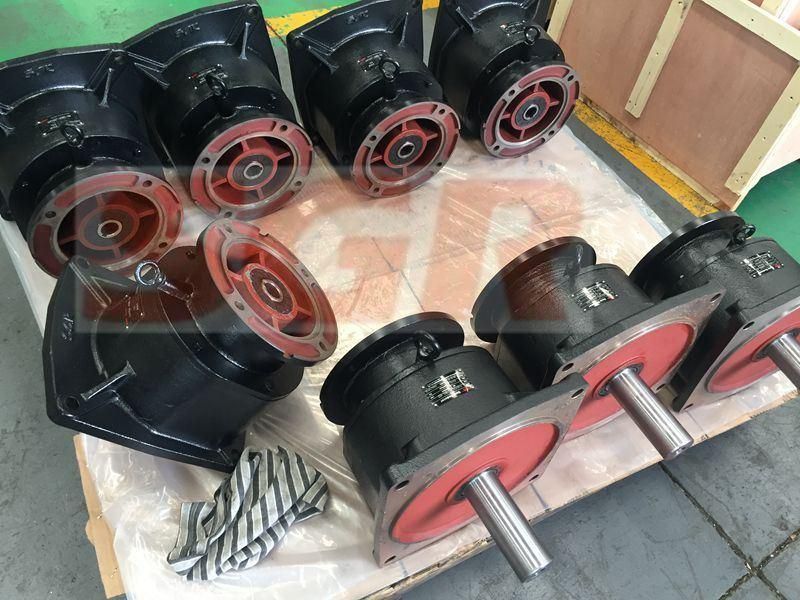

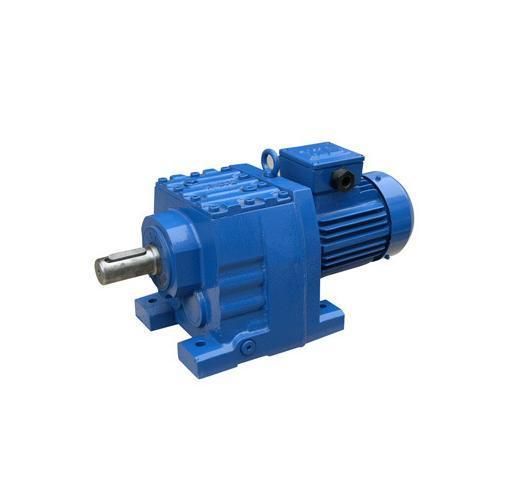

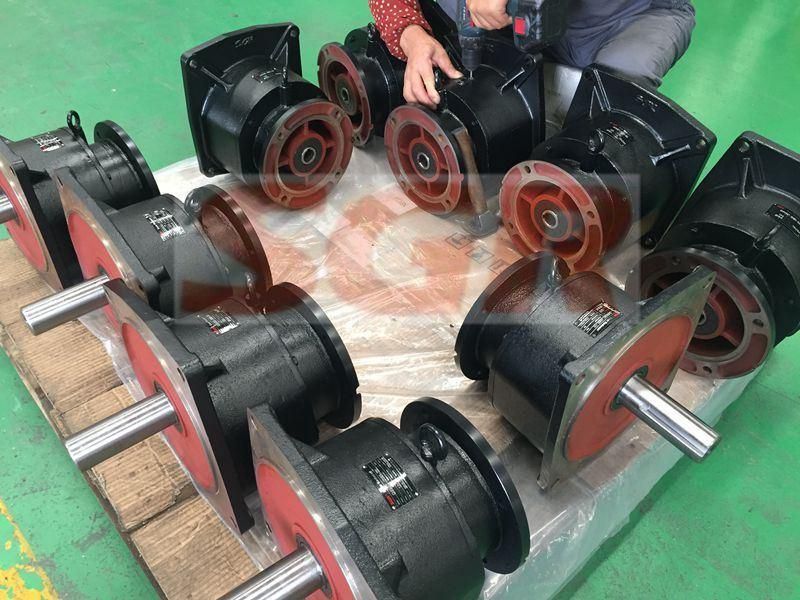

Helical Geared Box Reducer Application for The End Beam of Suspended Cranes
Helical Geared Box Reducer Application for The End Beam of Suspended Cranes
Helical Geared Box Reducer Application for The End Beam of Suspended Cranes


Characteristic:
1. Good available capability & reliability
2. Good temperature exchange capability & high strengthens
3. Carburized and grinded teeth
4. Good fabricate capability, can be fabricated with other reducer to realize low-speed transmission

 ratio range5:1 to 264:1
 input power 0.18kw to 160kw
 voltage 220V/380V/400V/440V
 frequency 50Hz / 60Hz
 output speed 0.09rpm to 382rpm

Helical Geared Box Reducer Application for The End Beam of Suspended Cranes
Helical Geared Box Reducer Application for The End Beam of Suspended Cranes
Helical Geared Box Reducer Application for The End Beam of Suspended Cranes


Our Services

With all our activities DNV-ISO 9001, SGS -certified, we stand for top-quality service. Entrusting your gearboxes to the care of our Services.

Help protect your gearbox from wear and grinding, SGR gearbox converts torque reliably and effi­ciently.
We customize our SGR planetary gear units, double enveloping worm gearbox, helical gear motor, modular design helical gear unit, worm gearbox, cycloidal gearbox etc to fit your application and meet your needs.

These features enable a reliable and safe service life of over 200 000 operational hours.

Our customers have been placing their trust in SGR gear units since 1997. More than 500 000 gear units of our gearbox are in use reliably around the world, in many cases under very harsh conditions.
