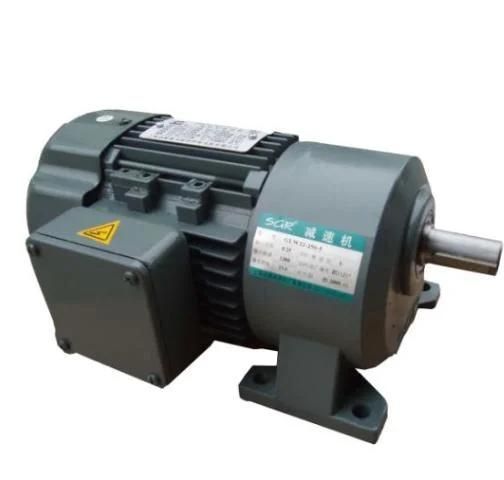

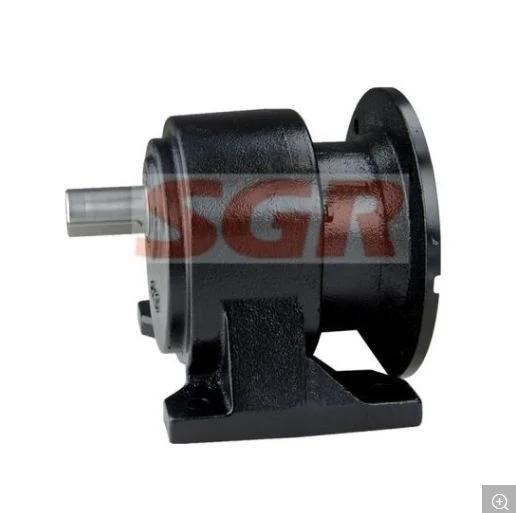

Helical Gear Reducer R Series Helical Motor 10HP and Gear Box
Hebei Zhouwo Trading Co., Ltd.- Application：Motor, Electric Cars, Machinery, Marine, Agricultural Machinery
- Function：Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
- Layout：Coaxial
- Hardness：Hardened Tooth Surface
- Installation：Horizontal Type
- Step：Four-Step
Base Info
- Type：Planetary Gear Box
- Transport Package：Wooden Case
- HS Code：8483409000
- Production Capacity：400PCS,Month
Description
ModelShaft Dia. Center Height Output Flange Dia. Power Ratio Permitted Torque Weight Solid (mm) (mm) (mm) (kw) (Nm) (KGS) R37 25k6 90h13 120/160 0.12~0.75 5~136 150 10 R47 30k6 115h13 160/200 0.25~2.2 5~173 300 15 R57 35k6 115h13 200/250 1.18~5.5 5~173 400 21 R67 35k6 130h13 200/250 0.37~7.5 5~170 500 27 R77 40k6 140h13 250/300 0.55~11 5~192 750 35 R87 50k6 180h13 300/350 0.75~18.5 5~192 1250 65 R97 60m6 225h13 350/450 1.5~30 5~197 2400 120 R107 70m6 250h13 350/450 2.2~45 5~197 3600 165 R137 90m6 315h13 450/550 4~55 5~197 6600 255 R147 110m6 355h13 450/550 7.5~90 5~195 10700 370 R167 120m6 425h13 550/660 11~132 8~186 14800 700 R187 160m6 510h13 660/770 15~160 8~186 28000 1500 Remark: the weight without oil and motor, shaft and flange input add 10%.
