• Model NO.：AWR902VP
• Range of Spindle Speed(Rpm)：50-1500
• Spindle Type/Power：5.5kw(Servo Motor)
• Type of Tool Holder：4 Position Electric
• Max Size of Tool Post：25X25mm
• Detection Method：Ruby Probe
• Net Weight：1530kg
• Transport Package：Wooden Case
• Specification：2200,1620,1870mm
• Trademark：Crystal
• Origin：China
• HS Code：8458110090
• Production Capacity：45 Sets,Month

ITEMS

Specifications

Control system

17 inch Multi-touch industrial PC system

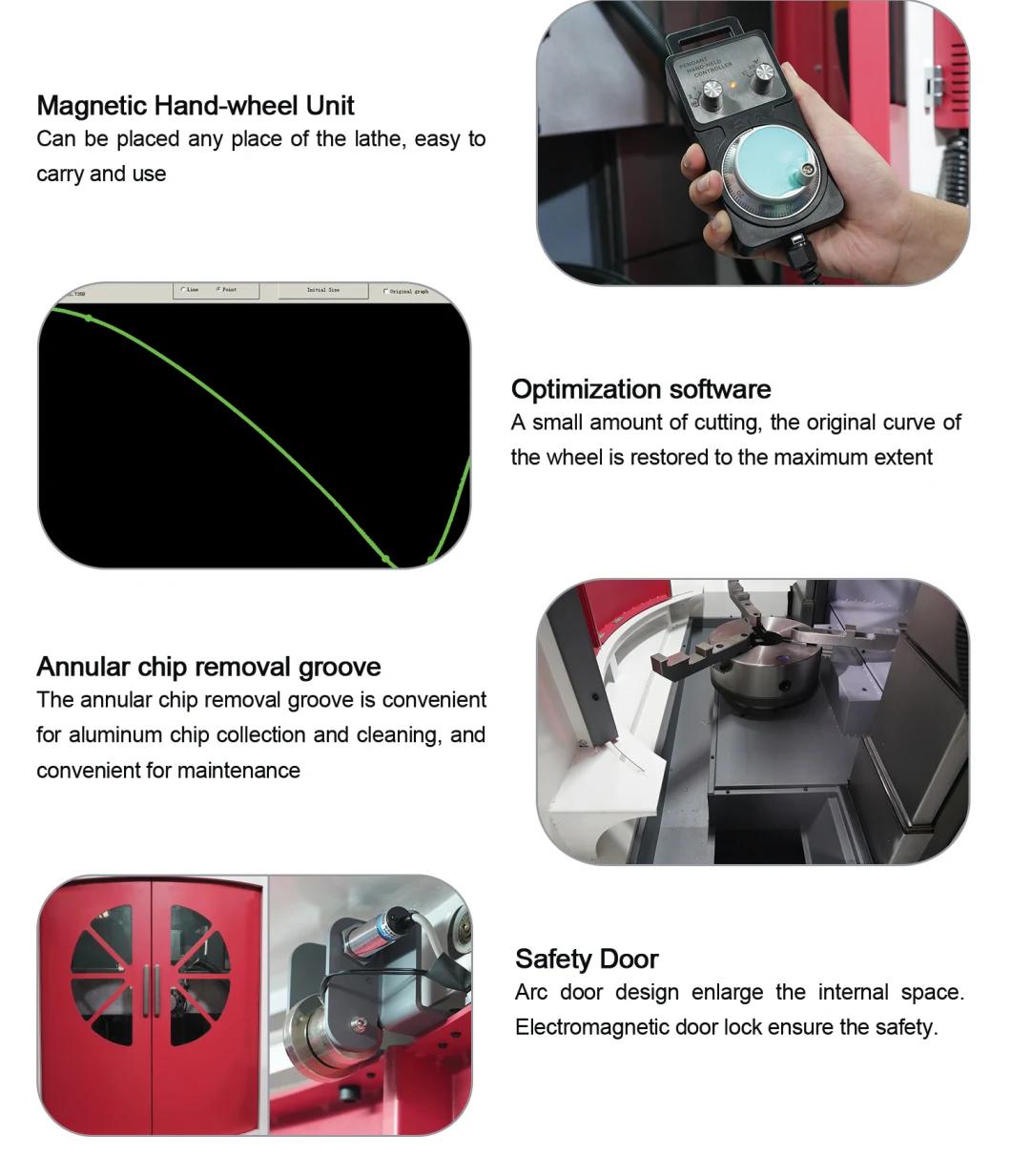

Optimization software

Crystal CNC-WheelCurve Software V2.0

Max. turning diameter

860mm

Max. size of alloy wheel

34"

Max. depth of wheels

550mm

Chuck

13'' 3 jaw chuck (6 jaw optional)

X/Z axis accuracy

0.001mm

X/Z axis control mode

Servo control

X axis travel

455mm

Distance from tool post to end face of chuck

630mm

Range of spindle speed

50-1500rpm

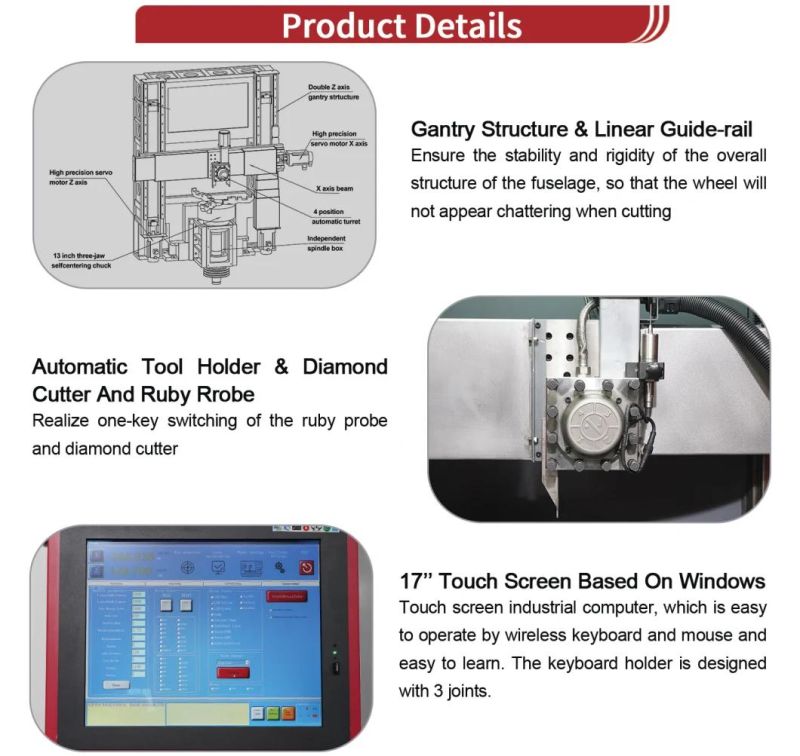

Tool post

4 position automatic tool holder(Manual tool holder optional)

Max. size of tool holder

25×25mm

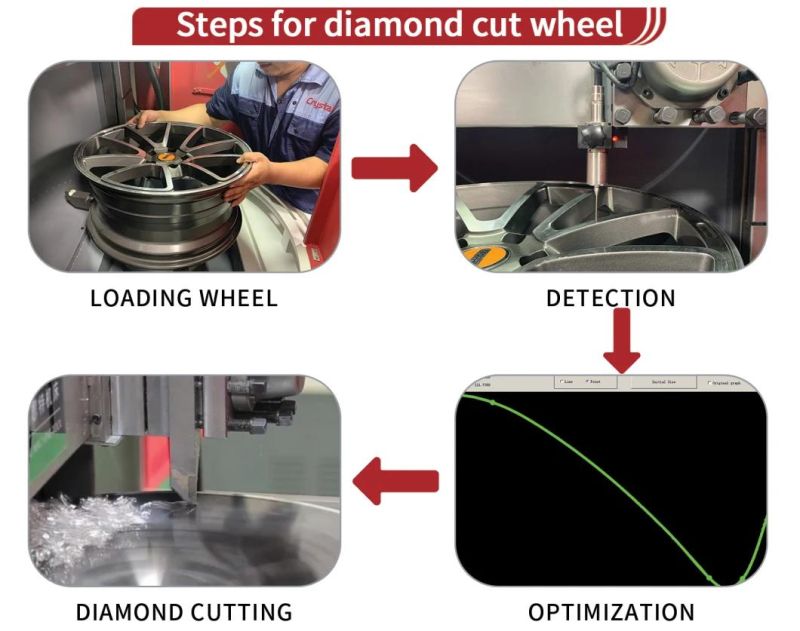

Detection method

Ruby probe (Laser detection optional)

Machine base

Whole cast iron base

Spindle control mode/ Power

Servo motor/ 5.5kw

Voltage

3 phase 380V (Other voltage optional)

Color

Customizable

Machine size

1630*1110*1860mm

Net weight

1530kg
