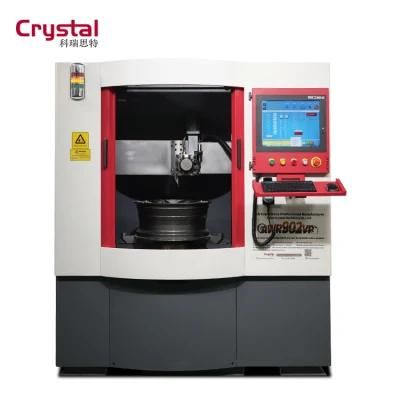

Low Cost Diamond Cut Alloy Wheel Repair CNC Machine

Zech Industry Limited
  • Max. Size of Alloy：Max. Size of Alloy Wheel 34
  • Max Depth of Wheels(mm)：550
  • No&Type of Guide in X-Axis：Two Linear
  • No&Type of Guide in Z-Axis：Four Linear
  • Range of Spindle Speed(Rpm)：50-1500
  • Spindle Type/Power：5.5kw(Servo Motor)

Base Info

  • Model NO.：AWR902VP
  • Type of Tool Holder：4 Position Electric
  • Max Size of Tool Post：25X25mm
  • Detection Method：Ruby Probe
  • Net Weight：1530kg
  • Transport Package：Wooden Case
  • Specification：2200,1620,1870mm
  • Trademark：Crystal
  • Origin：China
  • HS Code：8458110090
  • Production Capacity：45 Sets,Month

Description

ITEMS

Specifications

Control system

17 inch Multi-touch industrial PC system

Optimization software

Crystal CNC-WheelCurve Software V2.0

Max. turning diameter

860mm

Max. size of alloy wheel

34"

Max. depth of wheels

550mm

Chuck

13'' 3 jaw chuck (6 jaw optional)

X/Z axis accuracy

0.001mm

X/Z axis control mode

Servo control

X axis travel

455mm

Distance from tool post to end face of chuck

630mm

Range of spindle speed

50-1500rpm

Tool post

4 position automatic tool holder(Manual tool holder optional)

Max. size of tool holder

25×25mm

Detection method

Ruby probe (Laser detection optional)

Machine base

Whole cast iron base

Spindle control mode/ Power

Servo motor/ 5.5kw

Voltage

3 phase 380V (Other voltage optional)

Color

Customizable

Machine size

1630*1110*1860mm

Net weight

1530kg
