• Model NO.：MNC
• Type：Planetary Gear Box
• Diameter：up to 885mm
• Material：Cast Iron
• Manipulate Way：Robotics
• Changes Way：Mixed
• Manufacturing Method：Cut Gear
• Toothed Portion Shape：Spur Gear
• Transport Package：Plywood Case or Steel Cage
• Specification：ISO9001: 2008
• Trademark：SGR
• Origin：China
• HS Code：8483409000
• Production Capacity：400PCS,Month

Basic Info.

Model NO. MNC Type Planetary Gear Box Diameter up to 885mm Material Cast Iron Manipulate Way Robotics Changes Way Mixed Manufacturing Method Cut Gear Toothed Portion Shape Spur Gear Transport Package Plywood Case or Steel Cage Specification ISO9001: 2008 Trademark SGR Origin China HS Code 8483409000 Production Capacity 400PCS/Month

Product Description

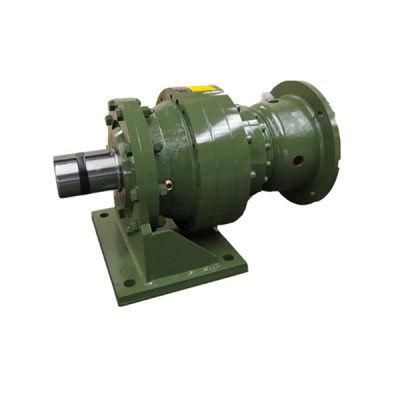

Equivalent to bonfiglioli planetary gear box Technical data:
1. Ratio range: 3.15-9000
2. Input power: 0.25-55KW
3. Permit torque rang: ≤ 800000N. M
4. Output speed: 0.425-445 r/min
5. Structure mode: Possibility of flange, foot, or shaft mounting solutions

Equivalent to bonfiglioli planetary gear box Characteristic:
1. Wide and comprehensive range of N series for industrial applications
2. Low speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low speed shaft bearing

Ratio	3.15:1 to 9000:1
Reduction Stages	up to 6 reduction stages in one gearbox
Nominal Output Torque	up to 800,000N.m
