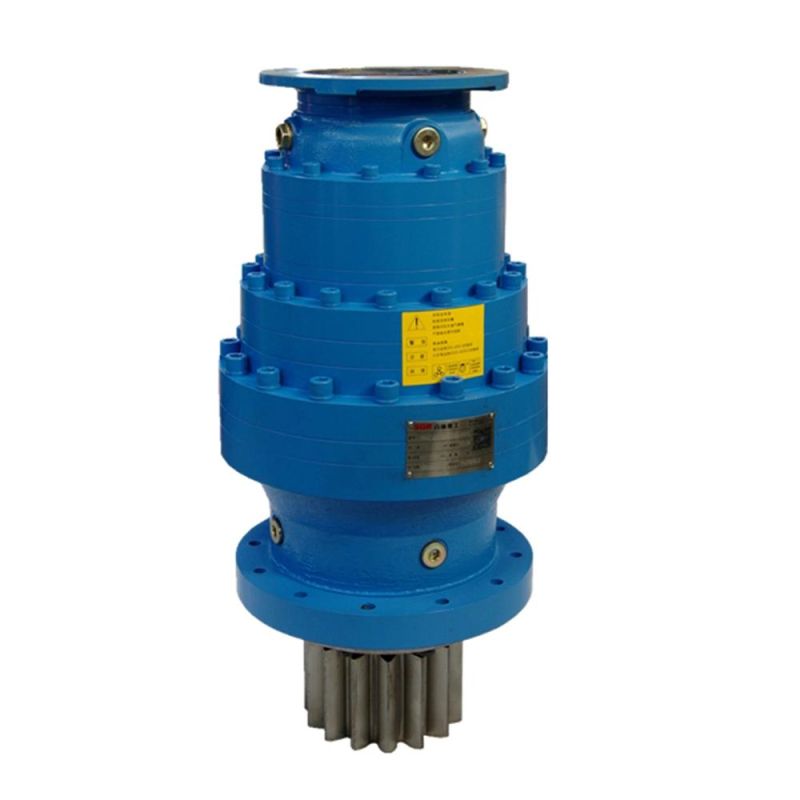

Vertical Mounting Planetary Gear Reduction Speed Reducer Gearbox
Hebei Zhouwo Trading Co., Ltd.- Application：Motor, Electric Cars, Motorcycle, Machinery, Marine, Toy, Agricultural Machinery, Industry
- Function：Distribution Power, Clutch, Change Drive Torque, Change Drive Direction, Speed Changing, Speed Reduction, Speed Increase
- Layout：Coaxial
- Hardness：Hardened Tooth Surface
- Installation：Vertical Type
- Step：Double-Step
Base Info
- Model NO.：MNC
- Type：Circular Gear
- Diameter：up to 885mm
- Material：Cast Iron
- Manipulate Way：Robotics
- Manufacturing Method：Cut Gear
- Toothed Portion Shape：Spur Gear
- Advantage：Vertical Mounting Planetary Gear Reduction Speed
- Service Sky-PE：Dennis.Yan99
- Transport Package：Plywooe Case or Steel Cage
- Specification：ISO9001: 2008
- Trademark：SGR
- Origin：China
- HS Code：8483409000
- Production Capacity：400PCS,Month
Description
Basic Info.
Model NO. MNC Type Circular Gear Diameter up to 885mm Material Cast Iron Manipulate Way Robotics Manufacturing Method Cut Gear Toothed Portion Shape Spur Gear Advantage Vertical Mounting Planetary Gear Reduction Speed Service Sky-PE Dennis.Yan99 Transport Package Plywooe Case or Steel Cage Specification ISO9001: 2008 Trademark SGR Origin China HS Code 8483409000 Production Capacity 400PCS/MonthProduct Description
Vertical Mounting Planetary Gear Reduction Speed Reducer Gearbox Technical data:1. Ratio range: 3.15-9000
2. Input power: 0.25-55KW
3. Permit torque rang: ≤ 800000N. M
4. Output speed: 0.425-445 r/min
5. Structure mode: Possibility of flange, foot, or shaft mounting solutions
Vertical Mounting Planetary Gear Reduction Speed Reducer Gearbox Characteristic:
1. Wide and comprehensive range of N series for industrial applications
2. Low speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaft
3. Rigid and precise nodular cast iron casing
4. Low noise running, high manufacturing quality standard
5. High and reliable performance, load capacity and low speed shaft bearing
| Ratio | 3.15:1 to 9000:1 |
| Reduction Stages | up to 6 reduction stages in one gearbox |
| Nominal Output Torque | up to 800,000N.m |
