• Model NO.：bdssl-009
• Application：Highway, Square, Garden
• IP Rating：IP65
• Certification：CE, RoHS, CCC, ISO, FCC
• Voltage：12V24V
• Height of Pole：4m-12m
• Battery：Gel Battery
• Controler：10A15A20A
• Solar Panel：Polycrystal Monocrystal
• Cable：2.5mm2
• Allocation Design：According to Clients Requirement
• LED Chips：Bridgelux CREE
• Transport Package：Bulk Package
• Specification：CE GSG FCC CE ROHS
• Trademark：LUYOU
• Origin：Yangzhou China
• HS Code：940540900
• Production Capacity：2000sets Per Month

ParametersSolar ModulePmax(W)30-400W Vmp (V)35.0V Imp (A)2.86ALight FixtureMaterialAluminum die casting & Toughened glass Operating Temperature-40°C~75°C Protection LevelIP65LED Light SourceLED ChipBRIDGELUX / Cree (Top brand in U.S.A.) Color Temperature3800-6500K(white) Luminous flux5300 LM Operating temperature-40°C~75°C Current SourceDC 12V/24V Power15W/18W/21W/24W/30W/36W/42W/48W/54W/60WLighting PoleHeight3m/ 4m/ 5m/ 6m/ 7m/ 8m/ 9m/ 10m/ 11m/ 12 m MaterialBAOSTEEL GROUP Q235/345/GR60 Surface TreatmentHot-dip galvanizing, Static spray, Sizeφ60-φ200,δ3-5m, vary according to models Flange Plate300*300*16, vary according to modelsBatteryCapacity200AH (100AH*2pcs)  TypeGel/AGM Battery Dimension546*1203*30 Weight28KgControllerRated voltage and current12V/10A or 24V/10A waterproof  Weight0.165Kg Two times rainy day backup
&Protective FunctionTwo times of rainy day backup.
Good protection: overcharging, discharging, voltage surge, reverse polarity, etc.AccessoriesCable2.5 mm2, 15m Battery Box200AH ABS battery box or metal box with hot-dip galvanizing spray treatment Foundation KitDismountable foundation kit, saving in shippingAFTER SALES

*  BAODE will offer technical guidance and repair service for the whole life time of her products.
*  BAODE promises to respond with customer's questions within 24 working-hours.

Payment terms: 30% in advance and 70% before shipment.
Lead time: 2~3 weeks upon receipt of payment for 50 poles.
Shipping: Generally, solar lights are shipped by sea. Battery and pole are not available to ship by air.
Package: Individual package for each component of solar light. Wooden box for LED lamp and solar panel for LCL goods. 80 poles load a 40 HP container for 8M solar street lights and 60-3.5m solar garden lights in a 20 container.


 Solar Street Light Details



A GRADE high efficient solar panel

Mono: 18% convert efficiency

Poly:  17% convert efficiency

5 years warranty for solar panels



USA BRAND LED and Aluminum Section Bar Light Fixture

LED: BRIDGELUX/CREE

Long life time: 1W LED with 1 heat sink, fast heat dissipation makes it 100,000 hours long life time



STRONGER POLE with 20 years life time

Larger diameter: our pole is 10% larger in diameters

Thicker wall: we offer 0.25mm thicker pole than that of the market. For example, we offer 3mm thickness for 6m pole, while other, 2.5-2.75mm

Bigger foundation kits: for example, we offer M18-20*1000mm bolts for 6m light, while others, M16-18*800mm

Thicker zinc galvanization and painting: we offer 100 μm zinc and coating than the standard 80 μm



TWO TIMES rainy day backup waterproof controller

Rainy day backup: 2 times more rainy day backup, savings in battery

Combined LED driver and controller as one, easy to maintain

IP67: ideal for high humidity and dust areas

Energy saving mode: THREE periods of power adjustment available

All metal shell: high strength and fast heat dissipation, giving long life time



UL LISTED GEL battery

Long service life (1600 cycles @ 30% DOD)

Better Weather-ability (-20 ºC ~ 50 ºC)

Fully sealed construction

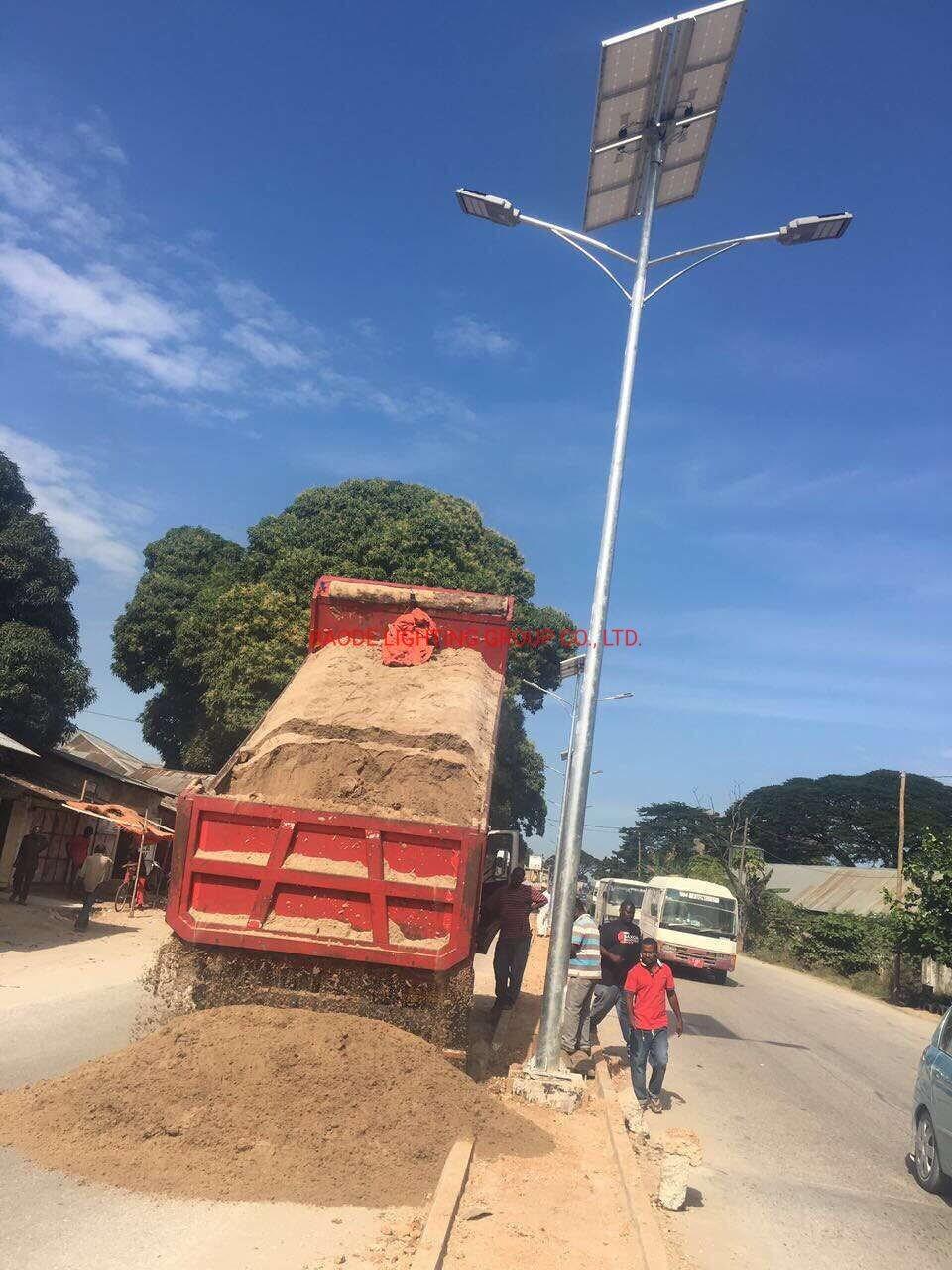

 Double arm solar street light for Nigeria

300sets solar strete light for TANZANIA
Customer from Benin inspect our high mast light before shipping
World bank official visit us for  solar light project in Tanzania


We proud of our product
