• Model NO.：P10-outdoor
• Pixel Density：10000dots
• Scanning Mode：1,4 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, CCC, ETL, SGS ISO
• Product：P10 Full Color

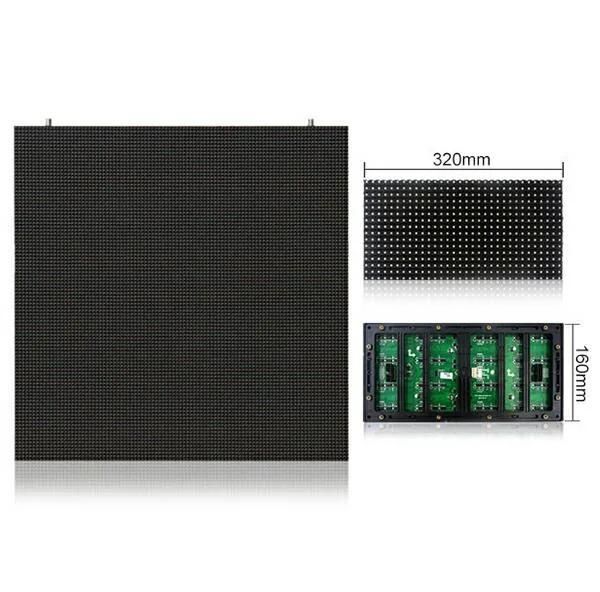

• Module Size：320*160mm
• Item：Advertising LED Display
• Warranty Time：3 Years
• Delivery Time：3-12working Days
• Working Temperature：-20degree-+80degree
• Brightness：More Than 8000CD,Sqm
• IP Grade：IP67
• Mtbf：10000hours
• Life Span Time：100, 000hours
• Transport Package：1.Anti-Shaking Wooden Package.2.Air Flight Case
• Specification：CE&ROHS&UL&FCC&SGS&3C
• Trademark：FOXGOLDEN
• Origin：Shenzhen, China
• HS Code：8531200000
• Production Capacity：10, 000PCS,Month

Technical  parameterUnit  moduleModule  size320*160mmPixel  pitch 10mmPixel  density10000dots/m2Pixel  configuration1R1G1BLed  specificationΦ 5ellipsePixel  resolutionW: 32dots*H: 16dotsCabinetDimension960mm*960mm*150mm Quantities  of  module18pcsPower  supply5pcsThermal  dischargeFan*2pcsTotal  weight45kgBest  viewing  angle10-300mTemperatureStorage:   -35degree~+85degreeWorking:   -35degree~+85degreeThickness15cm  can  adjustableRemarks:   cabinet  size  can  changed,   upon  project  need.PowerWorking  voltageAC220V/110V± 10%Average  power  consumption800WMax.   Power  consumption≤ 1100W/sqmCurrent≤ 20mA(single  LED)Control  systemCPUPentium4  or  aboveOperating  systemWIN98/2000/NT/XPControl  methodSynchronizationMain  technical  parameterDriving  deviceStatic  scanning,   also  virtualDrive  typeConstant  Current  driver  ICRefresh  frequency≥ 400HzGrey  scale/colors256  levels  of  each  color(R/G/B)/16.7M  colorBrightness  of  white  balanceMore  than  9, 000cd/sqmBrightness  adjustment256  levels  of  each  color(R/G/B)by  softwareOperating  ambient  humidity10%--95%Video  signal PAL/NTSCControl  systemDVI  display  card+full  color  controller  cardMTBF≥ 10, 000hoursLife  span≥ 100, 000hoursFlatnessTolerance  of  interpixel  ≤ 0.3mmTolerance  of  modules  clearance≤ 0.6mmPower  switchAutomatic  switchDisplay  mode1024*768Communication  distanceNetwork  calbe: 100m,   Multi-model:   500m,   Single-model  fiber: 20kmSoftwareLED  media  player






FAQ:

Q:What is your hot sale product?
A:P10 full color is best selling for Outdoor; P6 full color is best selling for indoor.
Q:What different from 1/4 scaning with 1/8 scaning?
A:1/4 scaning is better than 1/8, the screen will be high definition,high brightness.
Q:What different from LCD with LED?
A:1.LED is more energy save than LCD , have a high definition .
     2.LED have a big viewing angle, it can up to160 degree.
     3.LED can working well in a strong shine day.
Q:How to ensure the good quality of LED display?
A:Optimized structure can improve the efficency of installing screen to creat value;Aging can improve the quality, ensure reliability.
Q:The advantage of  LED SMD
A:1.High resolution  ;2.Big viewing angle; 3.Rugged ; 4.Vivid Mixture Color Effect ;5.Color Consistency;       6.Enhanced Contrast Ratio;7.Mass Production; 8.Long Service Life.


Foxgolden Group Ltd
Address:  No.57,Shuitian Fourth Industrial Park,Shiyan Town,Baoan District,Shenzhen City,China

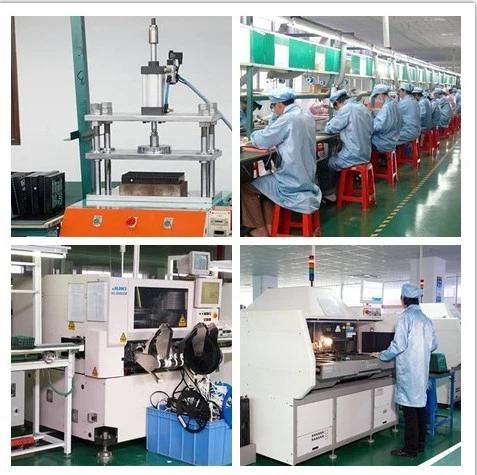

Foxgolden had been engaged in designing and manufacturing LED display for more than 11 years. Our products have certificates like CE/FCC/RoHS/NQA /SGS/ISO.
The best quality products and excellent service will be provided to you by our professional team.
