• Model NO.：WL-D-880S
• Platform：1150*720 , 1250*820mm
• Cetificate：Ce
• Loading：350kg
• Volt：12-24V
• Max Lifting Height：880mm
• Own Weight：135kg
• Packing Size：Wooden Case, 1.2*0.6*1.4m
• Operation：Fully Automatic
• Operated by：Remote Control
• Transport Package：Wooden Box
• Specification：CE Certificate
• Trademark：xinder
• Origin：Jiangsu. China
• HS Code：842890909
• Production Capacity：10000 PCS

Basic Info.

Model NO. WL-D-880S Platform 1150*720 / 1250*820mm Cetificate Ce Loading 350kg Volt 12-24V Max Lifting Height 880mm Own Weight 135kg Packing Size Wooden Case, 1.2*0.6*1.4m Operation Fully Automatic Operated by Remote Control Transport Package Wooden Box Specification CE Certificate Trademark xinder Origin Jiangsu. China HS Code 842890909 Production Capacity 10000 PCS

Product Description

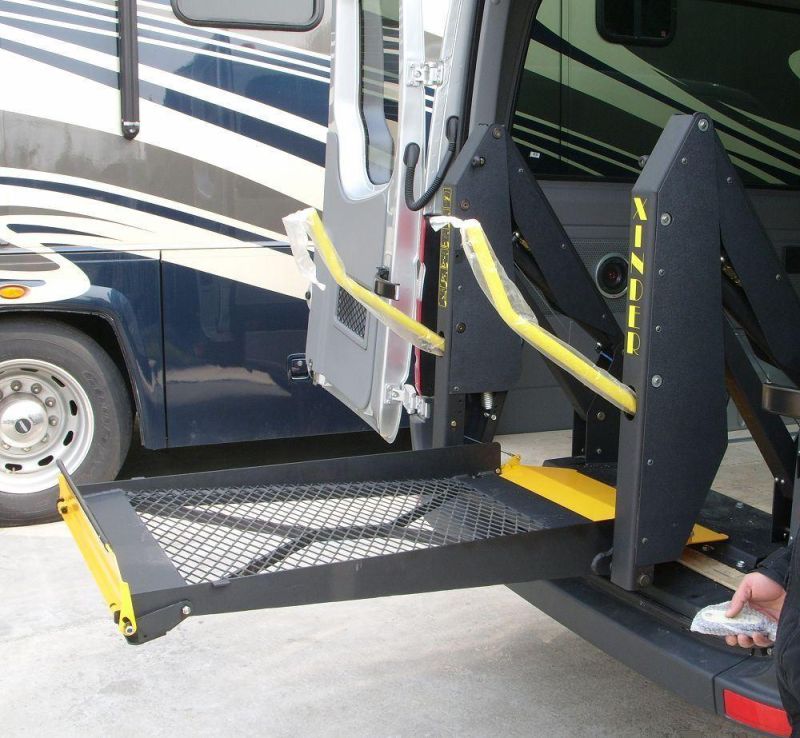

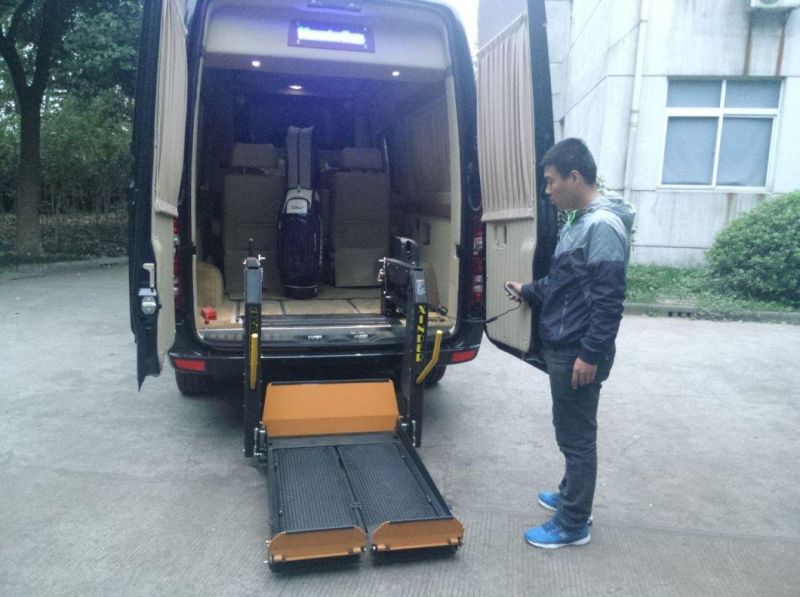

WL-D-880s wheelchair lift
This wheelchair lift gives new meaning to the term accessibility. The fully automatic split platform folds up and out of the way at the push of a button, leaving the doorway clear. The steel frame and powerful hydraulic pump ensure a fast, secure means of entry and exit. You will find the convenient and easy to operate.

Advantages:
. Exclusive split-platform design allows clear access to the vehicle's interior
. Powerful hydraulic pump ensure smooth, stable operation for heavy wheelchairs and scooters
. All-steel frame features convenient handrails for increased comfort and security
. Stable, non-skid platform with automatic inboard and outboard rollstops accommodates most wheelchairs and scooters
. Pre-lubricated bearings at all major pivot points offer long-term durability
. High gloss, polyester powder coat finish resists corrosion
. Built in manual backup system

Details are as follows:
Loading capacity: 350 kg
Own weight: 135 kg
Electric system: 12-24 Volts
Max working pressure: 14 Map
Platform dimension: 1150*720mm
Max floor height: 880 mm
Auxiliary emergency hand pump

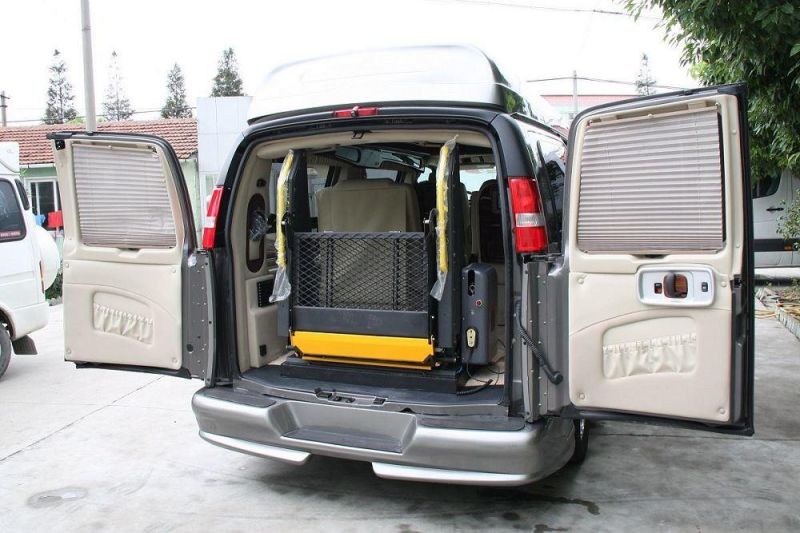

WL-D-880 wheelchair lift
The outomatic wheelchair lift offers you dependable accessibility while its trim, compact design maximizes valuable interior space. The lift aslo features a strong durable steel frame built to give you years of dependable service.
There are so many advantages of this product, such as automatic inboard and outboard rollstops, quietand smooth operation, welded all-steel frameare, built-in manual backup system, permanent no-lube bearings at all major pivot points, easy to maintain and so on.

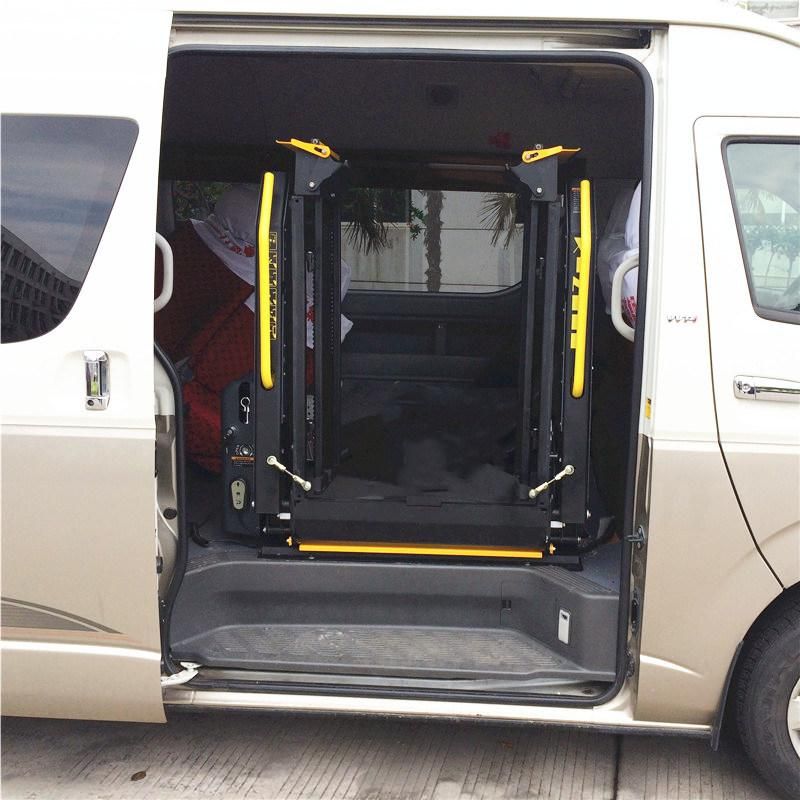

WL-D-880U wheelchair lift
This wheelchair life, with a unique "fold-in-half" design, provides an unobstructed view for the driver, helps to eliminate hazardous blind spots, allows a clear view for the passengers, and is virtually unseen from outside. Moreover, because the flatform folds when stowed, no raised-roof modification for your personal vehicle is required-even when a long platform is necessary for larger wheelchairs and power scooters. The lift is quiet and easy to maitain. There are so mang other advantages, such asadded safety benefit of minimized blind spots, unique folding platform accommodating longer platform scooters and wheelchair without requiring raised roof or door, automatic inboard/outboard rollstops, stable and compact when stowed, powerfulhydraulic pump, built-in manual back-up system and so on.


Model	WL-D-880-1150	WL-D-880S-1150	WL-D-880U-1150	WL-D-880-1250	WL-D-880S-1250	WL-D-880U-1250
Platform size	1150*720	1150*720	1150*720	1250*820	1250*820	1250*820
overall width	1135	1135	1135	1235	1235	1235
overall height	1225	1225	1130	1225	1225	1130
overall length	440	440	500	440	440	500
max lifting height	880	880	880	880	880	880
Volt	12-24V	12-24V	12-24V	12-24V	12-24V	12-24V
max working pressure	14Mpa	14Mpa	14Mpa	14Mpa	14Mpa	14Mpa
loading capacity	350KG	350KG	350KG	350KG	350KG	350KG
own weight	134KG	134KG	134KG	150kg	150kg	150kg
