14t Axle Spoke for Trailer Semi -Trailer
Shenzhen Ourway Packing Products Co., Ltd.- Condition：New, New
- Axle Number：2, 2
- Application：Trailer, Trailer
- Certification：ISO, ISO
- Material：Alloy, Steel
- Type：Rear Axles, Rear Axles
Base Info
- Loading Weight：25t
- ABS：Without ABS
- Tent Type：Simple
- Tire Number：6
- Color：Black
- Transport Package：in Bulk
- Specification：16ton
- Trademark：ZBJZ
- Origin：Shandong China
- HS Code：87088090
- Production Capacity：10000 Set,Sets , Month
Description
Basic Info.
Loading Weight 25t ABS Without ABS Tent Type Simple Tire Number 6 Color Black Transport Package in Bulk Specification 16ton Trademark ZBJZ Origin Shandong China HS Code 87088090 Production Capacity 10000 Set/Sets / MonthProduct Description
Product Description
16T German type Axle For semi trailer rear axle
| Axle model | JZ16GNS1 | JZ16GNS2 | JZ16GNS3 | JZ16GNS4 | JZ18GNS1 | JZ18GNS2 |
| Rated loading capacity (kg) | 16000 | 16000 | 16000 | 16000 | 18000 | 18000 |
| Bearing | 32314/32222 | 32314/32222 | 32314/32222 | 32314/32222 | 32314/32222 | 32314/32222 |
| Wheel track (mm) | 1840 | 1850 | 1850 | 1860 | 1850 | 1860 |
| Brake size | Φ420×200 | Φ420×200 | Φ420×220 | Φ420×220 | Φ420×220 | Φ420×220 |
| Center distance of brake chamber (mm) | 347 | 357 | 337 | 347 | 337 | 347 |
| Wheel fixing (P.C.D.×H) | Φ335×Φ281 | Φ335×Φ281 | Φ335×Φ281 | Φ335×Φ281 | Φ335×Φ281 | Φ335×Φ281 |
| Wheel bolt | 10-M22×1.5 ISO | 10-M22×1.5 ISO | 10-M22×1.5 ISO | 10-M22×1.5 ISO | 10-M22×1.5 ISO | 10-M22×1.5 ISO |
| Axle tube (mm) | 150 | 150 | 150 | 150 | 150 | 150 |
| Weight (kg) | 405 | 410 | 415 | 420 | 430 | 432 |
| Recommended wheel | >=8.50V-20 | >=8.50V-20 | >=8.50V-20 | >=8.50V-20 | >=8.50V-20 | >=8.50V-20 |
| Max. length (mm) | ≈2165 | ≈2262 | ≈2262 | ≈2272 | ≈2262 | ≈2272 |

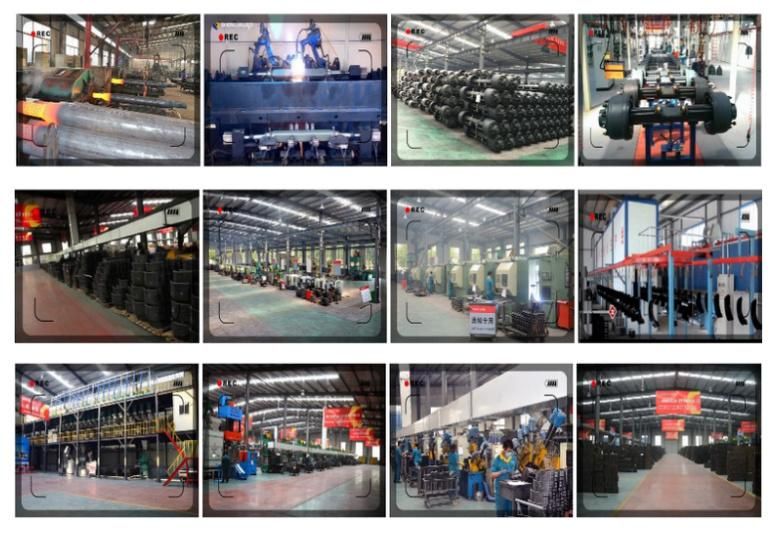

Our factory

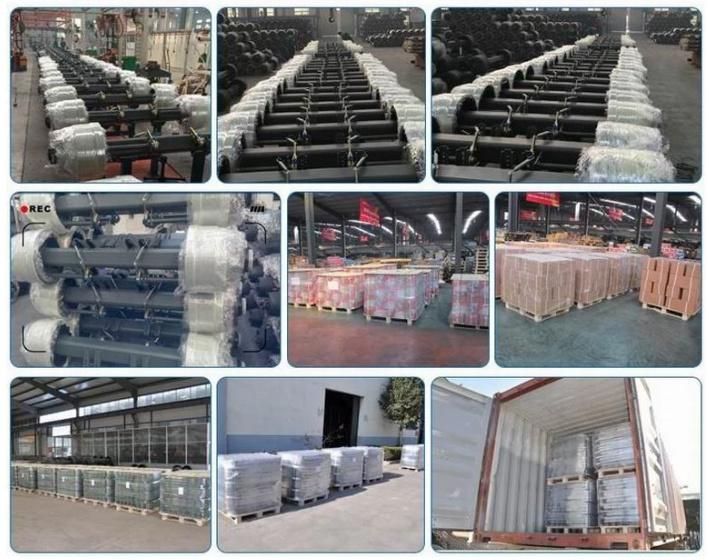

Loading
Fair&Certifictae
