• Model NO.：P3.91, P4.8, P5.95, P6.25
• Pixel Density：28224pixels,Sqm
• Scanning Mode：1,6 Scan
• Display Type：LED Video Display

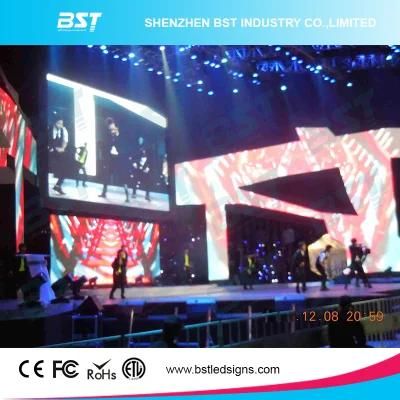

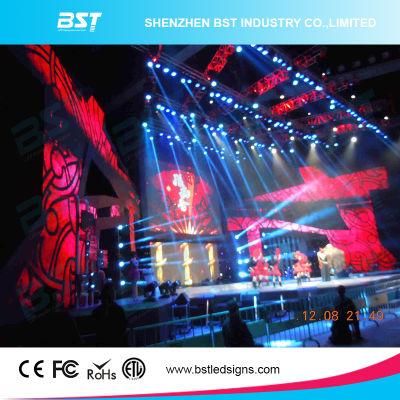

• Application：Stage Performance
• Certification：CE, RoHS, UL, CCC, ETL
• Delivery Time：15~25 Working Days
• Warranty Time：2 Years

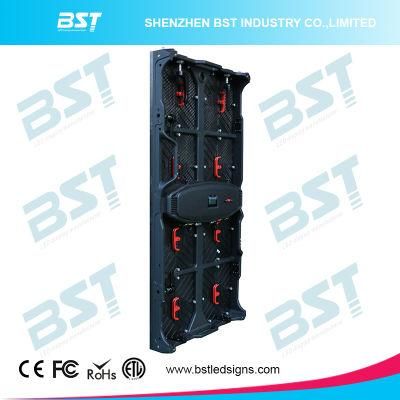

• Cabinet Size：500X1000mm
• OEM：Yes
• Transport Package：Flight Case, Plywood Case, Carton.
• Specification：CE, ROHS, ISO9001
• Trademark：BST
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：3000sqm,Month

ModelOR-5.95Pixel Pitch5.95mmPixel Density28224 pixels/m2LED TypeSMD2727LED Configuration1R1G1BCabinet Dimension500mmx1000mmCabinet Resolution84*168pixelsCabinet Weight13kgCabinet Materialdie casting aluminumIngress Protection(front/rear)IP65/IP54Brightness>6500nitsViewing Angle(H/V)140°/140°Driving Method1/6 ScanFrame Refresh≥ 60HzData Refresh Rate>1500HzGray Scale16bitPower Consumption(avg.)300w/m2Input VoltageAC 110/220±10%,  50~60HzTemperature(operating/storage)-20~50°C / -40~60°CHumidity(operating/storage)10%~90%RH / 10%~85%RHMTBF≥1000hrsLife Span≥50000hrsPixel Failure<0.0003

Description:

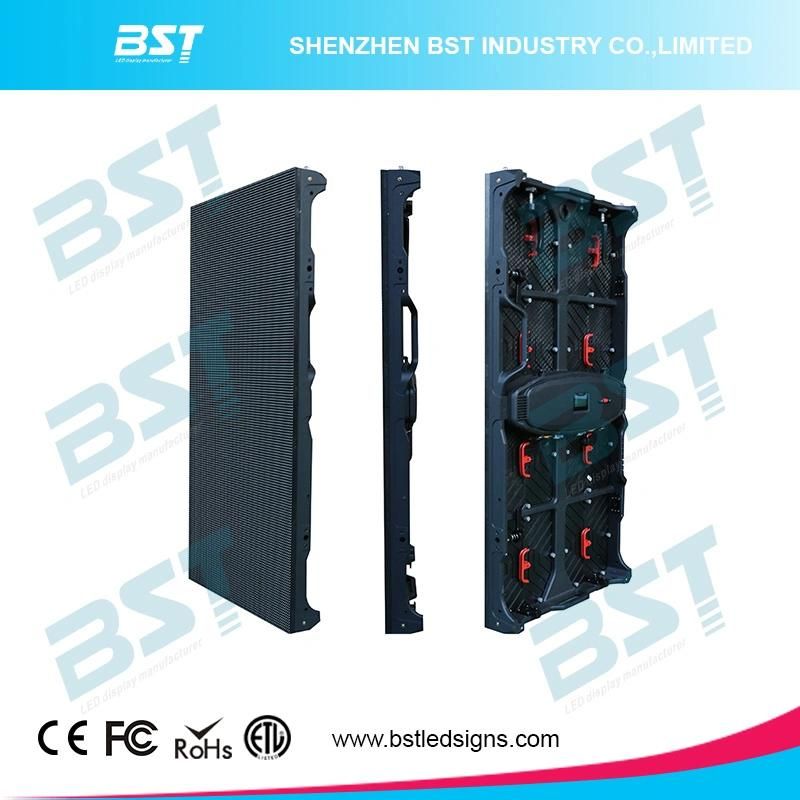

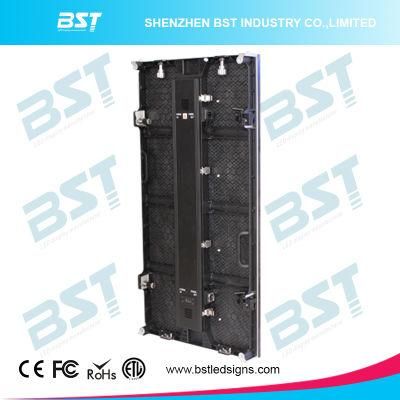

The Plug & Play U-Smart series has a slim design and very light weight of only 14 kg. Outdoor and outdoor products are offered. Its main advantages include:

• Waterproof, stable product performance at -20 to +80 degrees

• Heat resistance, low noise creation, low power consumption

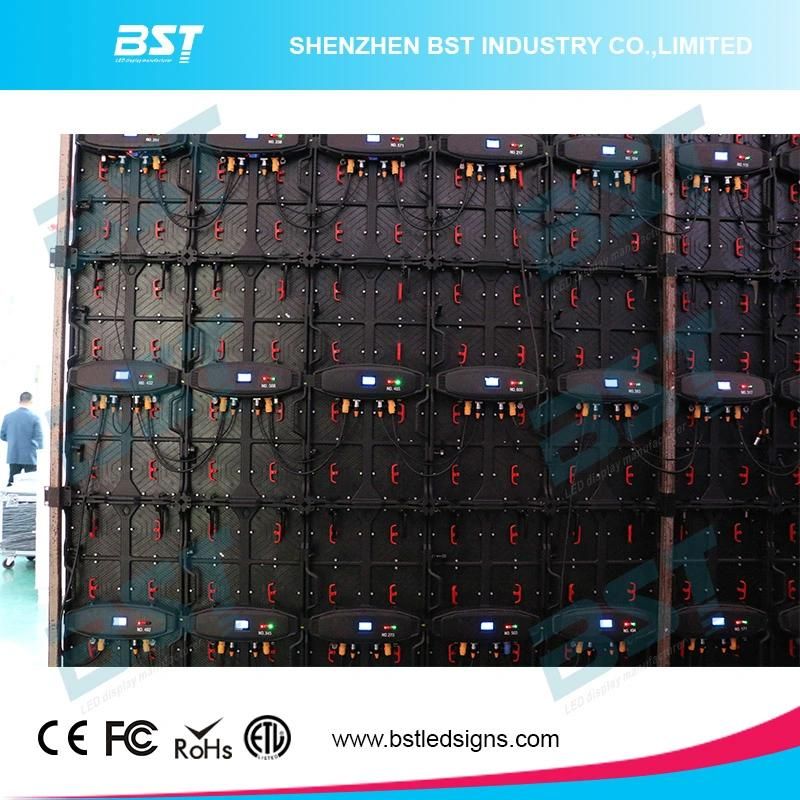

• Fast & easy installation, cabinets can be removed from the display while hung up

• Gap between cabinets is adjustable and can be controlled within 0.2mm

• Indoor display: high refresh rate, high grey scale, high contrast, vivid image

• Outdoor display: IP65 waterproof grade and certification through SGS

• Both can be hung up or stacked up
