P3.91 P4.81 P5.95 P6.25 500 X 1000mm Outdoor Rental Stage LED Video Wall Screen High Definition

Guangzhou Zhonghao Packaging Products Co., Ltd.
  • Tube Chip Color：Full Color
  • IP Rating：IP65
  • Pixel Pitch：4.81mm
  • Pixel Configuration：1R, 1G, 1B
  • Display Function：Video Display
  • Average Power Consumption：300W , m²

Base Info

  • Model NO.：P3.91, P4.8, P5.95, P6.25
  • Pixel Density：43264pixels,Sqm
  • Scanning Mode：1,6 Scan
  • Display Type：LED Video Display
  • Application：Stage Performance
  • Certification：CE, RoHS, UL, CCC, ETL
  • Delivery Time：15~25 Working Days
  • Warranty Time：2 Years
  • Cabinet Size：500X1000mm
  • OEM：Yes
  • Transport Package：Flight Case, Plywood Case, Carton.
  • Specification：CE, ROHS, ISO9001
  • Trademark：BST
  • Origin：Shenzhen, China
  • HS Code：8528591090
  • Production Capacity：3000sqm,Month

Description

ModelOR-4.81Pixel Pitch4.81mmPixel Density43264 pixels/m2LED TypeSMD2727LED Configuration1R1G1BCabinet Dimension500mmx1000mmCabinet Resolution104*208pixelsCabinet Weight13kgCabinet Materialdie casting aluminumIngress Protection(front/rear)IP65/IP54Brightness>6500nitsViewing Angle(H/V)140°/140°Driving Method1/6 ScanFrame Refresh≥ 60HzData Refresh Rate>1500HzGray Scale16bitPower Consumption(avg.)300w/m2Input VoltageAC 110/220±10%,  50~60HzTemperature(operating/storage)-20~50°C / -40~60°CHumidity(operating/storage)10%~90%RH / 10%~85%RHMTBF≥1000hrsLife Span≥50000hrsPixel Failure<0.0003
P3.91 P4.81 P5.95 P6.25 500 X 1000mm Outdoor Rental Stage LED Video Wall Screen High DefinitionP3.91 P4.81 P5.95 P6.25 500 X 1000mm Outdoor Rental Stage LED Video Wall Screen High DefinitionP3.91 P4.81 P5.95 P6.25 500 X 1000mm Outdoor Rental Stage LED Video Wall Screen High DefinitionP3.91 P4.81 P5.95 P6.25 500 X 1000mm Outdoor Rental Stage LED Video Wall Screen High DefinitionP3.91 P4.81 P5.95 P6.25 500 X 1000mm Outdoor Rental Stage LED Video Wall Screen High DefinitionP3.91 P4.81 P5.95 P6.25 500 X 1000mm Outdoor Rental Stage LED Video Wall Screen High Definition

  Installation

  • Accuracy, quickness and flexiblity
  • Lightness, thinness
  • Every cabinet's weight is about 14KG.



       High reliability, good flatness

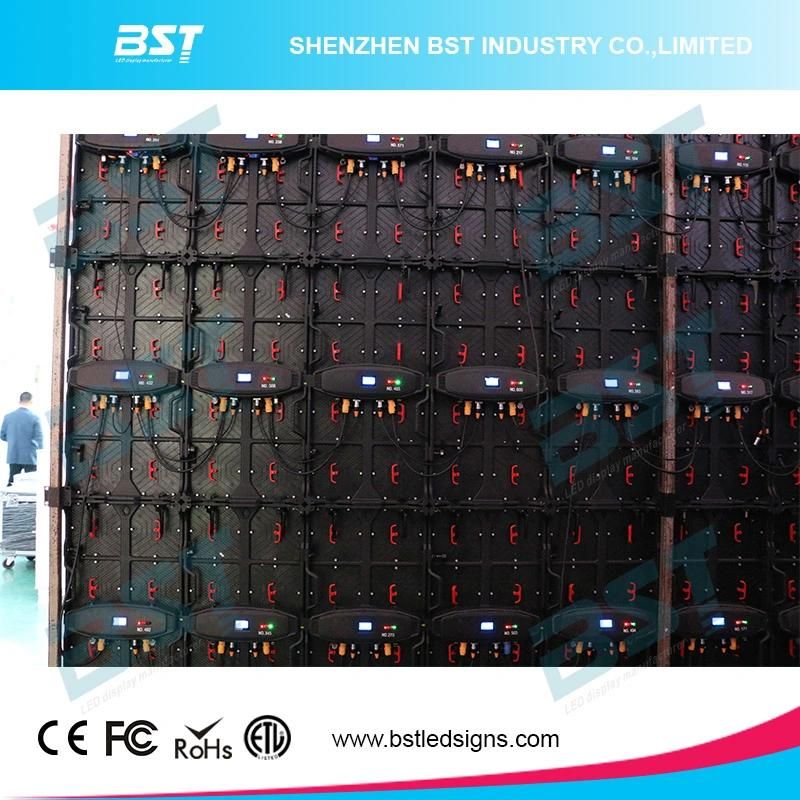

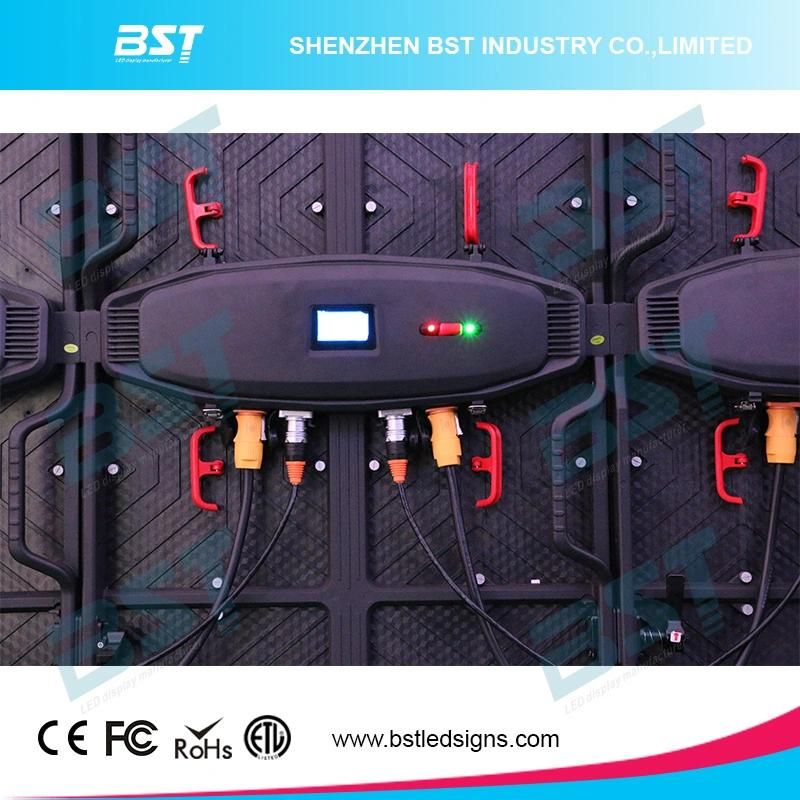

  • Control card and ultrathin power supply integrated on a circuit board, no signal cable, enhance stability and reliability greatly.
  • With 4 big modules composing a cabinet, internal connection is reduced and product stability is enhanced.

         Control method , Performance

  • Usually with synchronous controlling, the software is simple, easy to operate, supporting for multiple languages.
  •  Provide customers with unique, new control card and can support both synchronous and asynchronous mode.During  synchronous playing, if the signal is accidentally disconnected,   asynchronous playing will start to use automatically, so the display never stop playing.
      Displaying performance
  • P5mm indoor led display owns high contrast,  refreshing rate and gray scale achieve that when the LED display presents images , there is not any delays, and when rebroadcasting, there is no water ripples,thus achieving fantastic stage effects.

      Energy conservation

  • energy conservation and low power consumption save operating costs.
