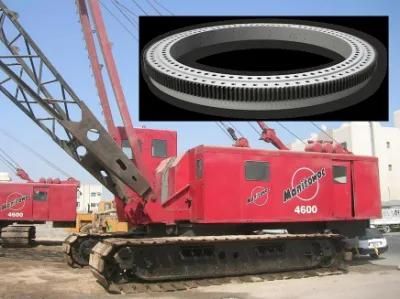

Slewing Rings with 1-Year-Warranty Used for Crawler Crane (QW1120.32) External Turntable Bearing
Right Team Holding Ltd.- Rolling Body：Ball Bearings
- The Number of Rows：Single
- Outer Dimension：200-6000mm
- Material：50mn, 42CrMo
- Load Direction：Axial, Radial and Tilting Moment
- Separated：Unseparated
Base Info
- Model NO.：QW1120.32
- Production Experience：Since Year 1993
- Brand：Lyhy
- Customer Design：Available
- Bore Diameter：996mm
- Outside Diameter：1300mm
- Height：90mm
- Testing：in House or Third Party (SGS, BV)
- Warranty Period：1 Year
- Delivery Time：20-30 Days
- Gear Type：External Gear
- Transport Package：Wooden Box
- Specification：ISO9001: 2008
- Trademark：LYHY
- Origin：China
- HS Code：848210900
- Production Capacity：900PCS Per Year
Description
Overall DimensionMounting Dimension Structure Dimension Gear Parameter Mass QU.QW.QN Series External Internal H D1 D2 n Hole Thread Hole n1 D3 d1 H1 h b m External Internal External Internal X=-0.5 X=+0.5 D d D d A B.C.D De Z De Z φ φ T 500.20 590 407 593 410 60 555 445 14 17 M16 24 2 501 499 50 10 40 5 615 122 385 78 56 55 500.20A 6 624 103 378 64 58 57 560.20 654 464 656 468 70 618 502 14 30 561 599 60 50 4 680 169 440 111 78 76 560.20A 5 685 136 435 88 79 77 630.20 724 534 726 538 70 688 572 16 30 631 629 4 748 186 512 129 86 84 630.20A 5 755 150 505 102 88 86 710.20 804 614 806 618 70 768 652 18 30 711 709 5 835 166 585 118 99 97 710.20A 6 840 139 582 98 101 97 800.20 894 704 896 708 70 858 742 20 30 801 799 6 930 154 672 113 114 110 800.20A 8 936 116 664 84 114 111 800.25 904 692 908 694 78 864 736 18 22 M20 36 801 799 68 58 6 942 156 654 110 143 142 800.25A 801 799 8 952 118 648 82 147 142 900.25 1004 792 1008 794 78 964 836 20 36 901 899 8 1048 130 744 94 162 163 900.25A 901 899 10 1060 105 740 75 168 162 1000.25 1104 892 1108 894 78 1064 936 24 36 1001 999 8 1152 143 848 107 182 178 1000.25A 1001 999 10 1160 115 840 85 185 179 1000.32 1120 876 1124 880 90 1074 926 24 24 M22 40 1001 999 80 70 8 1160 144 832 105 227 230 1000.32A 1001 999 10 1170 116 830 84 232 227 1120.32 1240 996 1244 1000 90 1194 1046 28 4 1121 1199 10 1300 129 940 95 272 263 1120.32A 1121 1199 12 1308 108 936 79 275 262 1250.32 1370 1126 1374 1130 90 1324 1176 32 1251 1249 10 1430 142 1070 108 302 294 1250.32A 1251 1249 12 1440 119 1068 90 309 290 Model Overall Dimension Mounting Dimension Structure Dimension Gear Parameter Mass QU.QW.QN Series External Internal H D1 D2 n Hole Thread Hole n1 D3 d1 H1 h b m External Internal External Internal X=-0.5 X=+0.5 D d D d A B.C.D De Z De Z φ φ T 1400.32 1520 1276 1524 1280 90 1474 1326 36 24 M22 40 4 1401 1399 80 10 70 12 1584 131 1212 102 337 333 1400.32A 1401 1399 14 1596 113 1204 87 347 336 1250.40 1390 1108 1394 1110 102 1336 1164 32 26 M24 45 4 1251 1249 90 12 80 10 1450 144 1050 106 396 388 1250.40A 1251 1249 12 1452 120 1044 88 392 388 1400.40 1540 1258 1544 1260 102 1486 1314 36 26 M24 45 4 1401 1399 90 12 80 12 1608 133 1188 100 448 444 1400.40A 1401 1399 14 1610 114 1190 86 443 434 1600.40 1740 1458 1744 1460 102 1686 1514 40 26 M24 45 4 1601 1599 90 12 80 12 1812 150 1392 117 528 509 1600.40A 1601 1599 14 1820 129 1386 100 534 511 1800.40 1940 1658 1944 1660 102 1886 1714 44 26 M24 45 4 1801 1799 90 12 80 14 2016 143 1582 114 583 576 1800.40A 1801 1799 16 2032 126 1568 99 607 591 1600.50 1762 1434 1766 1438 124 1704 1496 40 30 M27 50 4 1601 1599 112 12 100 12 1824 151 1368 115 714 714 1600.50A 1601 1599 14 1834 130 1358 98 727 723 1800.50 1964 1634 1966 1638 124 1904 1696 44 30 M27 50 4 1801 1799 112 12 100 14 2044 145 1568 113 845 794 1800.50A 1801 1799 16 2048 127 1552 98 843 818 2000.50 2162 1834 2166 1842 124 2104 1896 48 30 M27 50 6 2001 1999 112 12 100 16 2240 139 1760 111 912 891 2000.50A 2001 1999 18 2250 124 1746 98 927 913 2240.50 2402 2074 2406 2078 124 2344 2136 54 30 M27 50 6 2241 2239 112 12 100 16 2480 154 1984 125 1020 1044 2240.50A 2241 2339 18 2502 138 1980 111 1078 1041 2500.50 2662 2334 2666 2342 124 2604 2396 60 30 M27 50 6 2501 2499 112 12 100 18 2754 152 2250 126 1171 1132 2500.50A 2501 2499 20 2760 137 2240 113 1175 1148 2500.60 2696 2304 2696 2308 150 2626 2374 60 33 M30 56 6 2501 2499 136 14 122 18 2790 154 2214 124 1677 1621 2500.60A 2501 2499 20 2800 139 2200 111 1701 1654 2800.60 2992 2604 2996 2608 150 2926 2674 66 66 M30 56 6 2801 2799 136 14 122 18 3078 170 2502 140 1817 1871 2800.60A 2801 2799 20 3100 154 2500 126 1904 1857
