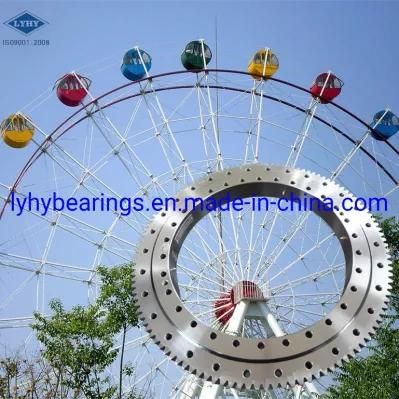

Ferris Wheel Bearings-Slewing Ring Bearings Turntable Bearings Ball Bearing Gear Bearing
Right Team Holding Ltd.- Standard or Nonstandard：Standard
- Feature：Cold-Resistant, Corrosion-Resistant
- Sealing Gland：Sealed On Both Sides
- Rolling-Element Number：Single-Row
- Roller Type：Deep Groove Raceway
- Material：Bearing Steel
Base Info
- Model NO.：6397,3340
- Type：Internal Gear
- Size：100mm-6600mm
- Structure：Roller Bearing
- Application：Ferris Wheel
- Production Experience：Since Year 1993
- Warranty Period：1 Year
- Delivery Time：30-40 Days
- Outer Diameter：3931mm
- Bore Diameter：3340mm
- Height：212mm
- Weight：3684kg

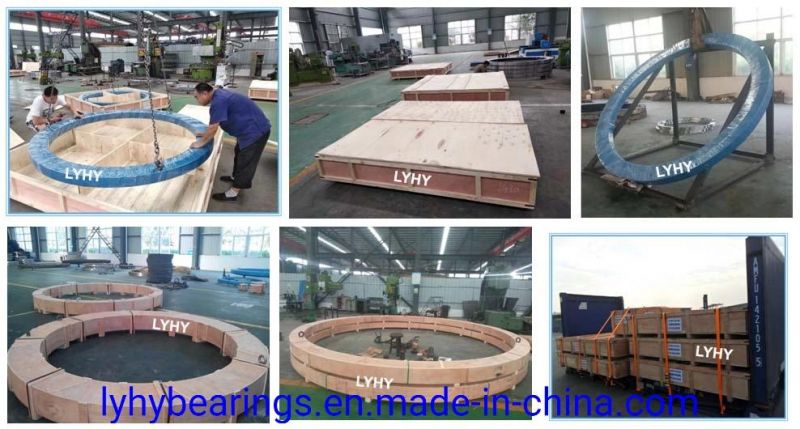

- Transport Package：Wooden Box
- Specification：ISO9001: 2008
- Trademark：LYHY
- Origin：China
- HS Code：8482109000
- Production Capacity：500PCS,Month
Description
ModelBoundary dimensions Mounting Dimension Structure dimensions Gear paramenters Basic load Mass D d H D1 D2 n1 n2 φ1 φ2 D3 d1 D3' d1' h1 h2 n3 φ3 m da Z b x Coa Cor mm mm mm mm mm mm 10 4 N kg None Gear 3-931G 4300 3650 355 4210 3750 90 90 48 48 _ _ 3850 3860 _ _ 18 M16*1.5 _ _ _ _ _ 6570 1330 9503 External Gear 6397/1605G2K 1984 1605 250 1932 1657 36 48 26 26 1850 1856 _ _ 50 33 6*3 M14*1.5 16 2064 127 170 0 1525 208 1800 3-947G 2465 1850 256 2390 2020 60 60 39 39 2261 2247 _ _ 46 20 6*2 M10*1 18 2554 139 180 0.5 2253 320 3515 3-934G 2650 2240 180 2588 2300 54 54 34 34 2487 2482 _ _ 30 15 6*3 M14*1.5 18 2854 150 132 0.5 1680 205 1832 6397/2590 3006 2590 200 2930 2670 60 60 39 39 2845 2860 _ _ 21 20 10*3 M10*1 16 3086 190 95 0.4 2192 316 2780 6397/2590K 3006 2590 314 2930 2670 60 60 39 39 2860 2864 _ _ 19 24 10*3 M10*1 16 3085 190 134 0.4 2700 316 4209 6397/2800G 3260 2800 220 3190 2870 60 60 39 39 3082 3068 _ _ 30 18 6*3 M14*1.5 20 3360 166 160 0 2700 330 3288 6397/2800GK 3255 2800 240 3185 2870 48 64 39 39 3082 3068 _ _ 30 38 8*3 M14*1.5 18 3348 184 160 0 2700 330 3419 6397/2800GK1 3255 2800 240 3185 2870 64 64 39 M36 3082 3068 _ _ 30 38 8*3 M14*1.5 18 3348 184 180 0 2700 330 3429 6397/2800GK2 3255 2800 240 3185 2870 48 64 39 M36*3 3082 3068 _ _ 30 32 8*3 M14*1.5 18 3348 184 160 0 2700 330 3424 6392/2910G 3400 2910 220 3315 2990 56 56 39 39 3200 3187 _ _ 50 10 8*2 M14*1.5 22 3520 158 160 0 2670 458 3736 6397/3340 3888 3340 212 3735 3441 108 108 33 33 3642 3612 _ _ 42 22 24 Z1/4in 24 3931 161 170 0.5 3900 410 3684 Internal Gear 7397/2210K 2650 2216 220 2590 2276 56 40 30 33 _ _ 2380 2392 27 23 8*3 M10*1 16 2130 135 140 0 2050 302 2418 7397/2700G2 3150 2700 255 3070 2750 40 70 32 32 _ _ 2856 2852 40 30 4*2 M14*1.5 20 2609 132 180 0 2920 423 3536 7397/2700G2K 3150 2700 255 3070 2750 72 72 32 32 _ _ 2856 2852 40 30 6*2 ZG1/4in 20 2604 132 180 0 2920 423 3542 7397/2700GK1 3150 2700 255 3070 2750 76 80 38 38 _ _ 2856 2852 40 30 4*2 M14*1.5 20 2609 132 180 0 2920 423 3393 7397/2700G2K2 3150 2700 255 3070 2750 72 72 33 33 _ _ 2862 2852 40 30 6*2 ZG1/4in 20 2604 132 180 0 2920 423 3542 7397/2700G2K3 3150 2700 255 3070 2750 8 2 32 M30 _ _ 2856 2852 40 30 4*2 M14*1.5 20 2609 132 180 0 2920 423 3699 3-945G2 5000 4190 430 4880 4310 66 72 44 44 _ _ 4482 4410 49 30 12*2 M10*1 25 4068 164 240 0.4 10506 1116 14204
