Stadium Perimeter P8mm Outdoor High Brightness LED Display Panel for Advertising
Danyang Yun Kai Metal Products- Tube Chip Color：Full Color
- IP Rating：IP65
- Pixel Pitch：6.67mm
- Pixel Configuration：1R, 1G, 1B
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：300W,Sqm
Base Info
- Model NO.：F1pro
- Pixel Density：22500dots,Sqm
- Scanning Mode：1,6 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, UL, CCC, ETL, L,C
- Module Size：320X160mm
- Module Resolution：48X32dots
- Cabinet Size：960X960mm
- Cabinet Resolution：144X144mm
- Cabinet Material：Die Casting Aluminum Magnesium Alloy
- LED Type：SMD3535
- Refresh Rate：1920-3840Hz
- Screen Brightness：7000nits
- Protection Grade：IP65
- Viewing Angle：V:140° , H:140°
- Controller：Nova

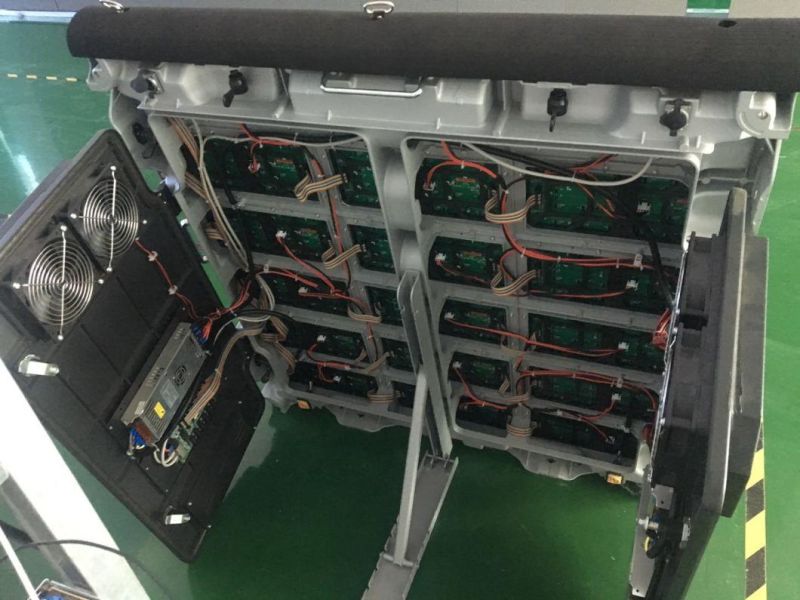

- Maintenance：Rear Service
- Compliance：Ce , RoHS ,CCC,FCC,ETL
- Avg.Power Consumption：300W,Sqm
- Max.Power Consumption：900W,Sqm
- Transport Package：Plywood Case
- Specification：960x960mm
- Trademark：CKGLED
- Origin：China
- HS Code：8528591090
- Production Capacity：6000sqm,Month
Description
NO.
Parameters
Specifications
1
Model:
S06
2
Pixel Pitch (mm):
6.67
3
Physical Density (dot/m2):
22500
4
LED Configuration:
1R1G1B
5
LED Type:
SMD3535
6
Module Size (mm x mm):
320x160
7
Module Resolution (PX x PX):
48x24
9
Drive Mode:
1/6 Constant Current Drive
10
Cabinet Size (mm x mm):
960x960mm
11
Cabinet Resolution (PX x PX):
144x144
12
Cabinet Material:
Die casting aluminum magnesium alloy
13
Cabinet Weight
32KG
14
Viewing Angle (Deg):
H: 140 / V: 140
15
Brightness (cd/m2):
6000
16
Grey Scale:
16bit
17
Refresh Rate (Hz):
1920
18
Power Consumption (W):
MAX.: 900 / AVE.: 300
19
Color (M):
>16.7
20
Input Voltage (V):
AC 100V~240V+/-10%
21
Refresh Frame Frequency (Hz):
60
22
Protection Level:
IP65
23
Working Temperature (ºC):
-30°- +70°
24
Operation humidity (RH):
10%-95%
25
Controller
Novastar
26
Certificates:
CCC ,CE,RoHS,FCC

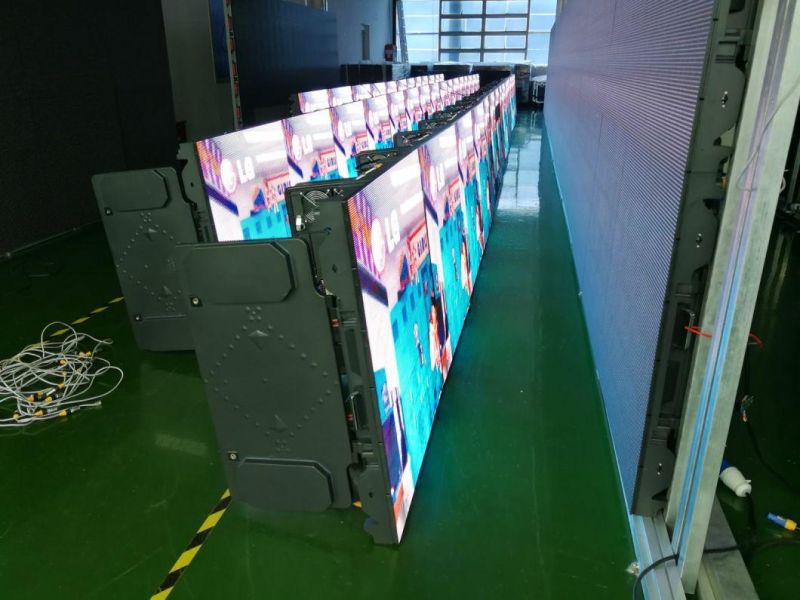

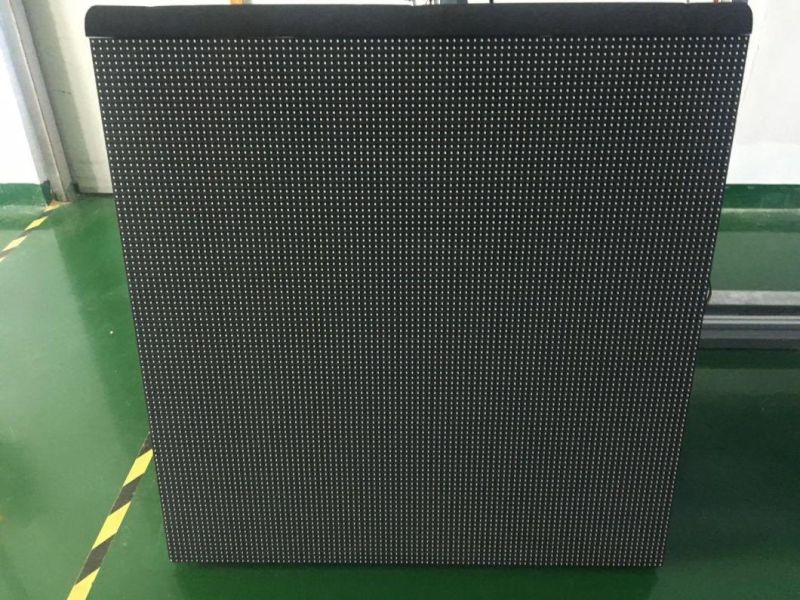

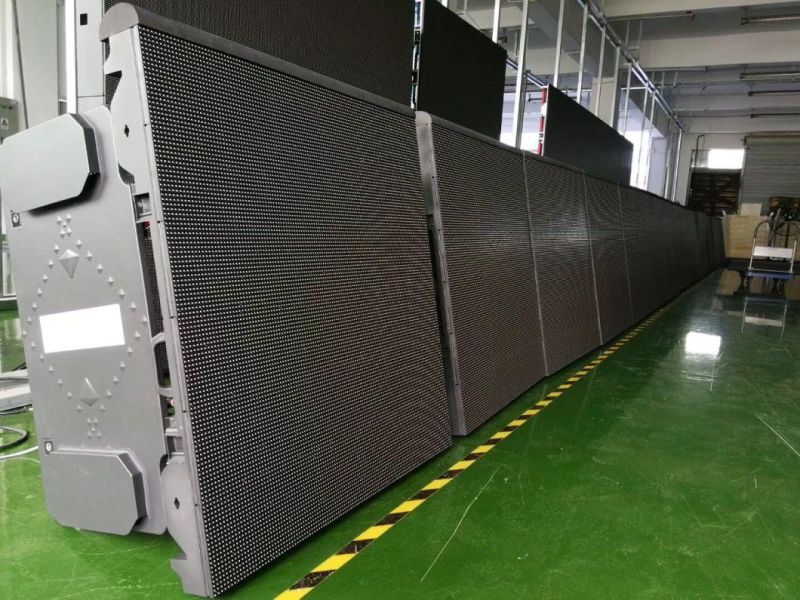

PRODUCT PICTURES:

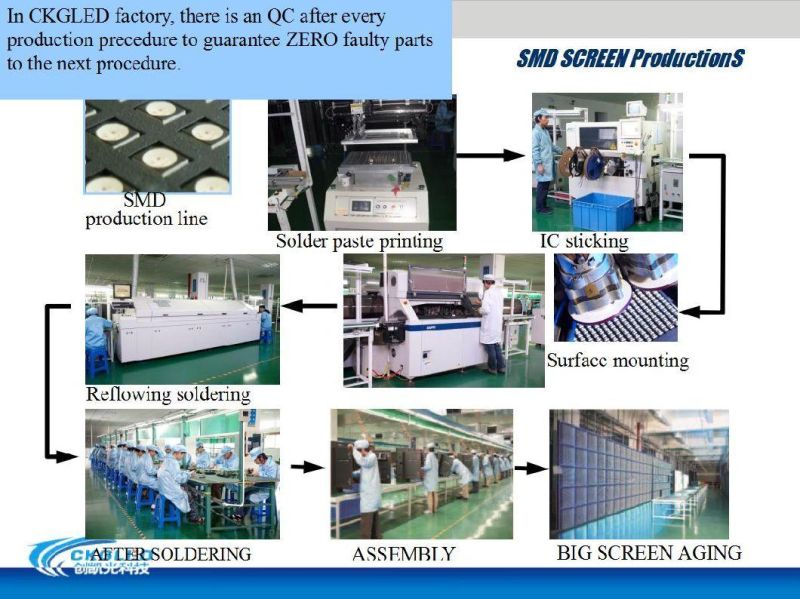

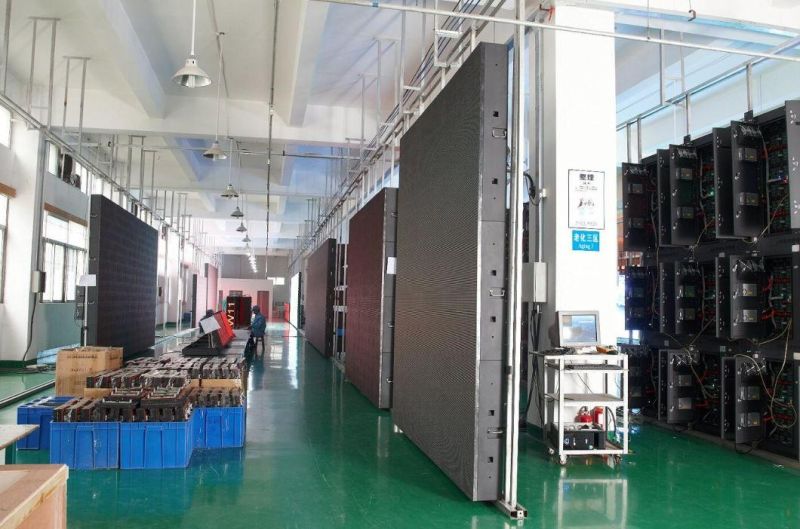

In CKGLED factory, there is an QC after every production precedure to guarantee ZERO faulty parts to the next procedure.

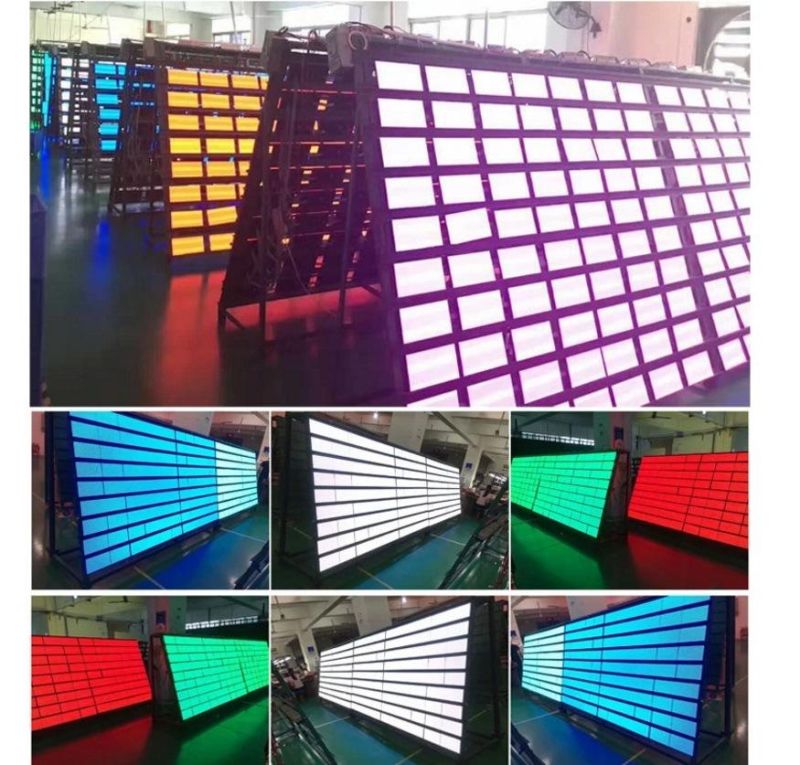

48 hours high brightness aging for the LED module and 72 hours aging for finished displays,
in order to guarantee the final products steady performance and long MTBF.
Our service
1. Your inquiry related to our products or price will be replied in 24hrs;
2. OEM&ODM, any your customized ideas we can help you to design and put into product;
3. Distributor-ship are offered for your unique design and some our current models;
4. Protection of your sales area, ideas of design and all your private information;
5. Top quality+Reasonable price+Responsible After Service;
6. CKGLED can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms

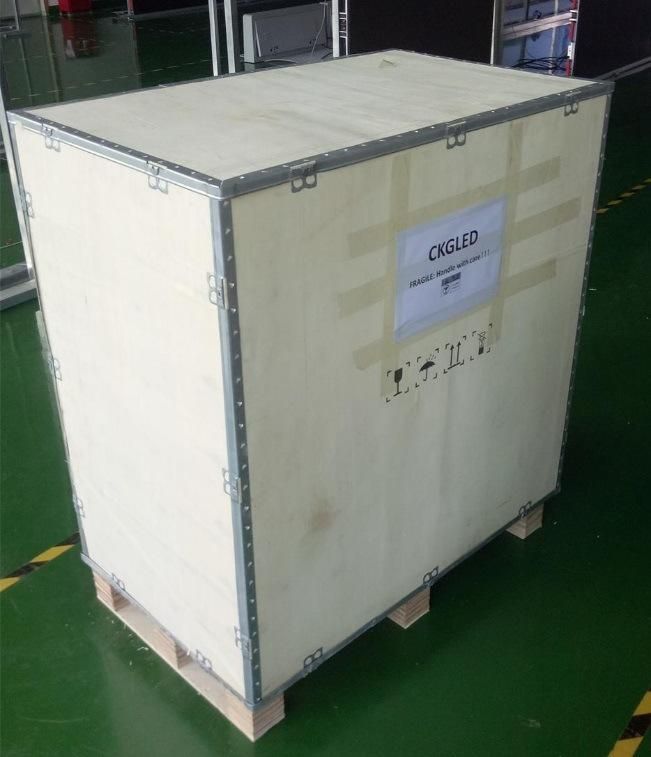

1. Package: Anti-shaking wooden package, Air flight case or Carton package;
2. Payment: 30% advance payment by T/T, remaining 70% balance after production completed and before shipment;
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, China;
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
