• Model NO.：P8mm
• Pixel Density：15625DOT,Sqm
• Scanning Mode：1,5scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, ETL
• Refresh Rate：1920~3840Hz
• Brightness：5500nits
• Screen Resolution：14400dots
• Drive Mode：1,5 Scan
• Viewing Angle：160°,160°
• Grey Scale：16 Bits
• Cabinet Material：Steel Iron
• Transport Package：Flight Case
• Specification：320*160mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. P8mm Pixel Density 15625DOT/Sqm Scanning Mode 1/5scan Display Type LED Video Display Application Advertising Certification CE, RoHS, UL, CCC, ETL Refresh Rate 1920~3840Hz Brightness 5500nits Screen Resolution 14400dots Drive Mode 1/5 Scan Viewing Angle 160°/160° Grey Scale 16 Bits Cabinet Material Steel Iron Transport Package Flight Case Specification 320*160mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

PRODUCT FEATURES:
1.High waterproof grade design:IP65

2.High brightness of 6500CD can achieve good effects even face to sunshine

3.960*960mm standard cabinet size: easy for transportation and installation

4.Seamless assembly:stainless steel locks achioeve micro-adjustment to make seamless screens

5.High quality, high grey and high refresh rate:achieve good visual effects


PRODUCT PARAMATERS:


NO.	Parameters	Specifications
1	Model	RO8
2	Pixel Pitch(mm)	8
3	LED	SMD3535
4	Screen Resolution	15625dots/sqm
5	Scan Method	1/5
6	Module size(mm)	320x160
7	Cabinet size(L*H*W mm)	960x960x80
8	Cabinet(Kg)	36
9	Viewing angle	H:140°/  V:140°
10	Grey Scale	14bit
11	Refresh rate(HZ)	1920~3840HZ
12	Brightness(nits)	≥5500
13	Working Voltage(V)	AC 100~240V
14	AVE. power consumption (W/m2)	200
15	MAX. power consumption(W/m2)	600
16	IP grade	F:IP65 / R:IP54
17	Working humidity	10~95%RH
18	Storage humidity	10~95%RH
19	Working temperature	-30ºC~60ºC
20	certificates	CCC,FCC,CE,ETL,RoHS

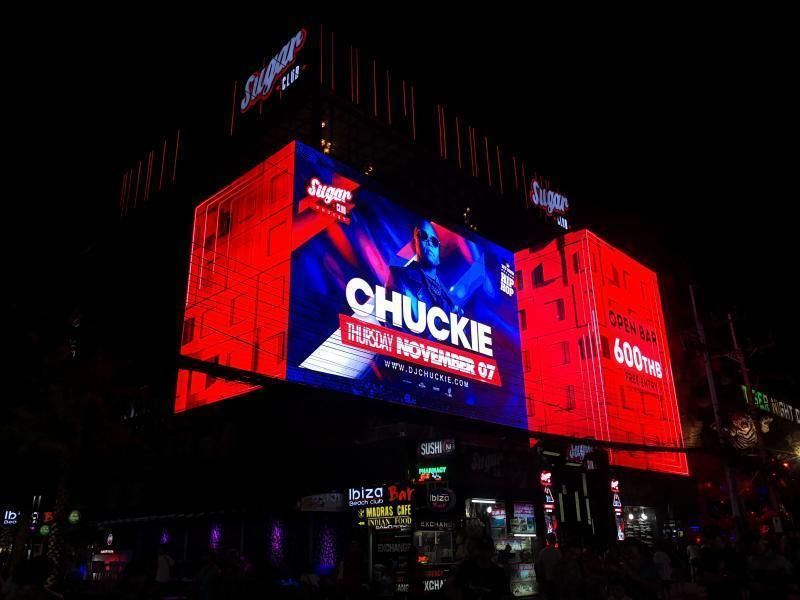

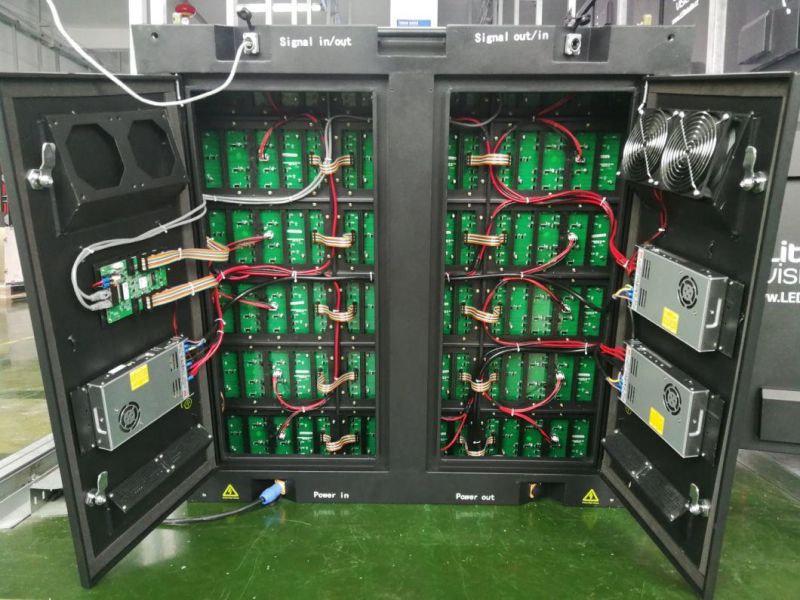

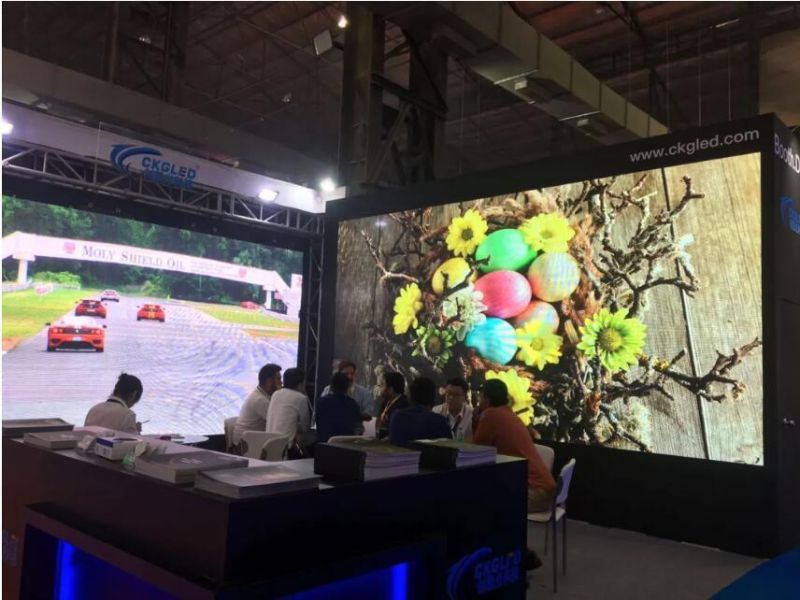

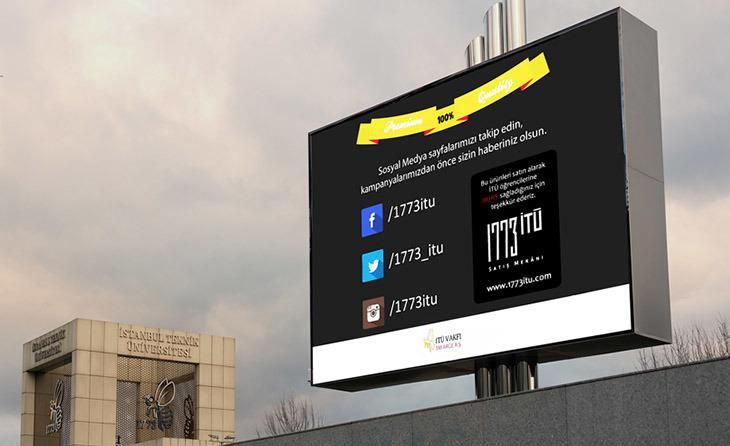

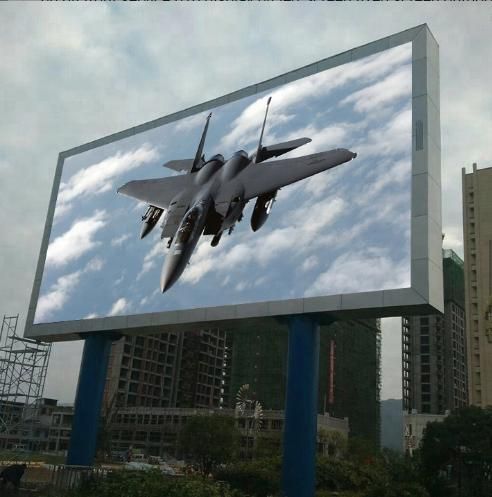

PRODUCT PHOTOS:

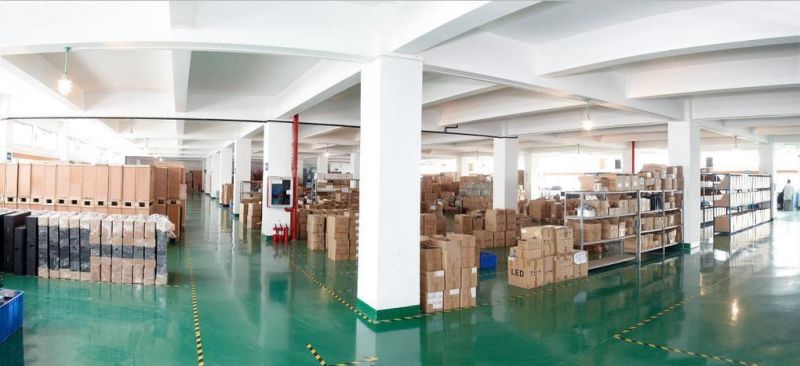

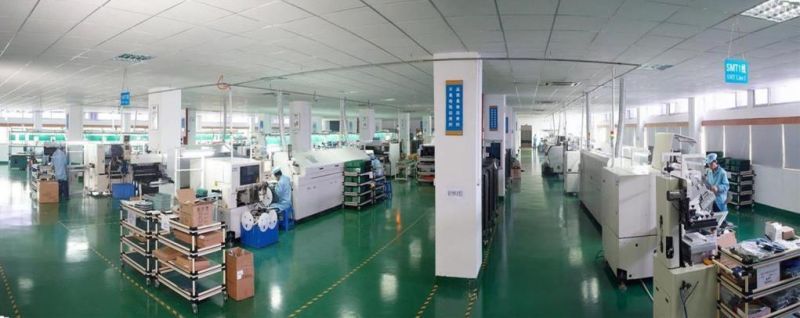

WORKSHOP:

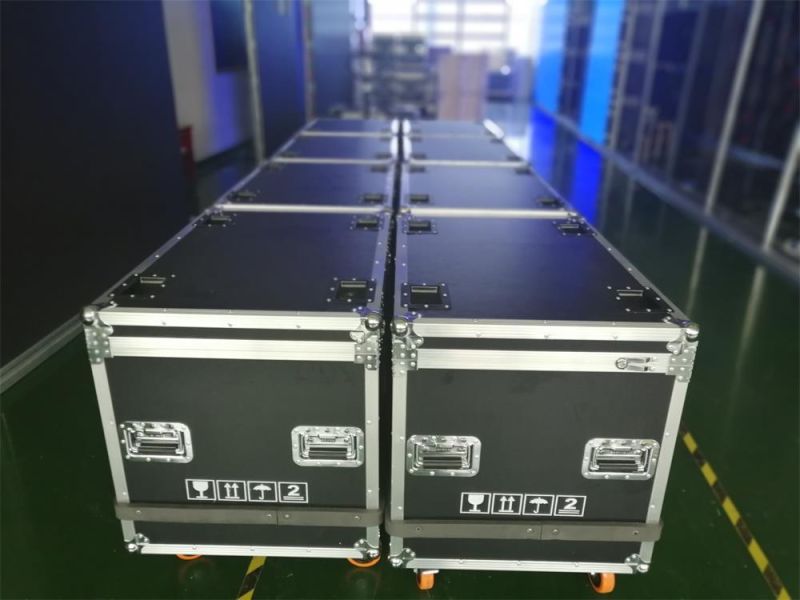

PACKAGE:


CULTURE:



CERTIFICATES:



OUR SERVICE:

1. Your inquiry related to our products or price will be replied in 24hrs

2. The size can be change as you give.

3. What we show is some of our current models, welcome to give us your own ideas.

4. Protection of your sales area, ideas of design and all your private information

5. (Top Quality) + (Reasonable Price) + (Responsible After Service) = (Successful & Win )
