• Model NO.：P5
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP51
• Certification：CE, CCC
• Warranty Period：2years
• Deliver Time：15-20 Days
• Drive Type：Constant Drive
• Package Mode：3528
• Modle Size：320mm*160mm
• Life Span：100000 Hours
• Color Display：Full Color
• Brightness：2800

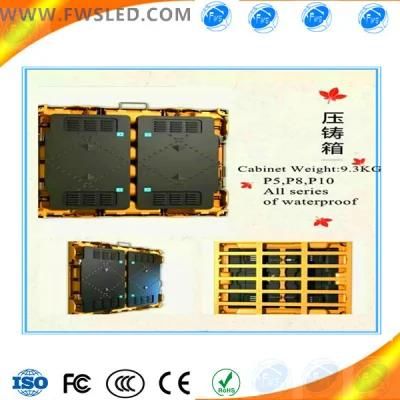

• Transport Package：Die-Casting Aluminum Case
• Specification：640mm*640mm
• Trademark：FWS
• Origin：Shenzhen China
• HS Code：9405409000
• Production Capacity：10000square,Month

Basic Info.

Model NO. P5 System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP51 Certification CE, CCC Warranty Period 2years Deliver Time 15-20 Days Drive Type Constant Drive Package Mode 3528 Modle Size 320mm*160mm Life Span 100000 Hours Color Display Full Color Brightness 2800 Transport Package Die-Casting Aluminum Case Specification 640mm*640mm Trademark FWS Origin Shenzhen China HS Code 9405409000 Production Capacity 10000square/Month

Product Description

Our Company is a professional manufacturer of LED Display. We dedicate to supply high quality products with competitive prices. Our products and services are well-received around the world. It's our mission to satisfy evevry customer's expectation to the greatest e
LED screen market is changing greatly, from traditional advertising display to irregular shape display. Expect the traditional function of showing information, LED display also updated the requirements on outside looking, which made it be more suitable for various occasion.

Parameter	Value
Pitch	5 mm
Module size	320mm*160mm
scan type	1/16
LED Package	SMD 3528
Pixel Resolution	64*32
Pixel Density	40,000 nits
Viewing angle - Horizontal (50% brightness)	140(-70 ~ +70) deg
Viewing angle - Vertical (50% brightness)	140(-70 ~ +70) deg
Net Weight	70 kg
Diameter	≤800 mm
Panel area	0.4096/Square
Operating temperature range	-30 to +60 deg,c
Material	Steel
Humidity operating	10% ~ 90% RH
Pixel type and configuration	3528 SMD (1R1G1B)
Dot per sq. meter	10,000
Recommended minimum viewing distance	7.6m
Recommended best viewing distance	10~30m
Colors	281 trillion
Grey scale (linear)	65,536 levels per color Levels
Brightness	2800 cd/M2
Contrast ratio	1,000:1
Processing depth	16 bit
Video frame rate	60 Hertz
Display refresh rate	600 Hertz
Input voltage (nominal)	110 to 240 VAC
Input power frequency	50 to 60 Hertz
Input power (max)	≤500 Watts/panel
Input power (typical)	≤180 Watts/panel
Lifetime (50% brightness)	≥100,000 Hours
Red wavelength (dominant)	620~625nm
Green wavelength (dominant)	525~530nm
Blue wavelength (dominant)	470~475nm
Multimedia data format	DVI,MPG,AVI,WMV,RM etc.

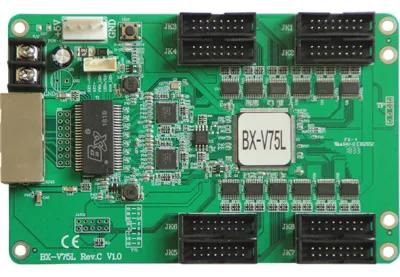

Controller	DB Star
Control way	Asynchronous & Synchronous
Data interconnection	UTP Cat 5/Optical Fiber
Mounting system	Hanging & Stand on ground
Gross weight	310kg
Life span	100000 Hours

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.
