• Model NO.：P7.62
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, CCC
• Package Mode：SMD 3528
• Function：Party,Ad,Stage,Airport,Halls,etc
• Transport Package：Die-Casting Aluminum Case
• Specification：732mm*732mm
• Origin：Shenzhen China
• HS Code：9405409000
• Production Capacity：2500square Foot,Square Feet Per Month

Basic Info.

Model NO. P7.62 System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP43 Certification CE, CCC Package Mode SMD 3528 Function Party,Ad,Stage,Airport,Halls,etc Transport Package Die-Casting Aluminum Case Specification 732mm*732mm Origin Shenzhen China HS Code 9405409000 Production Capacity 2500square Foot/Square Feet Per Month

Product Description

igh Resolution Indoor Rental K Series P7.62mm LED Display
Advantages:
    1.Advanced and reasonable system design, stable display effect,  easy installation and maintenance.
    2.Work around the clock:Color fidelity, high refresh rate, antistatic, dust-proof, good heat dissipation, cost-effective
    3.Using the program editing and player software, using mouse to edit, add, delete and modify text, graphics and images, arrangement of the contents stored in the control card, play back information by Program table automatically cycle.
   4.High brightness: In the visual distance, the content on the display remains clearly visible in the direct sunlight.
   5.Good viewing angle: both in the horizontal and vertical viewing angles are so wide that it is suitable for the environment of wide Horizontal distribution and large drop height.
   6.Diversified display mode: support a variety of display modes
Certificates

Modle No.	HX-p7.62
Pixel Pitch	7.62mm
Pixel Configuration	1R1G1B
LED Encapsulation	SMD 3528
Pixel Density	17222 dots/m²
Brightness	≥2200cd/Sqn
Color Temperature	6500-9500k
Drive Mode	1/8Scan
Cabinet Size(W*H*D)	732*732mm
Max Pqwer Consumption	≤400w/m²
Average Power Consumption	≤140w/m²
Best Viewing Angle	H:160°  V:140°
Refresh Rate	≥1200Hz
Frame frequency	60 HZ
Best Viewing Distance	7m--40m
Control Method	Synchronization
Driving Device	Constant Drive
Cabinet Material	Die-casting Aluminum
Operation Voltage	110v/220v/47-63Hz
Working Humidity	10%--75%
Working Temperature	-20ºC--50ºC

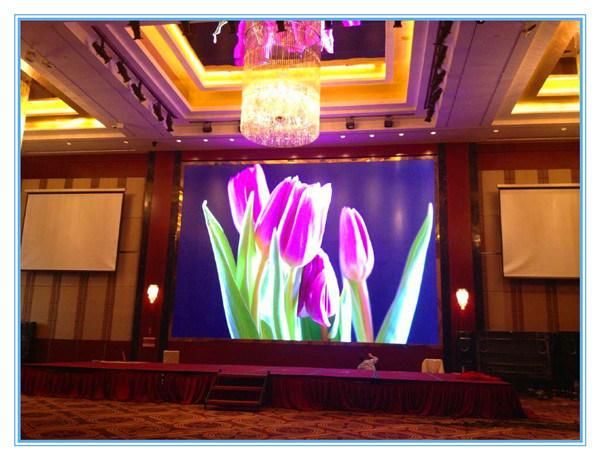

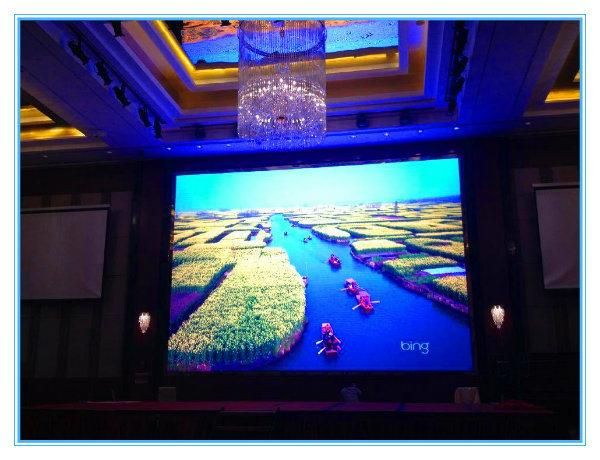

Product effect show


Packaging&shipping

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible.
