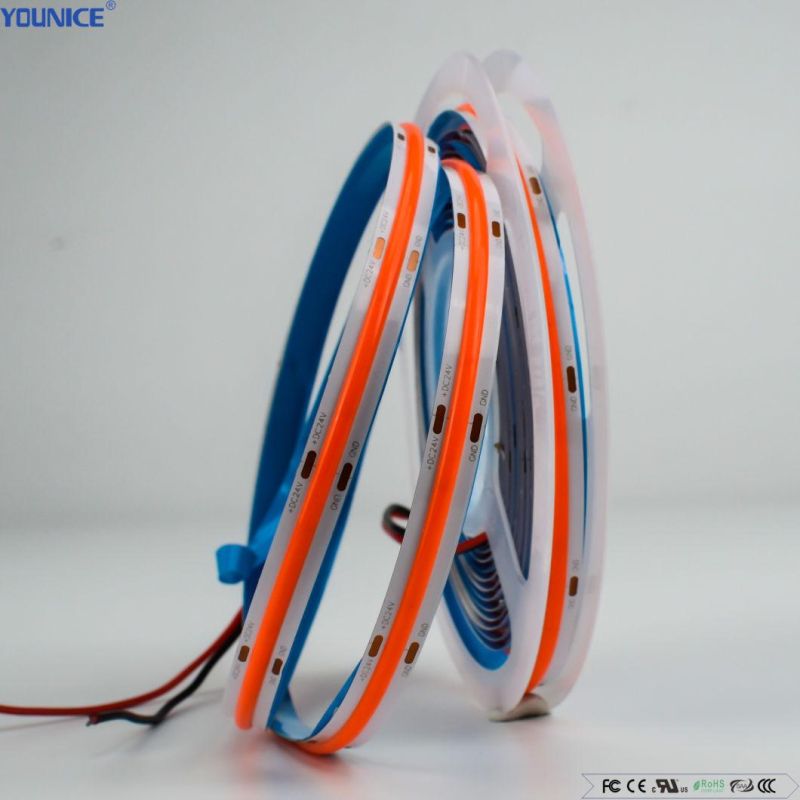

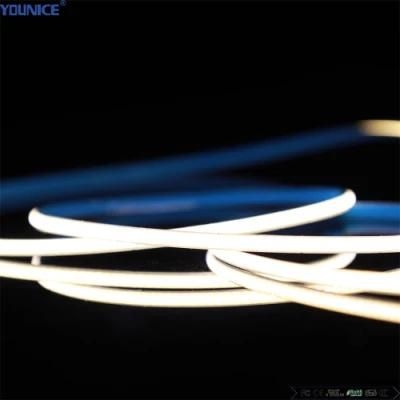

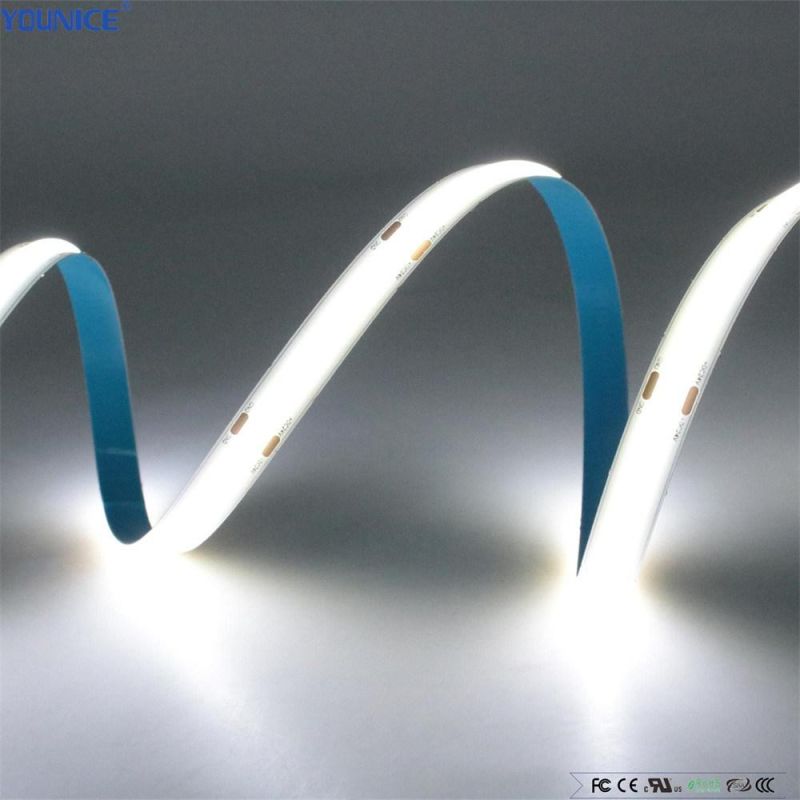

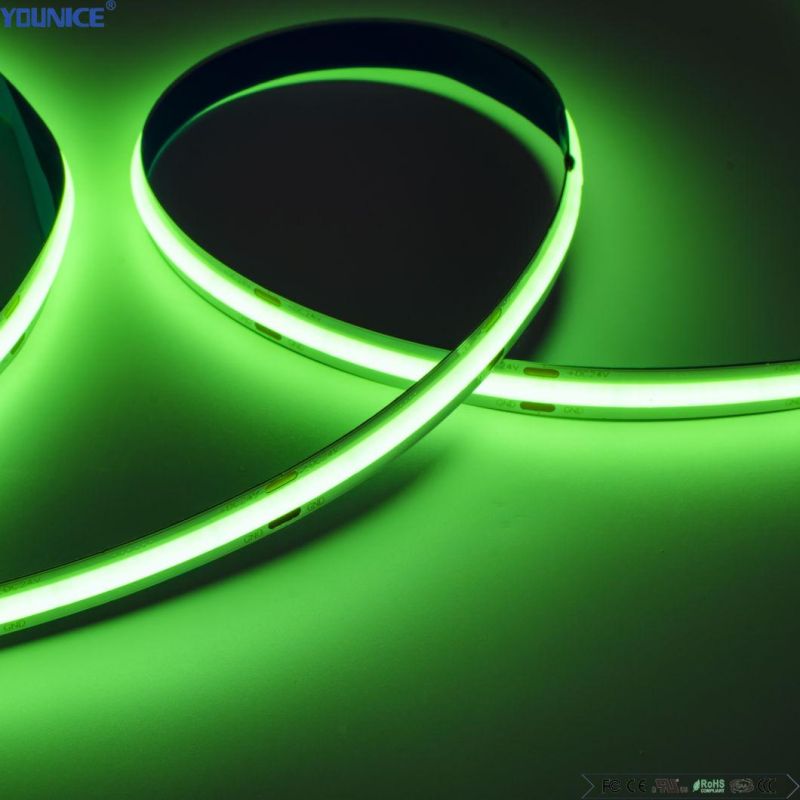

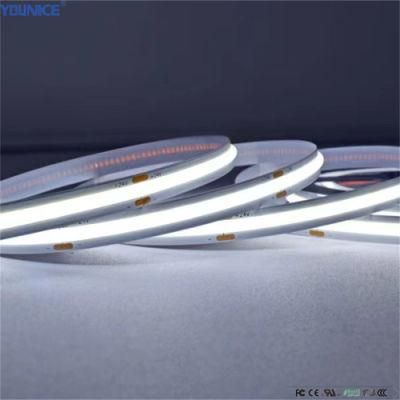

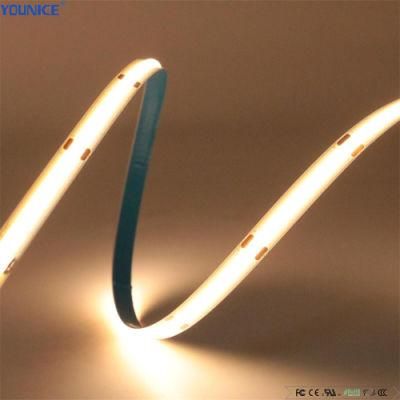

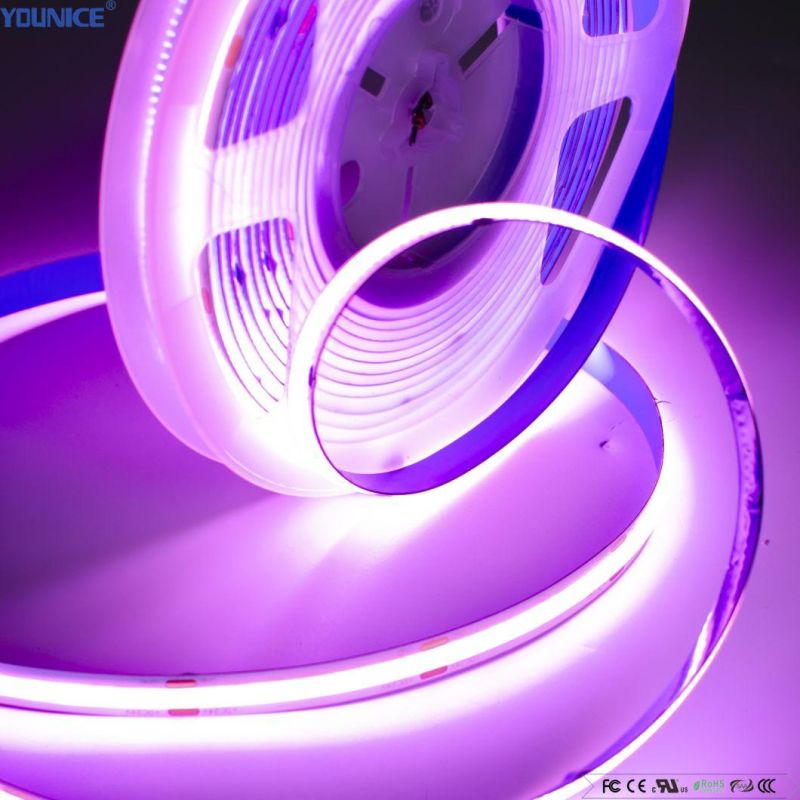

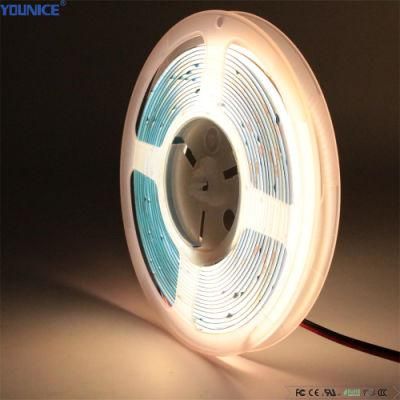

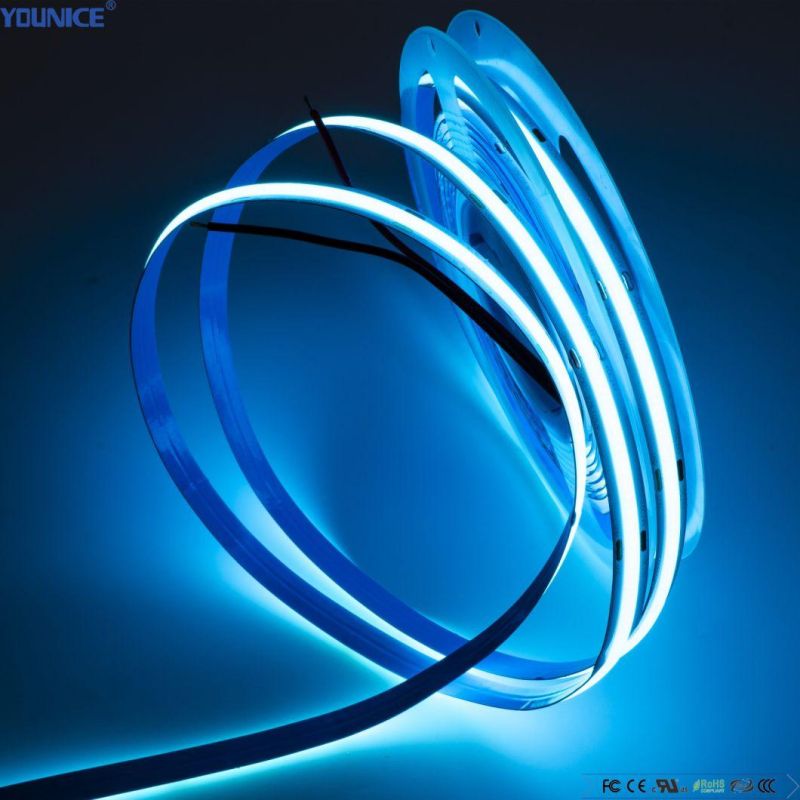

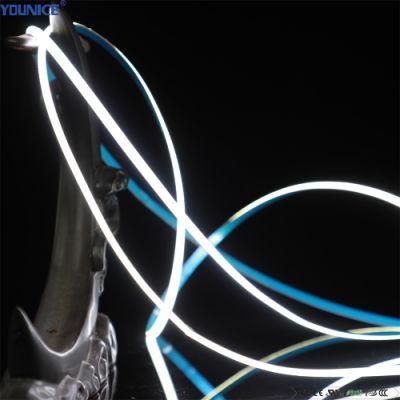

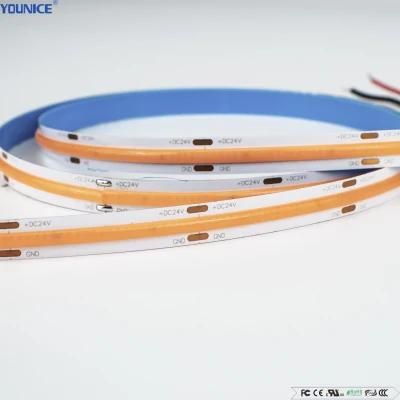

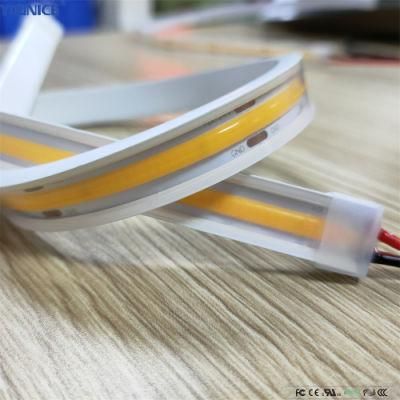

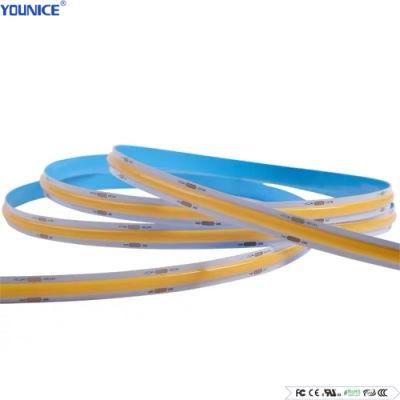

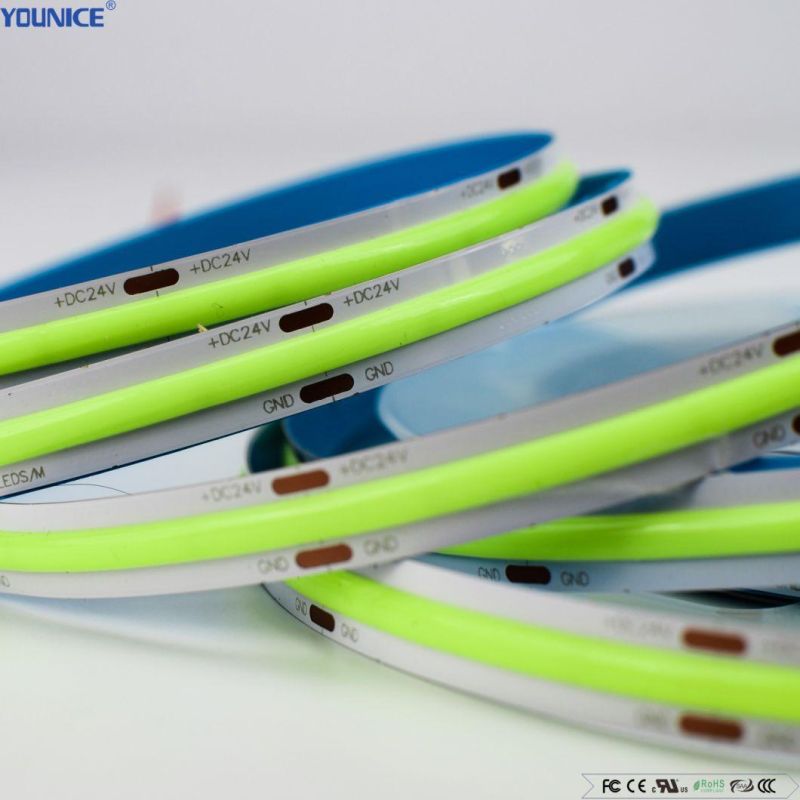

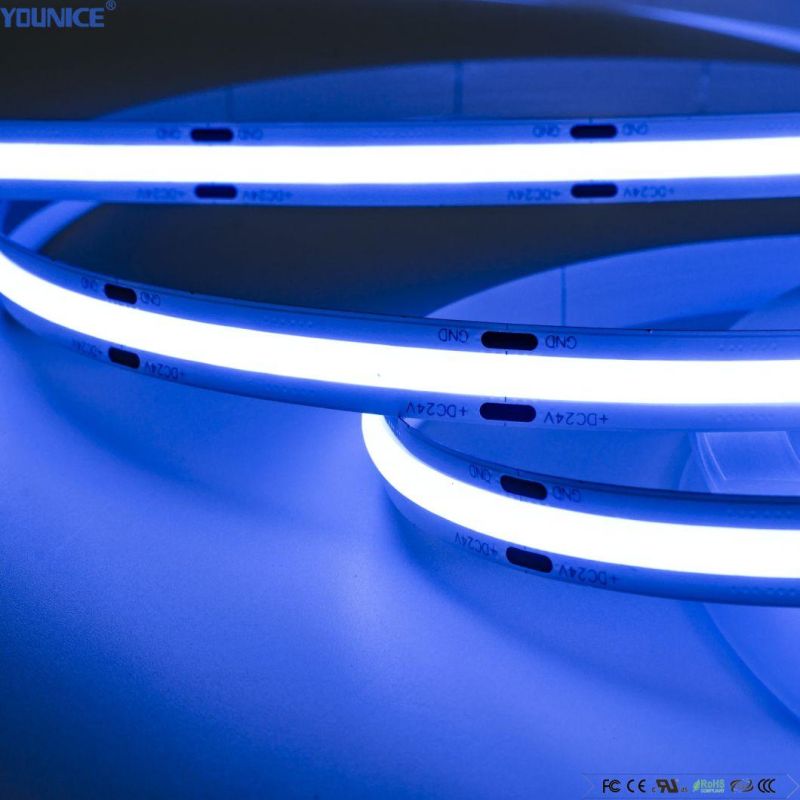

8mm Width 320LEDs/M DC12V LED COB Strip

Qingdao Haochen Packing Co., Ltd.
  • Certification：FDA, GS, SAA, FCC, CCC, LVD, UL, EMC, CE
  • Power：8W,M
  • Emitting Color：White
  • Voltage：12V
  • IP Rating：IP67
  • LED Quantity：320 LEDs,M

Base Info

  • Model NO.：RB0Z0WW08A
  • Package：5m,Roll
  • Color：2700K-6500K

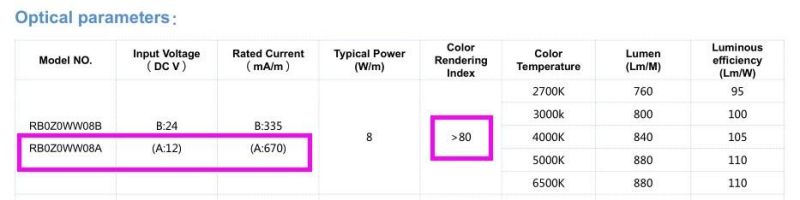

  • Aluminous Flux：760-880 Lm,M
  • Length：5m
  • Warranty：3 Years
  • IP：IP20 IP67 IP68 IP54
  • Delivery Time：5days
  • Shipping：DHL,UPS,FedEx, by Sea, by Air
  • Rated Current：670mA,M
  • Cut-Able Unit：50mm
  • LED Pitch：3.13mm
  • Ra：80
  • Luminous Efficiency：95-110lm,W
  • Width：1.5mm

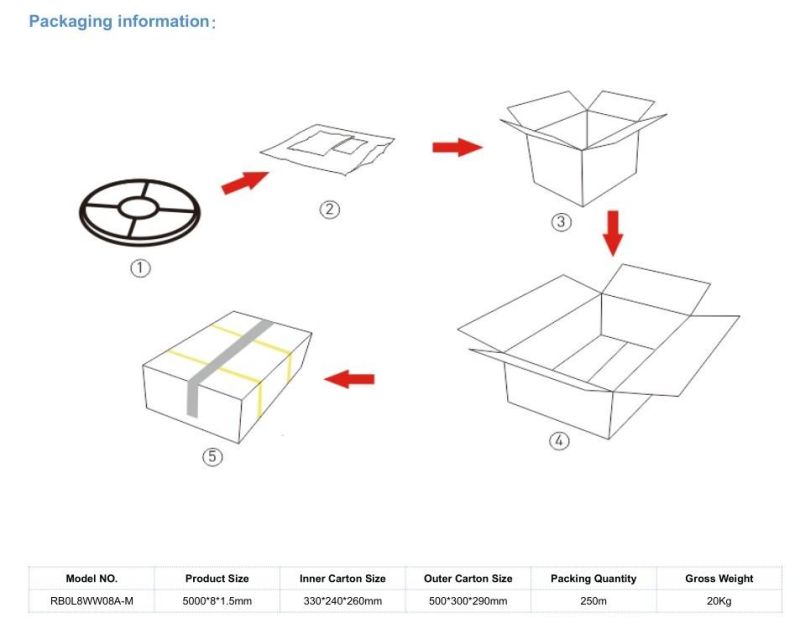

  • Transport Package：5m,Roll(Anti-Static Bag), 250m,CTN, Gw20kg
  • Specification：5M,roll(Anti-static bag), 250m,ctn, GW20kg
  • Trademark：OEM , Younice
  • Origin：Shenzhen, China
  • HS Code：9405409000
  • Production Capacity：100000m,Day

Description

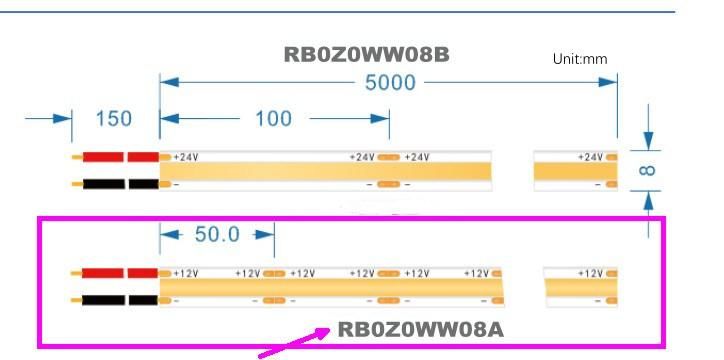

Product size5000*8*1.5 mmCut-able unit50mmLED pitch3.13mmLED quantity320 LEDs/mMin. bend diameterØ20 mmMounting solution3M tapeOperating ambient-25ºC~45ºCStorage Environment-25ºC~60ºC / 60% RH8mm Width 320LEDs/M DC12V LED COB Strip8mm Width 320LEDs/M DC12V LED COB Strip8mm Width 320LEDs/M DC12V LED COB Strip8mm Width 320LEDs/M DC12V LED COB Strip8mm Width 320LEDs/M DC12V LED COB Strip8mm Width 320LEDs/M DC12V LED COB Strip8mm Width 320LEDs/M DC12V LED COB Strip8mm Width 320LEDs/M DC12V LED COB Strip
