• Model NO.：P6 Outdoor
• Pixel Density：27777 DOT,M2
• Scanning Mode：1,8 Scan
• Display Type：LED Video Display
• Application：Advertising
• Certification：CE, RoHS, UL, CCC, FCC
• Refresh Rate：1920-3840 Hz
• LED Lamp：Nationstar , Kinglight
• Driving IC：Mbi 5124,5153
• Controller：Novastar , Linsn , Colorlight
• Warranty Year：2-5years
• IP Grade：IP 65
• Working Voltage：AC 110-240V
• Weight：40kg,M2
• Maximum Power：800W,M2
• Brightness：5500-8000CD,M2
• Use Place：Wedding,Music Show,Stage
• Warranty：2-5years
• System Operating Platform：Windows(Win2000, Winxp, Win7, Win8, Win10)
• Package：Wooden Case
• Input Power Frequency：50,60Hz
• Transport Package：Wooden Case ,Fly Case ,Carton
• Specification：192*192mm
• Trademark：Honghui
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：3500 Sqm ,Month

Outdoor High Brightness 7000 CD P5/P6/P8 LED Display SignItemPara NameParameter




ModuleColorRGBPixel pitch5mm6mm8 mmModule size160mmx160mm192mmx192mm256mmmm x 128mmModule resolution32 x 3232 x 3232 x 16Pixel density4,0000 pixels/m22,7777 pixels/m21,5625 pixels/m2LED packageSMD2727SMD3535SMD3535Module wieght0.26kg0.5kg0.55kg

Cabinet cabinet size960mmx960mm/960mmx800mm/1024mmx1024mmCabinet depth120 mm



TechniqueBrightness5500-7000nitsScan mode1/8 Scaning1/8 Scaning1/2 ScaningDriving modeConstant currentRefresh rateover 960hzIngress Protectionfront IP65, back IP54Viewing angleH:140;V:140Dead LED lamp rate≤0.1‰Brightness adjusted256 grade by auto-optic/color &8 grade by handInput signalRF,S-video,RGB,RGBHV,YUV,YC&Composition,etcLife-span ≥1 00,000 hoursMTBF 5,000 hoursControl Distance120 m (no repeating); Optical fiber
transmission: 0.5km- 10kmSystems Operating PlatformSystems Operating Platform


2.Application

1. High refresh rate: With NOVA STAR  control system, no scanning line when photographed
2. High gray level: 256 RGB  each ,display 16.7M colors ,vivid and perfect video effect
3.High resolution: The most apparent features of the new generation of LED display
4.Good color uniformity: With brand Lamp  Nationstar and high refresh MBI5124 IC.
5. High Brightness: 6000-8000 cd/m2 ,brightness automatically adjusted
6. High Quality: CE, RoHs, FCC, UL, IP65, ISO9001 passed + 96 Hours serious testing  time
7. Long life span: over100,000hours, warranty from 2 to 5 years.
8. You need = We design : Provide Personal- Customized led offer .





1) Full color LED display : Equally or compactly make the red, green, blue color in one dot, equally distribute at the
panel, so make the whole display.

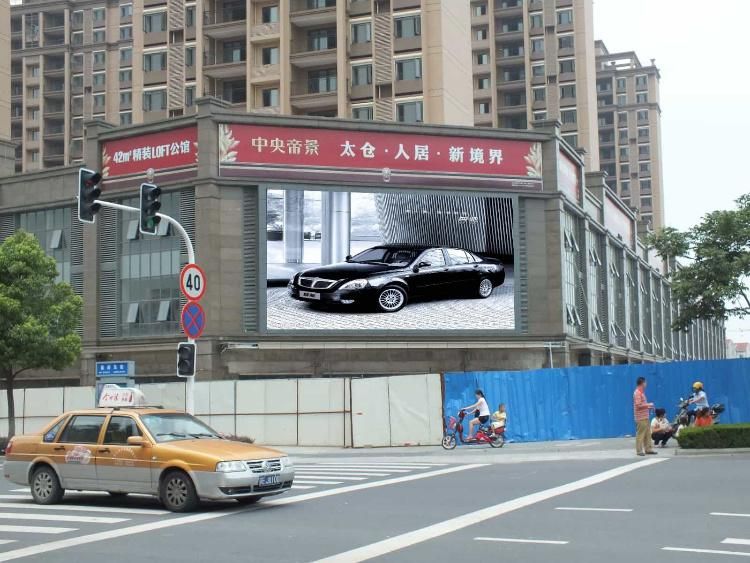

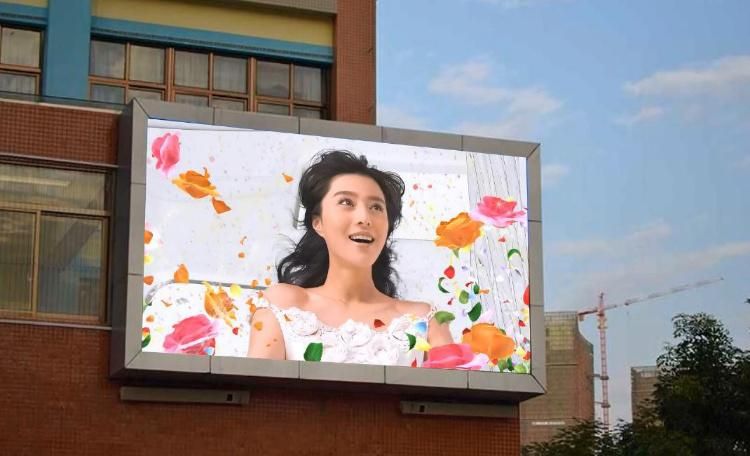

2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace,
telecommunication, department, school, monitor,restaurant, entertainment, meeting room,stage,concert,
club show event.


3.Production process
A96 Hours Serious Testing Time B72 Hours Display Testing TimeC24 Hours Module Testing Time D24 Hours After-sales online Service E12 Hours  LED Inquiry Response TimeF8 years Professional LED display factory G5 years Excellent Domestic Big Government LED Designer H5 years Expanding International  Trade Experience
