Indoor P3 Full Color LED Video Wall with High Contrast
Xuzhou Whuchan Co., Ltd- Tube Chip Color：Full Color
- Display Function：Video Display
- Pixel Pitch：3mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：111111dots,Sq.M
- Scanning Mode：1,16 Scan
Base Info
- Model NO.：P3
- System Operating Platform：Win XP,Win 2000
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide
- IP Rating：IP43
- Certification：CE, RoHS, CCC, FCC
- Cabinet Size：576X576mm
- Cabinet Material：Steel Iron
- Module Size：192X96mm
- Module Resolution：64X32dots
- LED Type：SMD2121 Black
- Transport Package：Flight Case or Wooden Case
- Specification：CE, FCC. ROHS, 3C
- Trademark：PRT
- Origin：Shenzhen
- HS Code：8528591090
- Production Capacity：2000sq. M,Month
Description
P3 SMD2121 Indoor full Color LED Screen SpecificationPixel pitch 3mm Pixel Configuration 1R1G1B LED component SMD2121 black Size of module 192mm x 192mm/192 x 96mm Resolution of module 64x64/64 x 32 Size of cabinet 576mm x 576mm x 150mm Resolution of cabinet 192x192 Material of Cabinet Aluminum/Iron Weight of Cabinet 15KGS Brightness >1200cd/sq.m Density 111111dots/sq.m Best viewing angle 140 /140 Pixel Configuration 1R1G1B Best viewing distance 3-50M Maximum power consumption 1200W/sq.m Average power consumption 640W/sq.m Driving method 1/16 scan Control method Synchronization Gray scale 65536 Colors 256*256*256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V/110V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >3000Hz IP grade IP31 Life Span 100,000 hours Data transafer method RJ45 Pratical standard CCC TUV-CE ETL etc. Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

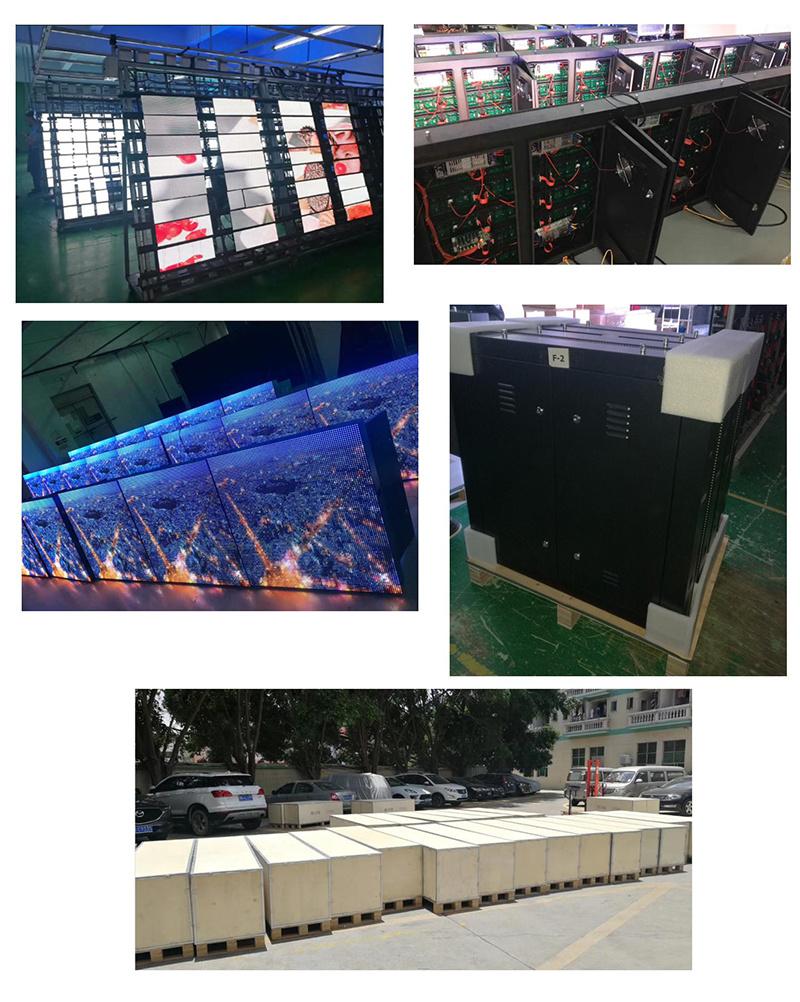

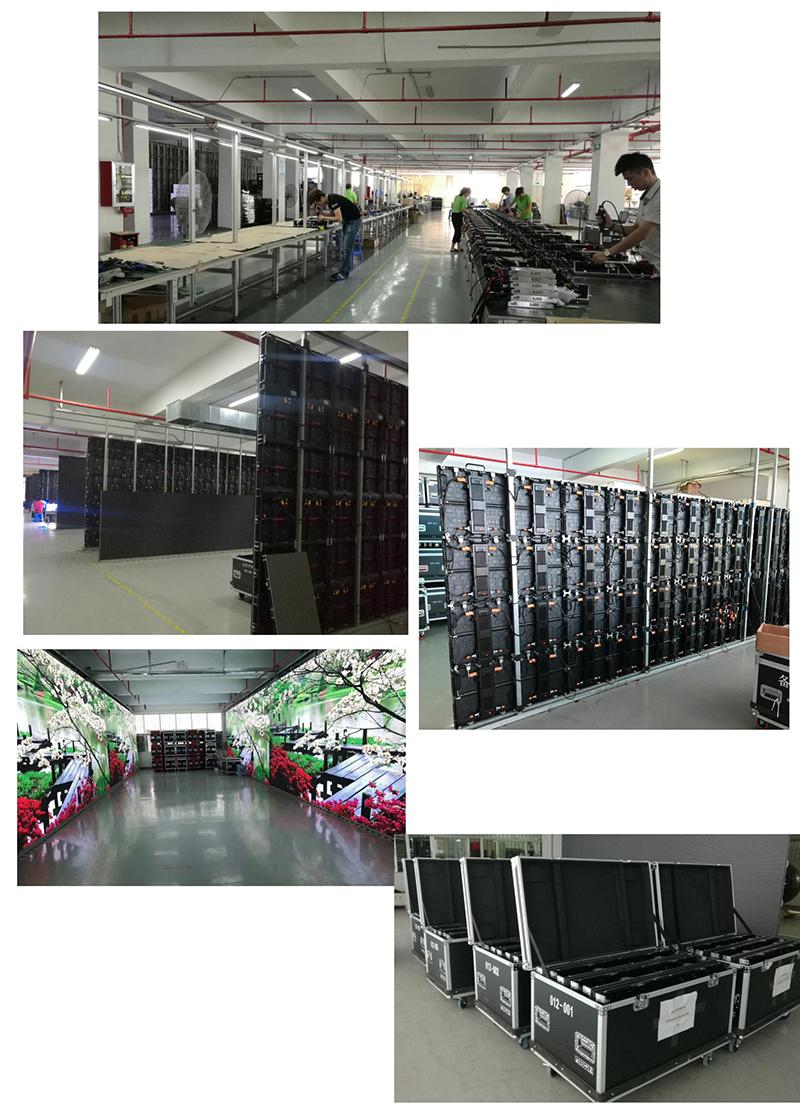

PRTLED produce products according to different detail requirements,and keep high quality based on the internation standards CE,FCC,ROHS,also built a strict quality control system,to confirm no problem at each process,and before packing,check and test the finished led screen with 72 hours at least ,ensure everything is ok before delivery out
Our services:
Pre-sales service:
1) Our company can arrange professionals to conduct site installation and debugging in strict accordance with the requirements of the schemes and the original manual. If there is any special requirement, it is necessary to make changes of part installation scheme, we will coordinate with users. Our company can ensure the consistence of completion time and contracted time. Any problems caused by natural factors or man-made, we will discuss with client to find solutions.
2) Our company can train the users based on the manual. The training include system use, system maintenance and equipment protection
Your inquiry related to our products or prices will be replied in 24hrs.
Well-trained and experienced staffs to answer all your inquires in fluent English .
Your customized screen we can help you to design and put into product.
Protection of your sales area, ideas of design and all your private information.
After-sales service:
1) Service principles: response in time, solve problems as soon as possible and ensure the use.
2) Service period: In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
3) Service scope: If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
4) Under normal use and storage, Our Company will be responsible for the equipment.
FYI: we would like to know more details before offering you the best quotation:
1. What is screen size and what cabinet you prefer.
2. What is the best viewing distance with your project.
3. For fixed or rental installation.
4. When do you need to get goods and is it urgent or not.
5. Any special requests such as video processor, hanging bar, flight case for package.
Thank you for your visit, if you want more details, please contact us without hesitation !
