High Contrast P3 Indoor Full Color Video LED Wall Panel
Xuzhou Whuchan Co., Ltd- Tube Chip Color：Full Color
- Display Function：Video Display
- Pixel Pitch：3mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：111111dots,Sq.M
- Scanning Mode：1,16 Scan
Base Info
- Model NO.：P3
- System Operating Platform：Win XP,Win 2000,Win7,8
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide
- IP Rating：IP31
- Certification：CE, RoHS, CCC, FCC
- Cabinet Size：768X768
- Cabinet Material：Steel Iron
- Module Size：192X192mm
- Module Resolution：64X64dots
- LED Type：SMD2121 Black
- Transport Package：Flight Case or Wooden Case
- Specification：CE, FCC. ROHS, 3C
- Trademark：PRT
- Origin：Shenzhen
- HS Code：8528591090
- Production Capacity：3000sq. M,Month
Description
Pixel pitch3mm Pixel Configuration 1R1G1B LED component SMD2121 black Size of module 192mm x 192mm Resolution of module 64x64 Size of cabinet 768mm x 768mm/ 576mm x 576mm x 150mm Resolution of cabinet 192x192 Material of Cabinet Steel iron/ die-casting Aluminum Weight of Cabinet 25KGS/15KGS Brightness >1200cd/sq.m Density 111111dots/sq.m Best viewing angle 140 /140 Pixel Configuration 1R1G1B Best viewing distance 3-50M Maximum power consumption 1200W/sq.m Average power consumption 640W/sq.m Driving method 1/16 scan Control method Synchronization Gray scale 65536 Colors 256*256*256 Color temperature 3200-9300k Uniformity 97% Working voltage AC220V/110V±10% Working temperature -20ºC~+50ºC±10% Working humidity 10% ~ 90% MTBF 10,000 hours Frame frequence 50/60Hz Refresh frequence >3000Hz IP grade IP31 Life Span 100,000 hours Data transafer method RJ45 Pratical standard CCC TUV-CE ETL etc. Effectivce Communication
Distance(without relay) Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KM Accepting signal with video processor PAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc. Systems operating platform WINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

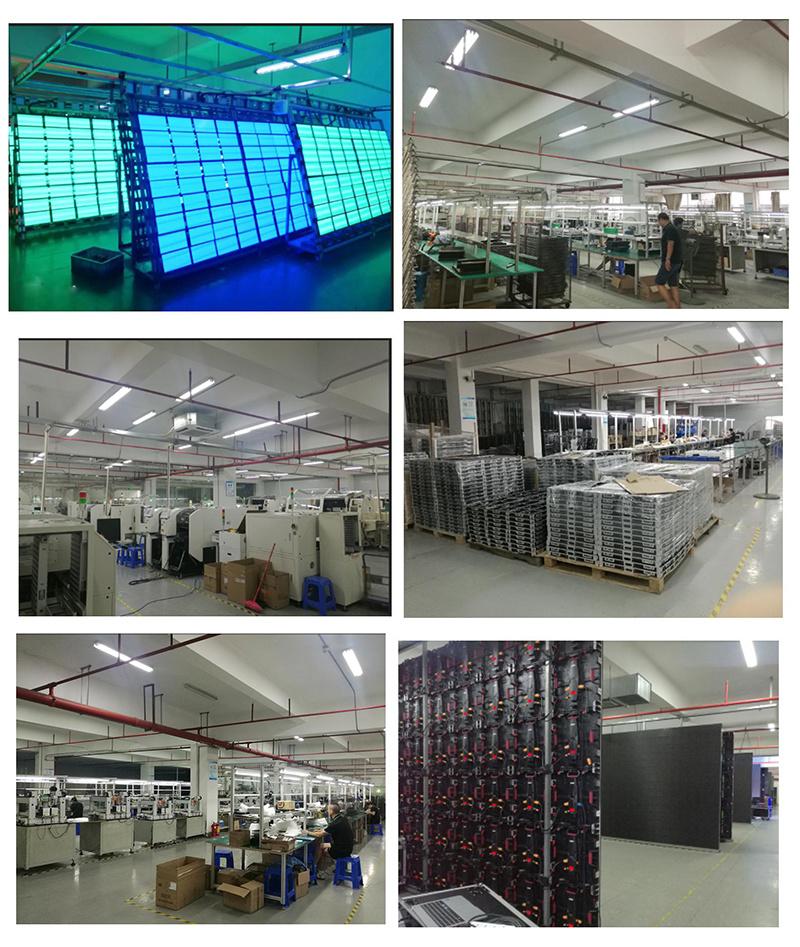

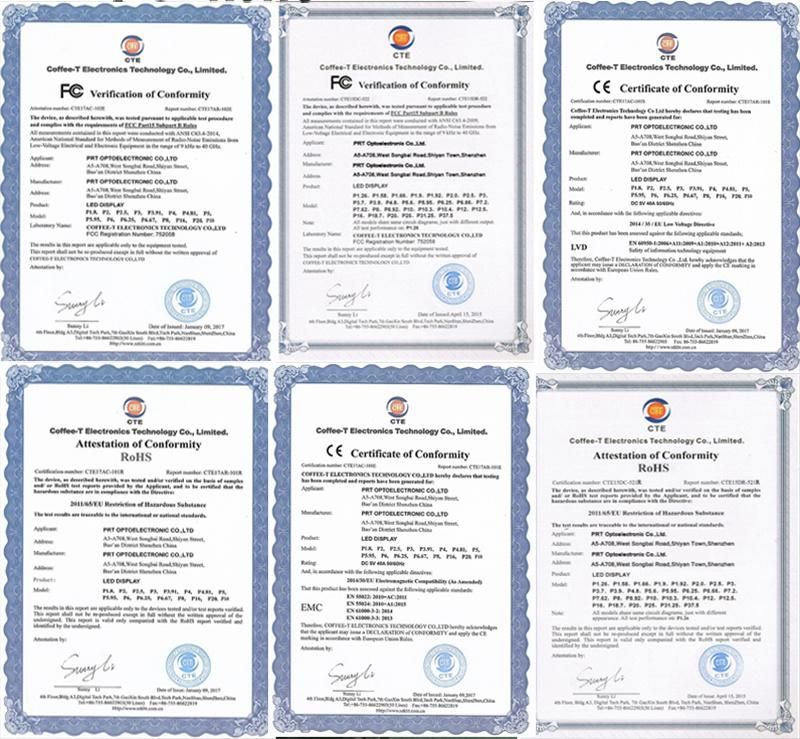

PRTLED produce products according to different detail requirements,and keep high quality based on the internation standards CE,FCC,ROHS,also built a strict quality control system,to confirm no problem at each process,and before packing,check and test the finished led screen with 72 hours at least ,ensure everything is ok before delivery out
FYI: we would like to know more details before offering you the best quotation:
1. What is screen size and what cabinet you prefer.
2. What is the best viewing distance with your project.
3. For fixed or rental installation.
4. When do you need to get goods and is it urgent or not.
5. Any special requests such as video processor, hanging bar, flight case for package.
Thank you for your visit, if you want more details, please contact us without hesitation !
