• Model NO.：P4 indoor led display
• System Operating Platform：Windows XP , Windows 7 , Windows 8 ,8.1 , Windows
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, CCC
• Module Size：256*128mm
• Driver IC：Mbi5124
• Brightness：1300CD,M2
• Operating Temperature：-30~-60t
• Grey Scale：65536 Degree
• Mtbf：More 50, 000 Hours
• Life Time：More 100, 000 Hours (80%)
• Humidity：10%-95%
• Color Temperature：6500K-9500K
• Module Weight：600g
• Transport Package：Wooden Case, Flight Case, and Carton
• Specification：P4 Indoor LED Display
• Trademark：HONGKING
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：50000 Sqm,Year

NO.:Product nameP4 led display1Pixel Pitch(mm)4mm2Pixel configuration1R1G1B/SMD2121 Black lamp3Pixel density62500dots/sqm4Brightness ≥1300cd/sqm5Module size(W*H)256mm×128mm6Module Resolution (W*H)64 dots x 32dots7Module weight400g8Cabinet size (W*H)512mm×512mm9Drive ICMBI512410Drive mode1/16 scan11Viewing Angle(V/H)140 ºC12Grey Scale65536 degree13Life time>100,000 Hours (80%)14MTBF>50,000 Hours15Operating VoltageAC110V/220V±10%17Screen Power ConsumptionMax: 900w/sqm; Average:300w/sqm18Input Power Frequency50/60Hz19Operating temperature -30--60ºC20Humidity10%-95%21Refresh Rate≥1920HZ22Control MethodSynchronized with computer monitor23Color Temperature6500K-9500K  24LED control systemLINSN,Nova-star,Colorlight is selectable25Control Distance100 m (no repeating); Optical fiber transmission: 500m- 15km26Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI27Systems Operating PlatformWindows Xp / Windows 7 / windows 8 /8.1 / windows 10

Product Description

HONGKING  photoelectric consistent source of strength for the customer is the company's growth and expansion, the company has the perfect pre-sale tracking service system and truly customer -centric marketing module.
Through the efforts and collaboration of all employees of the company, the products are exported to Europe, North America, Australia, the Middle East, and the establishment of a stable distribution agents in the respective regions. Company in good faith with the talents and distribution to join the LED display system and common development, and make due contribution to the development of LED display system.

Why choose us:
Product advantages:
1. Price Advantage: We have the best competitive price at the market, also have the same even better quality.
2. Quality advantage: From material to finished product, from design to produce, we control all steps
3. Service advantage: Better service at same situation, better cooperation at same service.
4. We ensure that our products are the CE certified, ROHS compliant, FCC identified and passed the system of ISO 9001.
Products list:

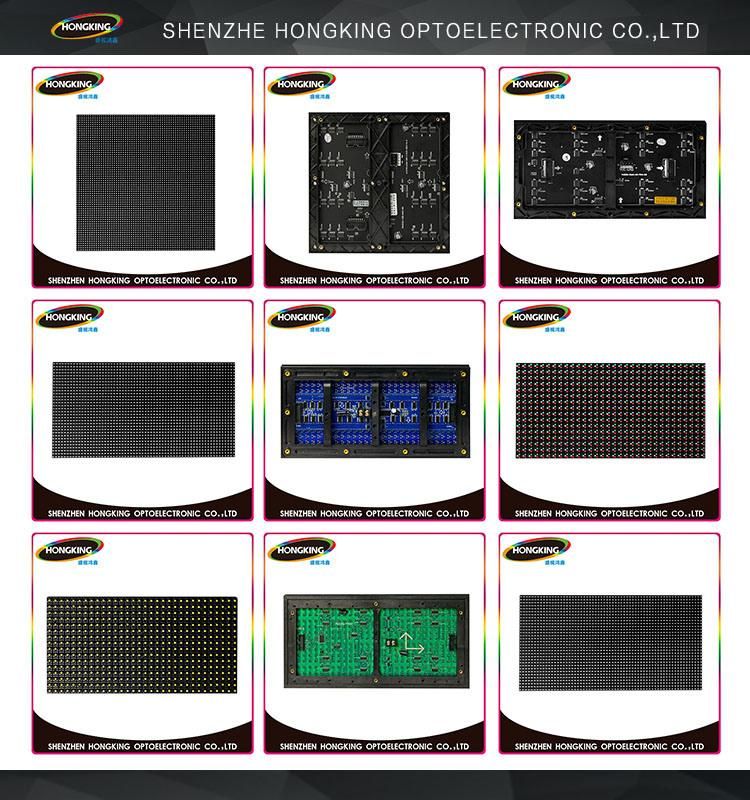

1.P1.9P2.5 P3P4P5P6...Indoor full color led display;
2. p5p6p8P10P12P12.5P16P20P25...Outdoor full color led screen;
3. Indoor/outdoor/semi-outdoor single/dual color led panel etc

Contact :Chang
