• Model NO.：Indoor P5 indoor display
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP43
• Certification：CE, RoHS, UL, CCC, ETL
• Product Name：P5-16s Indoor LED Display
• Driver IC：Mbi5124
• Grey Scale：65536 Degree
• Mtbf：More 50, 000 Hours
• Color Temperature：6500K-9500K
• Cabinet Size：480*480mm or 640*640mm
• Transport Package：Wooden Case Flight Case and Carton
• Specification：160*160mm and 320*160mm
• Trademark：hong king
• Origin：Shenzhen, China
• HS Code：8528591090
• Production Capacity：10000sqm, Month

Technical parameter1Pixel Pitch(mm)5mm2Pixel configuration1R1G1B/SMD27273Pixel density40000dots/sqm 4Brightness ≥1500cd/sqm 5Module size(W*H)160mm×160mm6Module Resolution (W*H)32 dots x 32dots7Module weight250g8Cabinet size (W*H)640mm×640mm9Led lamp National star led lamp 10Drive ICMBI512411PCB  1.6mm pcb 12Base and Mask Newlight base and mask 13Drive mode1/8scan14Viewing Angle(V/H)140ºC15Grey Scale65536 degree16Life time>100,000 Hours (50%)17MTBF>50,000 Hours18Operating VoltageAC110V/220V±10%19Screen Power ConsumptionMax: 1000w/sqm ; Average:330w/sqm 20Input Power Frequency50/60Hz21Operating temperature -30--60ºC22Humidity10%-95%23Refresh Rate≥1920HZ24Control MethodSynchronized with computer monitor25Color Temperature6500K-9500K26LED control systemLINSN,Nova-star,Colorlight is selectable27Control Distance100 m (no repeating); Optical fiber transmission: 500m- 15km28Accepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;Composite Video;SDI29Systems Operating PlatformWindows Xp / Windows 7 / windows 8 /8.1 / windows 10

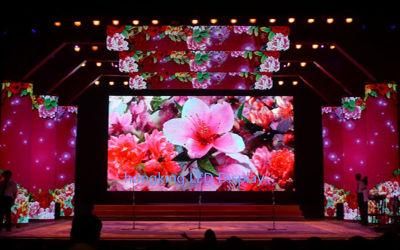

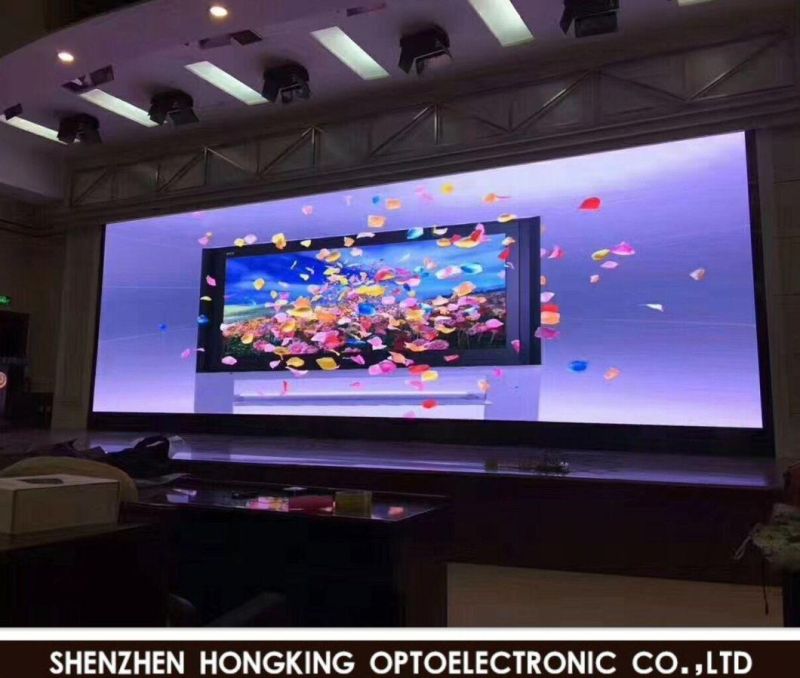

Project case :





Our Services

1.The price depends on the quantity.We can offer you the best competitive price with the same even better quality.
2.Good  after sale service: We can response in time if customers have questions about the installation , usage and maintenance ect.
3. Your inquiry will be replied by well-trained and experienced staffs in 24 hours.
4. Top Quality+Reasonable Price+Responsible After Service=Successful & Win
5. Help you design OEM&ODM or any your customized lightings and put into production.
6. Distributorship are offered for your unique design and some our current models
7.Your sales area, ideas of design and all your private information will be well protected



Q: What's the brand of your diode chip?
A: Our led lamps are by Sanan,Silan,Epistar,Cree etc.

Q: What is the led chip packing?
A:Indoor:SMD 3528/2121/1010 Outdoor:546 oval lamp/346 oval lamp/

Q:How to protect power supply?
A:Electrical peaks can put more force on the electrical components which will decrease life time .It is wise to install a protection (voltage stabilizer) that can control the peaks.
