• Model NO.：C1.9
• System Operating Platform：Win 98,2000,XP,Vista
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：IP33
• Certification：CE, RoHS, CCC
• Module Size：200X300mm
• Cabinet Size：400X300mm
• Screen Brightness：800 Nits
• Refresh Rate：3840Hz
• Protection Grade：IP31
• Compliance：Ce,RoHS,CCC
• Controller：Novastar
• Maintenance：Rear Service
• LED Type：SMD 1010
• Cabinet Material：Die-Casting Aluminum
• Grey Scale：16 Bit
• View Angle：H:140,V:140
• Working Voltage(V)：AC 100~240V
• Working Humidity：10%~90%Rh
• Working Temperature：-20ºC~50ºC
• Transport Package：Flight Case
• Specification：400x300mm
• Trademark：CKGLED
• Origin：China
• HS Code：8528591090
• Production Capacity：6000sqm,Month

Basic Info.

Model NO. C1.9 System Operating Platform Win 98/2000/XP/Vista Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating IP33 Certification CE, RoHS, CCC Module Size 200X300mm Cabinet Size 400X300mm Screen Brightness 800 Nits Refresh Rate 3840Hz Protection Grade IP31 Compliance Ce/RoHS/CCC Controller Novastar Maintenance Rear Service LED Type SMD 1010 Cabinet Material Die-Casting Aluminum Grey Scale 16 Bit View Angle H:140/V:140 Working Voltage(V) AC 100~240V Working Humidity 10%~90%Rh Working Temperature -20ºC~50ºC Transport Package Flight Case Specification 400x300mm Trademark CKGLED Origin China HS Code 8528591090 Production Capacity 6000sqm/Month

Product Description

C SERIES PRODUCT FEATURES:

. Noiselless design, excellent heat dissipation.

. Fast lock design for great consistency and seamless assembly.

. Module calibration: calibration data written into the module procedure for uniformity of brightness and color, achieving clear and natural images.

.3840Hz high refresh rate: Smooth and vivid videos without ripple and blank, clear images restored accurately, bringing to the audience greatest visual enjoy.

. Low brightness with high grey-scale: High grey-scale available even below 100nits brightness, the layering and vividness of the video superior to traditional screens.


PRODUCT SPECIFICATIONS:


NO.	Parameter	Specification
1	Model	C1.9
2	Pixel Pitch(mm)	1.923
3	Pixel Density	277008dots/sqm
4	LED Type	SMD1010
5	Viewing Angle	horizontal 140°,Vertical 140°
6	Brightness	≥800cd/sqm
7	Drive Method	1/30 scan
8	Grey Scale	16bit
9	Refresh Rate(Hz)	≥3840
10	Module Size(mm)	200x300
11	Cabinet Size(mm)	400×300
12	Cabinet Type and Material	Die-casting Aluminum
13	Cabinet Weight(Kg)	5.5
14	Voltage(V)	AC 100~240V
15	Avg. Power Consumption	2800W/sqm
16	Max. Power Consumption	700W/sqm
17	Service Access	Rear Service
18	IP Grade	IP31
19	Working Temperature	-20ºC~50ºC
20	Working Humidity	10~95%RH
21	System Controlle	Novastar
22	Compliant Standard	CCC/CE/RoHS

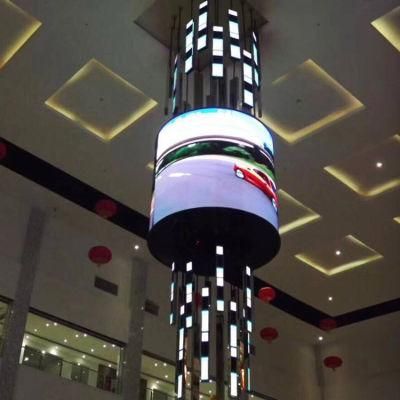

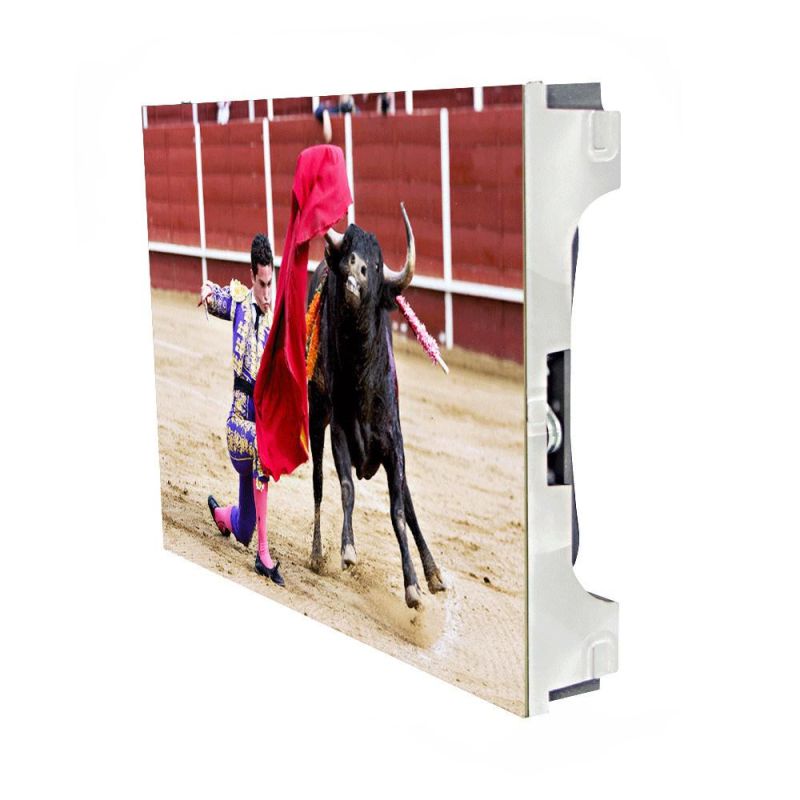

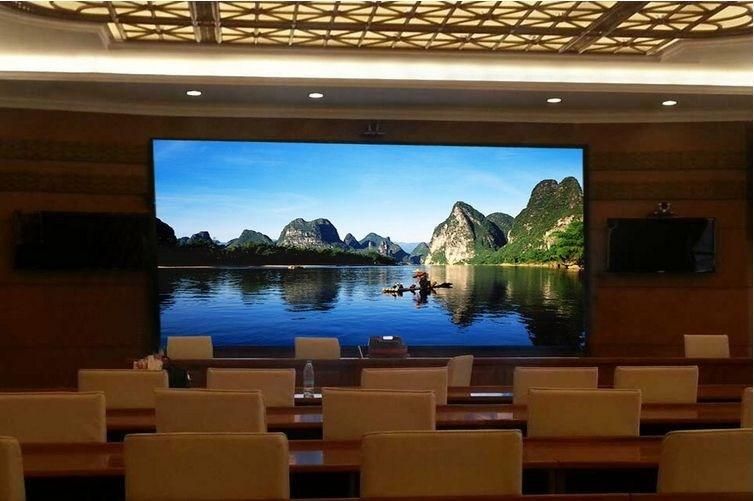

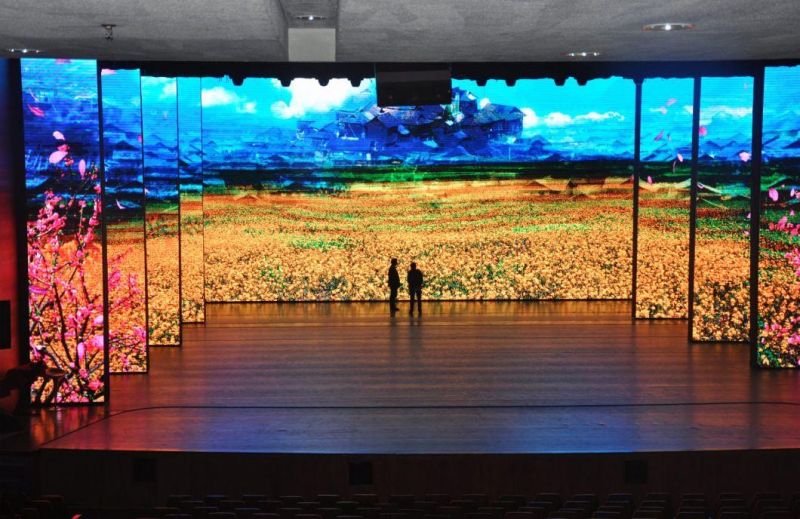

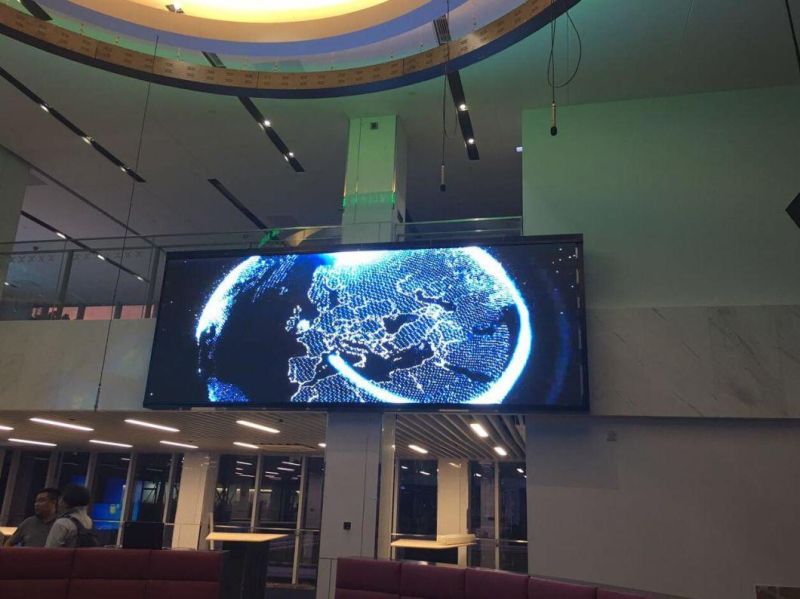

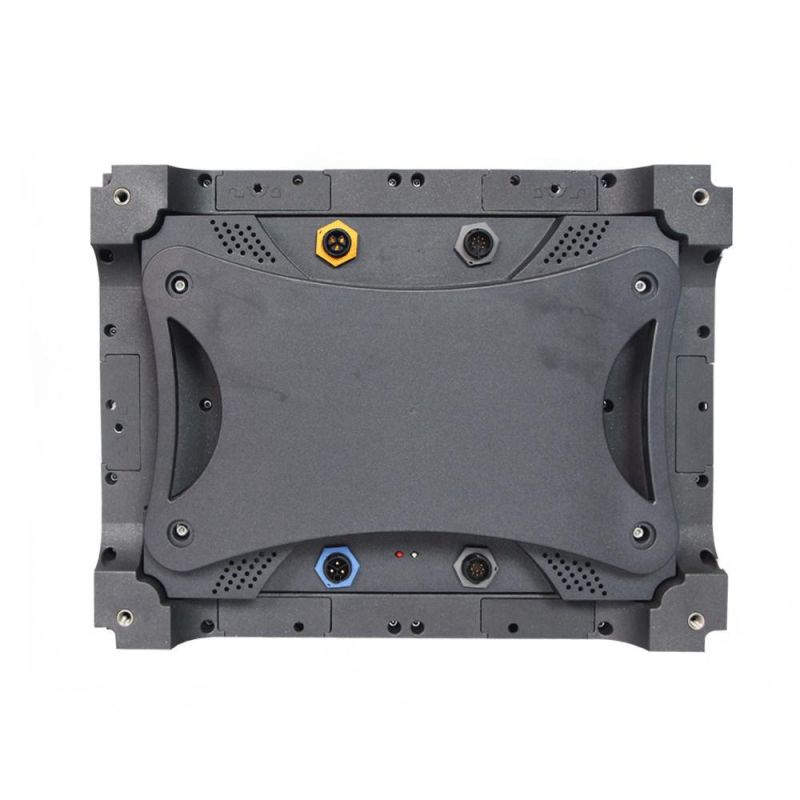

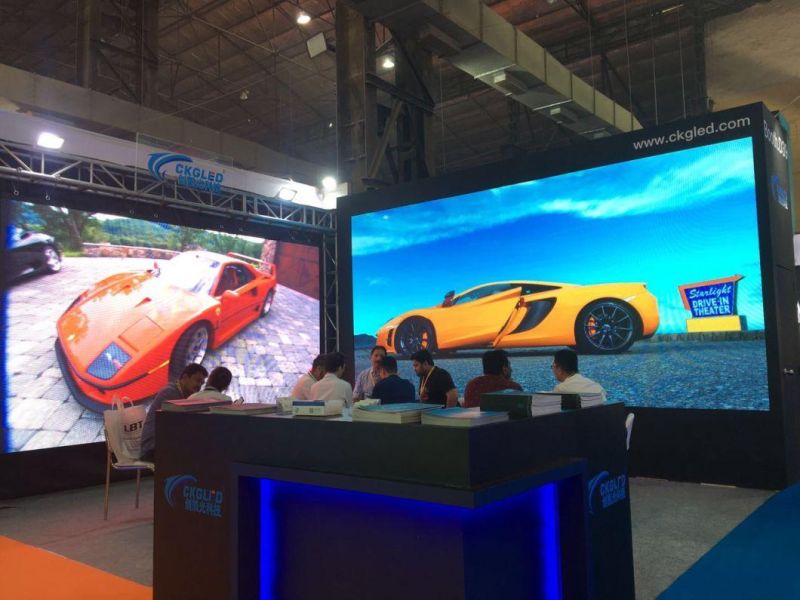

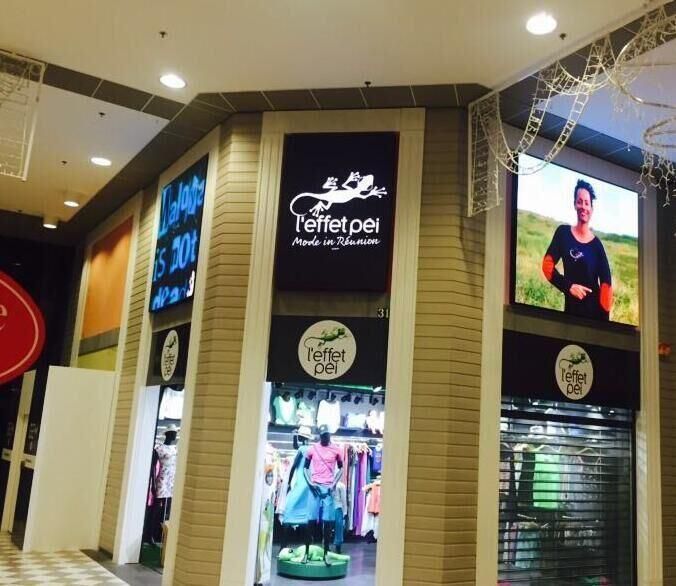

PRODUCT PHOTOS:























Package:

For iron cabinet LED display screen of indoor or outdoor, we usually use wooden case to packing

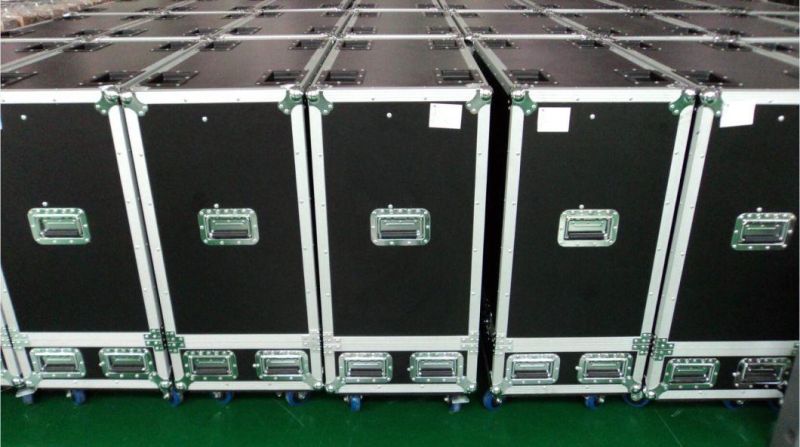

For aluminum cabinet of LED rental stage display, we usuallu use flight case to packing

One wooden case including 2 cabinets, one flight case including 6 cabinet

Shippment

By air or sea, FOB shenzhen

UPS/DHL/FedEx/Express(door to door)and so on

Delivery time

Within 15 days counting from 30% prepayment arrived at CKGLED account.

Payment term

T/T(30% deposit, the remained 70% payment made before factory shipment )

Quality assurance

We offer 2 years warranty, and our products have passd CE, RoHS, FCC certificate, All products have Age testing, shaking testing, waterproof testing, In generally, Module test is 24h, entire screen test is 72h, A series of testing before delivery can ensure transportation and quality products.


Pre-Sales  Service

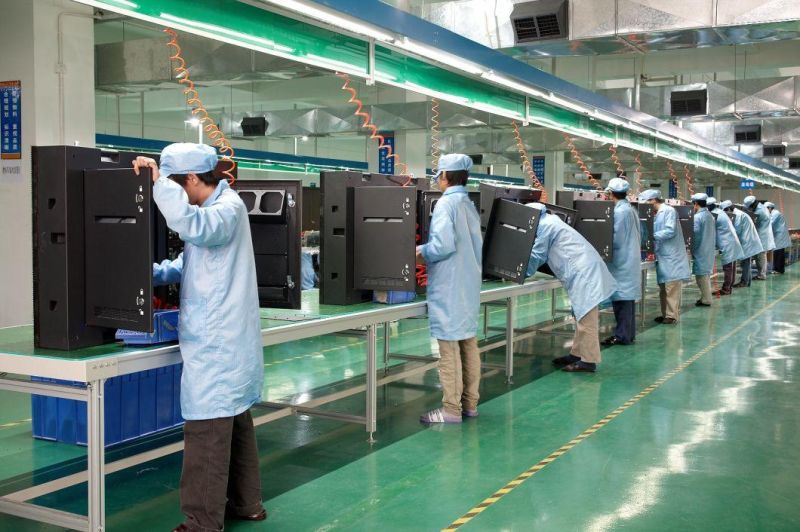

--Provide details about the production procedure
--Assign engineers for installation and testing

Sales  Service
--Customized solution designs
--Product rendering and steel structure drawing
--CKGLED's successful project examples and visits to our production and base


After-Sales  Service
--Two-year quality warranty with lifelong maintenance.
--Free guarantee repair (including labor and material):  free repair service during the quality warranty period and reasonable charge for spare parts and maintaining service after the quality warranty period. We will never exempt our responsibilities on product owned defects.
--Responding time: upon receiving user's notification, we ensure 24-hour after-sales technical support.
--Spare parts: necessary spare parts are provided together with products to customers.
--Free technical training: integrative and normative technology training is available for free to customers by our technical personnel to ensure they are skilled in regular operations of hardware and software of products and they are able to estimate and solve small problems.
--Telephone investigation: our after-sales team will phone the user every month during the warranty period to follow up the working condition of the products, and to discover and solve problems, if necessary.
--Software upgrade: lifelong maintenance of controlling system, incessant improvement of the system functions and continuous software upgrades.
