Cheap Price LED Module P10 Outdoor White LED Display Module
Xiamen Teyate Aluminum Co., Ltd.- Tube Chip Color：Single Color
- IP Rating：IP65
- Pixel Pitch：10mm
- Pixel Configuration：1W
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Average Power Consumption：350W , m²
Base Info
- Model NO.：P10 led module outdoor
- Pixel Density：10000 dot , m²
- Scanning Mode：1,4 Scan
- Display Type：LED Video Display
- Application：Advertising
- Certification：CE, RoHS, UL, CCC
- Product Name：White LED Display Module
- Module Size：320mm*160mm
- Cabinet Size：960mm*960mm
- Brightness：3000CD
- LED Brand：Epistar

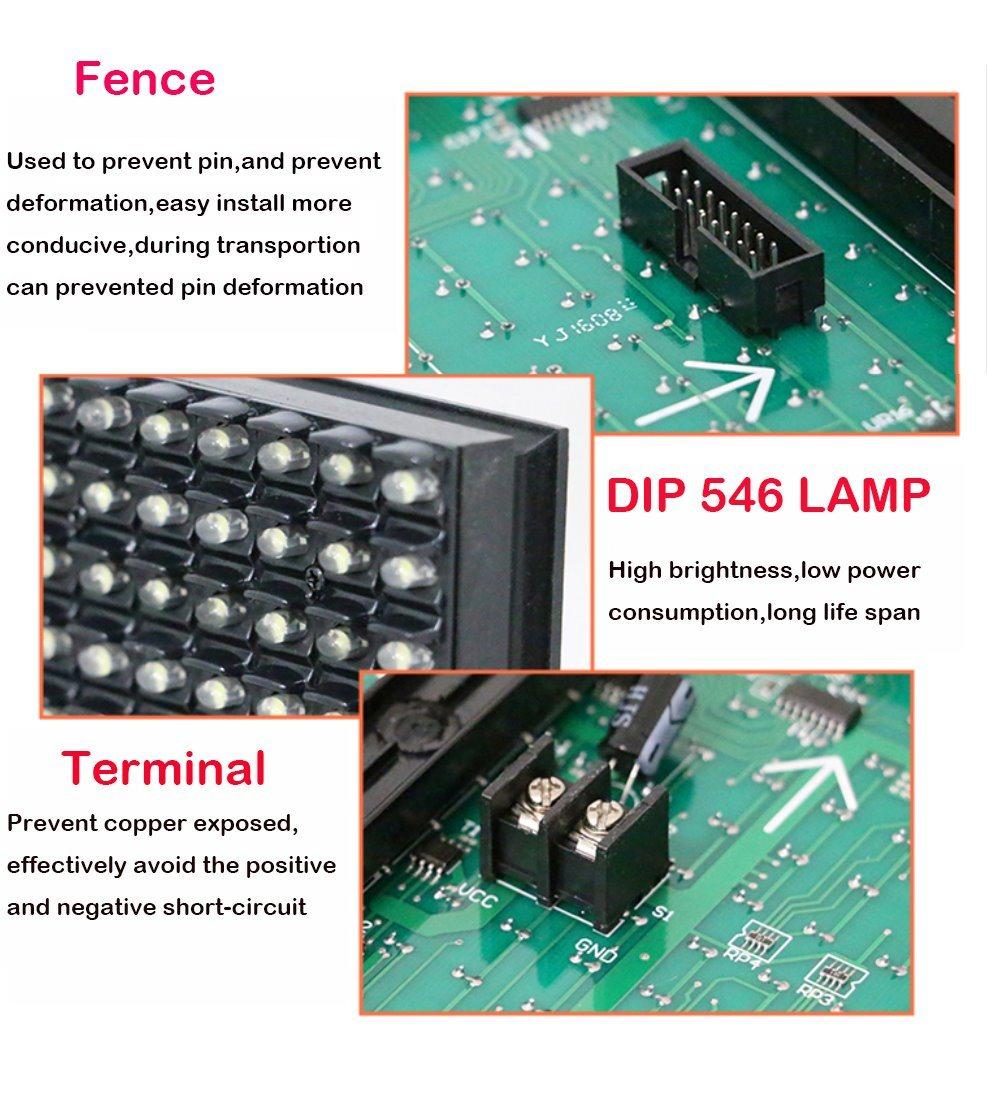

- LED Specification：DIP 546
- Drive IC：595,5020
- Power Supply：5V40A
- Humidity：10%-95%Rh
- Working Temputure：-25-+55
- Store Temputure：-35 - +60
- LED Encapsulation：Mls
- Control Card：WiFi,USB
- Brand Name：Jiacai
- Life Span：100000 Hours
- Transport Package：Air Box & Carton Box & Wooden Box
- Specification：CE, FCC, RO-HS, SGS
- Trademark：JIACAI
- Origin：Quanzhou, Fujian, China
- HS Code：8528591090
- Production Capacity：6000spm,Month
Description
Technical parameter(P10 single color led module)Specification Module size 320*160mm Pixel pitch 10mm Pixel density 10,000dots/m2 Pixel configuration 1W Pixel resolution W:32dots*H:16dots Total weight 35kg/sqm Best viewing angle 10-100m Temperature Storage: -35degree~+65degree Working: -25degree~+55degree Operating ambient humidity 10%--95% MTBF ≥10,000hours Life span ≥100,000hours Flatness Tolerance of interpixel ≤0.3mm Tolerance of modules clearance≤0.6mm Power switch Automatic switch Horizontal viewing angle 140degree Vertical viewing angle 120degree Warranty time 2years Control method Synchronization or asynchronization
Cheap price led module P10 outdoor white led display module

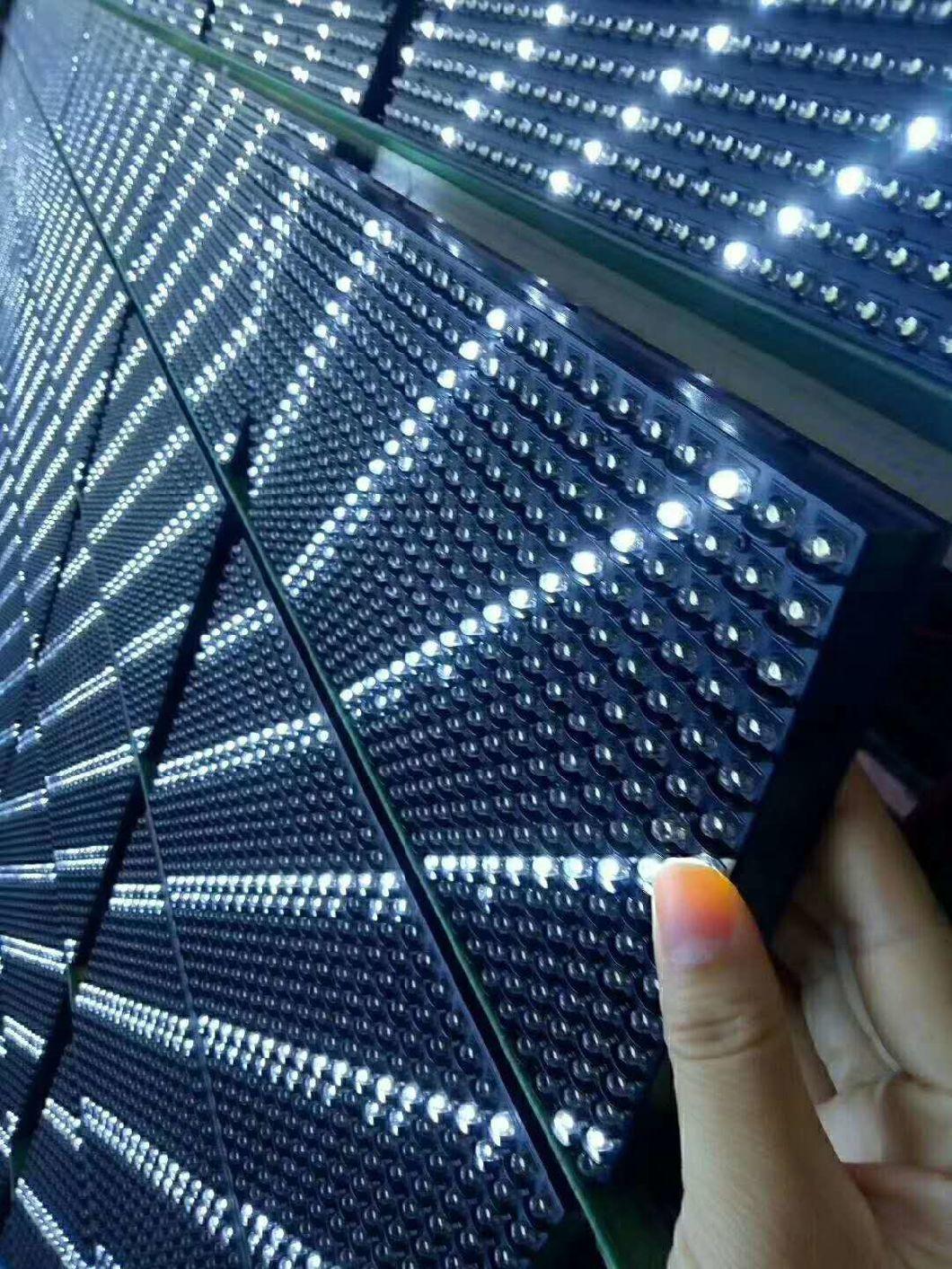

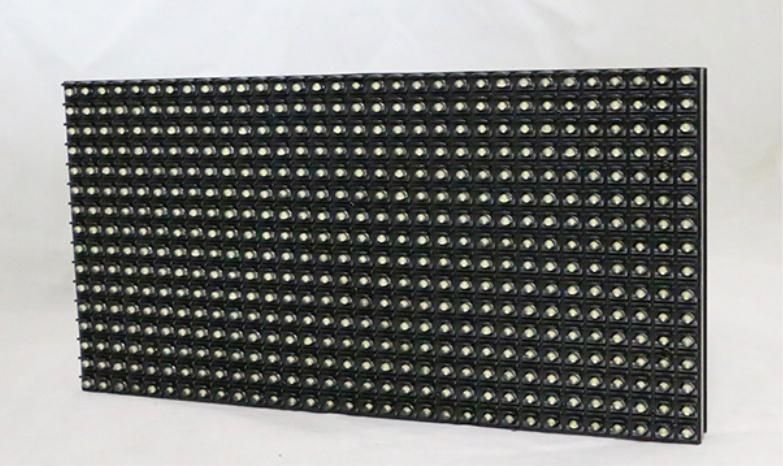

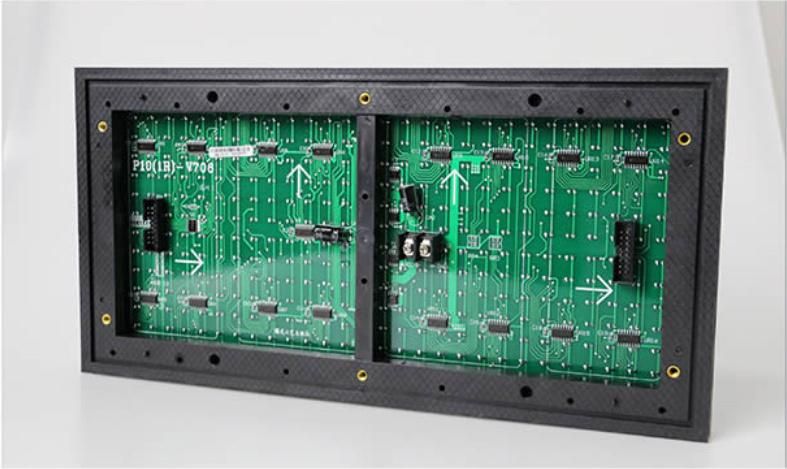

P10 DIP white P10 Single White LED Display Module
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Xiamen,Fujian, China
5. Warranty time: 2years
6. Delivery time: 3-12working days
Company view:
Our certificate:
Cheap price led module P10 outdoor white led display module
P10 DIP white P10 Single White LED Display Module
