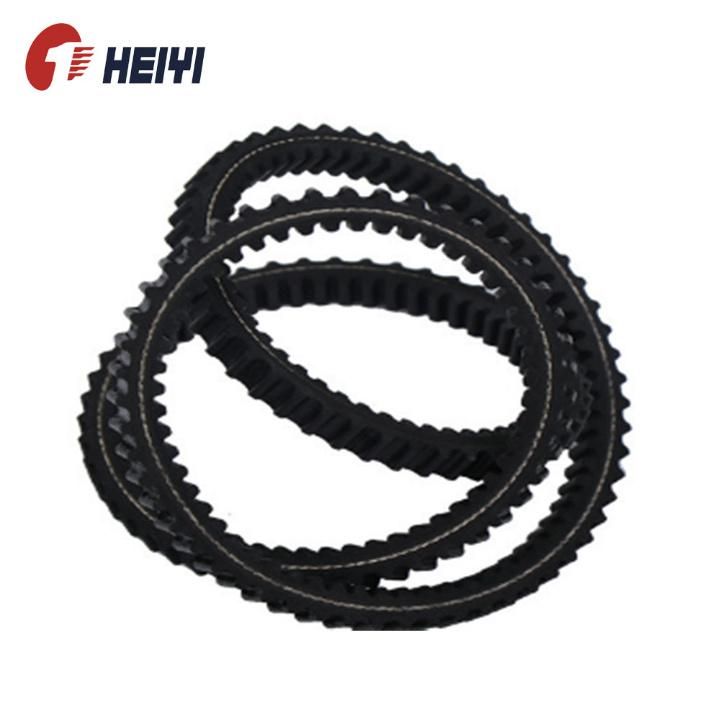

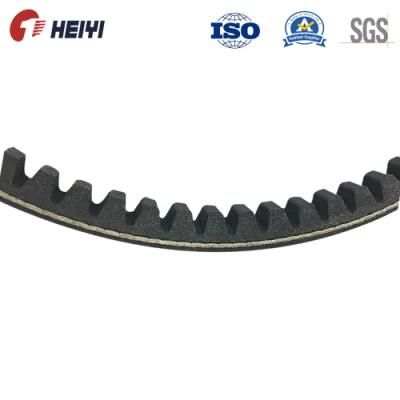

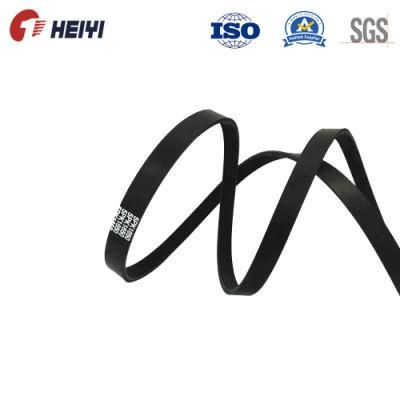

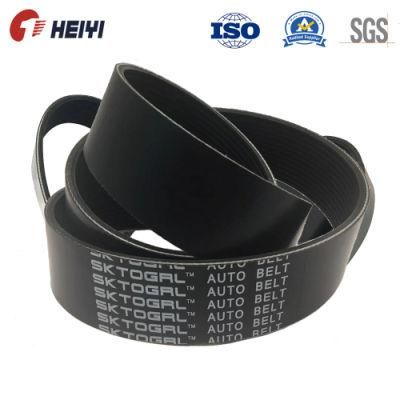

Hot Selling Car Truck Pk Belt 3pk-15pk Automobile V Belt
Taizhou Jiada Import & Export CO., Ltd.- Standard or Nonstandard：Standard
- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Electric Cars, Motorcycle, Food Machinery, Marine, Mining Equipment, Agricultural Machinery, Car
- Feature：Anti-Static, Cold-Resistant, Heat-Resistant, Skid-Resistance, Wear-Resistant, High Temperature-Resistance
- Tensile Strength：Strong
- Material：Rubber
- Type：V Belt
Base Info
- Model NO.：v belt
- OEM：Available
- Range：500-5000mm
- Warranty：150000kms,400hours
- Certification：ISO9001, Ts16949
- Body Material：Rubber
- Component：Shock Reducing Rubber
- Transport Package：Plastic Bag,Carton
- Specification：EPDM,CR,NR
- Trademark：HEIYI
- Origin：China
- HS Code：40103900
- Production Capacity：100000pieces Per Month
Description
HeightLength Length Range Length
Range Reinforcement Angle Conversion (inch) (mm) Body 40° O 10 8.5 6 lw=Li+25 15"-99" 380-2514 7*4N*3 40° A 13 11 8 lw=Li+33 19"-163" 480-4139 7*4N*3 40° B 17 14 11 lw=Li+43 25"-360" 630-9159 8*5N*3 40° C 22 19 14 lw=Li+62 49"-479" 1256-12160 9*9N*3 40°

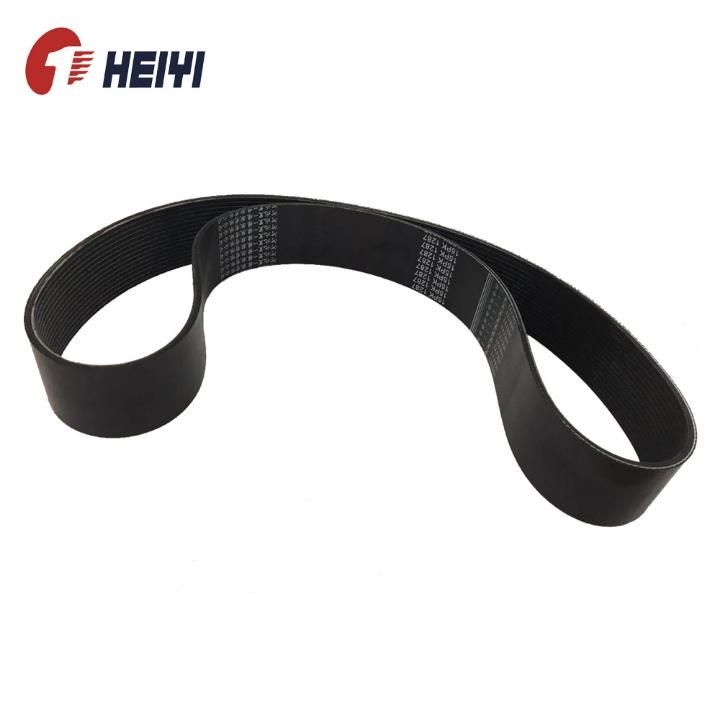

Type and Size of V Ribbed Belt/Poly V Belt
Structure of V Belt

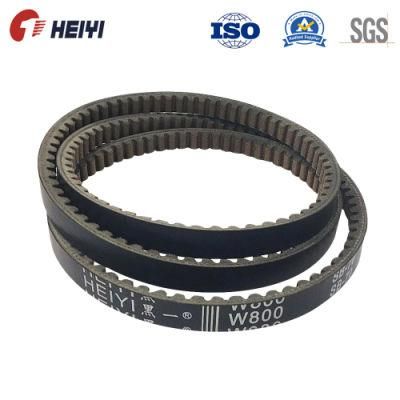

Related Products
Application

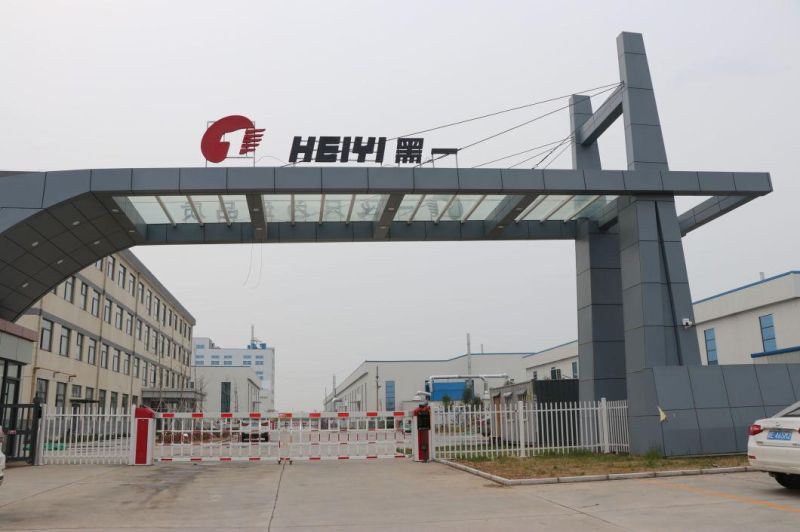

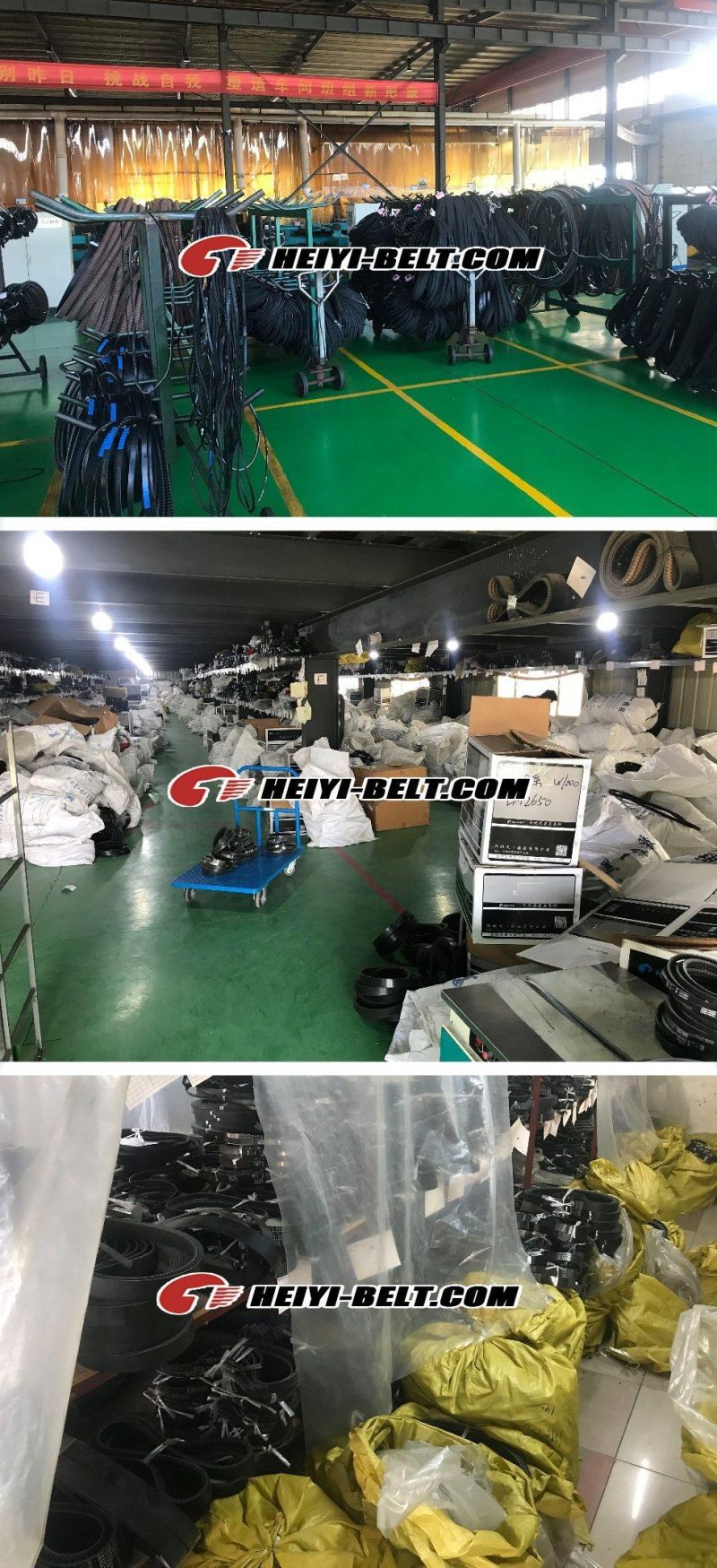

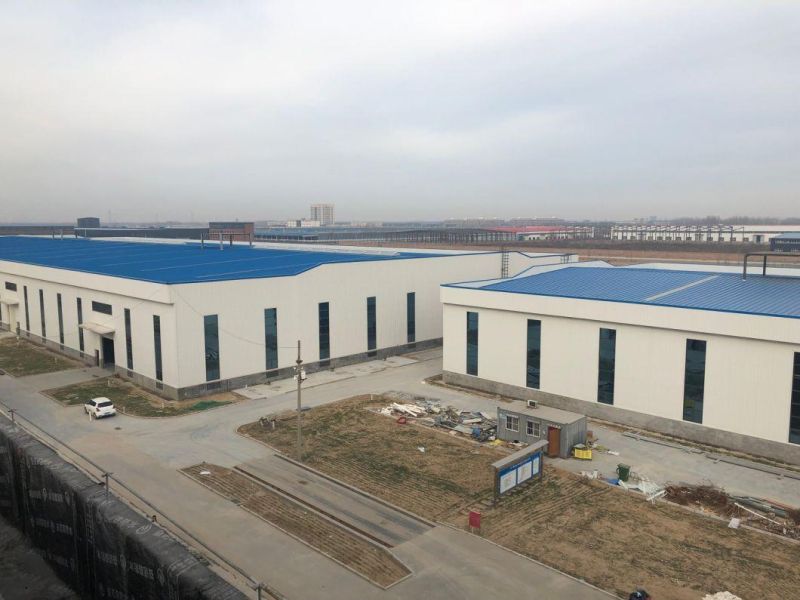

Factory and workshop
Range
Type and Size of V Ribbed Belt/Poly V Belt
| Type | Rib Section | Angle of Rib | Belt Width | Belt Thickness | Rib Number | Length Range |
| 3PK | 3.56 | 40 | 10 | 4.8 | 3 | 500-5000mm |
| 4PK | 3.56 | 40 | 13.6 | 4.8 | 4 | 500-5000mm |
| 5PK | 3.56 | 40 | 17 | 4.8 | 5 | 500-5000mm |
| 6PK | 3.56 | 40 | 20.7 | 4.8 | 6 | 500-5000mm |
| 7PK | 3.56 | 40 | 24.3 | 4.8 | 7 | 500-5000mm |
| 8PK | 3.56 | 40 | 27.8 | 4.8 | 8 | 500-5000mm |
| 9PK | 3.56 | 40 | 31.4 | 4.8 | 9 | 500-5000mm |
| 10PK | 3.56 | 40 | 35 | 4.8 | 10 | 500-5000mm |
| 12PK | 3.56 | 40 | 42.5 | 4.8 | 12 | 500-5000mm |
| 15PK | 3.56 | 40 | 53 | 4.8 | 15 | 500-5000mm |
| Function | Material | |
| Tension Member | The treated polyester cord is a low stretch high strength tension member able to withstand shock loads on drives with fixed centers | Polyester/Aramid Fiber |
| Rubber Ribs | Long wearing, oil resistant, fibre-loaded neoprene rubber is used in the ribs to provide support for the tension member and to transmit the loads to the pulley | NR,CR,EPDM |
| Backing Material | Bias ply type fabric backing resists cracking and provides abrasion resistance | NR,CR,EPDM |
| Insulation Material | oil and heat resistant rubber is used to bond the tension member to the rest of the belt | NR,CR,EPDM |
