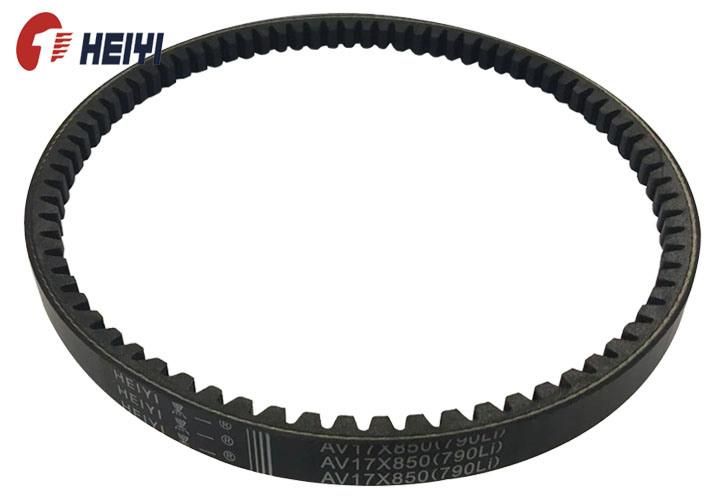

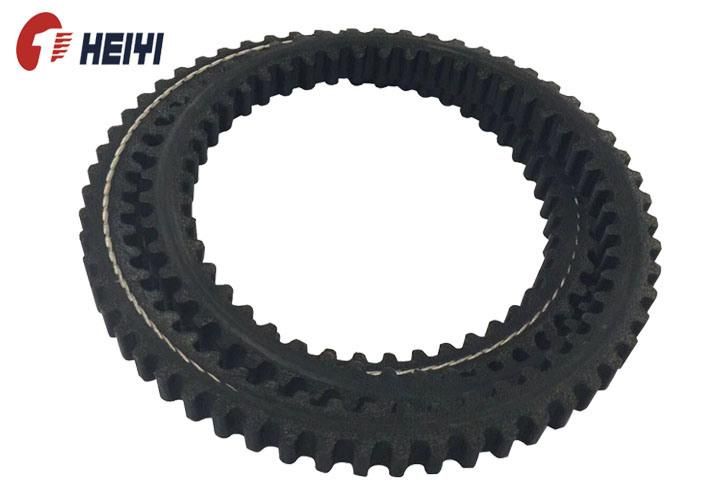

Bestquality Long Used Life Rubber V Belt Cogged Belt
Taizhou Jiada Import & Export CO., Ltd.- Standard or Nonstandard：Standard
- Application：Textile Machinery, Garment Machinery, Conveyer Equipment, Packaging Machinery, Food Machinery, Marine, Mining Equipment, Agricultural Machinery, Car
- Feature：Anti-Static, Oil-Resistant, Cold-Resistant, Corrosion-Resistant, Heat-Resistant, Alkali-Resistant, Skid-Resistance, Wear-Resistant, Acid-Resistant, High Temperature-Resistance
- Tensile Strength：Strong
- Material：Rubber
- Type：V Belt
Base Info
- Model NO.：v belt
- OEM：Available
- Range：500-5000mm
- Warranty：150000kms
- Certification：ISO9001, Ts16949
- Body Material：Rubber
- Component：Shock Reducing Rubber
- Transport Package：Plastic Bag,Carton
- Specification：EPDM,CR,NR
- Trademark：HEIYI
- Origin：China
- HS Code：40103900
- Production Capacity：100000pieces Per Month
Description
HeightLength Length Range Length
Range Reinforcement Angle Conversion (inch) (mm) Body 40° O 10 8.5 6 lw=Li+25 15"-99" 380-2514 7*4N*3 40° A 13 11 8 lw=Li+33 19"-163" 480-4139 7*4N*3 40° B 17 14 11 lw=Li+43 25"-360" 630-9159 8*5N*3 40° C 22 19 14 lw=Li+62 49"-479" 1256-12160 9*9N*3 40°
Type and Size of V Ribbed Belt/Poly V Belt
Structure of V Belt
Advantages
. Thousands of moulds available. MOQ is based on one mould quantity
. ISO/TS16949 quality certificate
. Warranty: 100000kms-150000kms
. We could supply a whole series of auto PK belts, accept OEM
Product Description
. Excellent flexibility
. High power transmission efficiency
.Reduced noise
. High grade engineered rubber
. Longer service life
.Temperature range from -50ºC to +120ºC
.Oil, heat,ozone and abrasion resistant
Related Products
We are the rubber product factory HEYI RUBBER Co.,Ltd, we have strong technical force,advanced production
technology and sophisticated production equipment.

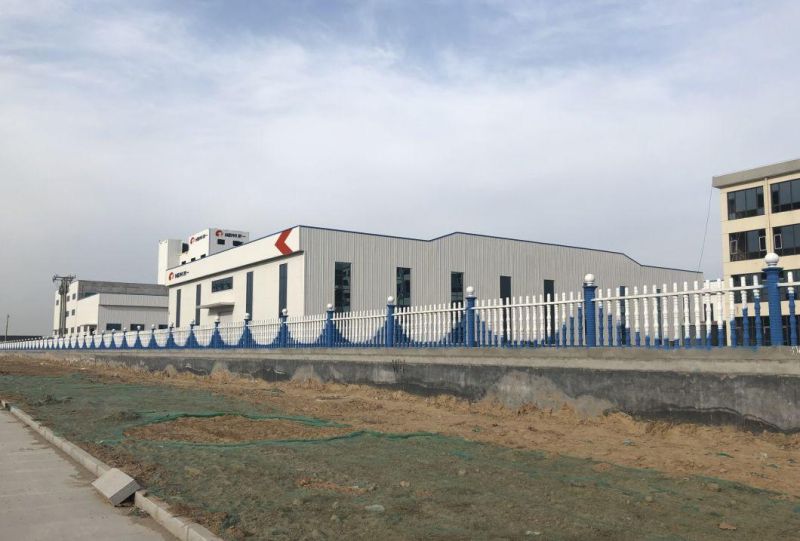

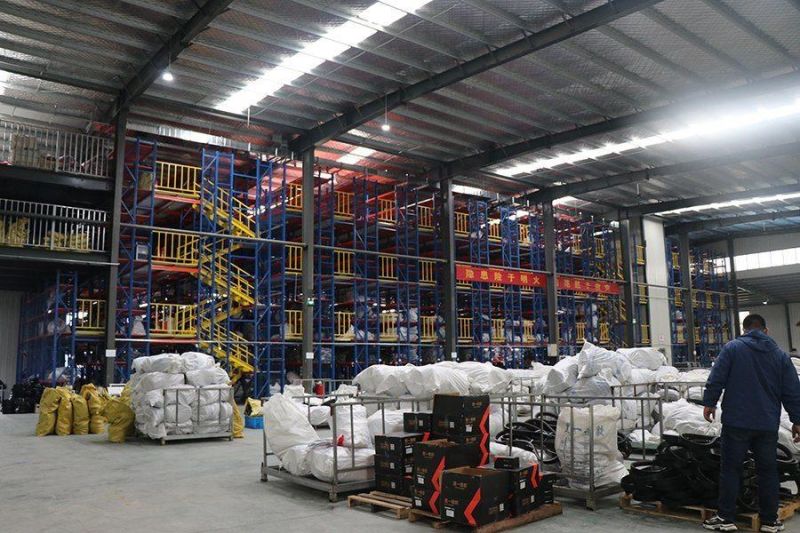

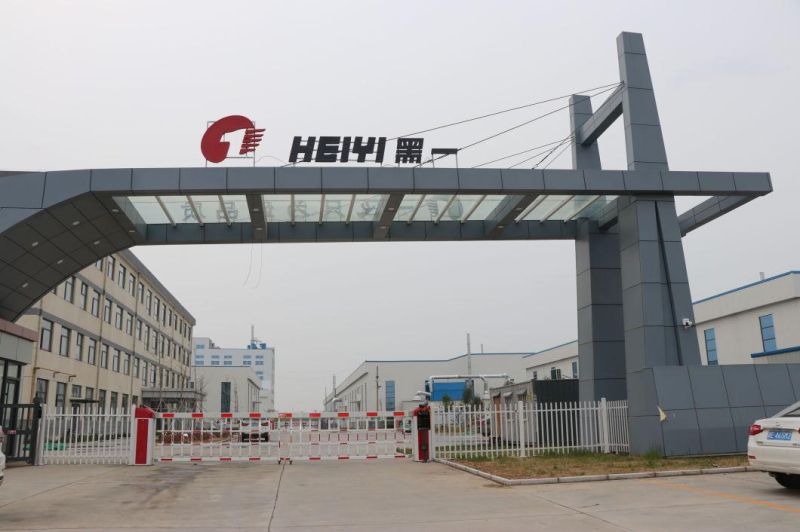

Work Place
Range

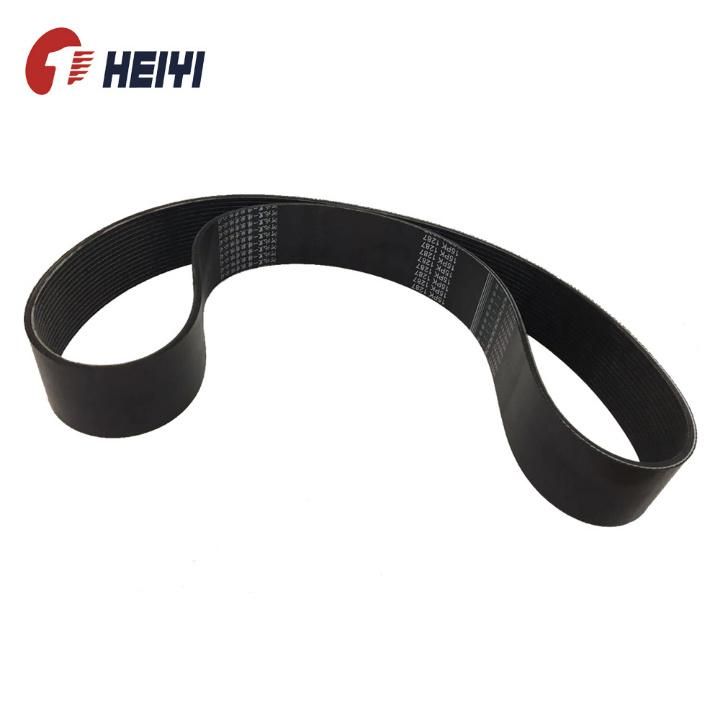

Type and Size of V Ribbed Belt/Poly V Belt
| Type | Rib Section | Angle of Rib | Belt Width | Belt Thickness | Rib Number | Length Range |
| 3PK | 3.56 | 40 | 10 | 4.8 | 3 | 500-5000mm |
| 4PK | 3.56 | 40 | 13.6 | 4.8 | 4 | 500-5000mm |
| 5PK | 3.56 | 40 | 17 | 4.8 | 5 | 500-5000mm |
| 6PK | 3.56 | 40 | 20.7 | 4.8 | 6 | 500-5000mm |
| 7PK | 3.56 | 40 | 24.3 | 4.8 | 7 | 500-5000mm |
| 8PK | 3.56 | 40 | 27.8 | 4.8 | 8 | 500-5000mm |
| 9PK | 3.56 | 40 | 31.4 | 4.8 | 9 | 500-5000mm |
| 10PK | 3.56 | 40 | 35 | 4.8 | 10 | 500-5000mm |
| 12PK | 3.56 | 40 | 42.5 | 4.8 | 12 | 500-5000mm |
| 15PK | 3.56 | 40 | 53 | 4.8 | 15 | 500-5000mm |
Structure of V Belt
| Function | Material | |
| Tension Member | The treated polyester cord is a low stretch high strength tension member able to withstand shock loads on drives with fixed centers | Polyester/Aramid Fiber |
| Rubber Ribs | Long wearing, oil resistant, fibre-loaded neoprene rubber is used in the ribs to provide support for the tension member and to transmit the loads to the pulley | NR,CR,EPDM |
| Backing Material | Bias ply type fabric backing resists cracking and provides abrasion resistance | NR,CR,EPDM |
| Insulation Material | oil and heat resistant rubber is used to bond the tension member to the rest of the belt | NR,CR,EPDM |
Advantages
. Thousands of moulds available. MOQ is based on one mould quantity
. ISO/TS16949 quality certificate
. Warranty: 100000kms-150000kms
. We could supply a whole series of auto PK belts, accept OEM
Product Description
. Excellent flexibility
. High power transmission efficiency
.Reduced noise
. High grade engineered rubber
. Longer service life
.Temperature range from -50ºC to +120ºC
.Oil, heat,ozone and abrasion resistant
Related Products
We are the rubber product factory HEYI RUBBER Co.,Ltd, we have strong technical force,advanced production
technology and sophisticated production equipment.

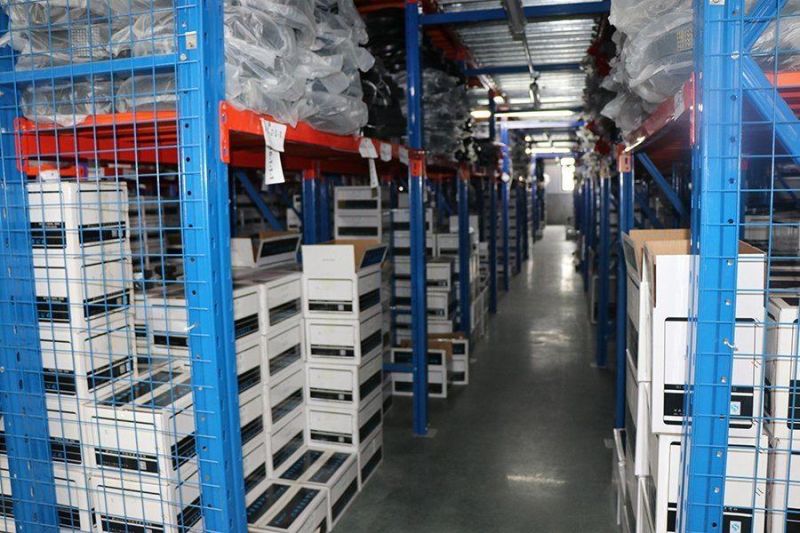

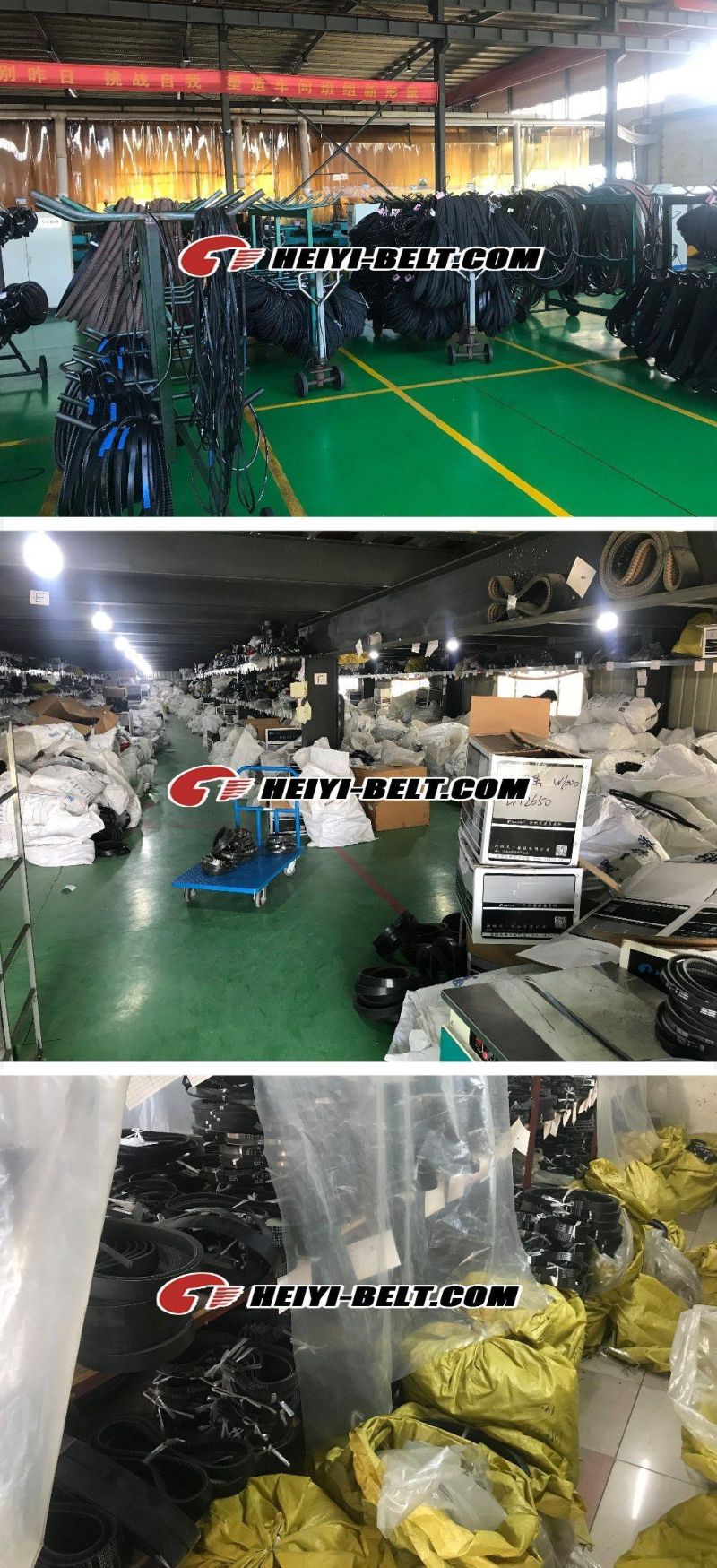

Work Place
