• Model NO.：LD15013A,B
• System Operating Platform：Win
• Display Type：Segment LED Display
• Application：Shopping Guide, Meters and Instruments
• Certification：RoHS, Reach
• Outline Dimensions：43.00X31.00X8.50mm
• Digit Height：1.5 Inch(38.1mm)
• Emitting Color：Single Color
• Dp Number：1PC
• Digit Number：1 Digit
• Chip Matrial：4-Element
• Transport Package：EPE Foam and Carton
• Specification：RoHS, REACH
• Trademark：LIGHTKEY
• Origin：China
• HS Code：8531200000
• Production Capacity：1000000PCS,Year

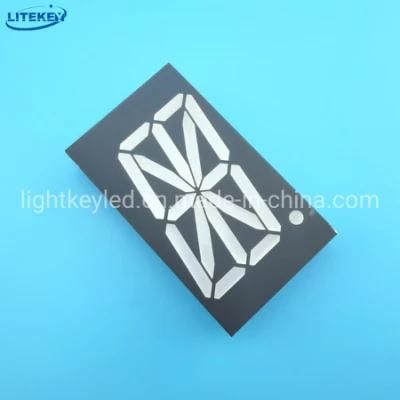

Overview Product Name

Features

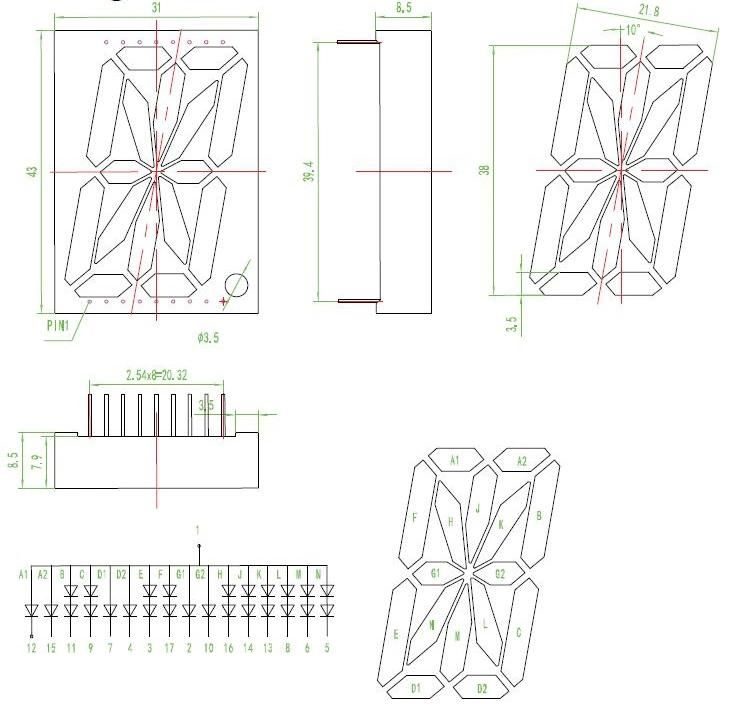

Package Dimensions

Selection Guide



Single Digit 16 Segment LED Display, Digit Height:38mm(1.50 inch), External Dimensions: 43.00x31.00x8.50mm (L x W x H )Part No.ChipIV@IF=20mAIV@IF=20mACommon
CathodeCommon
AnodeMaterialColorWLDSeg A1, A2Seg B, CMin.Typ.Min.Typ. LD15013AWT LD15013BWTSMDUltra White100120110140Unit:nmmcdmcdmcdmcd

Electrical Characteristics & Absolute Maximum Ratings
 ParameterElectrical optical Characteristics[1]Absolute Maximum Ratings[1]Emitted colorForward Voltage
@ IF=20mA                 Reverse
Current
VR=5VPower DissipationDC Forward CurrentPeak Forward Current[2]Typ.Max. Ultra WhiteSeg A1, A2, G1, G22.83.5307530100Seg B, C, E, F5.673015030100 Unit:VVuAmWmAmA
 Notes:
1. At Ta = 25 °C.
2. Peak forward current at 1/10 Duty Cycle, 0.1ms Pulse
