1.2 Inch Single Digit 7 Segment LED Display with RoHS From Expert Manufacturer
Dandong Dedan Trade Co., Ltd.- Tube Chip Color：Single Color
- Display Function：Numbers and Some Alphabets
- Pixel Pitch：4mm
- Pixel Configuration：7 Segments and Dp
- Pixel Density：7 Segments,PC
- Scanning Mode：Static Scan
Base Info
- Model NO.：LD12011A,B
- System Operating Platform：Win
- Display Type：Segment LED Display
- Application：Shopping Guide, Meters and Instruments
- IP Rating：IP0
- Certification：RoHS, Reach
- Outline Dimensions：28.80X40.80X9.00mm
- Digit Height：1.2 Inch(30.6mm)
- Emitting Color：Single Color
- Dp Number：1PC
- Digit Number：1 Digit
- Chip Matrial：4-Element
- Transport Package：EPE Foam and Carton
- Specification：RoHS, REACH
- Trademark：LIGHTKEY
- Origin：China
- HS Code：8531200000
- Production Capacity：1000000PCS,Year
Description
Overview
Product Name
FeaturesSingle Digit 7 Segment LED Display, Digit Height: 30.60mm(1.20inch), External Dimensions: 28.80x40.80x9.00mm (L x W x H ) Part No. Chip Iv@IF=20mA Iv@IF=20mA Common
Cathode Common
Anode Material Color WLD One Seg One DP Min. Typ. Min. Typ. LD12011AR LD12011BR GaAlAs Super Red 640 12 15 8 10 LD12011AD LD12011BD GaAlAs Hi-Red 640 27 37.5 18 25 LD12011AO LD12011BO GaAsP Orange 625 10.5 13.5 7 9 LD12011AY LD12011BY GaAsP Yellow 588 12 15 8 10 LD12011AG LD12011BG GaP Green 568 10.5 13.5 7 9 LD12011AUR LD12011BUR AlGaInP Ultra Red 640 45 67.5 30 45 LD12011AUO LD12011BUO AlGaInP Ultra Orange 625 67.5 90 45 60 LD12011AUA LD12011BUA AlGaInP Ultra Amber 605 45 67.5 30 45 LD12011AUY LD12011BUY AlGaInP Ultra Yellow 595 45 67.5 30 45 LD12011AUG LD12011BUG AlGaInP Ultra Green 573 45 67.5 30 45 LD12011APG LD12011BPG InGaN Pure Green 525 180 450 120 300 LD12011AUB LD12011BUB InGaN Ultra Blue 470 45 67.5 30 45 LD12011AUW LD12011BUW InGaN Ultra White 150 180 100 120 Unit: nm mcd mcd mcd mcd
Our Services/Why choose Us
1. Professional service: replied within 24 hours(at workdays).
2. Various ready moldings of lamp led are available: no need to afford extra fee for moldings.
3. We also can provide customized products, design according to your demand.
4. Reliable and stable quality: 100% testing for each piece. Automatic testing and bin code selection machine.
5. Experience: produce LED components for more than 14 years.
6. Advanced Equipment: ASM automatic production machines(biggest brand in LED automatic machines)
7. Concentration: We focus on LED research and development, production and sales.

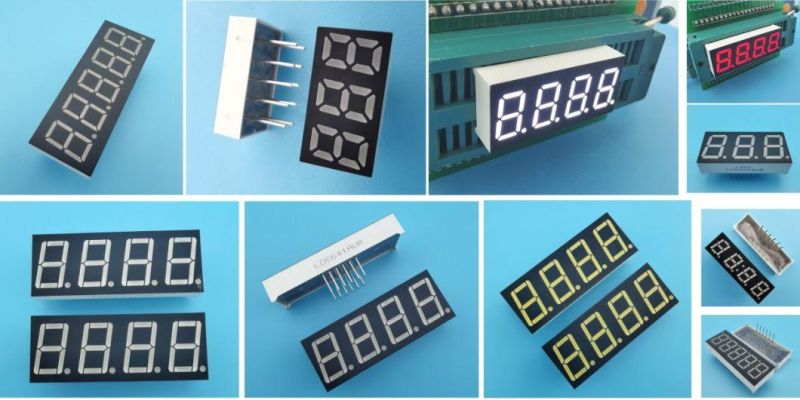

Detailed PhotosPackage Dimensions

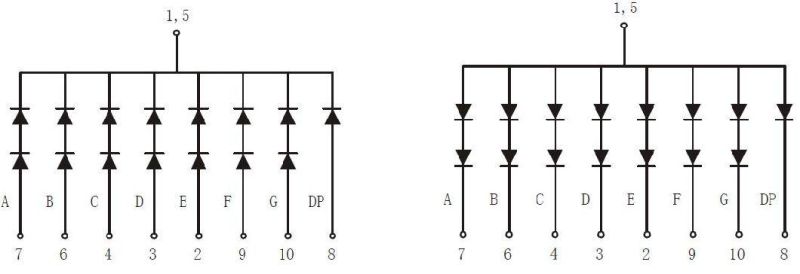

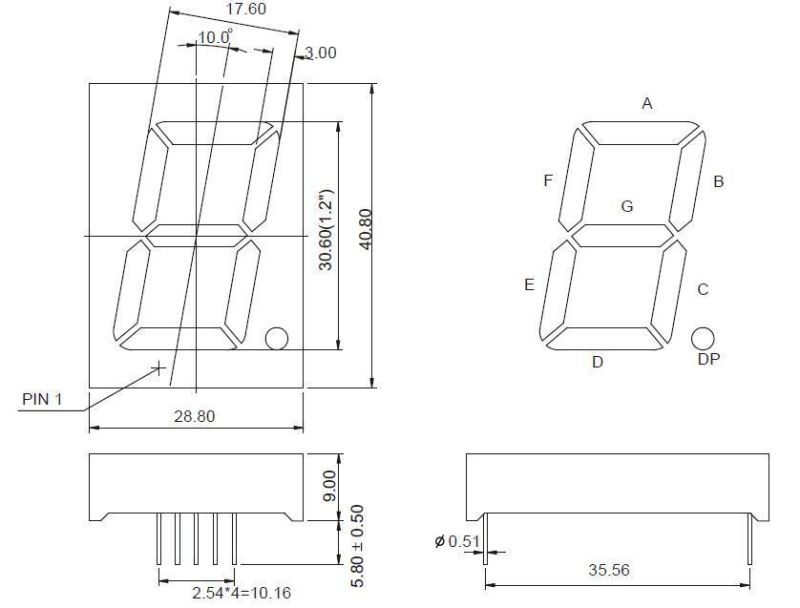

Pakage Dimensions and internal circuit:
FeaturesSelection Guide
Cathode
Anode
