Indoor LED Display Full Color P4 mm Flexible LED Module

Xuzhou Whuchan Co., Ltd
  • Display Function：Video Display
  • Pixel Pitch：4mm

Base Info

  • Model NO.：P4
  • Pixel Configuration：1R,1G,1B
  • Pixel Density：62500 Dots
  • Scanning Mode：1,15scan
  • System Operating Platform：Windows,Window XP,
  • Display Type：LED Video Display
  • Application：Stage Performance, Advertising, Shopping Guide
  • IP Rating：IP31
  • Certification：CE, RoHS, CCC
  • Color of LEDs：SMD1515
  • Module Size：240 X 120 mm
  • Module Resolution：60 X 30 Dots
  • Brightness：>1000CD,Sq.M
  • Refresh Frequence：3840Hz
  • Transport Package：Wooden Case or Paper Carton
  • Specification：CE, RoHs, FCC, CCC
  • Trademark：PRT
  • Origin：Shenzhen China
  • HS Code：8528591090
  • Production Capacity：2000sqm,Month
  • Package size per unit product：60.00cm * 60.00cm * 48.00cm
  • Gross weight per unit product：12.000kg

Description

P4 SMD2121 Indoor full Color soft LED ModulePixel pitch4.0 mmPixel Configuration1R1G1BLED componentSMD2121Size of module240mm x 120mm x 1.6mm (thickness)Resolution of module60x30 pixelsBrightness>1000cd/sq.mDensity62500 dots/sq.mBest viewing angle160° /160°Best viewing distance2-20MMaximum power consumption16W/moduleDriving method1/15 scanControl methodSynchronizationGray scale65536Color temperature3200-14000kUniformity99%Working voltageAC220V/110V±10%Working temperature-20ºC~+50ºC±10%Working humidity10% ~ 90%MTBF10,000 hoursFrame frequence50/60HzRefresh frequence>3840HzIP gradeIP31Life Span50,000 hoursData transafer methodRJ45Pratical standardCCC  TUV-CE  ETL etc.Effectivce Communication
Distance(without relay)Unshielded twisted pair net line transmission distance:100M, max transmission distance:130M; Multi-mode optic fiber: 500M;
Single-mode optic fiber: 10KMAccepting signal with video processorPAL/NTSC/SECAM,S-Video;VGA;RGB;HDMI,DVI,Composite Video;SDI,DP etc.Systems operating platformWINDOWS(WINXP,WIN7/8/10), and interfaces for secondary development

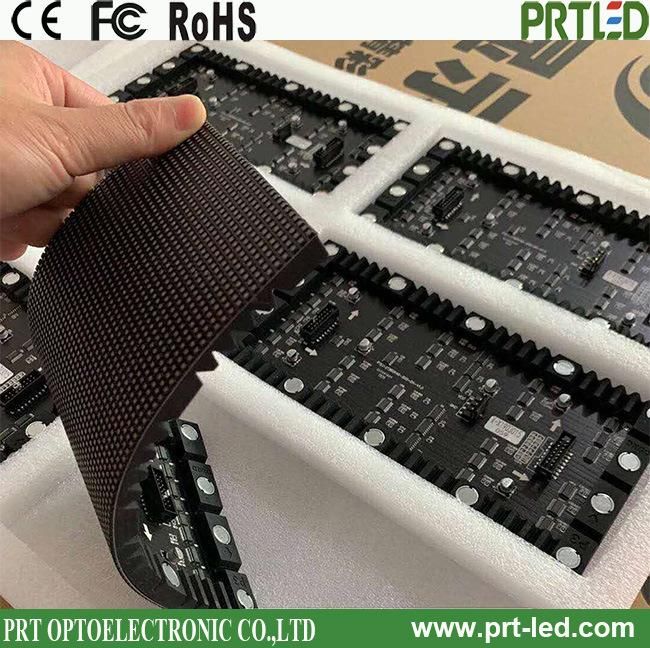

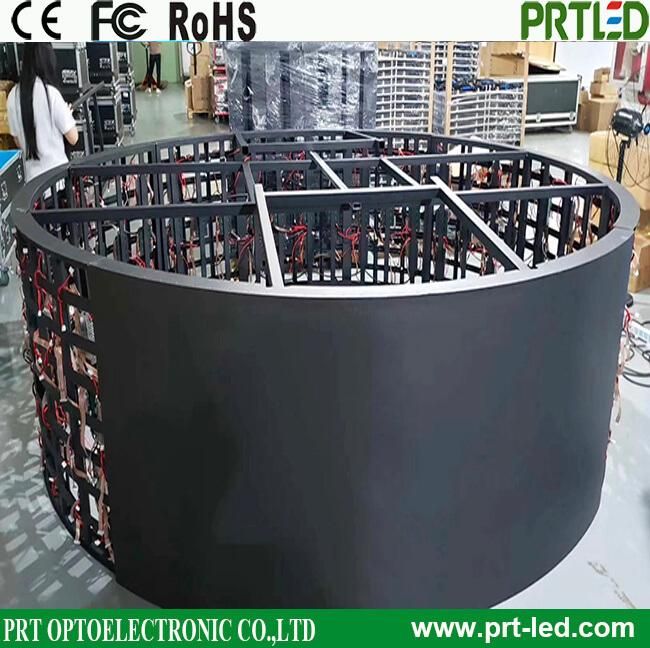

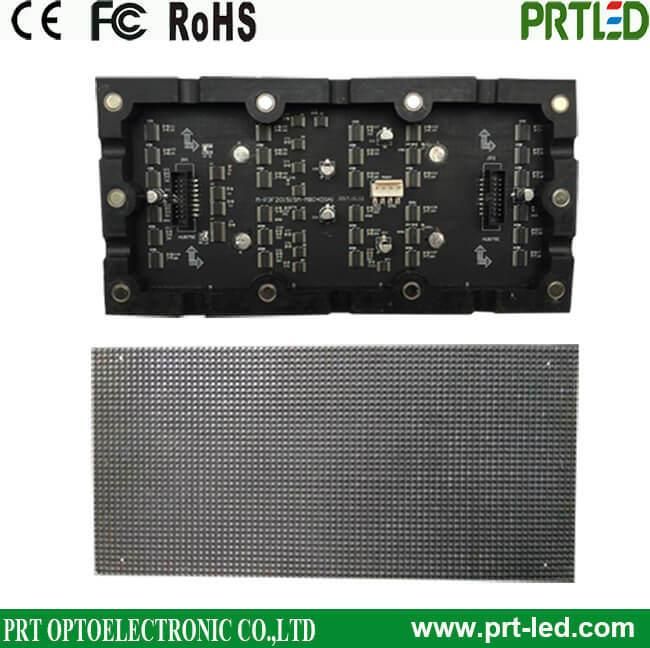

More pictures for reference:

Indoor LED Display Full Color P4 mm Flexible LED Module

Indoor LED Display Full Color P4 mm Flexible LED Module




Indoor LED Display Full Color P4 mm Flexible LED Module
