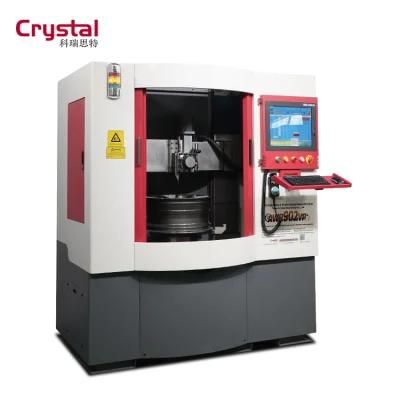

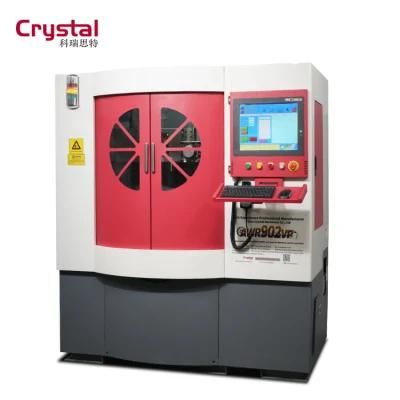

CNC Alloy Wheel Repair Lathe Diamond Cut Rim Machine Price
Zech Industry Limited- After-sales Service：After Sale Service
- Warranty：2 Years
- Max. Size of Alloy：Max. Size of Alloy Wheel 34
- Max Depth of Wheels(mm)：550
- No&Type of Guide in X-Axis：Two Linear
- No&Type of Guide in Z-Axis：Four Linear
Base Info
- Model NO.：AWR902VP
- Range of Spindle Speed(Rpm)：50-1500
- Spindle Type/Power：5.5kw(Servo Motor)
- Type of Tool Holder：4 Position Electric
- Max Size of Tool Post：25X25mm
- Detection Method：Ruby Probe
- Net Weight：1530kg
- Transport Package：Wooden Case
- Specification：2200,1620,1870mm
- Trademark：Crystal
- Origin：China
- HS Code：8458110090
- Production Capacity：45 Sets,Month
Description
ITEMS
Specifications

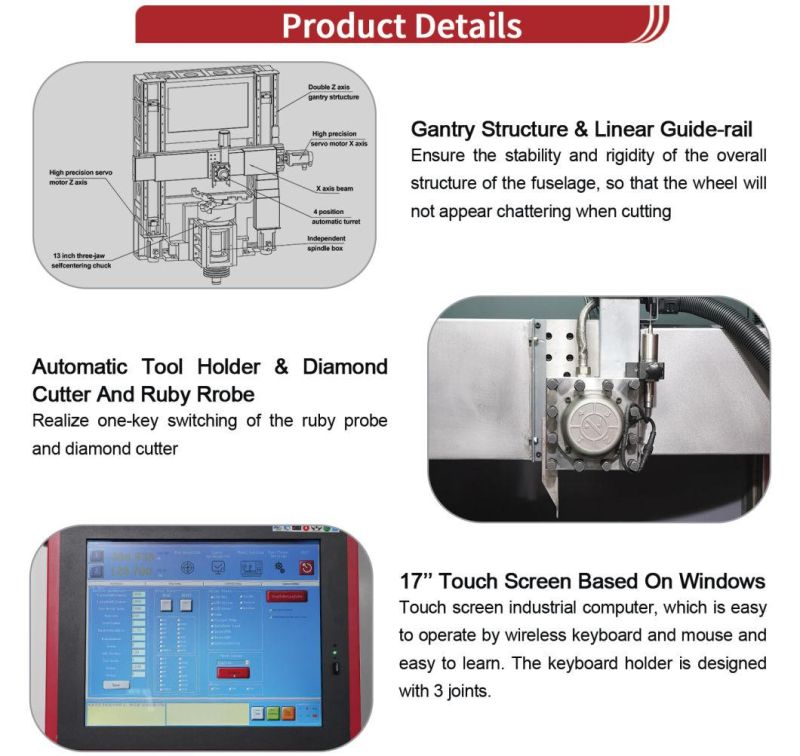

Control system
17 inch Multi-touch industrial PC system
Optimization software
Crystal CNC-WheelCurve Software V2.0
Max. turning diameter
860mm
Max. size of alloy wheel
34"
Max. depth of wheels
550mm
Chuck
13'' 3 jaw chuck (6 jaw optional)
X/Z axis accuracy
0.001mm
X/Z axis control mode
Servo control
X axis travel
455mm
Distance from tool post to end face of chuck
630mm
Range of spindle speed
50-1500rpm
Tool post
4 position automatic tool holder(Manual tool holder optional)
Max. size of tool holder
25×25mm
Detection method
Ruby probe (Laser detection optional)
Machine base
Whole cast iron base
Spindle control mode/ Power
Servo motor/ 5.5kw
Voltage
3 phase 380V (Other voltage optional)
Color
Customizable
Machine size
1630*1110*1860mm
Net weight
1530kg
