• Model NO.：P4.81 LED TV Display
• System Operating Platform：WIN XP
• Display Type：LED Video Display
• Application：Stage Performance, Advertising, Shopping Guide
• IP Rating：31
• Certification：CE, RoHS, UL, CCC, ETL
• Product Name：LED TV Display
• Panel Size：250mm*250mm
• Cabinet Size：500mm*500mm
• Brightness：1800CD
• LED Specification：1919
• LED Chip：Episar
• Warranty：2-5 Years
• View Angle：Horizontal140°,Vertical20
• Humidity：10%~95%
• Life Span：100000 Hours
• Refresh Frequency：1920Hz,S
• Encapsulaion：Kinglight,Nationstar
• Drive IC：Mbi5124,2037
• Max Power：<850W,M2
• Brand Name：Jiacai
• Transport Package：Flight Case Packing
• Specification：CE, FCC, RO-HS, SGS
• Trademark：JIACAI
• Origin：Quanzhou, Fujian, China
• HS Code：8531200000
• Production Capacity：10000spm,Month

Basic Info.

Model NO. P4.81 LED TV Display System Operating Platform WIN XP Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating 31 Certification CE, RoHS, UL, CCC, ETL Product Name LED TV Display Panel Size 250mm*250mm Cabinet Size 500mm*500mm Brightness 1800CD LED Specification 1919 LED Chip Episar Warranty 2-5 Years View Angle Horizontal140°/Vertical20 Humidity 10%~95% Life Span 100000 Hours Refresh Frequency 1920Hz/S Encapsulaion Kinglight/Nationstar Drive IC Mbi5124/2037 Max Power <850W/M2 Brand Name Jiacai Transport Package Flight Case Packing Specification CE, FCC, RO-HS, SGS Trademark JIACAI Origin Quanzhou, Fujian, China HS Code 8531200000 Production Capacity 10000spm/Month

Product Description

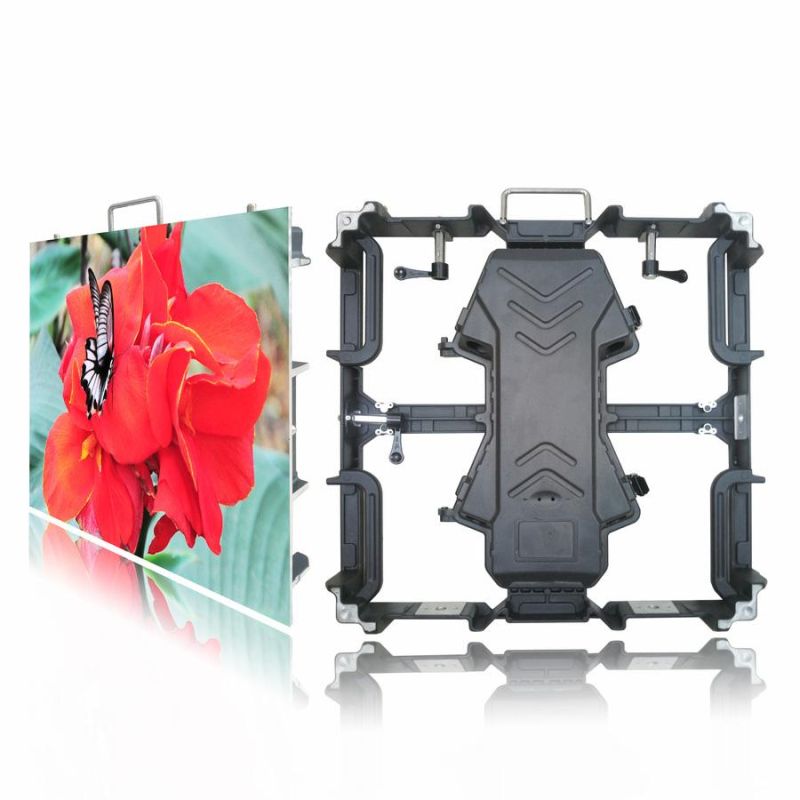

 Cabinet detail:

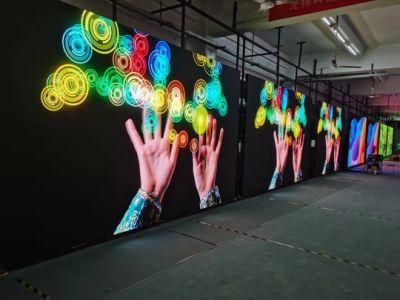

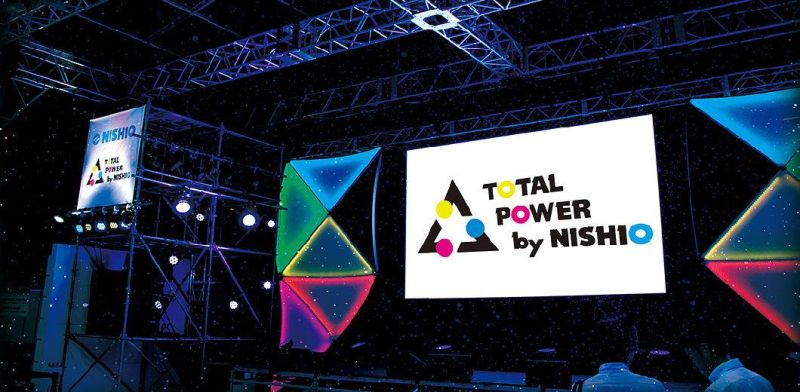

Stage led display application:








P4.81 High Brightness Indoor Full Color Custom LED TV Display



LED TV Display Features:

1.Super light and thin die-casting aluminum cabinet;

2.High refresh rate

3.Noiseless design;

4.Fine and smooth picture;

5.Seamless connection between cabinet;

6,High brightness

7.Fast installation and dismantlement.

LED TV Display Specification



Item
Model NO.	P4.81
Pixel Pitch	4.81mm
Pixel Configuration	1R1G1B
Density	43200dots/m2
Brightness	1800CD
Color Temperature	6500-9500K
Scan Method	1/16
Cabinet Size	500x500mm
Module Resolution	52x52
Cabinet Resolution	104x104
Cabinet Weight	7.5Kg/cabinet
Max. Power Consumption	850W/m2
Ave. Power Consumption	600W/m2
Best View Angle	H:140 Degrees, V:120 degrees
Refresh Rate	1920Hz
Gray Scale	16bit
Best View Distance	>4m
Protection Level	IP31
Cabinet Material	Die-casting Aluminum
Operation Voltage	110-220V AC  50-60Hz
Working Temperature	-20-+50 degrees celsius
Working Humidity	10%-90%
Signal Input Source	VGA, DVI, HDMI, SDI, HD-SDI
Control Distance	Ethernet cable:100m, Multi-mode optical fiber:500m,singel-mode optical fiber:20Km

Our service
 1. Your inquiry related to our products or price will be replied in 24hrs2. OEM&ODM, any your customized lightings we can help you to design and put into product3. Distributorship are offered for your unique design and some our current models4. Protection of your sales area, ideas of design and all your private information5. Top quality+Reasonable price+Responsible After Service=Successful & Win6. Jiacai can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
 Trade Terms
 1. Package: Anti-shaking wooden package, Air flight case or Carton package2. Payment: T/T, 30% deposits before production, 60% balance to be paid before delivery3. Shipping freight are quoted under your requests4. Shipping port: Xiamen, China5. Warranty time: 2 -5years6. Delivery time:3-15 working days
