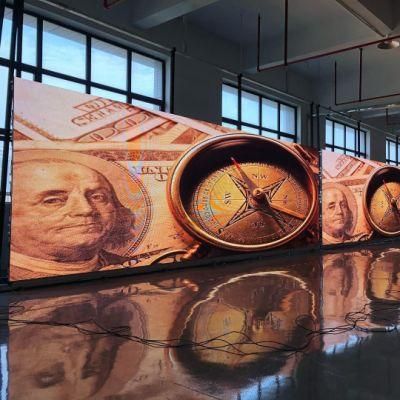

P5 Indoor Full Color LED Video Screen LED Curtain Video Wall
Xiamen Teyate Aluminum Co., Ltd.- Tube Chip Color：Full Color
- Display Function：Video Display, Image & Text Display, Text Display, Market Display
- Pixel Pitch：5mm
- Pixel Configuration：1R,1G,1B
- Pixel Density：40000
- Scanning Mode：1,16 Scan
Base Info
- Model NO.：P5 led curtain video wall
- System Operating Platform：WIN2000
- Display Type：LED Video Display
- Application：Stage Performance, Advertising, Shopping Guide
- IP Rating：31
- Certification：CE, RoHS, CCC
- Product Name：LED Curtain Display
- Panel Size：320mm*160mm
- Cabinet Size：640mm*640mm
- Brightness：1600CD
- Chip Brand：Epistar
- LED Encapsulation：Kinglight, Nationstar
- LED Specification：SMD2121
- Drive IC：Mbi5124,2027
- Refresh Rate：>1920Hz,S
- Working Temperature：-25-+55
- Storeage Temputure：-35 -- +65
- Warranty：2 Years
- Control Card：Nova, Linsn, HD
- Brand Name：Jiacai
- Hub Board：Hub75
- Transport Package：Wooden Case ,Flight Case
- Specification：CE, SGS, CCC, FCC
- Trademark：JIACAI
- Origin：Quanzhou, Fujian, China
- HS Code：8528591090
- Production Capacity：5000sqm,Month
Description
Basic Info.
Model NO. P5 led curtain video wall System Operating Platform WIN2000 Display Type LED Video Display Application Stage Performance, Advertising, Shopping Guide IP Rating 31 Certification CE, RoHS, CCC Product Name LED Curtain Display Panel Size 320mm*160mm Cabinet Size 640mm*640mm Brightness 1600CD Chip Brand Epistar LED Encapsulation Kinglight, Nationstar LED Specification SMD2121 Drive IC Mbi5124/2027 Refresh Rate >1920Hz/S Working Temperature -25-+55 Storeage Temputure -35 -- +65 Warranty 2 Years Control Card Nova, Linsn, HD Brand Name Jiacai Hub Board Hub75 Transport Package Wooden Case /Flight Case Specification CE, SGS, CCC, FCC Trademark JIACAI Origin Quanzhou, Fujian, China HS Code 8528591090 Production Capacity 5000sqm/MonthProduct Description
P5 Indoor Full Color LED Curtain Video Wall
LED video screen specification
| Item | |
| Model NO. | P5 |
| Pixel Pitch | 5mm |
| Pixel Configuration | 1R1G1B |
| LED Type | SMD2020 |
| Density | 40000 dots/m2 |
| Brightness | 1600CD |
| Color Temperature | 6500-9500K |
| Scan Method | 1/16 |

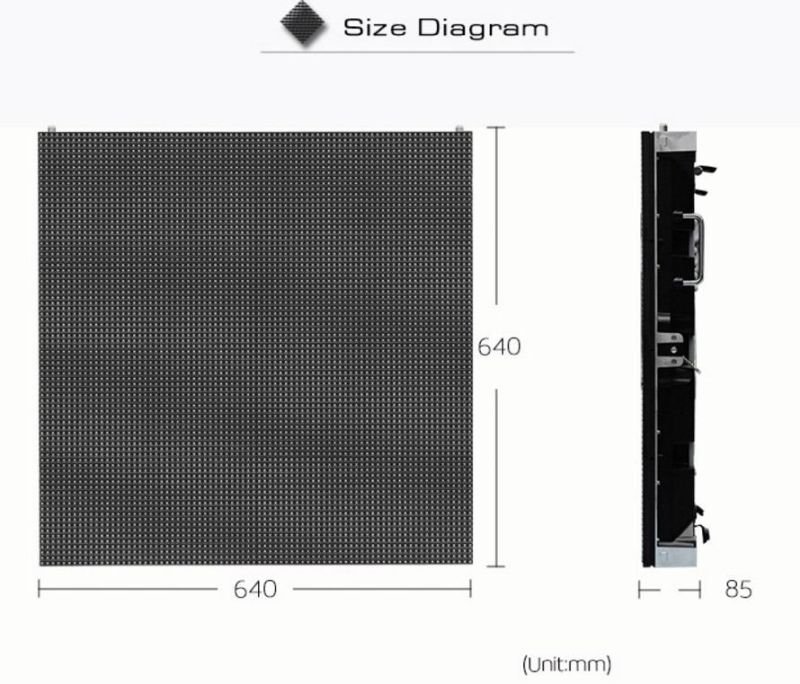

| Cabinet Size | 640x640mm |
| Module Resolution | 64x32 |
| Cabinet Resolution | 128x128 |
| Cabinet Weight | 7.2Kg/cabinet |
| Max. Power Consumption | 600W/m2 |
| Ave. Power Consumption | 300W/m2 |
| Best View Angle | H:140 Degrees, V:120 degrees |
| Refresh Rate | 1920Hz |
| Gray Scale | 16bit |
| Best View Distance | >5m |
| Protection Level | IP31 |

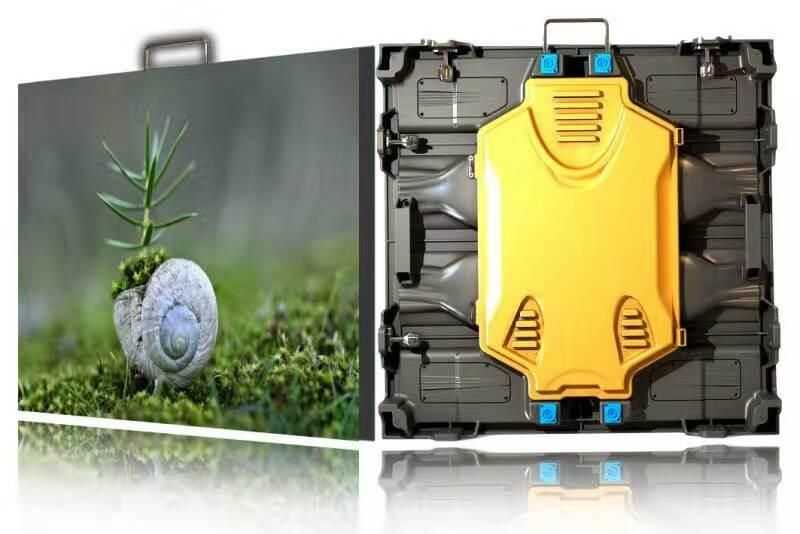

| Cabinet Material | Die-casting Aluminum |
| Operation Voltage | 110-220V AC 50-60Hz |
| Working Temperature | -25-+55 degrees celsius |
| Working Humidity | 10%-90% |
| Signal Input Source | VGA, DVI, HDMI, SDI, HD-SDI |
| Control Distance | Ethernet cable:100m, Multi-mode optical fiber:500m,singel-mode optical fiber:20Km |
Stage led screen application:
Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win
6. Jiacai can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.
Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Xiamen, China
5. Warranty time: 2 years
6. Delivery time: 3-15 working days
