• Model NO.：H,B
• Type：Circular Gear
• Ratio：I=1,1.25~1,450
• Input Speed：1500r,Min, 1000r,Min, 750r,Min
• Gear Arrangement：Helical Hardened Gearbox
• Rated Torque：0.79n.M~900kn.M
• Rated Power：4kw~3015kw
• Installation Form：Horizontal or Vertical
• Material：Cast Iron
• Manufacturing Method：Forging Gear
• Output Speed：1.7~1200rpm
• Color：Customized Color
• Gear Material：20crmnti Alloy Steel
• Mount Position：Horizontal , Vertical Mounted
• Input Form：Input Solid Shaft
• Output Form：Solid Shaft, Hollow Shaft
• Warranty：1 Year
• Transport Package：Wooden Case
• Specification：ISO
• Trademark：AOKMAN DRIVE
• Origin：China
• HS Code：8483409000
• Production Capacity：5000PCS,Year

Overview Product Description

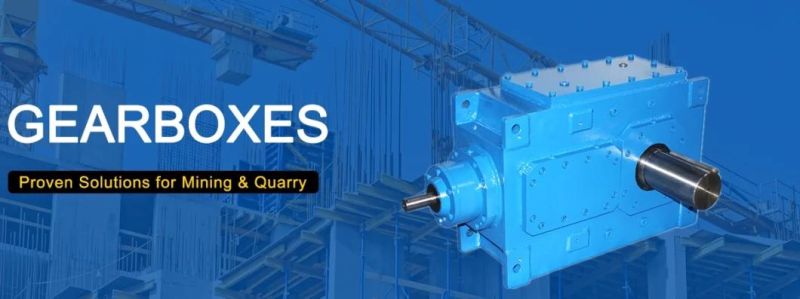

B Series Industrial Gearbox is a brand-new model of rigid tooth flank gear reducers which has the features as follows:
(1) B series industrial gearboxes have heavy load, large torque range, high-efficiency and long lifespan, high permissible axial and radial loads.
(2) B series orthogonal shaft gearbox has the features of low noise, high reliability and compact structure.
(3) Output shafts: Solid shaft or hollow shaft, and the hollow shaft can be attached with the shrink disk.
(4) Mounting type: horizontal, vertical.

Detailed Photos

Applications:
The products are widely applied in electricity, coal, cement, metallurgy, harbor, agriculture, shipping, lifting, environment protection, stage, logistic, weaving, paper making, light industry, plastics and other regions.

Product Parameters

Material of Housing and Gear:

MaterialsHousing: HT250 cast iron
 Gear: 20CrMnTi,carburizing and quenching
 Gear surface hardness: 58-62HRC
 Gear center hardness: 33-48HRC
 Grinding precision grade: ISO1328-1: 1995 class 5-6
 Surfaceness: 0.8
 Carburization depth: 0.6-1.5mm
 Bearing: 42CrMo


Technical data of B series helical gearbox:

Packaging & Shipping

Company Profile

Our Advantages



FAQ

If you have any demand for our products please feel free to contact me.
