• Model NO.：S
• Type：Worm Reducer
• Rated Power：0.18kw~22kw
• Gear Arrangement：Helical-Worm Gears
• Shafts Position：Right Angle
• Housing：Cast Iron
• Gears：Helical-Worm Gears
• Max. Torque：90~4000n.M
• Ratio：10.27~230.48
• Installation Form：Foot, Flange, Shaft Mounted
• Gear Material：20crmntih
• Mounting Position：Foot, Flange, Shaft Mounted
• Input Form：Motor, Motor Flange, Input Solid Shaft
• Output Form：Flange Output
• Input Speed：1400rpm
• Output Speed：Based on Ratio
• Warranty：1 Year
• Transport Package：Wooden Case; Carton; Pallet
• Specification：CE; SGS; ISO
• Trademark：AOKMAN DRIVE
• Origin：China
• HS Code：8483409000
• Production Capacity：80000

S   SA   SF   SAF   SAT   SAZInput Power(kW)0.18~0.750.18~1.50.18~30.25~5.50.55~7.50.75~151.5~22Ratio10.27~165.7111.46~244.7410.78~196.2111.55~227.209.96~241.0911.83~223.2612.75~230.48Permissible Torque(N.m)90170300520127022804000

3.Gear unit weightS series gear units are available in the following designsS...Y...Foot-mounted parallel shaft helical gear units with solid shaftSA...Y...Parallel shaft helical gear units with hollow shaftSAZ...Y...Short-flange mounted parallel shaft helical gear units with hollow shaftSF...Y...Flange-mounted parallel shaft helical gear units with solid shaftSAT...Y...Flange-mounted parallel shaft helical gear units with hollow shaftS(SF,SA,SAF,SAZ)S...Shaft input parallel shaft helical gear unitsS(SF,SA,SAF,SAZ)...R...Y...Combinatorial parallel shaft helical gear unitsS(SF,SA,SAF,SAZ)S...R...Shaft input combinatorial parallel shaft helical gear unitsServices during selling1.Pre-check and accept products ahead of delivery.2. Help clients to draft solving plans.After-sale services1.Assist clients to prepare for the first construction scheme.2. Train the first-line operators.3.Take initiative to eliminate the trouble rapidly.4. Provide technical exchanging.
7.S series gearbox are available in the following designs:

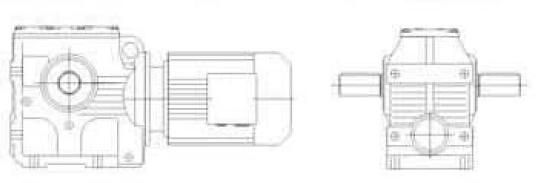

(1) SY
Foot mounted helical worm gearbox with solid shaft

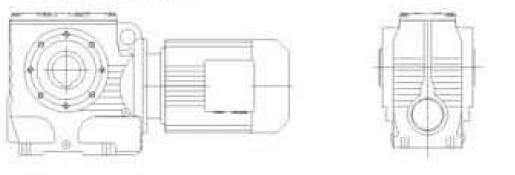

(2) SAY
Helical worm gearbox with hollow shaft

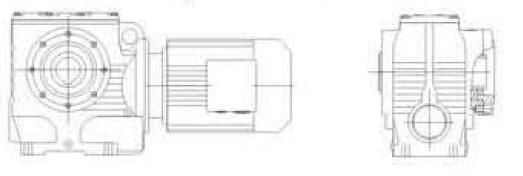

(3) SAZY
Small flange mounted helical worm gearbox with hollow shaft

(4) SA (S,SF,SAF,SAZ)Y
Assemble users' motor or special motor, flange is required

(5) SFY
Flange mounted helical worm gearbox with solid shaft

(6) SAFY
Flange mounted helical worm gearbox with hollow shaft

(7) SATY
Torque arm mounted helical worm gearbox with hollow shaft

(8) S (SF,SA,SAF,SAZ) S
Shaft input helical worm gearbox

(9) SA (S,SF,SAF,SAZ)RY
Combined helical worm gearbox

(10) SA (S,SF,SAF,SAZ)SR
Shaft input combined helical worm gearbox




Customer visiting:



11.FAQ:
1.Q:What kinds of gearbox can you produce for us?
A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer,
P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more
than one hundred models and thousands of specifications
2.Q:Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
3.Q:What is your terms of payment ?
A: 30% Advance payment by T/T after signing the contract.70% before delivery
4.Q:What is your MOQ?
A: 1 Set

If you are interested in our product, welcome you contact me.
Our team will support any need you might have.
