• Model NO.：TY-UF20
• Application：UV Curing, Fluorescence Detection
• Operating Voltage：12,24V or 85-265V
• Certification：CE, RoHS
• Type：Floodlight
• Chip：Imported UV LED
• Transport Package：Carton
• Specification：Rohs
• Trademark：TaoYuan
• Origin：China
• HS Code：9405409000
• Production Capacity：50000PCS,Year

Basic Info.

Model NO. TY-UF20 Application UV Curing/ Fluorescence Detection Operating Voltage 12/24V or 85-265V Certification CE, RoHS Type Floodlight Chip Imported UV LED Transport Package Carton Specification Rohs Trademark TaoYuan Origin China HS Code 9405409000 Production Capacity 50000PCS/Year

Product Description

 Product features:
1. UV curing light 365nm products are 10W, 20W, 30W, 50W.
2. UV curing light 365nm 20W: IP65.
3. Lighting with electrical integration and beautiful shape.
4. Replacement of open source, easy to install and maintain.
5. UV LED light source NCSU033B Nichia wavelength: 365nm
6. Size: L 116 x W 85 x H 98mm.

Product advantages:
1. Low power consumption, long life.
2. Lamp is compact, easy to hide or installation.
3. LED's long life, light emitting time is up to 10000-20, 000 hours.
4. LED floodlights with small size, wide application and not easy to damage.

Application:
Medical applications, UV glue curing photolysis media reaction, ultraviolet air cleaners, high-resolution optical applications, phosphors reflection, special lighting, etc...

Product  Power	Input Voltage	Output Current	Optical power	Wavelength
UV 20W    NCSU033BA  6PCS  Nichia	85-265VAC	DC/12V	3000 MW	365nm

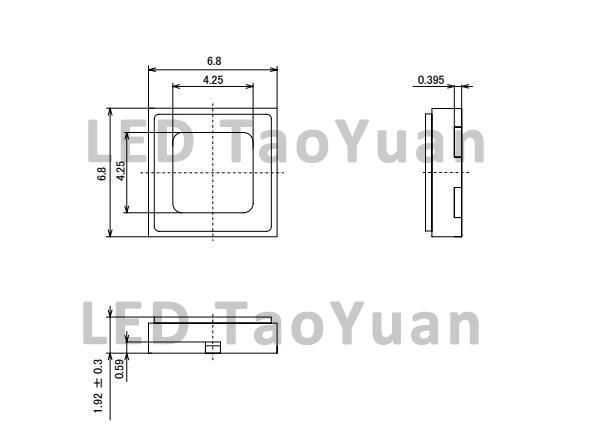

LED Dimension
