• Model NO.：SNSTY-2120
• Illumination Time：8h
• Cell Type：Lithium Battery
• Charging Time (H)：7hours
• Usage：Garden, Street
• IP Rating：IP65
• Certification：CE, RoHS
• Voltage：12,24V
• With Light Source：With Light Source
• Item Name：Integrated Solar Street Lights
• Solar Panel：150 Watt
• LED Power：120 Watt
• Lithium Battery Capacity：80 Ah
• Recommend Mounting Height：9-11m
• Lumen：10000-11000lm
• Dimension：1670*460*45mm
• Weight：N.W. 22 Kg,G.W. 26kg
• Model：Snsty-2120
• Working Mode：Timer + APP
• Transport Package：Strong Carton
• Specification：120W LED 150W Solar Panel
• Trademark：SINOLTECH
• Origin：China
• HS Code：9405500000
• Production Capacity：China

Basic Info.

Model NO. SNSTY-2120 Illumination Time 8h Cell Type Lithium Battery Charging Time (H) 7hours Usage Garden, Street IP Rating IP65 Certification CE, RoHS Voltage 12/24V With Light Source With Light Source Item Name Integrated Solar Street Lights Solar Panel 150 Watt LED Power 120 Watt Lithium Battery Capacity 80 Ah Recommend Mounting Height 9-11m Lumen 10000-11000lm Dimension 1670*460*45mm Weight N.W. 22 Kg/G.W. 26kg Model Snsty-2120 Working Mode Timer + APP Transport Package Strong Carton Specification 120W LED 150W Solar Panel Trademark SINOLTECH Origin China HS Code 9405500000 Production Capacity China

Product Description

APP control High Power 120 Watt LED Integrated Solar Street Lights for commercial lighting (SNSTY-2120)

----Main feature of SINOLTECH All in one LED solar street light:
1) Integrity design, no cabling, easy to install, various mounting methods (pole or fence)
    Pole material could be iron, wood, bamboo, plastic etc, low construction cost.
2) Adopting solar panel as power source, LED as light source, a perfect combination for energy saving.
3) Adopting high capacity long service life Lithium lron Phosphate Battery, theory life time over 5 years, excellent high temperature performance, long life time can ensure the service life of whole product.
4) Waterproof structure, safe and reliable.
5) Adopting aluminum alloy as main body material, with excellent rust-proof and corrosion-proof function.
6) With segmented power control function, during late half night, brightness reduce in order to save energy and increase practicality.

----Advantage:
This product is composed of high efficiency monocrystalline silicone solar panel, 5 years exta long service life lithium battery( same with the drive batteries of hybrid cars), high light efficiency LED lamp and intelligent controller, PIR motion sensor module, theft-resistant mounting bracket.
The most advantage of all in one solar light is easy installation, light-weight, under general normal condition, only 1 or 2 workers using a wrench could finish the installation within 5 minutes.

----Technical Data for 120 watt LED integrated solar street light:

Solar Panel	Max Power	18V150W(High efficiency mono solar cell)
	Life time	25 years
Battery	Type	Lithium battery
	Life time	5 years
LED Lamp	Max power	12V 120W
(With sensor)	Led chip brand	Bridgelux from USA with high brightness
	Lumen(LM)	12000-13000LM
	Life time	50000hours
	Viewing angle	120 degree
Charge time	By sun	9 hours
Discharge time	Saving power	more than 24 hours
	Full power	more than 10 hours
Working temp.	range(C)	-20C~+60C
Color temp.	range(k)	6500K (2700-7000K optional)
Mounting height	range(m)	9-12m
Space between light	range(m)	30-35m
Main lamp materials		Aluminum alloy
Certificate		CE/ROHS/IP65
Warranty period		3 years

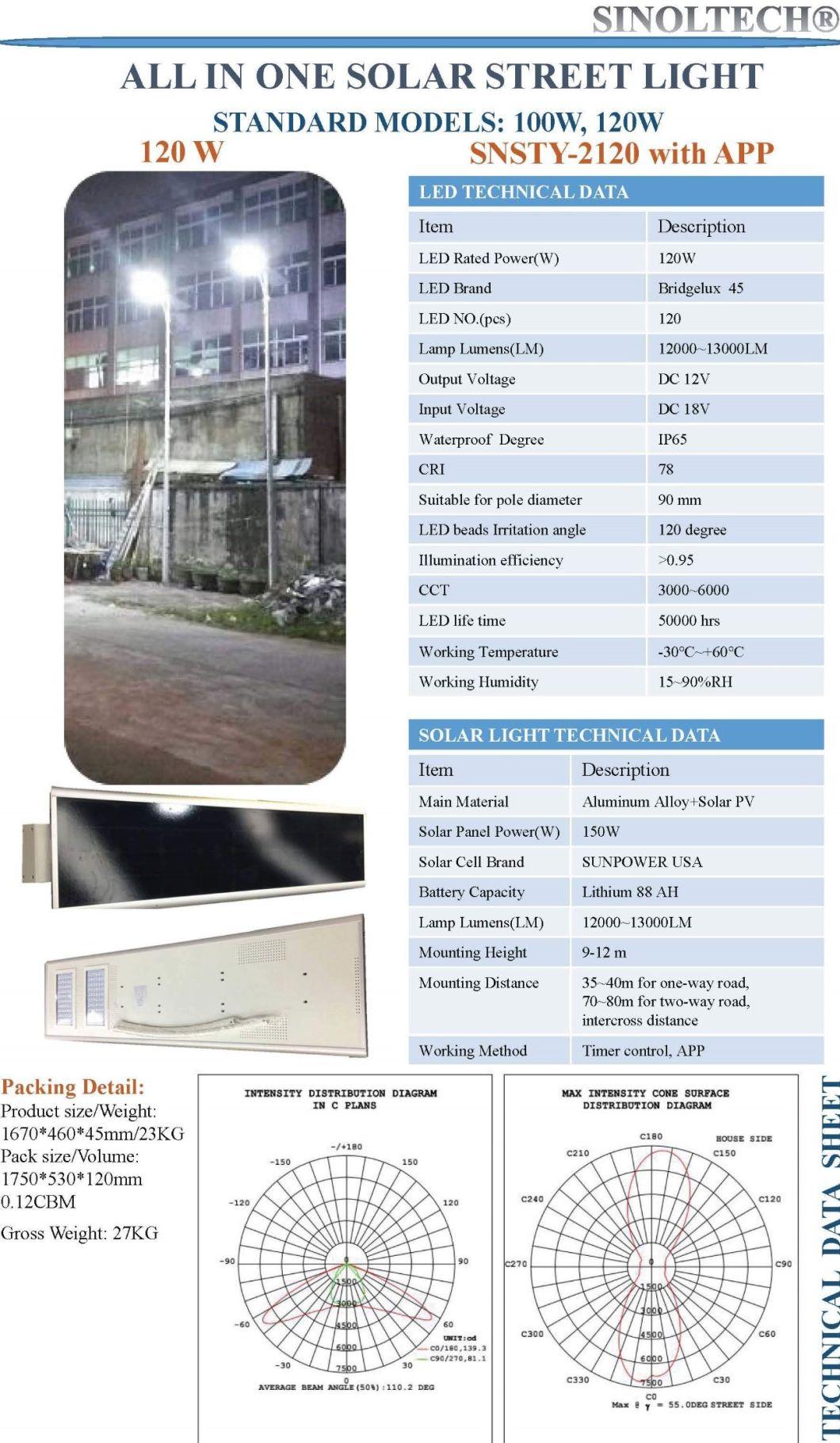

----TECHNICAL DATA SHEET:

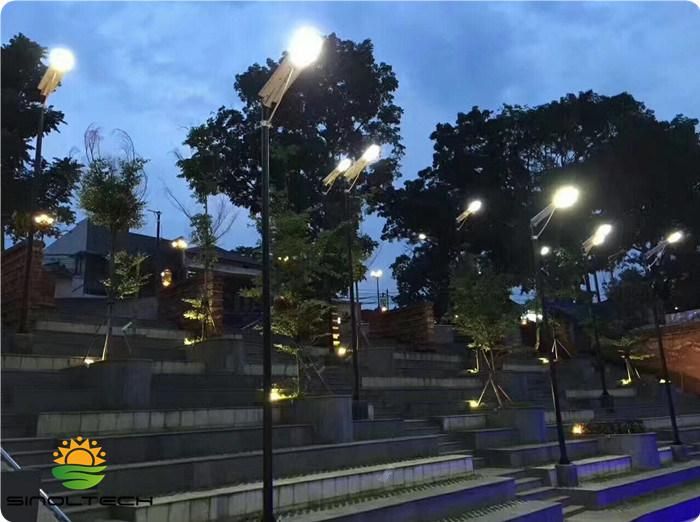

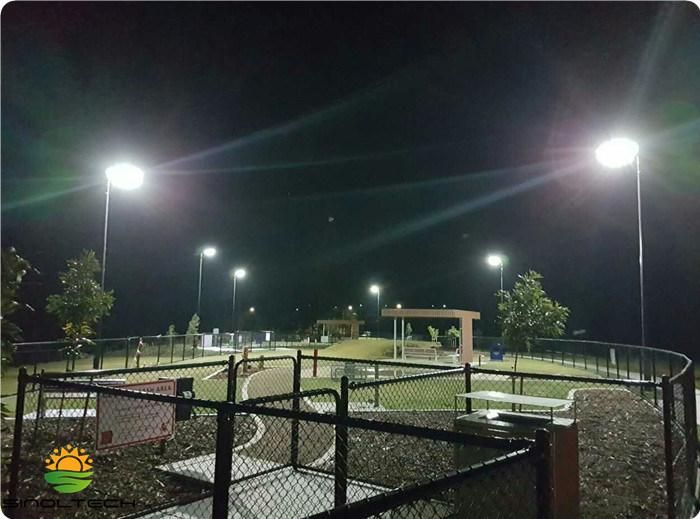

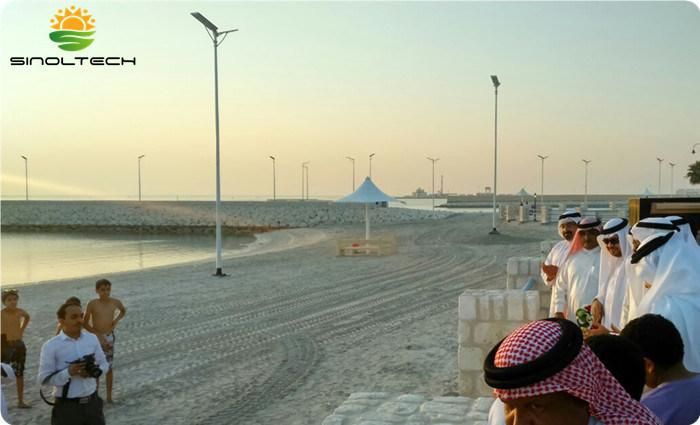

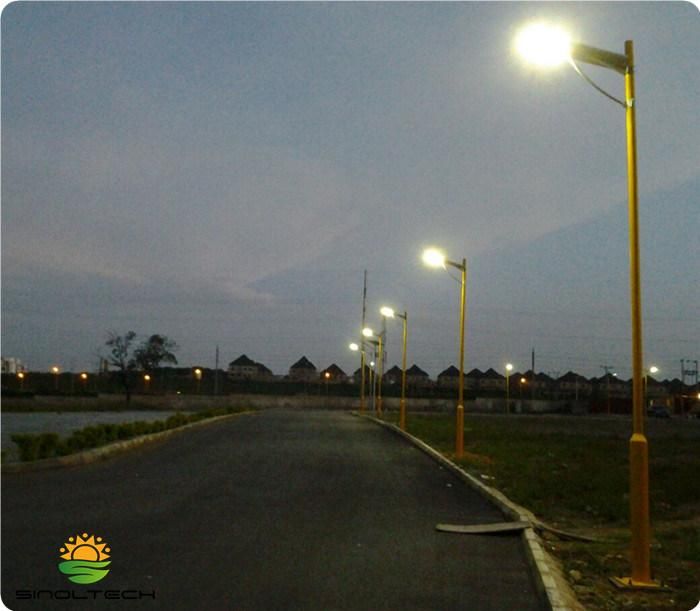

----Cases:
