• Model NO.：HY-CB55B
• Airflow Direction：Lateral Undershot-type
• Heating Mode：Diesel
• Paint Mist Treatment：Dry-type
• Condition：New
• Color：Red, Blue, White
• Panel：50,75mm EPS Foam Panel
• Grate：2rows
• Diamond Plates：3rows
• Ramp：2pieces
• Heating System：Gas, Diesel, Oil, Used Oil, Electric
• Filter System：4-Stage Filtration System
• Upper Light：Available
• Side Light：Optional
• Control Box：English Panel
• Standard Voltage：380V,3f&220V,1f@50Hz
• Control：Automatic
• Drawing：Available
• User Manual：Available
• Related Product：Large Truck Paint Spray Booth
• Transport Package：Proper Packing Suitable for Sea Shipment
• Specification：25cbm for a 20ft container loading.
• Trademark：Hongyuan
• Origin：Shandong, China
• Production Capacity：100 Set Per Month

Basic Info.

Model NO. HY-CB55B Airflow Direction Lateral Undershot-type Heating Mode Diesel Paint Mist Treatment Dry-type Condition New Color Red, Blue, White Panel 50/75mm EPS Foam Panel Grate 2rows Diamond Plates 3rows Ramp 2pieces Heating System Gas, Diesel, Oil, Used Oil, Electric Filter System 4-Stage Filtration System Upper Light Available Side Light Optional Control Box English Panel Standard Voltage 380V/3f&220V/1f@50Hz Control Automatic Drawing Available User Manual Available Related Product Large Truck Paint Spray Booth Transport Package Proper Packing Suitable for Sea Shipment Specification 25cbm for a 20ft container loading. Trademark Hongyuan Origin Shandong, China Production Capacity 100 Set Per Month

Product Description

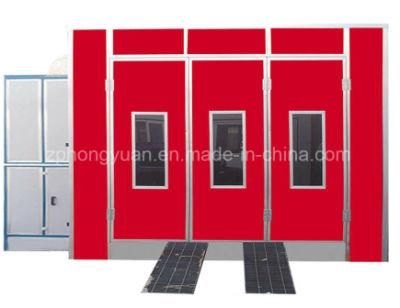

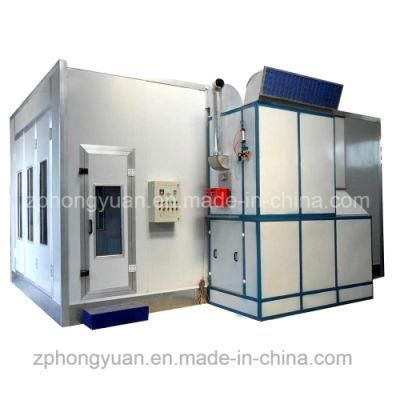

Introduction of the Auto paint spray booth for car and minivan with diesel Burner and heat insulation panel
1. full-down draft paint booth:
2. semi-down draft paint booth:
3. side-down draft paint booth:
4. cross-draft paint booth:

Quick Specification of the Auto paint spray booth for car and minivan with diesel Burner and heat insulation panel

Model	HY-CB55B
Outside Size(mm)	7000(L)*4000(W)*3400(H)
Inside Size(mm)	6900(L)*3900(W)*2700(H)
Front Door(mm)	3000*2600(W*H)
Side Door(mm)	650*1800(W*H)
Total power	<16kW
Voltage status	380V/3ph&220V/1ph@50Hz
Wall Panel	50mm EPS foam panel
Ceiling panel	Galvanized steel
Basement&floor	Raised metal-base (300mm high) with 2row of grates and 3rows of diamond plates.
Intake	TWO sets of fan, motor: 4kW.
Exhaust	One set of fan, motor: 5.5kW.
By-pass	Pneumatic damper from spraying to baking cycle
Heating System(Oil)	Italy Riello one-stage oil burner./electric heating system/Riello gas burner.

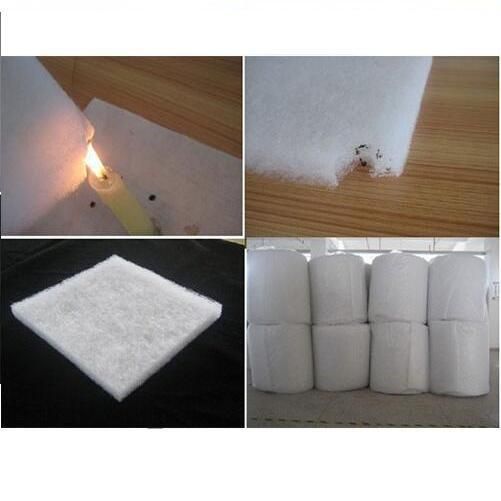

Filter System	4 stages of filters: Pre-filter, ceiling filter, floor paint-stop filter, extract paint-stop filter
Lighting	Upper lights, 8units, 4*36W each.
Control System	1set.

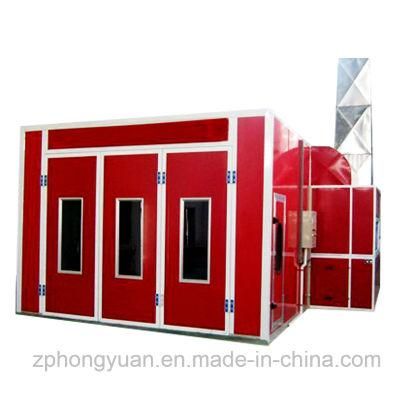

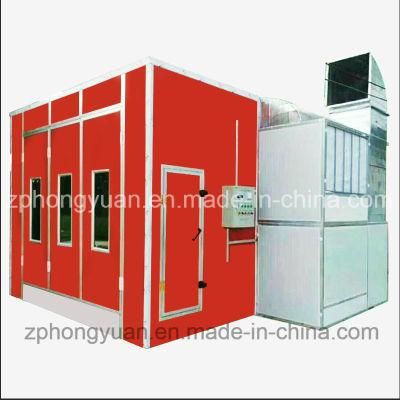

Picture of the Auto paint spray booth for car and minivan with diesel Burner and heat insulation panel

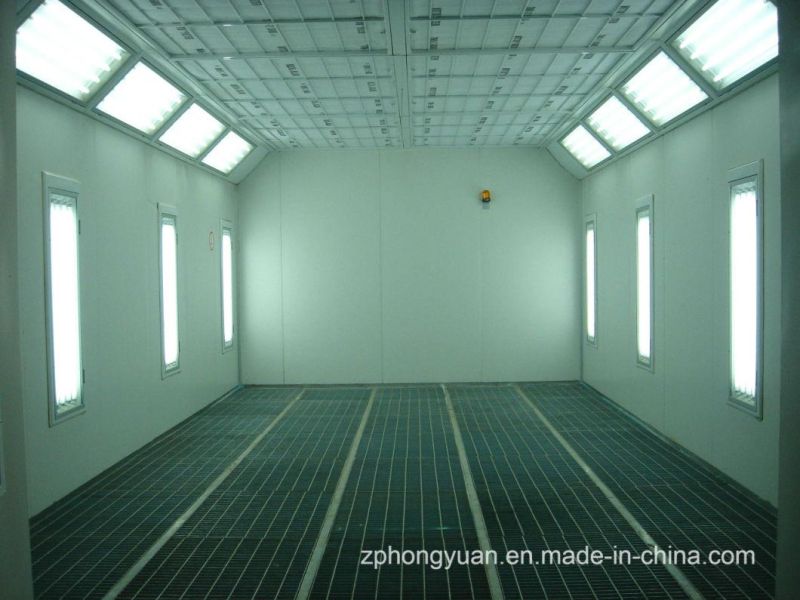

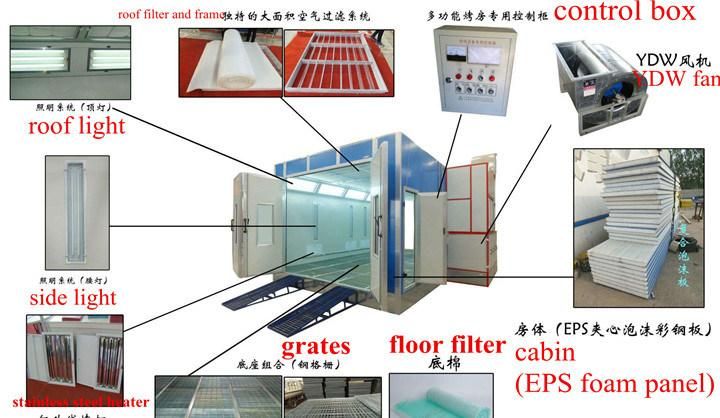

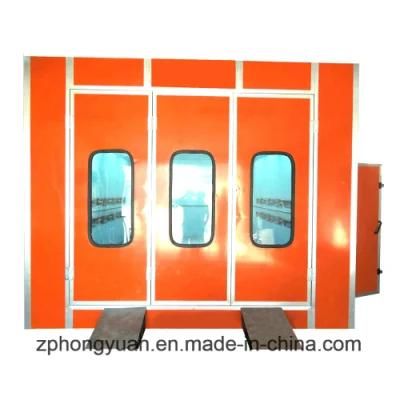

details show of paint booth

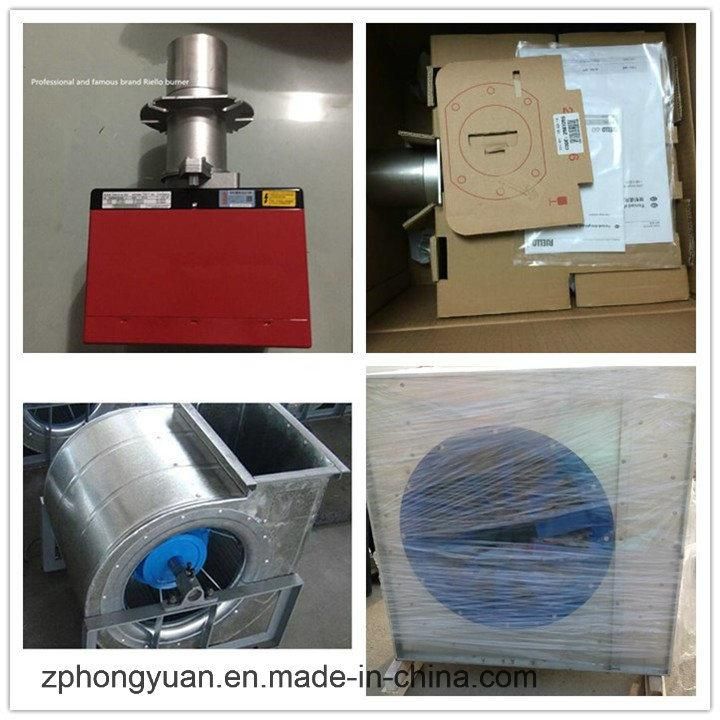

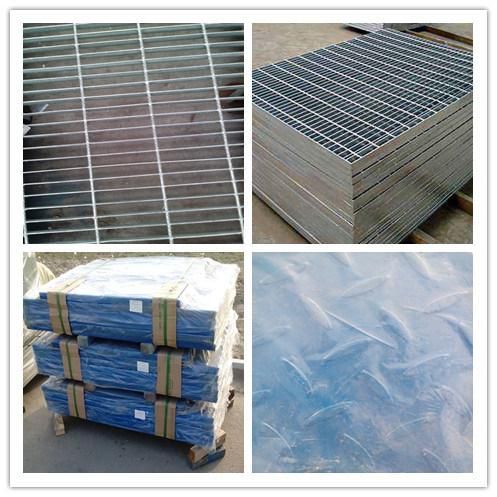

parts show of paint booth




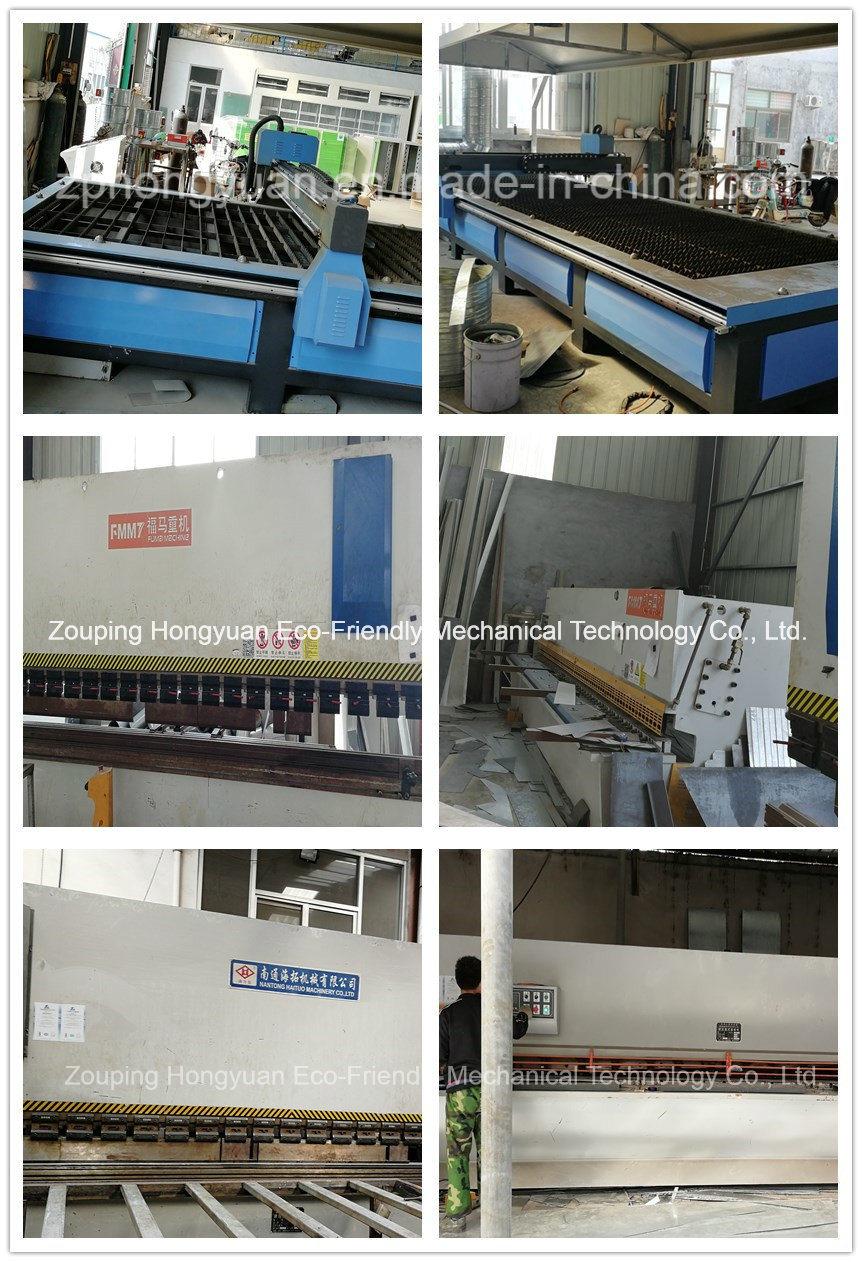

Production area and equipment for Car Auto Paint Spray Booth with Intake and Exhaust Fan

Project case for paint booth

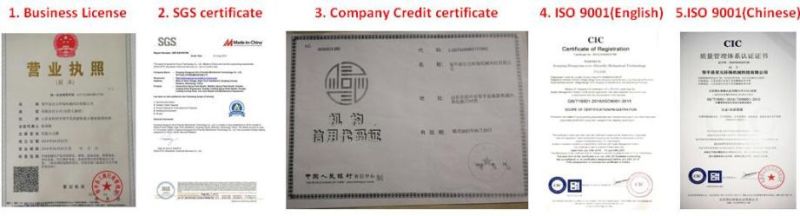

Certificate of our product and company
